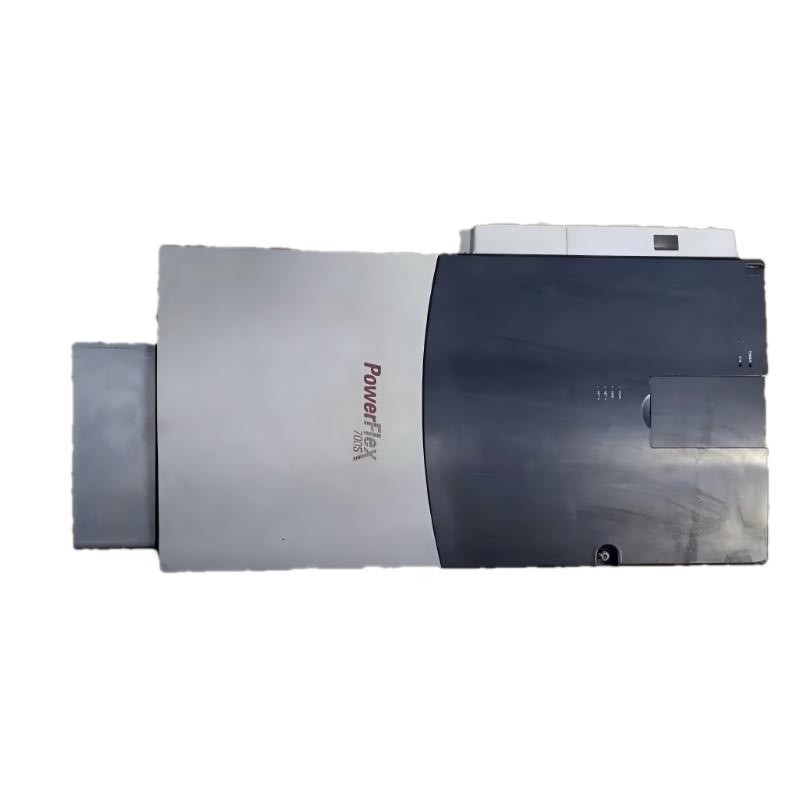

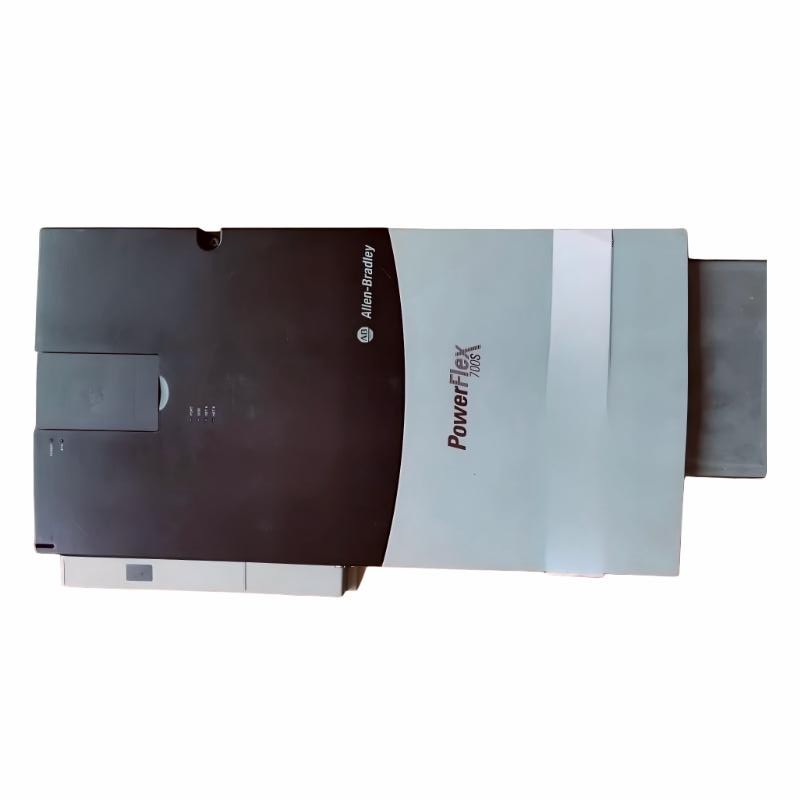

Allen Bradley 20DC125A0ENNANANE PowerFlex 700S AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Allen-Bradley PowerFlex 700S AC Drive |
| Model | 20DC125A0ENNANANE |
| Drive Series | PowerFlex 700S |
| Input Voltage | 400 V AC, 3-phase, 50 Hz |
| Input Voltage Range | 325–528 V AC |
| DC Bus Nominal Voltage | 540 V DC |
| DC Bus Overvoltage Trip | 810 V DC |
| Output Current, Continuous | 125 A |
| Output Current, 1 min | 138 A |
| Output Current, 3 sec | 163 A |
| Normal Duty Power | 55 kW |
| Heavy Duty Power | 45 kW |
| Frame Size | Frame 5 |
| Maximum Output Frequency | 400 Hz |
| Maximum Output Voltage | 932 V |
| Control | Phase II Control, Expanded Cassette |
| Motor Control | Field-oriented control with or without feedback; permanent magnet motor control |
| Feedback Option | Future use |
| Carrier Frequency | Drive rating: 4 kHz; selectable 2, 4, 6, 8, 10 kHz |
| Digital Inputs | 6 |
| Digital Outputs | 2 |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Communication Module | No internal communication module |
| EMC Filtering | EMC filter and common-mode choke |
| Brake IGBT | Without |
| Internal Brake Resistor | No |
| Enclosure | IP20 / NEMA Type 1 / UL Type 1 |
| Input Current | 121.1 A at 400 V AC, 3-phase, normal duty |
| Input Power | 83.9 kVA at 400 V AC, 3-phase |
| Efficiency | 97.5% at rated current and nominal line voltage |
| Displacement Power Factor | 0.98 |
| Motor Overload Protection | Class 10 |
| Overload Capability | 110% for up to 1 min; 150% for up to 3 sec |
| Current Limit | 105% of motor rated current up to 200% of drive rated current |
| Acceleration/Deceleration | 0–6553.5 s, adjustable in 0.1 s increments |
| Stop Modes | Programmable RA, Coast, Current Limit and other stop modes |
| Power Ride-Through | 15 ms at full load |
| Encoder Supply | 5 V DC or 12 V DC, 320 mA/channel |
| Operating Temperature | 0–40°C without derating; up to 50°C under specified conditions |
| Storage Temperature | -40°C |
| Relative Humidity | 5–95% non-condensing |
| Maximum Altitude | 1000 m without derating |
| Sound Level | Approximately 71 dB at 200 CFM fan speed |
| Dimensions | 758.8 x 251.9 x 201.7 mm |
| Weight | 37.19 kg |
FAQ
1. What is the rated output current of the Allen-Bradley 20DC125A0ENNANANE?
The 20DC125A0ENNANANE has a continuous output current rating of 125 A. It is rated for 55 kW under normal-duty operation and 45 kW under heavy-duty operation at the specified 400 V AC input conditions.
2. What input power supply does the 20DC125A0ENNANANE require?
This PowerFlex 700S drive is designed for a three-phase 400 V AC power supply at 50 Hz. Its operating input voltage range is approximately 325–528 V AC, with the drive rated for the 380–400 V class.
3. What type of motor control does the PowerFlex 700S 20DC125A0ENNANANE support?
The drive uses Phase II control and supports field-oriented motor control, including operation with or without feedback. It can also be configured for permanent magnet motor applications where the application and motor parameters are suitable.
4. Does the 20DC125A0ENNANANE include an internal braking resistor?
No. This model does not include an internal brake resistor and does not have an integrated brake IGBT. If dynamic braking is required, the braking system must be designed using compatible external components and the appropriate PowerFlex configuration.
5. How should an overcurrent fault on the 20DC125A0ENNANANE be diagnosed?
Start by checking motor current, motor cable connections, motor insulation, acceleration time, load inertia and current-limit settings. Excessively short acceleration times or mechanical overload can cause the drive to reach its current limit or trigger an overcurrent condition. The motor nameplate data and drive parameters should also be verified.
6. What should be checked if the PowerFlex 700S does not start the motor?
Check the incoming three-phase supply, DC bus condition, start command, enable signal, digital input configuration and programmed reference source. Also verify that no active fault or inhibit condition is preventing operation. If an encoder or other feedback device is used, its wiring and feedback configuration should be checked as well.
7. What is the maximum output frequency of the 20DC125A0ENNANANE?
The maximum output frequency is 400 Hz. The actual operating frequency should be selected according to the motor’s rated characteristics, mechanical limits, application requirements and programmed drive parameters.
8. What protection features are available on the 20DC125A0ENNANANE?
The drive provides electronic motor overload protection, output phase-to-phase short-circuit protection, phase-to-ground fault detection, DC bus undervoltage and overvoltage monitoring, heat-sink temperature monitoring and software-based current limiting. These functions help protect both the drive and motor during abnormal operating conditions.
