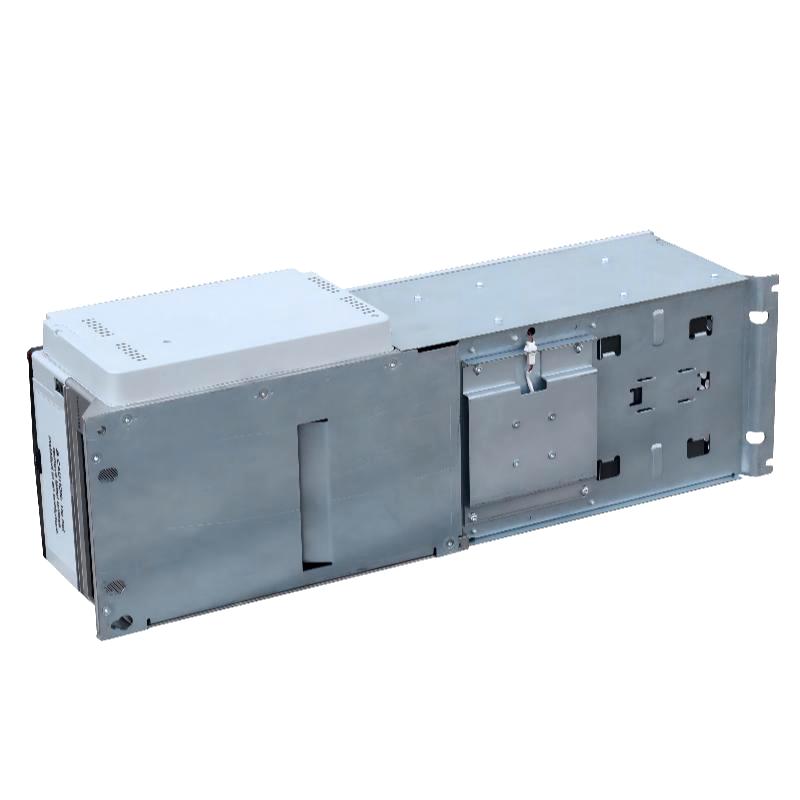

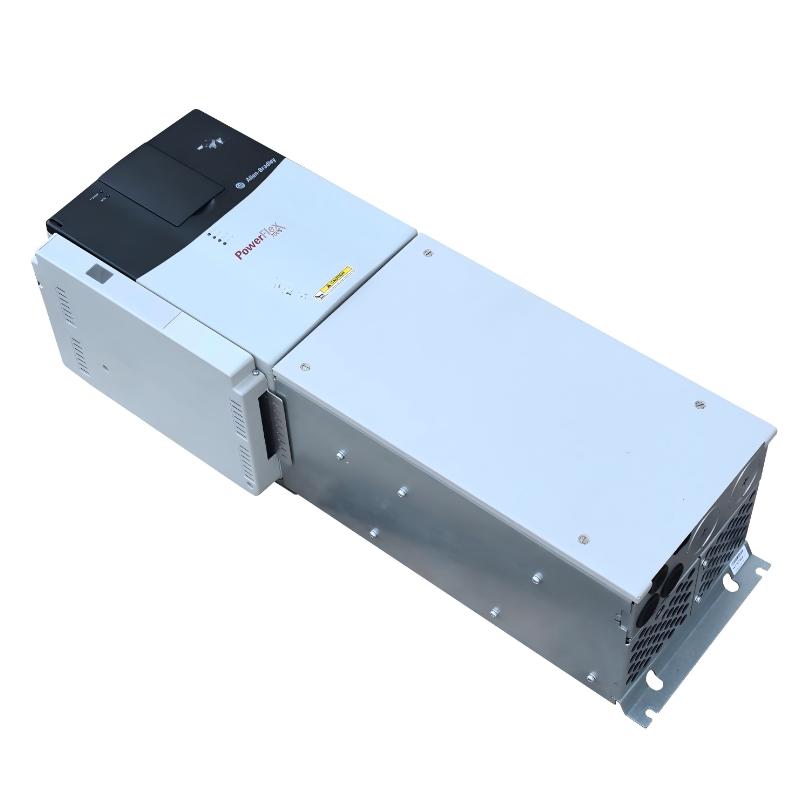

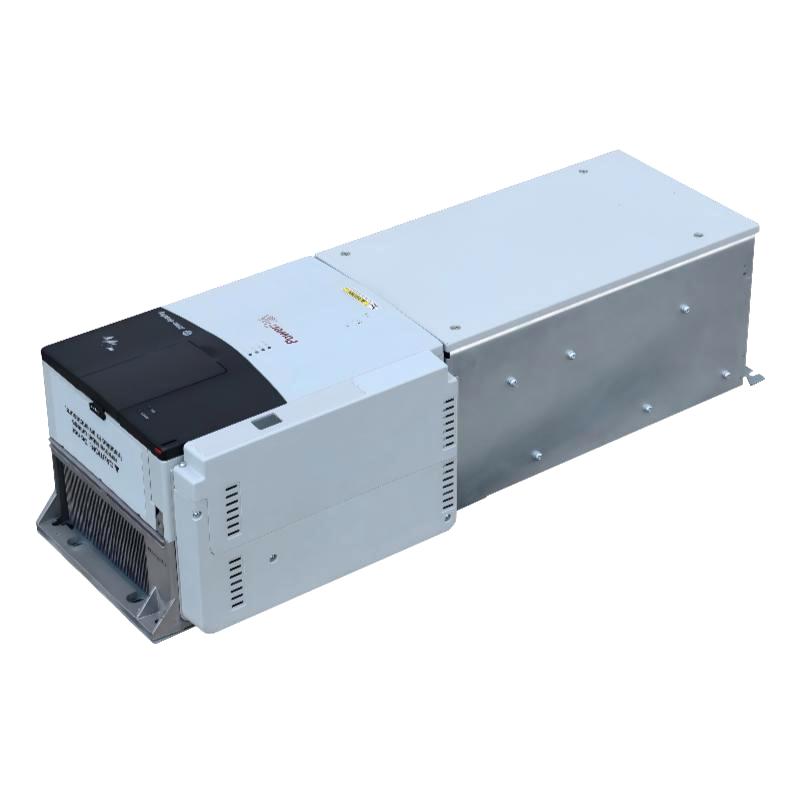

Allen Bradley 20DC170A0ENNANANE PowerFlex 700S AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Allen-Bradley PowerFlex 700S AC Drive |
| Model | 20DC170A0ENNANANE |
| Drive Series | PowerFlex 700S |
| Input Voltage | 400 V AC, 3-phase, 50 Hz |
| Input Voltage Range | 325–528 V AC |
| DC Bus Nominal Voltage | 540 V DC |
| DC Bus Overvoltage Trip | 810 V DC |
| Continuous Output Current | 170 A |
| Output Current, 1 min | 280 A |
| Output Current, 3 sec | 280 A |
| Normal Duty Power | 90 kW |
| Heavy Duty Power | 75 kW |
| Frame Size | Frame 6 |
| Maximum Output Frequency | 400 Hz |
| Maximum Output Voltage | 932 V |
| Control | Phase II Control, Expanded Cassette |
| Motor Control | Field-oriented control with or without feedback; permanent magnet motor control |
| Feedback Option | Future Use |
| Carrier Frequency | 2, 4, 6, 8, 10 kHz; drive-rated carrier frequency 4 kHz |
| Digital Inputs | 6 |
| Digital Outputs | 2 |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Internal Communication Module | None |
| EMC Filtering | EMC filter and common-mode choke |
| Brake IGBT | None |
| Internal Brake Resistor | None |
| Enclosure | IP20 / NEMA Type 1 / UL Type 1 |
| Input Current | 164.6 A at 400 V AC, 3-phase |
| Input Power | 94 kVA at 400 V AC, 3-phase |
| Efficiency | Approximately 97.5% |
| Displacement Power Factor | 0.98 |
| Motor Overload Protection | Class 10 |
| Overload Capability | 110% for up to 1 min; 150% for up to 3 sec |
| Current Limit | Adjustable from 105% of motor rated current up to 200% of drive rated current |
| Acceleration/Deceleration Time | 0–6553.5 s, adjustable in 0.1 s increments |
| S-Curve Time | 0.5–4.0 s |
| Stop Modes | RA, Coast, Current Limit and other programmable stop modes |
| Power Ride-Through | 15 ms at full load |
| Encoder Supply | 5 V DC or 12 V DC, 320 mA/channel |
| Operating Temperature | 0–40°C without derating; up to 50°C under specified conditions |
| Storage Temperature | -40°C |
| Relative Humidity | 5–95%, non-condensing |
| Maximum Altitude | 1000 m without derating |
| Dimensions | 825.0 x 435.8 x 275.5 mm |
| Weight | 71.44 kg |
FAQ
1. What is the rated output current of the Allen-Bradley 20DC170A0ENNANANE?
The 20DC170A0ENNANANE has a continuous output current rating of 170 A. It is rated for 90 kW under normal-duty operation and 75 kW under heavy-duty operation, making it suitable for high-power industrial motor applications.
2. What input power supply is required for the 20DC170A0ENNANANE?
The PowerFlex 700S 20DC170A0ENNANANE is designed for a three-phase 400 V AC, 50 Hz power supply. The applicable input voltage range is 325–528 V AC. Proper upstream protection and cable sizing should be selected according to the actual installation conditions.
3. What motor control methods are supported by the PowerFlex 700S 20DC170A0ENNANANE?
The drive uses Phase II control and supports field-oriented motor control with or without feedback. It can also support permanent magnet motor control when the motor and application are properly configured.
4. Does the 20DC170A0ENNANANE have an internal braking resistor?
No. This model does not include an internal braking resistor or an integrated brake IGBT. Applications with frequent deceleration or high regenerative energy require an appropriately designed external braking solution.
5. How can an overcurrent fault on the 20DC170A0ENNANANE be diagnosed?
Check the motor cables for short circuits, ground faults, loose connections, and insulation problems. The mechanical load should also be inspected for excessive torque or binding. If the fault occurs during acceleration, check whether the acceleration time is too short and verify the motor parameters and current-limit settings.
6. What should be checked if the 20DC170A0ENNANANE does not start the motor?
First check the incoming power, DC bus status, start command, Enable signal, digital input configuration, and active fault conditions. Make sure no external interlock or programmed inhibit is preventing operation. For systems using feedback, also verify the encoder power supply, wiring, and feedback parameters.
7. What overload capability does the 20DC170A0ENNANANE provide?
The drive supports approximately 110% of rated current for up to 1 minute and 150% of rated current for up to 3 seconds under the specified operating conditions. The correct normal-duty or heavy-duty rating should be selected based on the application’s load profile.
8. How can operating temperature and fault risk be reduced on a PowerFlex 700S 20DC170A0ENNANANE?
Ensure that the control cabinet has adequate ventilation and that air intake and exhaust paths remain unobstructed. Keep the drive within its specified temperature and humidity range and protect it from excessive dust, oil mist, and corrosive contaminants. Regular inspection of cooling fans, electrical connections, and the DC bus system can also help prevent overheating and unexpected shutdowns.
Allen Bradley 20DC170A0ENNANANE PowerFlex 700S AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
