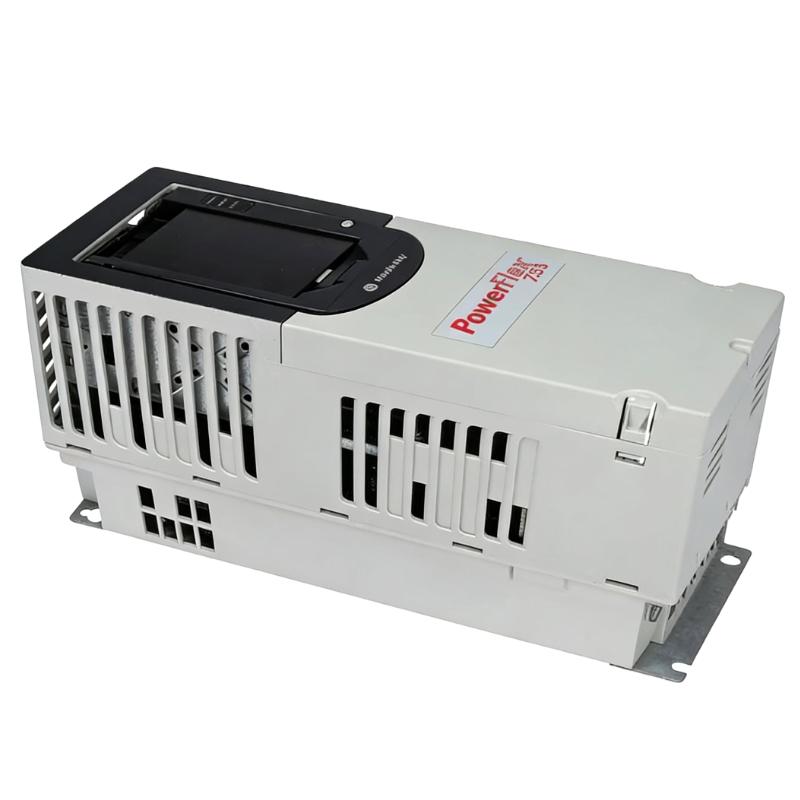

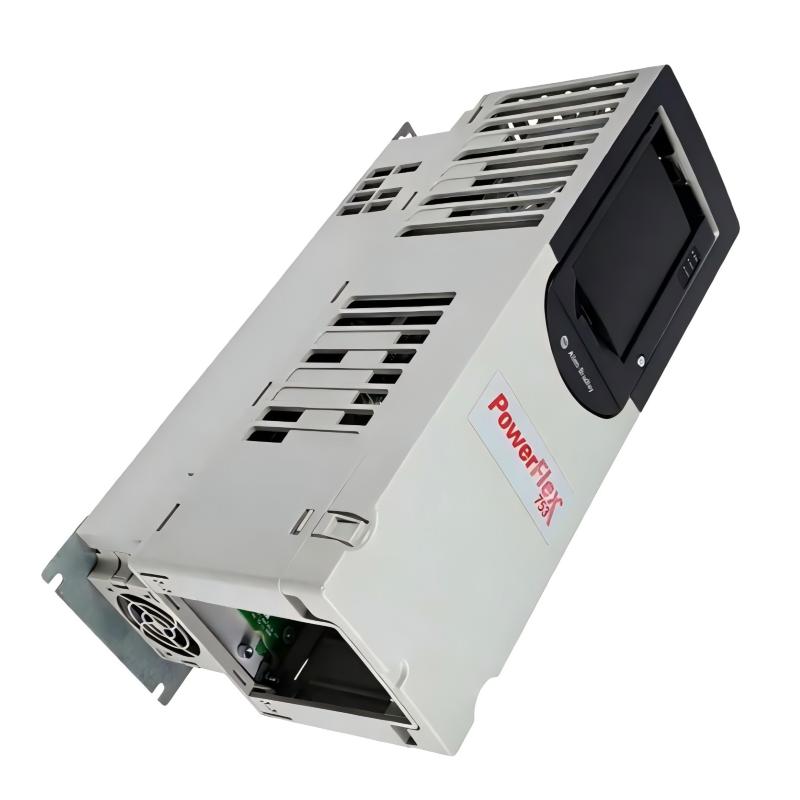

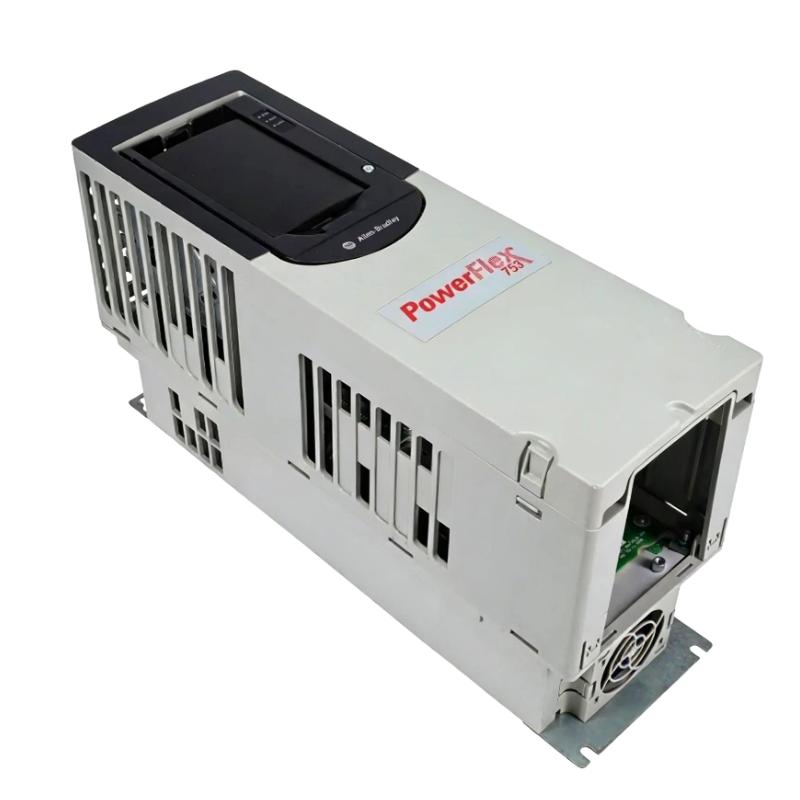

Allen Bradley 20F11NC022AAONNNNN PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 20F11NC022AAONNNNN |
| Product Type | PowerFlex 753 AC Drive |
| Product Series | Allen-Bradley PowerFlex 753 Series |
| Main Function | Variable frequency drive for motor speed, torque, and industrial automation control |
| Input Voltage | 400 VAC, 3-phase |
| Input Voltage Range | 380 to 480 VAC |
| Input Frequency | 50/60 Hz |
| Output Current | 22 A |
| Normal Duty Power Rating | 11 kW (15 HP) |
| Heavy Duty Power Rating | 7.5 kW (10 HP) |
| Output Phase | 3-phase |
| Frame Size | Frame 2 |
| Control Type | Embedded I/O control with flexible drive configuration |
| Input Type | AC input with DC terminals |
| Enclosure Type | IP20 / IP00, NEMA/UL Open Type |
| Cooling Method | Forced air cooling |
| EMC Filtering | Filtered configuration with common mode jumper installed |
| Dynamic Braking | Built-in dynamic braking transistor |
| Brake Resistor | External braking resistor required |
| Human Interface Module (HIM) | Not included, blank cover configuration |
| Embedded I/O | Included |
| Communication Capability | Supports optional communication modules for industrial networks |
| Safety Functions | Supports optional safety-related functions through compatible modules |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 260 × 140 × 210 mm (10.24 × 5.51 × 8.27 in.) |
| Weight | Approximately 5.0 kg (11.0 lb) |
| Mounting Method | Panel mounting |
| Application Areas | Conveyors, pumps, fans, material handling systems, machine automation, and industrial motor control applications |
FAQ
Q1: What is the main function of the 20F11NC022AAONNNNN?
A1: The 20F11NC022AAONNNNN is a PowerFlex 753 AC drive designed to provide adjustable motor speed, torque control, and energy-efficient operation in industrial automation systems.
Q2: What motor power rating does the 20F11NC022AAONNNNN support?
A2: The drive supports 11 kW (15 HP) for normal duty operation and 7.5 kW (10 HP) for heavy duty applications.
Q3: What type of power supply is required for this drive?
A3: The 20F11NC022AAONNNNN requires a three-phase 400 VAC power supply and is suitable for industrial voltage systems within the 380 to 480 VAC range.
Q4: Does the 20F11NC022AAONNNNN include dynamic braking capability?
A4: Yes. The drive includes a built-in dynamic braking transistor, allowing connection to an external braking resistor for applications requiring fast motor deceleration.
Q5: Is a Human Interface Module included with this model?
A5: No. This model is supplied without a HIM module and uses a blank cover configuration. A compatible interface module can be added separately if required.
Q6: What communication options are available for the 20F11NC022AAONNNNN?
A6: The drive supports optional communication modules, enabling integration with various industrial automation networks based on system requirements.
Q7: What are typical applications for the 20F11NC022AAONNNNN?
A7: Common applications include conveyor systems, pumps, fans, packaging equipment, production machinery, and other industrial systems requiring reliable variable speed motor control.
Q8: How can users troubleshoot faults on the 20F11NC022AAONNNNN?
A8: Troubleshooting should include checking input power, motor wiring, drive parameters, fault codes, communication settings, cooling conditions, and installation requirements.
Allen Bradley 20F11NC022AAONNNNN PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
