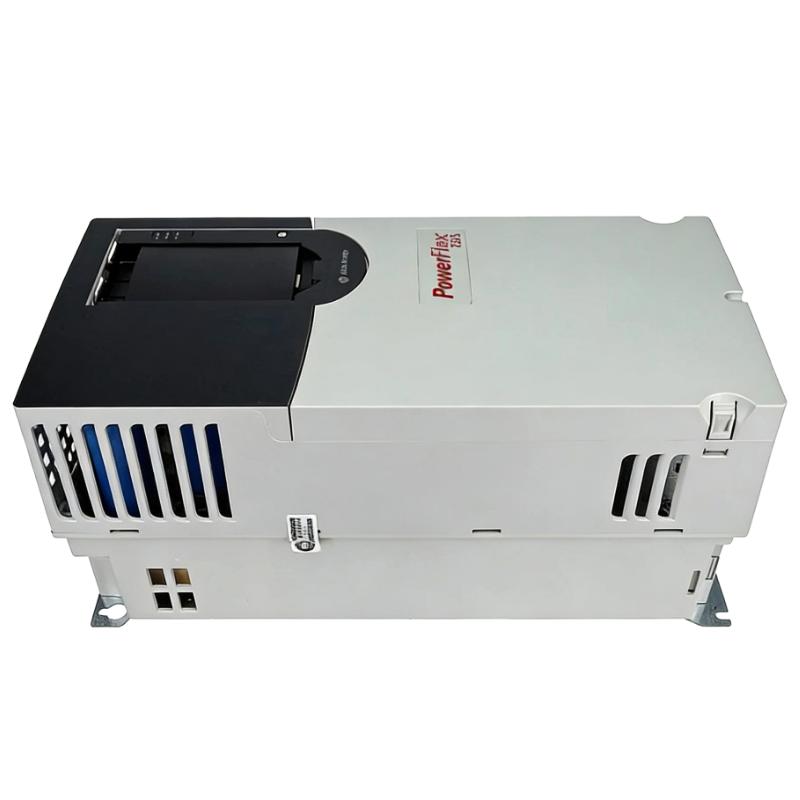

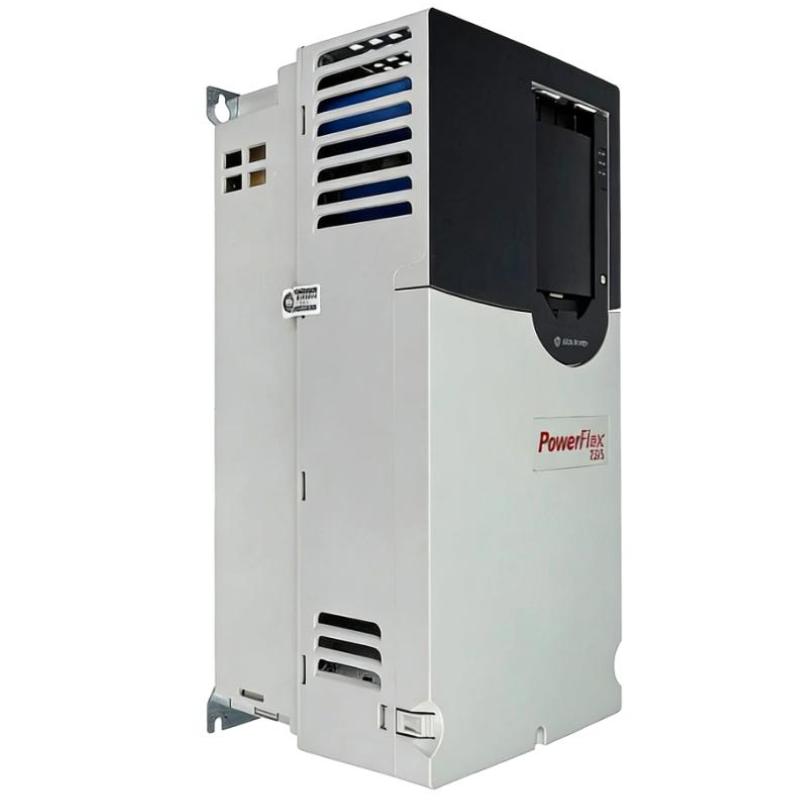

Allen Bradley 20F11NC043 PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 20F11NC043 |
| Product Type | PowerFlex 753 AC Drive |
| Product Series | Allen-Bradley PowerFlex 753 Series |
| Main Function | Variable frequency drive for motor speed, torque control, and industrial automation applications |
| Input Voltage | 400 VAC, 3-phase |
| Input Voltage Range | 380 to 480 VAC |
| Input Frequency | 50/60 Hz |
| Input Type | AC input with precharge and DC terminals |
| Output Current | 43 A |
| Normal Duty Power Rating | 22 kW (30 HP) |
| Heavy Duty Power Rating | 18.5 kW (25 HP) |
| Output Phase | 3-phase |
| Frame Size | Frame 3 |
| Control Type | Vector Control with adjustable speed and torque management |
| Enclosure Type | IP20 / NEMA Open Type |
| Cooling Method | Forced air cooling |
| EMC Filtering | Integrated EMC filter |
| Dynamic Braking | Built-in braking transistor support |
| Brake Resistor | External braking resistor required |
| Human Interface Module (HIM) | Not included, blank cover configuration |
| Embedded I/O | Included |
| Communication Capability | Supports optional industrial communication modules |
| Safety Function Support | Supports optional safety functions through compatible modules |
| Mounting Method | Panel mounting |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 350 × 220 × 210 mm (13.78 × 8.66 × 8.27 in.) |
| Weight | Approximately 5.0 kg (11.0 lb) |
| Application Areas | Industrial machinery, conveyors, pumps, fans, material handling systems, and automated production equipment |
FAQ
Q1: What is the main function of the 20F11NC043?
A1: The 20F11NC043 is a PowerFlex 753 AC drive designed to provide adjustable motor speed, torque control, and efficient operation for industrial automation systems.
Q2: What motor power rating does the 20F11NC043 support?
A2: The drive supports 22 kW (30 HP) under normal duty operation and 18.5 kW (25 HP) under heavy duty applications.
Q3: What type of power supply is required for the 20F11NC043?
A3: The drive requires a three-phase 400 VAC power supply and operates within the 380 to 480 VAC voltage range.
Q4: Does the 20F11NC043 support dynamic braking?
A4: Yes. The drive includes a built-in braking transistor, allowing connection to an external braking resistor for applications requiring rapid deceleration.
Q5: Is a Human Interface Module included with the 20F11NC043?
A5: No. This model does not include a HIM module and is supplied with a blank cover configuration. A compatible interface module can be installed separately if required.
Q6: Can the 20F11NC043 be connected to industrial communication networks?
A6: Yes. The drive supports optional communication modules for integration with industrial automation networks and control systems.
Q7: What applications are suitable for the 20F11NC043?
A7: Typical applications include conveyors, pumps, fans, production machinery, material handling systems, and other industrial equipment requiring variable speed motor control.
Q8: How can users troubleshoot issues with the 20F11NC043?
A8: Troubleshooting should include checking input power, motor wiring, parameter settings, fault codes, communication configuration, cooling conditions, and installation requirements.
Allen Bradley 20F11NC043 PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
