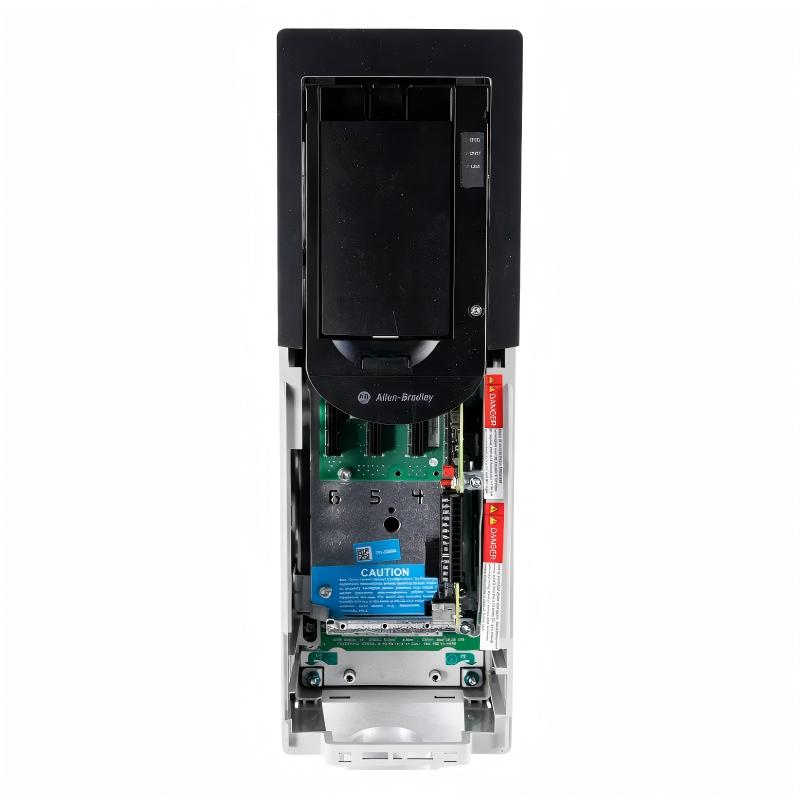

Allen Bradley 20F11ND3P4JA0NNNNN PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

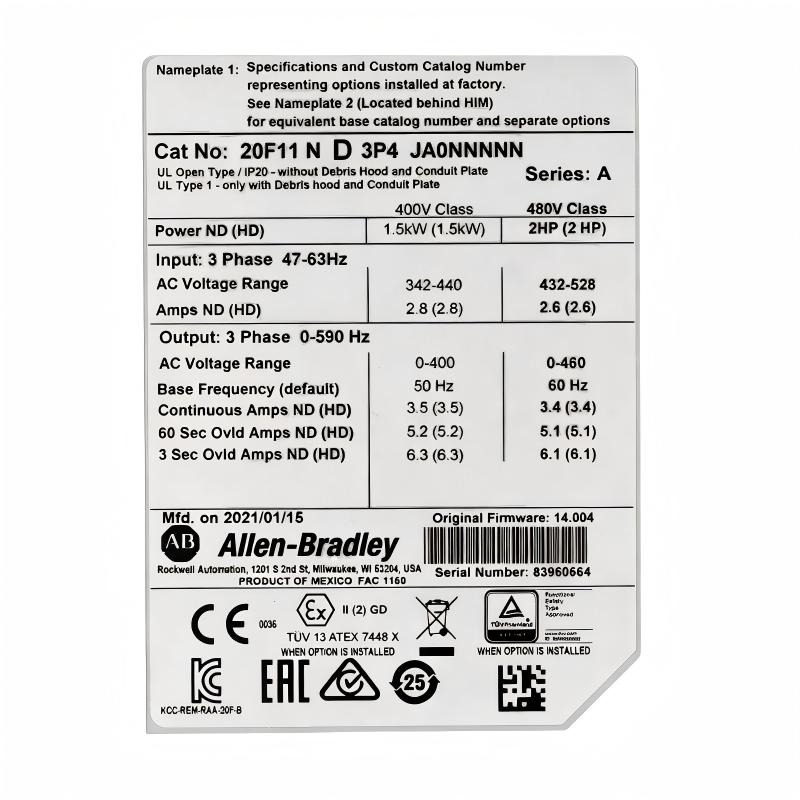

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 20F11ND3P4JA0NNNNN |
| Product Type | AC Drive |
| Series | PowerFlex 753 |
| Brand | Allen-Bradley |
| Drive Type | 3-Phase Air-Cooled AC Drive |
| Input Voltage | 480 VAC, 3-Phase |
| DC Bus Voltage | 650 VDC |
| Output Current | 3.4 A |
| Normal-Duty Power | 2 HP |
| Heavy-Duty Power | 2 HP |
| Frame Size | Frame 2 |
| Input Type | AC Input with Precharge and DC Terminals |
| Enclosure Type | IP20/IP00, NEMA/UL Open Type |
| Cooling Method | Forced Air |
| Embedded I/O | Included |
| EMC Filtering | Filtered |
| Common Mode Capacitor | Jumper Installed |
| Dynamic Braking | DB Transistor |
| HMI | No HIM |
| Control Type | Adjustable Frequency AC Drive |
| Application | Industrial Motor Speed and Torque Control |
| Dimensions | 424.2 × 134.5 × 212 mm |
| Weight | 7.8 kg |
FAQ
1. What is the output current of the Allen-Bradley 20F11ND3P4JA0NNNNN?
The PowerFlex 753 20F11ND3P4JA0NNNNN has a continuous output current rating of 3.4 A. This rating is suitable for smaller industrial motors and provides variable-frequency speed and torque control when the drive is correctly matched to the motor and application load.
2. What input voltage is required for the 20F11ND3P4JA0NNNNN?
This model is designed for a 480 VAC, three-phase input supply. The drive uses an AC input configuration with precharge and DC terminals. Before commissioning, the incoming power, grounding, protective devices, and wiring should be verified to ensure compatibility with the drive.
3. What motor power can the 20F11ND3P4JA0NNNNN support?
The drive is rated for 2 HP under both normal-duty and heavy-duty applications. Motor selection should be based on the motor’s rated current and the actual load requirements rather than horsepower alone. Starting torque, overload conditions, acceleration requirements, and duty cycle should also be considered.
4. Does the 20F11ND3P4JA0NNNNN include dynamic braking?
Yes. The drive includes a dynamic braking transistor. When connected to a properly sized external braking resistor, the braking circuit can dissipate regenerated energy during deceleration and help prevent excessive DC bus voltage during rapid stopping conditions.
5. What cooling method does the PowerFlex 753 20F11ND3P4JA0NNNNN use?
The drive uses forced-air cooling. The internal airflow system removes heat generated by the power electronics during operation. Proper ventilation and unobstructed airflow are important, particularly when the drive is installed inside an electrical enclosure or operates continuously under load.
6. What should be checked during commissioning of this PowerFlex 753 drive?
Commissioning should include verification of the 480 VAC supply, motor nameplate information, motor rated current, frequency, acceleration and deceleration times, current limits, motor protection settings, control mode, and start/stop configuration. A low-speed test should be performed first to confirm motor rotation and drive response.
7. What can cause an overcurrent fault on the 20F11ND3P4JA0NNNNN?
Overcurrent can be caused by excessive mechanical load, incorrect motor parameters, shorted motor wiring, insufficient acceleration time, motor faults, or an unsuitable motor-to-drive match. Troubleshooting should include checking the motor circuit, mechanical load, acceleration settings, and programmed motor data.
8. Can the 20F11ND3P4JA0NNNNN be integrated into an industrial automation system?
Yes. The PowerFlex 753 includes embedded I/O and is designed for integration into industrial motor-control systems. It can be used in applications such as conveyors, pumps, fans, small material-handling machines, packaging equipment, and automated machinery requiring adjustable motor speed and torque control.
Allen Bradley 20F11ND3P4JA0NNNNN PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
