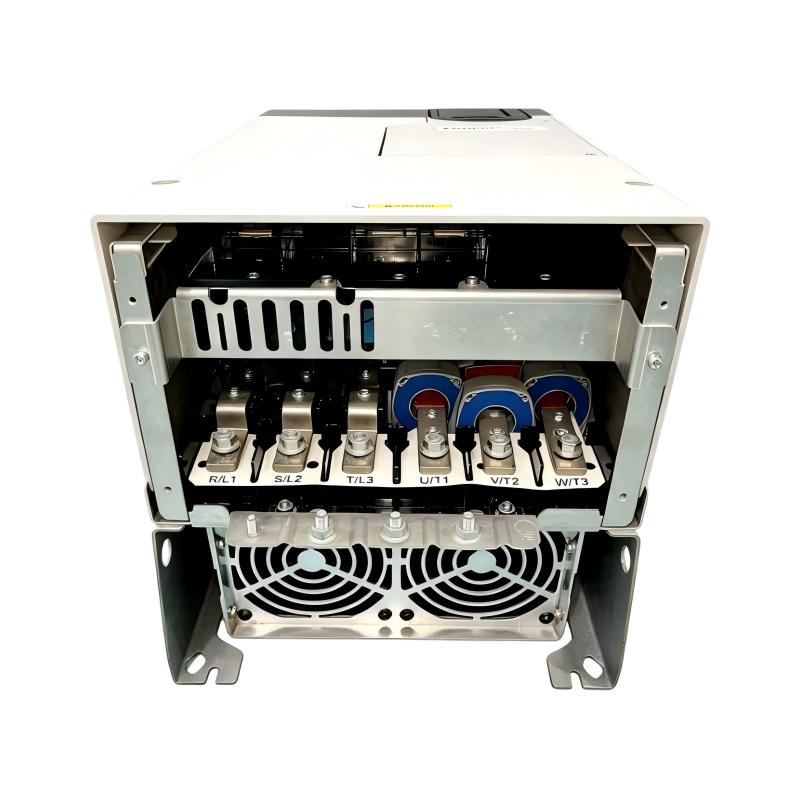

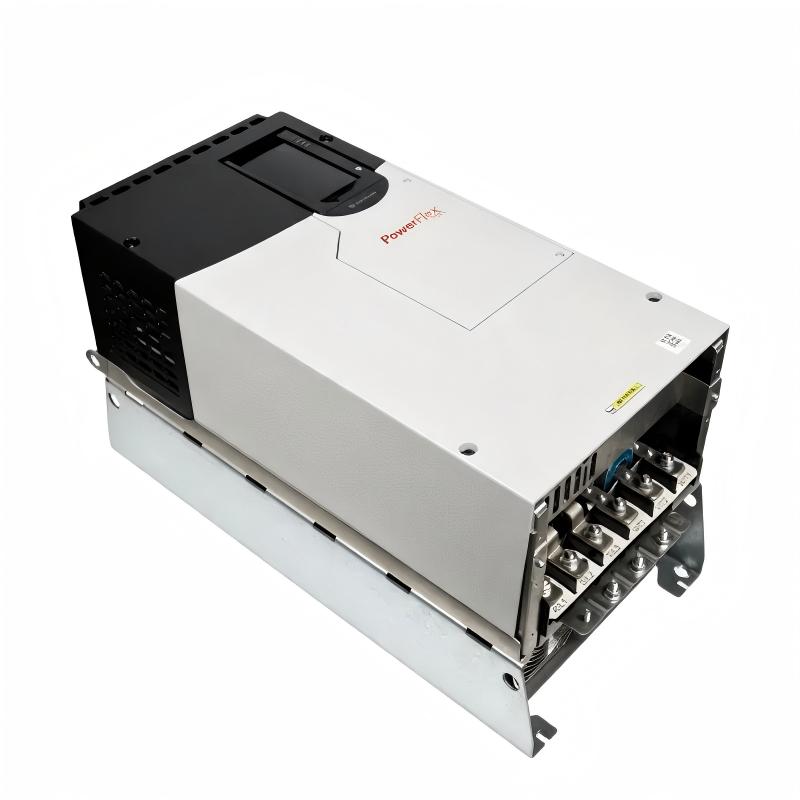

Allen Bradley 20F1ANC170AA0NNNNN PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F1ANC170AA0NNNNN |
| Product Series | PowerFlex 753 |
| Product Type | AC Drive |
| Input Voltage | 400 V AC |
| Input Phase | Three-phase |
| Rated Output Current | 170 A |
| Normal-Duty Power Rating | Approx. 90 kW |
| Heavy-Duty Power Rating | Approx. 75 kW |
| Input Type | AC input with precharge |
| Frame Size | Frame 6 |
| Cooling Method | Forced-air cooling |
| Enclosure Rating | IP20/IP00 |
| Enclosure Type | NEMA/UL Open Type |
| EMC Filtering | Supported |
| Dynamic Braking | Supported according to configuration |
| Embedded I/O | Supported |
| Operator Interface | HIM compatible |
| PID Control | Supported |
| Communication Expansion | Supported through PowerFlex 753 option modules |
| Motor Control | V/Hz, Sensorless Vector and Vector Control |
| Typical Applications | Conveyors, pumps, fans, compressors, material handling and industrial machinery |
| Dimensions | 665.5 × 308 × 346.4 mm |
| Weight | 38.6 kg |
FAQ
1. What is the rated output current of the Allen-Bradley 20F1ANC170AA0NNNNN?
The rated output current of this PowerFlex 753 drive is 170 A. Motor selection should be based on the motor nameplate current and the required duty rating, rather than relying only on the motor power rating.
2. What motor power range is suitable for the 20F1ANC170AA0NNNNN?
The drive provides approximately 90 kW under normal-duty conditions and approximately 75 kW under heavy-duty conditions. The actual motor selection should consider starting torque, overload requirements, acceleration time, and the continuous load profile.
3. What type of power supply does this PowerFlex 753 drive require?
The 20F1ANC170AA0NNNNN is designed for three-phase 400 V AC input power and includes an AC input precharge arrangement. The incoming power system should be properly protected and sized for the drive and installation conditions.
4. Which motor control methods are available?
The PowerFlex 753 platform supports control methods including V/Hz, sensorless vector, and vector control, depending on the configured application and available options. The appropriate mode should be selected according to the required speed regulation and torque response.
5. Can the 20F1ANC170AA0NNNNN control high-inertia loads?
Yes. It can be applied to high-inertia machinery when the drive rating and application requirements are properly matched. Acceleration and deceleration parameters should be configured according to the load inertia, and braking requirements should be evaluated when rapid stopping is required.
6. Can this drive be integrated with a PLC or DCS system?
Yes. Communication capability can be expanded through compatible PowerFlex 753 communication option modules. This allows control commands, speed references, operating status, alarms, and diagnostic information to be exchanged with PLC, DCS, or other industrial control systems.
7. What should be checked when an overcurrent fault occurs?
Check the motor cables for short circuits or grounding problems, verify motor parameter settings, and inspect the mechanical load for excessive resistance or blockage. The acceleration time should also be reviewed. If the motor requires high starting torque, the selected control mode and motor data should be verified.
8. What should be checked before commissioning the 20F1ANC170AA0NNNNN?
Verify the three-phase input supply, motor wiring, grounding, motor nameplate data, control wiring, I/O configuration, communication settings, and operating limits. Perform an initial low-speed test to confirm motor rotation, current, acceleration response, and fault status before running the equipment under full load.
Allen Bradley 20F1ANC170AA0NNNNN PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
