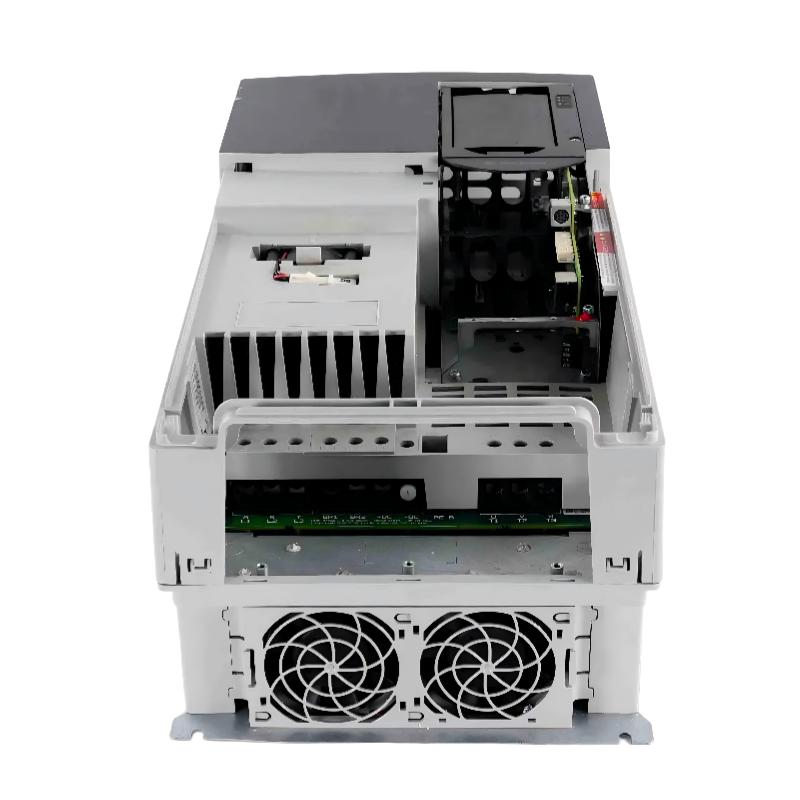

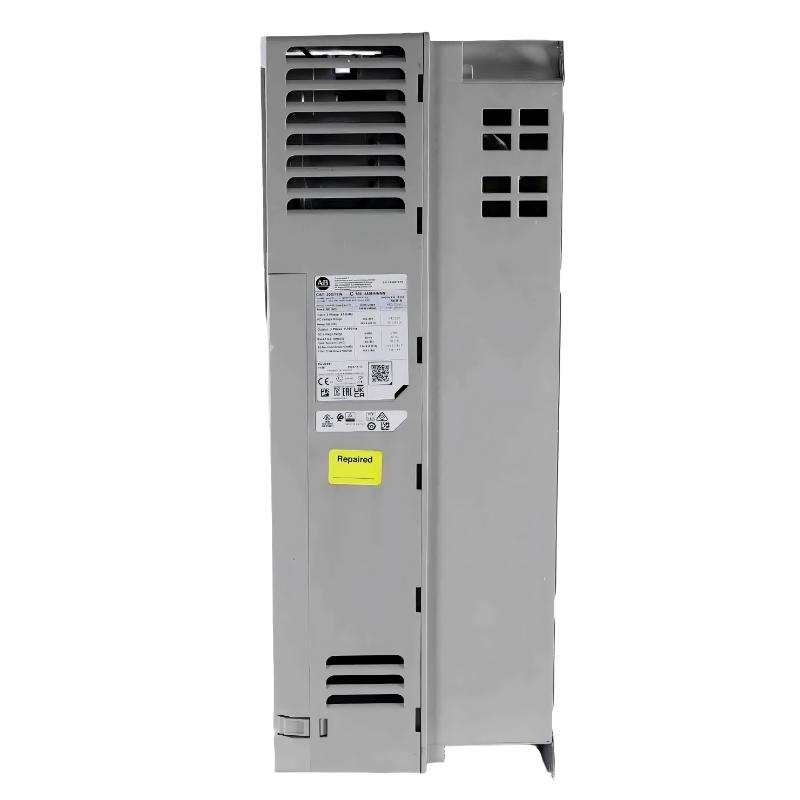

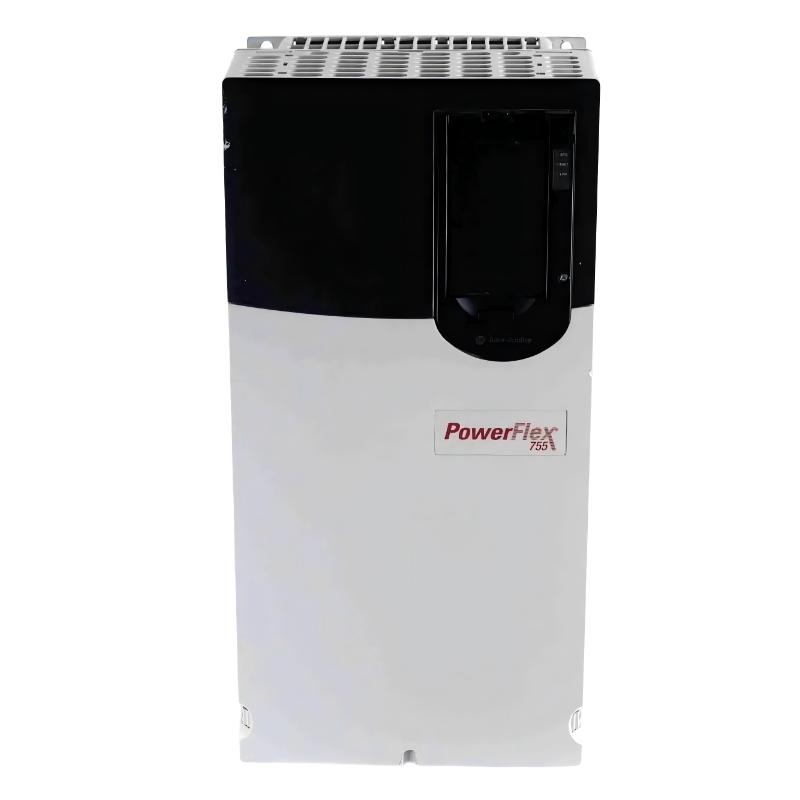

Allen Bradley 20G1AND1250AA0NNNNN PowerFlex 755 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 20G1AND1250AA0NNNNN |
| Product Type | PowerFlex 755 AC Drive |
| Product Series | Allen-Bradley PowerFlex 755 Series |
| Main Function | High-performance variable frequency drive for motor speed control, torque regulation, and industrial automation applications |
| Input Voltage | 480 VAC, 3-phase |
| Input Voltage Range | 380 to 480 VAC |
| Input Frequency | 50/60 Hz |
| Input Type | AC input with precharge, no DC terminals |
| Output Current | 125 A |
| Normal Duty Power Rating | 75 kW (100 HP) |
| Heavy Duty Power Rating | 55 kW (75 HP) |
| Output Phase | 3-phase |
| Frame Size | Frame 6 |
| Control Type | Sensorless Vector Control, Vector Control, Closed Loop Control, PID Control |
| Drive Platform | PowerFlex 755 AC Drive |
| Communication Interface | Embedded EtherNet/IP communication support |
| Enclosure Type | Open Type (IP00 / NEMA Open Type) |
| Cooling Method | Forced air cooling |
| EMC Filtering | Integrated EMC filter |
| Common Mode Jumper Configuration | Jumper removed |
| Dynamic Braking | Built-in dynamic braking transistor |
| Brake Resistor | External braking resistor required |
| Human Interface Module (HIM) | Not included, blank cover configuration |
| Embedded I/O | Included |
| Safety Function Support | Supports optional safety functions through compatible modules |
| Mounting Method | Panel mounting |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 665 × 308 × 346 mm (26.2 × 12.1 × 13.6 in.) |
| Weight | Approximately 90.7 kg (200 lb) |
| Application Areas | Large conveyors, compressors, pumps, fans, material handling systems, production machinery, and industrial process control equipment |
FAQ
Q1: What is the main function of the 20G1AND1250AA0NNNNN?
A1: The 20G1AND1250AA0NNNNN is a PowerFlex 755 AC drive designed for high-power motor control applications, providing precise speed regulation, torque management, and flexible integration into industrial automation systems.
Q2: What motor power rating does the 20G1AND1250AA0NNNNN support?
A2: The drive supports 100 HP under normal duty operation and 75 HP under heavy duty conditions.
Q3: What type of power supply is required for the 20G1AND1250AA0NNNNN?
A3: The drive requires a three-phase 480 VAC power supply and is designed for industrial electrical systems operating within the 380 to 480 VAC range.
Q4: Does the 20G1AND1250AA0NNNNN support dynamic braking?
A4: Yes. The drive includes a built-in dynamic braking transistor, allowing connection to an external braking resistor for applications requiring controlled motor deceleration.
Q5: Is a Human Interface Module included with the 20G1AND1250AA0NNNNN?
A5: No. This model is supplied without a HIM module and uses a blank cover configuration. A compatible interface module can be installed separately if required.
Q6: Can the 20G1AND1250AA0NNNNN be integrated into industrial automation networks?
A6: Yes. The PowerFlex 755 platform supports industrial communication options, including EtherNet/IP integration, for connection with PLC systems and automation networks.
Q7: What applications are suitable for the 20G1AND1250AA0NNNNN?
A7: Typical applications include heavy-duty conveyors, large pumps, fans, compressors, material handling equipment, and industrial processing machinery requiring reliable high-power motor control.
Q8: How can users troubleshoot issues with the 20G1AND1250AA0NNNNN?
A8: Troubleshooting should include checking input power, motor wiring, drive parameters, fault codes, communication settings, cooling performance, and installation conditions.
