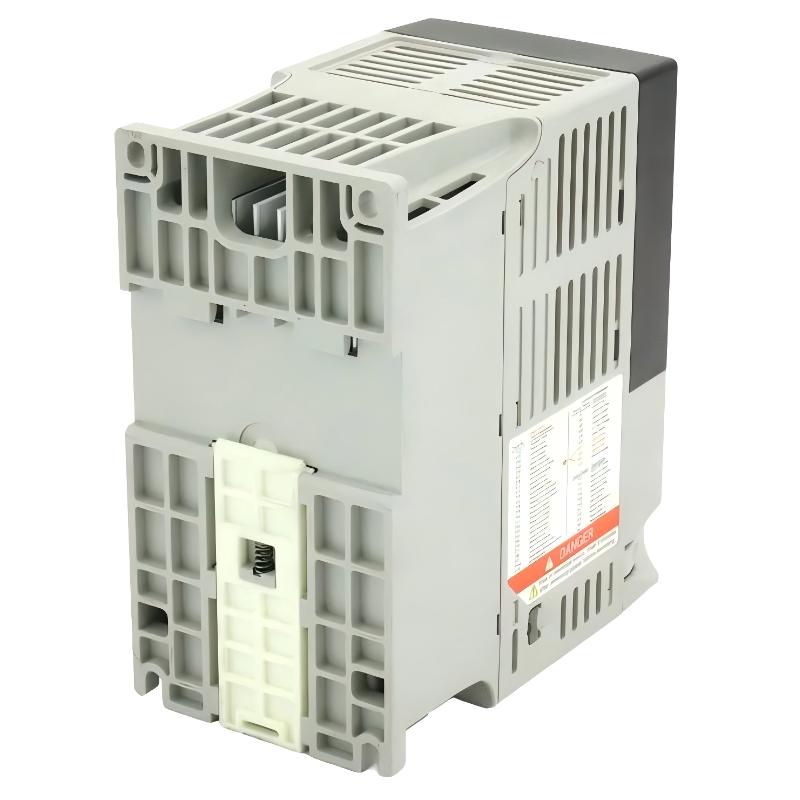

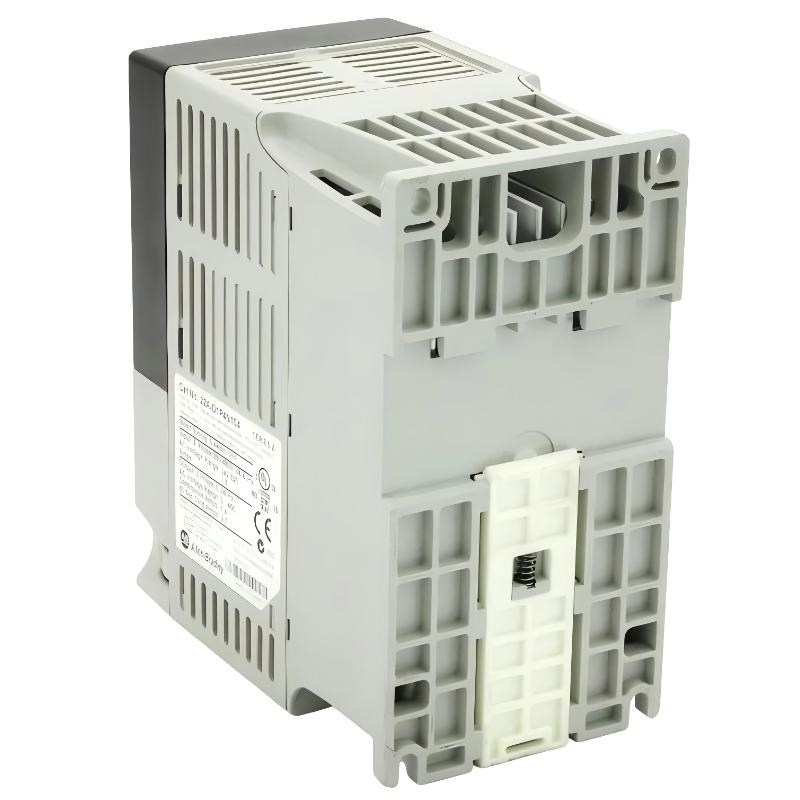

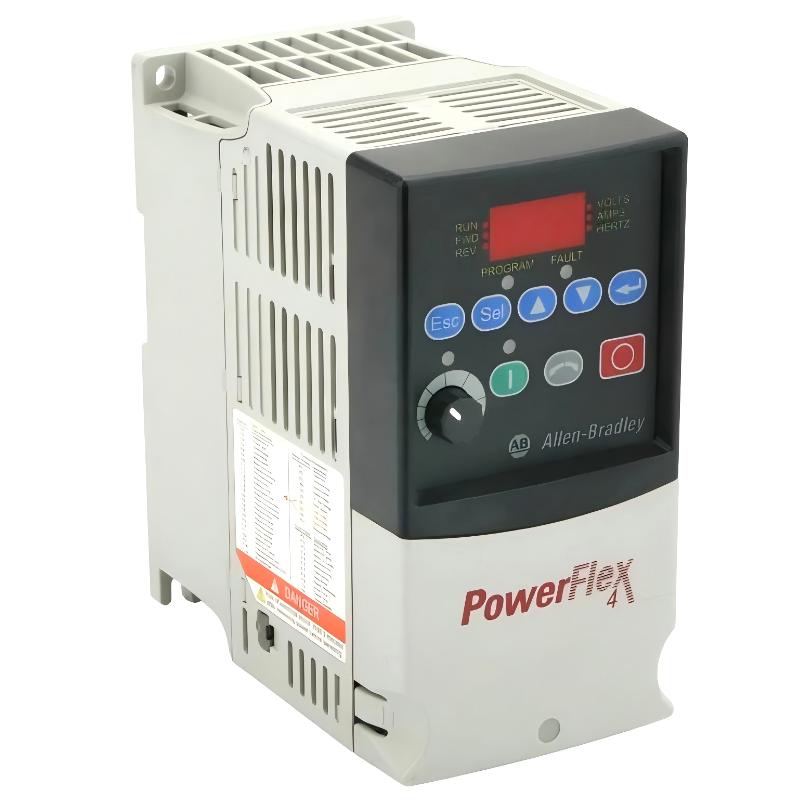

Allen Bradley 22A-D2P3H204 PowerFlex 4 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 22A-D2P3H204 |
| Product Type | PowerFlex 4 AC Drive |
| Product Series | Allen-Bradley PowerFlex 4 Series |
| Main Function | Compact variable frequency drive for basic motor speed control and industrial automation applications |
| Input Voltage | 480 VAC, 3-phase |
| Input Voltage Range | 380 to 480 VAC |
| Input Frequency | 50/60 Hz |
| Output Current | 2.3 A |
| Motor Power Rating | 0.75 kW (1 HP) |
| Output Phase | 3-phase |
| Frame Size | Frame A |
| Control Method | Sensorless Vector Control, Volts/Hertz Control |
| Enclosure Type | IP20 / NEMA Open Type |
| Mounting Type | Panel mounting |
| Cooling Method | Natural air cooling |
| EMC Filtering | Optional EMC filter available |
| Dynamic Braking | Built-in brake transistor support |
| Communication Interface | RS-485 communication |
| Keypad Display | Integral LED keypad display |
| Protection Functions | Overvoltage, undervoltage, overcurrent, overload, short circuit, and motor protection |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 185 × 72 × 140 mm (7.28 × 2.83 × 5.51 in.) |
| Weight | Approximately 1.1 kg (2.4 lb) |
| Application Areas | Small conveyors, fans, pumps, machine tools, packaging equipment, and general industrial motor control systems |
FAQ
Q1: What is the main function of the 22A-D2P3H204?
A1: The 22A-D2P3H204 is a PowerFlex 4 AC drive designed for compact motor speed control and basic industrial automation applications.
Q2: What motor power rating does the 22A-D2P3H204 support?
A2: The drive supports motors up to 0.75 kW (1 HP) with a rated output current of 2.3 A.
Q3: What type of power supply is required for the 22A-D2P3H204?
A3: The drive requires a three-phase 480 VAC power supply and operates at 50/60 Hz frequency.
Q4: Does the 22A-D2P3H204 support dynamic braking?
A4: Yes. The drive includes a built-in brake transistor, allowing connection to an external braking resistor for applications requiring faster motor stopping.
Q5: Does the 22A-D2P3H204 support communication functions?
A5: Yes. The drive supports RS-485 communication for integration with compatible industrial control systems.
Q6: What control methods are available on the 22A-D2P3H204?
A6: The drive supports Volts/Hertz control and sensorless vector control for improved motor speed and torque performance.
Q7: What applications are suitable for the 22A-D2P3H204?
A7: Typical applications include small conveyors, fans, pumps, machine tools, packaging systems, and other equipment requiring reliable variable speed motor control.
Q8: How can users troubleshoot faults on the 22A-D2P3H204?
A8: Troubleshooting should include checking input power, motor connections, parameter settings, load conditions, fault codes, cooling conditions, and communication wiring.
Allen Bradley 22A-D2P3H204 PowerFlex 4 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
