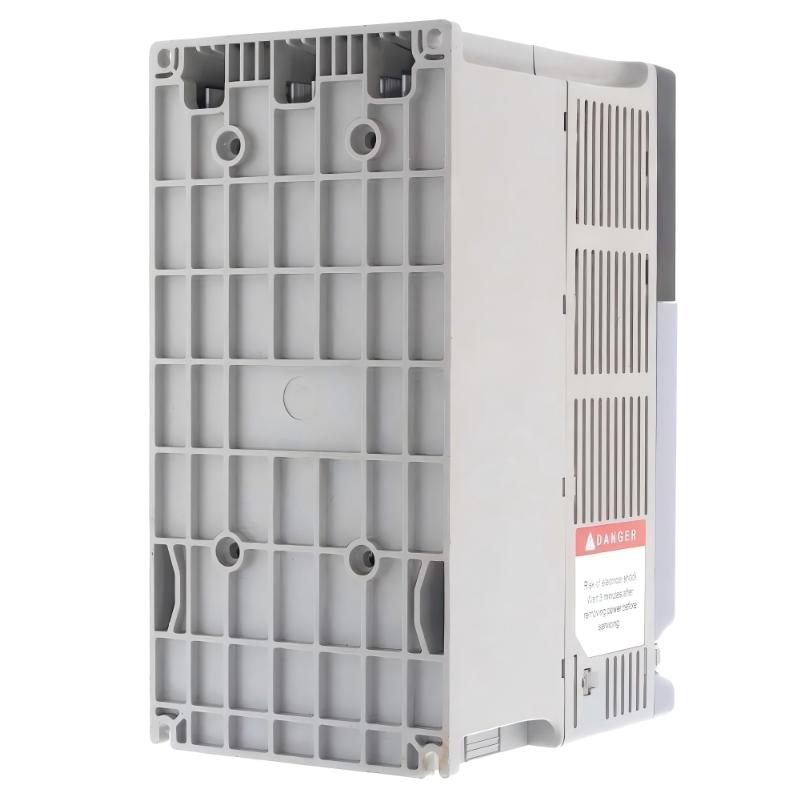

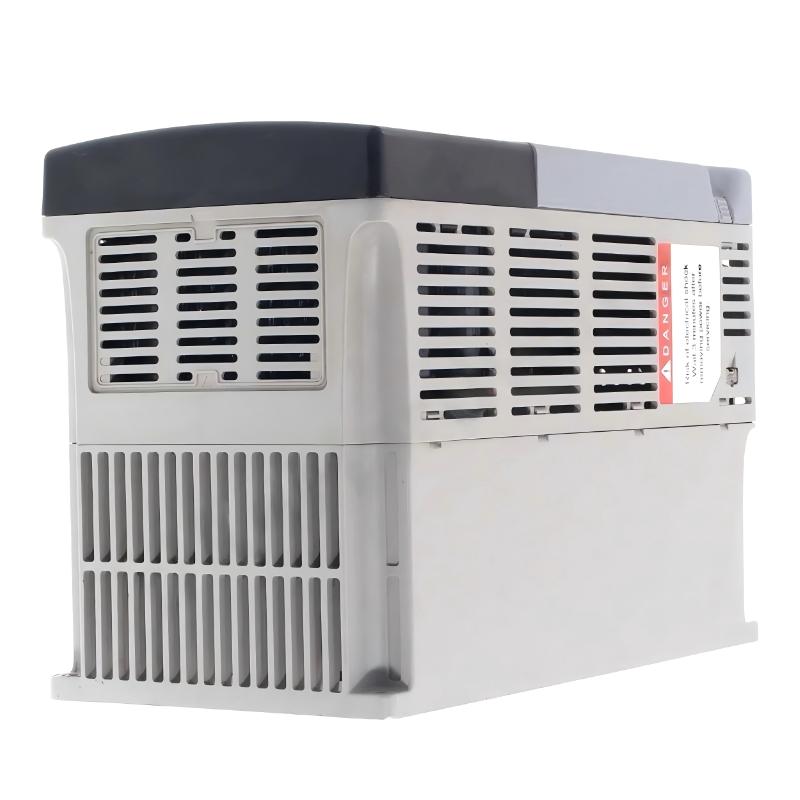

Allen Bradley 22C-D022N103 PowerFlex 400 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 22C-D022N103 |
| Product Type | PowerFlex 400 AC Drive |
| Product Series | Allen-Bradley PowerFlex 400 Series |
| Main Function | Adjustable frequency AC drive designed for fan, pump, and general industrial motor speed control applications |
| Input Voltage | 480 VAC, 3-phase |
| Input Voltage Range | 342 to 528 VAC |
| Input Frequency | 50/60 Hz |
| Input Phase | 3-phase |
| Output Current | 22 A |
| Motor Power Rating | 11 kW (15 HP) |
| Output Voltage | 0 to 460 VAC |
| Output Frequency Range | 0 to 320 Hz |
| Frame Size | Frame C |
| Control Method | V/Hz Control, Slip Compensation, Process PID Control |
| Enclosure Type | IP20 / NEMA Open Type |
| Mounting Method | Panel Mount |
| Cooling Method | Forced air cooling |
| Human Interface Module (HIM) | Integral LED keypad display |
| Communication Interface | Built-in RS-485 communication |
| Optional Communication | Supports optional industrial network modules |
| Embedded I/O | Digital inputs, relay outputs, analog inputs and analog outputs |
| Dynamic Braking | No built-in brake IGBT |
| Protection Functions | Overcurrent, overload, overvoltage, undervoltage, short circuit, and motor protection |
| Power Factor | Approximately 0.98 |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 260 × 130 × 180 mm (10.24 × 5.12 × 7.09 in.) |
| Weight | Approximately 6.3 kg (13.9 lb) |
| Application Areas | Fans, pumps, HVAC systems, conveyors, water treatment equipment, and industrial motor control systems |
FAQ
Q1: What is the main function of the 22C-D022N103?
A1: The 22C-D022N103 is a PowerFlex 400 AC drive designed for motor speed control and energy-efficient operation in fan, pump, and industrial automation applications.
Q2: What motor power rating does the 22C-D022N103 support?
A2: The drive supports motors up to 11 kW (15 HP) with a rated output current of 22 A.
Q3: What type of power supply is required for the 22C-D022N103?
A3: The drive requires a three-phase 480 VAC power supply and operates within the 342 to 528 VAC voltage range.
Q4: Does the 22C-D022N103 include a braking transistor?
A4: No. This model does not include a built-in brake IGBT. An external braking solution is required for applications needing braking control.
Q5: Does the 22C-D022N103 support communication functions?
A5: Yes. The drive includes RS-485 communication for connection with compatible industrial control systems.
Q6: What control methods are available on the 22C-D022N103?
A6: The drive supports V/Hz control, slip compensation, and process PID control for stable motor operation.
Q7: What applications are suitable for the 22C-D022N103?
A7: Typical applications include fans, pumps, HVAC equipment, conveyors, water systems, and other variable speed motor applications.
Q8: How can users troubleshoot issues with the 22C-D022N103?
A8: Troubleshooting should include checking input power, motor wiring, parameter settings, fault codes, load conditions, cooling performance, and communication connections.
