1. What type of industrial applications is the 20LC650A0ENNAN10WA suitable for?
The 20LC650A0ENNAN10WA is a high-power liquid-cooled AC drive in the PowerFlex 700L family, designed for demanding industrial motor-control applications where high output current, stable thermal performance, and regenerative operation are required. With a rated output current of 650 A and a normal-duty power rating of approximately 370 kW, it is suitable for large industrial motors used in heavy machinery, pumps, fans, compressors, process equipment, material-handling systems, and continuous-production lines. Its regenerative drive architecture is particularly useful for applications involving frequent acceleration and deceleration or loads that continuously return energy to the drive during operation. Proper motor sizing, load analysis, cooling-system design, and electrical protection should be completed before installation.

2. What are the main power requirements for the 20LC650A0ENNAN10WA?
The 20LC650A0ENNAN10WA is designed for a three-phase 400 V AC power supply with an input frequency range of 47–63 Hz. Because this is a high-power drive rated at 650 A output current, the incoming power system must be designed to handle the electrical requirements of the drive under the intended operating conditions. The upstream circuit breaker, fuses, disconnecting equipment, power cables, grounding system, and transformer capacity should all be selected according to the actual installation requirements rather than based only on the motor nameplate rating. The available short-circuit current at the installation point should also be evaluated. Before energizing the drive, technicians should verify the incoming phase voltage, phase balance, grounding, cable termination, and protective-device configuration to reduce the risk of startup faults or damage to the power section.

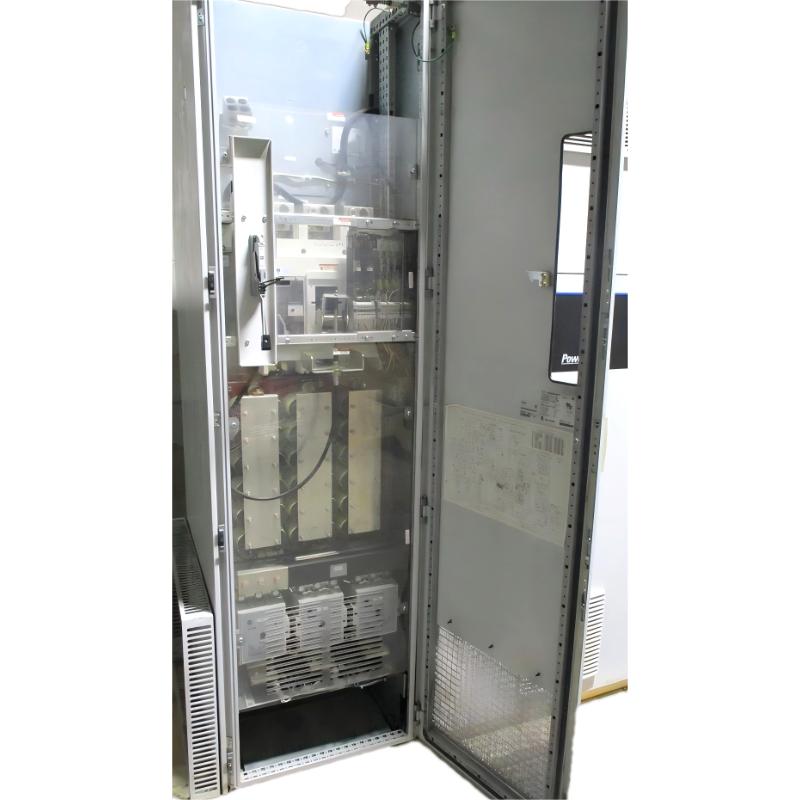

3. Why does the 20LC650A0ENNAN10WA use liquid cooling?
Liquid cooling is used because a high-power AC drive generates significant heat through its power semiconductor devices and other electrical components during operation. The 20LC650A0ENNAN10WA is designed for high-current industrial applications, so effective heat removal is essential for maintaining stable semiconductor junction temperatures and reliable long-term operation. A properly designed liquid-cooling system can transfer heat away from the power section more effectively than conventional air cooling in high-power applications. During commissioning and routine maintenance, the cooling circuit should be checked for adequate flow, correct temperature, leaks, contamination, and proper operation of associated cooling components. A restricted or failed cooling circuit can result in excessive temperature, protective trips, output-current derating, or eventually damage to power components. Cooling-system maintenance should therefore be treated as an important part of overall drive maintenance rather than as a separate auxiliary task.

4. What motor control methods are available on the 20LC650A0ENNAN10WA?
The 20LC650A0ENNAN10WA supports several motor-control strategies, including V/Hz control, sensorless vector control, and Force Technology vector control. The appropriate control method depends on the motor characteristics and the performance requirements of the application. V/Hz control can be suitable for relatively straightforward speed-control applications where extremely precise torque and speed regulation are not required. Vector-based control provides improved motor control performance and can be more appropriate for applications involving changing loads, demanding acceleration characteristics, or higher speed-regulation requirements. During commissioning, accurate motor nameplate information should be entered into the drive parameters, including rated voltage, current, frequency, speed, and power where applicable. Incorrect motor data can lead to poor torque performance, unstable operation, excessive current, or nuisance protection trips.

5. What overload capability does the 20LC650A0ENNAN10WA provide?
The 20LC650A0ENNAN10WA provides short-term overload capability to accommodate temporary increases in motor torque demand. Under normal-duty operation, the drive can provide approximately 110% of its rated current for one minute and up to 150% for approximately three seconds. Depending on the configured duty rating, additional heavy-duty overload capability is available for applications with higher short-duration torque requirements. These overload ratings are intended for temporary operating conditions and should not be interpreted as permissible continuous operating current. Actual overload performance can also be affected by ambient conditions, cooling-system performance, operating frequency, load cycle, and the thermal condition of the drive. When selecting the drive for a particular application, engineers should compare the motor’s continuous and peak current requirements with the drive’s corresponding duty rating rather than relying only on the motor’s horsepower value.

6. Does the 20LC650A0ENNAN10WA support regenerative braking?
Yes. The 20LC650A0ENNAN10WA is designed as a regenerative AC drive, allowing electrical energy generated by the motor during regenerative operation to be returned to the AC supply rather than simply dissipated as heat through a conventional braking resistor. This feature is valuable in applications where the motor frequently decelerates a high-inertia load, lowers a suspended load, or operates in a condition where the mechanical system drives the motor. Regenerative operation can reduce the need for large external braking resistors and can improve overall energy utilization. However, the regenerative system still needs to be correctly integrated with the plant electrical system. Engineers should evaluate the load’s acceleration and deceleration profile, regenerated power, supply characteristics, protection requirements, and drive configuration before commissioning. The absence of a conventional internal braking resistor does not mean that no braking-related configuration is required.

7. What should be checked when the 20LC650A0ENNAN10WA develops an overcurrent fault?
An overcurrent fault should first be analyzed according to the exact point at which it occurs. If the fault appears immediately when the motor starts, technicians should check for motor-cable short circuits, phase-to-ground faults, incorrect motor connections, incorrect motor data, or a mechanically locked motor. If the fault occurs during acceleration, the acceleration time may be too short for the connected load, or the machine may require more torque than expected. During constant-speed operation, the actual mechanical load should be checked to determine whether the motor or drive is being continuously overloaded. If the fault appears during deceleration, the regenerative characteristics of the load and the programmed deceleration profile should be investigated. The output terminals, motor insulation, cable condition, grounding, and drive fault history should also be examined. Because the 20LC650A0ENNAN10WA operates at high power and high current, troubleshooting should only be performed by qualified personnel following appropriate electrical isolation and DC-bus discharge procedures.

8. What control and communication interfaces can be used with the 20LC650A0ENNAN10WA?
The 20LC650A0ENNAN10WA provides conventional 24 V DC I/O control facilities, including six digital inputs, three digital outputs, two analog inputs, and two analog outputs. These interfaces can be used for common drive-control functions such as start/stop commands, speed references, status signals, interlocks, and alarm or fault indications. The PowerFlex 700L platform can also be integrated into industrial control systems using supported communication options such as EtherNet/IP, DeviceNet, Modbus, PROFIBUS, TCP/IP, and CAN, depending on the installed communication hardware and system configuration. When connecting the drive to a PLC, DCS, or supervisory control system, engineers should define which commands are handled through network communication and which are handled through physical I/O. Control-source conflicts can otherwise cause unexpected start, stop, speed-reference, or fault-reset behavior. Communication parameters, node addressing, network configuration, control words, status words, and drive command ownership should all be verified during commissioning to ensure reliable integration with the plant automation system.
