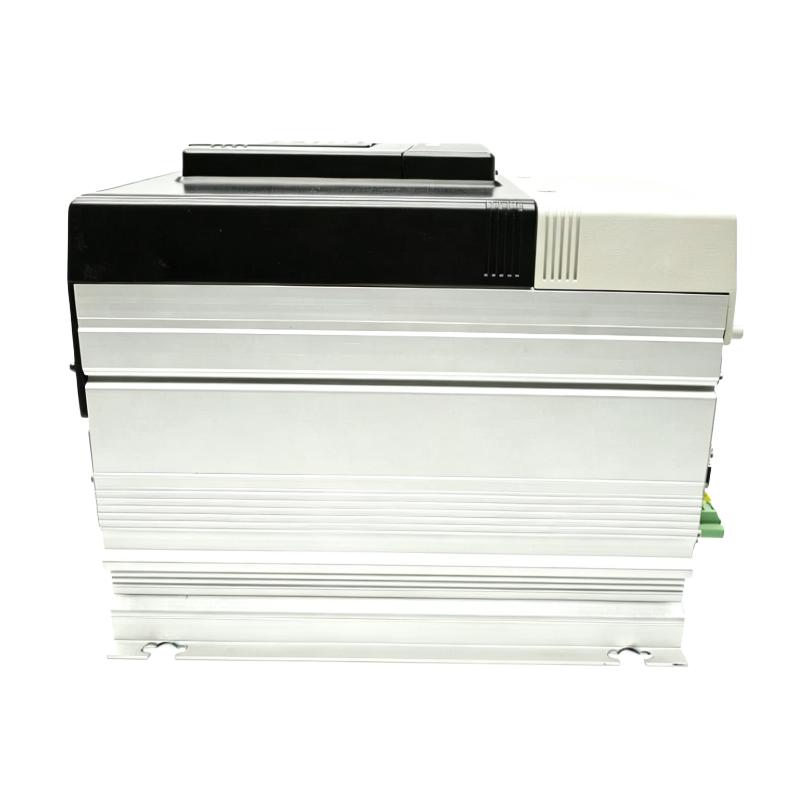

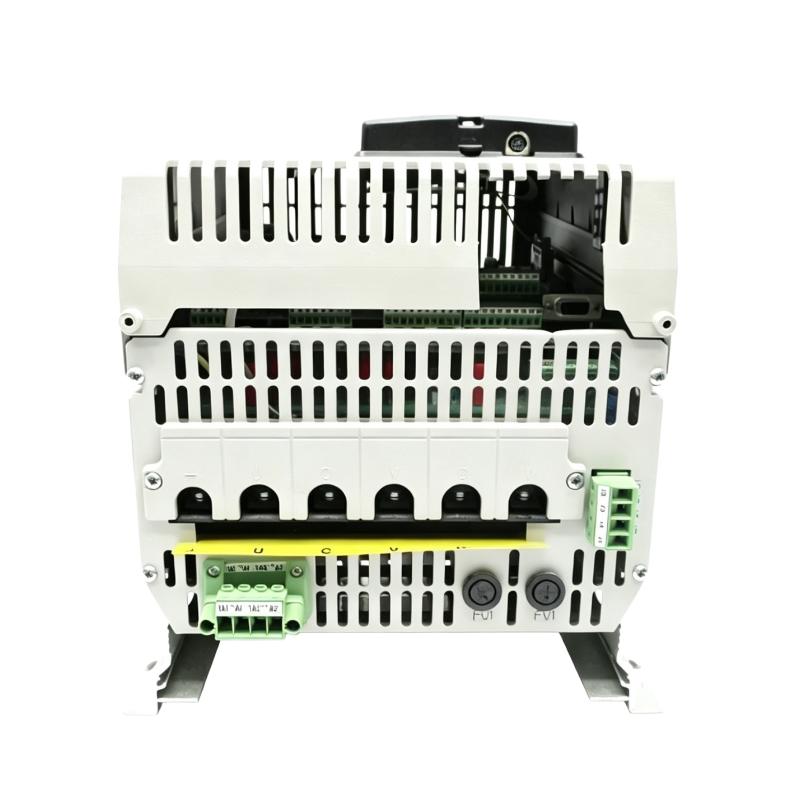

Allen Bradley 20P41AD4P1RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

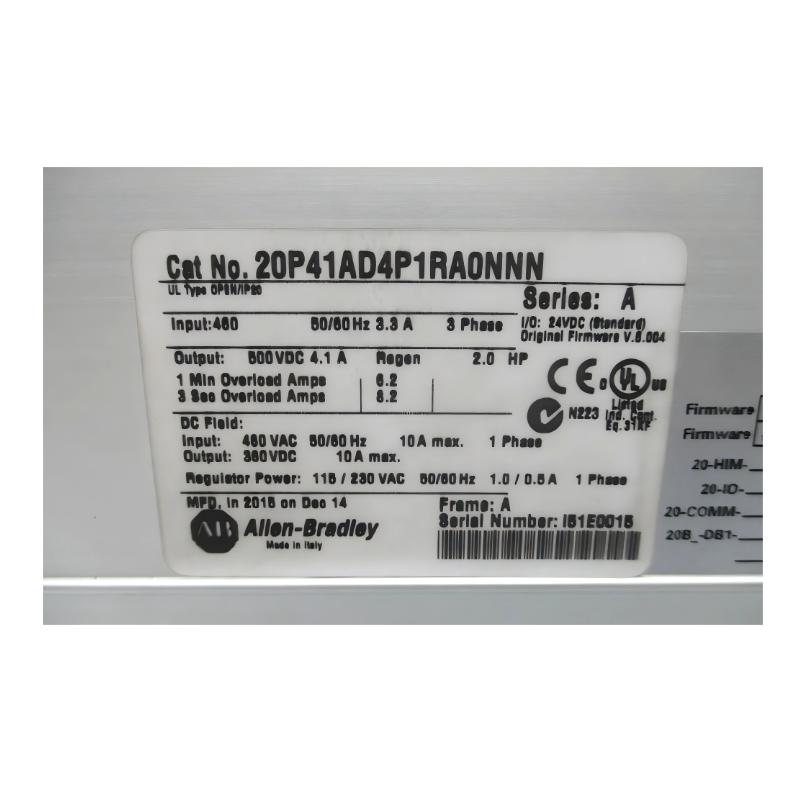

Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 20P41AD4P1RA0NNN |
| Product Series | PowerFlex DC |
| Product Type | Digital DC Drive |
| Input Voltage | 460 VAC nominal / 480 VAC class |
| Input Frequency | 50/60 Hz |
| Input Phase | Three-phase |
| Input Current | 3.3 A |
| Input Type | 6-pulse |
| DC Output Voltage | 500 VDC |
| Rated DC Output Current | 4.1 A |
| Motor Power Rating | 2 HP (approximately 1.5 kW) |
| Motor Operation | Four-quadrant regenerative operation |
| 1-Minute Overload Current | 6.2 A |
| 3-Second Overload Current | 8.2 A |
| Frame Size | Frame A |
| Field Supply | Single-phase regulated |
| Field Input | 460 VAC, 50/60 Hz, 10 A maximum |
| Field Output | 360 VDC, 10 A maximum |
| Regulator Power Supply | 115/230 VAC, single-phase |
| I/O Voltage | 24 VDC standard |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Type Open |
| Conformal Coating | Yes |
| Human Interface Module (HIM) | Not included; blank plate configuration |
| Communication Module | Not included |
| Dimensions | 359 × 267 × 287 mm |
| Weight | 11 kg |
FAQ
Q1: What is the primary function of the Allen-Bradley 20P41AD4P1RA0NNN PowerFlex DC Drive?
A: This drive controls the speed and torque of compatible DC motors by regulating the motor’s armature voltage and current. It is suitable for industrial applications that require precise speed regulation, controlled acceleration and deceleration, and regenerative braking.
Q2: What type of power supply does the 20P41AD4P1RA0NNN require?
A: The drive uses a three-phase AC input rated at 460 VAC nominal, within the 480 VAC class, at 50/60 Hz. The actual supply voltage and installation requirements should be checked against the drive nameplate and applicable installation documentation.
Q3: Does this drive support regenerative braking?
A: Yes. The model supports four-quadrant regenerative operation. Under suitable operating conditions, braking energy can be returned to the AC supply instead of being dissipated entirely as heat. Correct wiring, configuration, and system protection are essential for regenerative operation.
Q4: What DC motor rating is supported by this model?
A: The drive is rated for a 2 HP DC motor, with a nominal DC output current of 4.1 A and an output voltage of up to 500 VDC. The motor’s armature and field ratings must be compatible with the drive before commissioning.
Q5: How should the field supply be configured?
A: This model uses a single-phase regulated field supply. Its specified field input is 460 VAC at 50/60 Hz, with a maximum input current of 10 A, and its field output is rated up to 360 VDC at 10 A maximum. Verify the motor’s field voltage and current requirements before applying power.
Q6: Can the 20P41AD4P1RA0NNN communicate with a PLC or industrial control system?
A: It can be integrated into a suitable control system using its standard I/O and compatible communication options. This specific catalog configuration does not include a communication module, so network-based control may require an appropriate optional module and compatible controller configuration.
Q7: What should be checked if the motor speed is unstable or the drive trips during operation?
A: Check the AC input supply, motor armature and field wiring, current limits, speed feedback configuration, acceleration and deceleration settings, and active fault codes. Also inspect electrical connections and grounding. Make one adjustment at a time and follow the drive’s troubleshooting procedures to identify the cause.
Q8: What precautions are necessary when replacing or commissioning this drive?
A: Confirm the complete catalog number, input voltage, motor current and voltage ratings, field requirements, and control wiring before installation. Isolate and lock out all power sources, including external control and field supplies, and verify that the DC bus is discharged before handling terminals. After installation, check parameter settings and protective functions before running the motor under load.
Allen Bradley 20P41AD4P1RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
