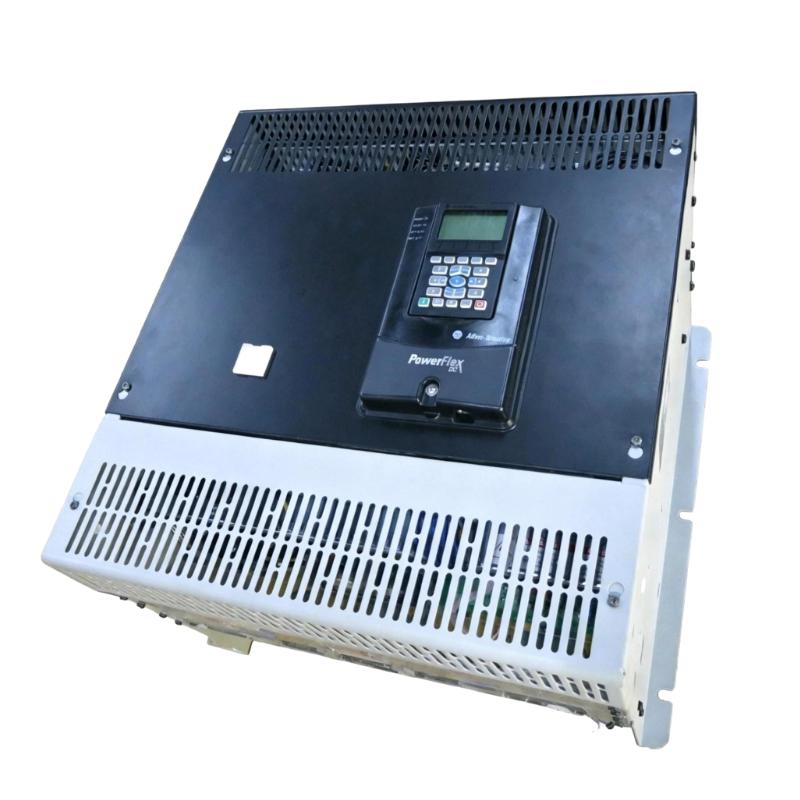

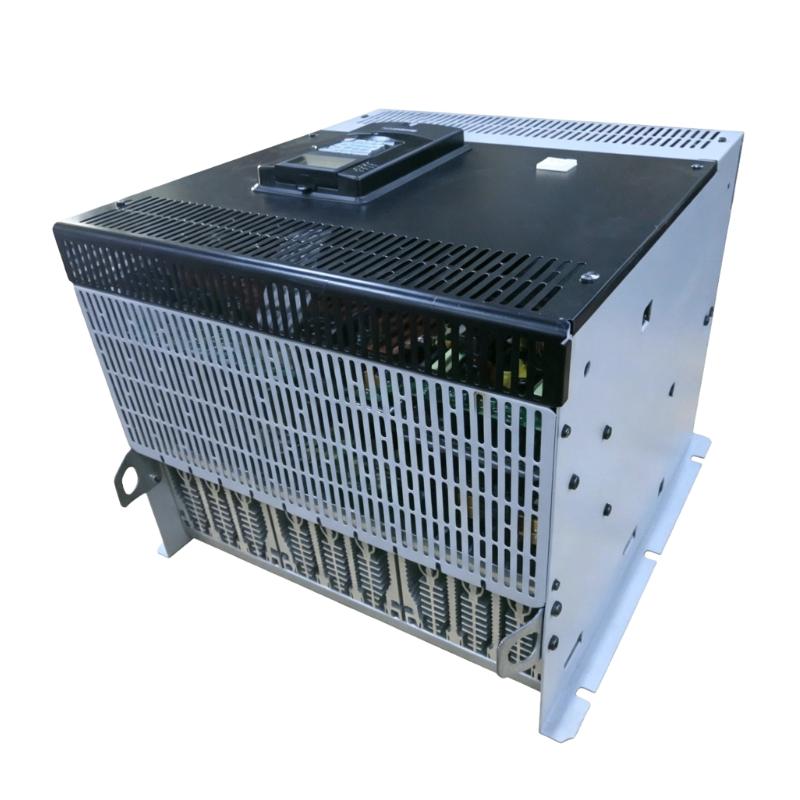

Allen Bradley 20P41AD667RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 20P41AD667RA0NNN |
| Product Series | PowerFlex DC |
| Product Type | Digital Regenerative DC Drive |
| Input Voltage | 480 VAC |
| Input Phase | Three-phase |
| Input Frequency | 50/60 Hz |
| Input Type | 6-pulse |
| Rated Output Current | 667 A |
| Motor Power Rating | 400 HP (approximately 298 kW) |
| Motor Operation | Four-quadrant regenerative operation |
| Frame Size | Frame C |
| Field Supply | Single-phase regulated |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Type Open |
| Conformal Coating | Yes |
| Human Interface Module (HIM) | Not included; blank plate configuration |
| Communication Module | Not included |
| Control Method | DC motor speed and torque control |
| Braking Capability | Regenerative braking |
| Dimensions | 521 × 416 × 511 mm |
| Weight | 65 kg |
FAQ
Q1: What is the primary function of the Allen-Bradley 20P41AD667RA0NNN PowerFlex DC Drive?
A: This drive controls the speed and torque of high-power DC motors in industrial applications. It regulates motor armature power and supports controlled acceleration, deceleration, and regenerative operation. Typical applications include material handling, winding equipment, and heavy-duty processing machinery.
Q2: What are the main electrical ratings of this drive?
A: The 20P41AD667RA0NNN is designed for a 480 VAC three-phase supply and provides a rated DC output current of 667 A. Its normal-duty motor rating is 400 HP, approximately 298 kW. The motor’s voltage and current ratings must be compatible with the drive.
Q3: Does the 20P41AD667RA0NNN support four-quadrant operation?
A: Yes. It supports four-quadrant regenerative operation, allowing forward and reverse motoring as well as regenerative braking in both directions. This is useful for machinery that requires frequent stopping, reversing, or controlled deceleration.
Q4: How does regenerative braking work with this PowerFlex DC drive?
A: During deceleration, the DC motor can operate as a generator. The regenerative drive manages the resulting energy and can return it to the AC supply under suitable operating conditions. Correct power-system design, wiring, parameter configuration, and protective devices are necessary for safe operation.
Q5: What should be checked before installing this drive?
A: Verify the incoming supply voltage, phase configuration, motor armature and field ratings, grounding, protective devices, cabinet ventilation, and cable sizing. Because this is a high-current drive, the installation must follow the manufacturer’s electrical clearances and wiring requirements.
Q6: Can the drive be integrated with a PLC or DCS?
A: Yes. It can be integrated into an industrial control system through compatible control I/O and, where required, an appropriate communication option. This catalog configuration does not include a communication module, so network connectivity may require additional hardware and configuration.
Q7: What are common causes of overcurrent trips or unstable motor speed?
A: Possible causes include excessive mechanical load, incorrect current-limit settings, unstable or incorrectly configured speed feedback, loose electrical connections, supply disturbances, and motor field problems. Check the active fault codes and operating data first, then inspect the wiring and settings before replacing components.
Q8: What should be considered when replacing an existing 20P41AD667RA0NNN drive?
A: Confirm the complete catalog number and compare the replacement unit’s current rating, input voltage, regenerative capability, field supply, control interfaces, and parameter configuration. Back up the existing settings when possible and verify motor feedback and control wiring before commissioning. Always isolate all power sources and confirm the DC bus is discharged before servicing the equipment.
