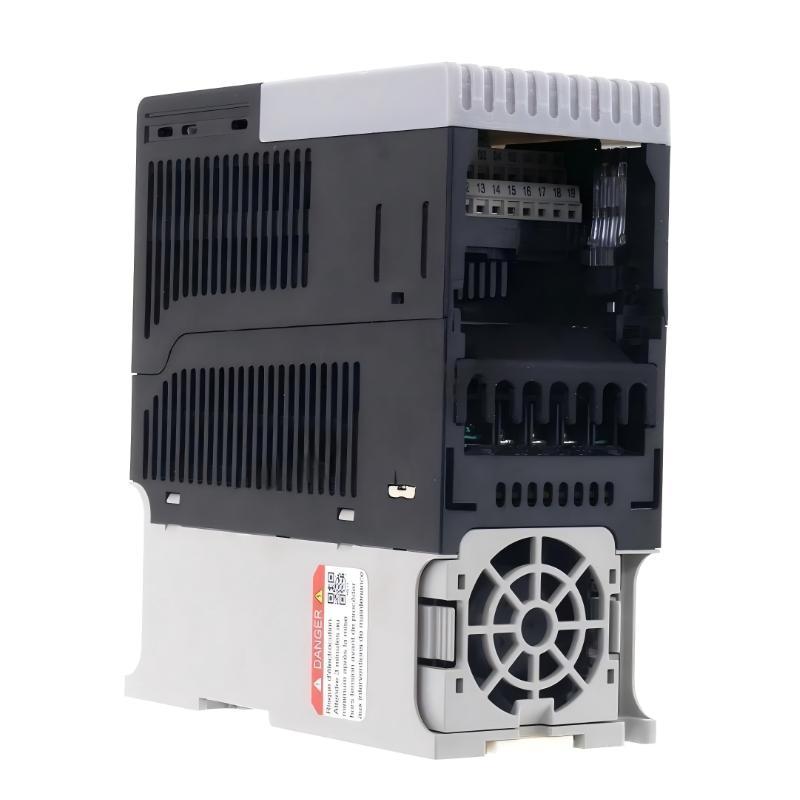

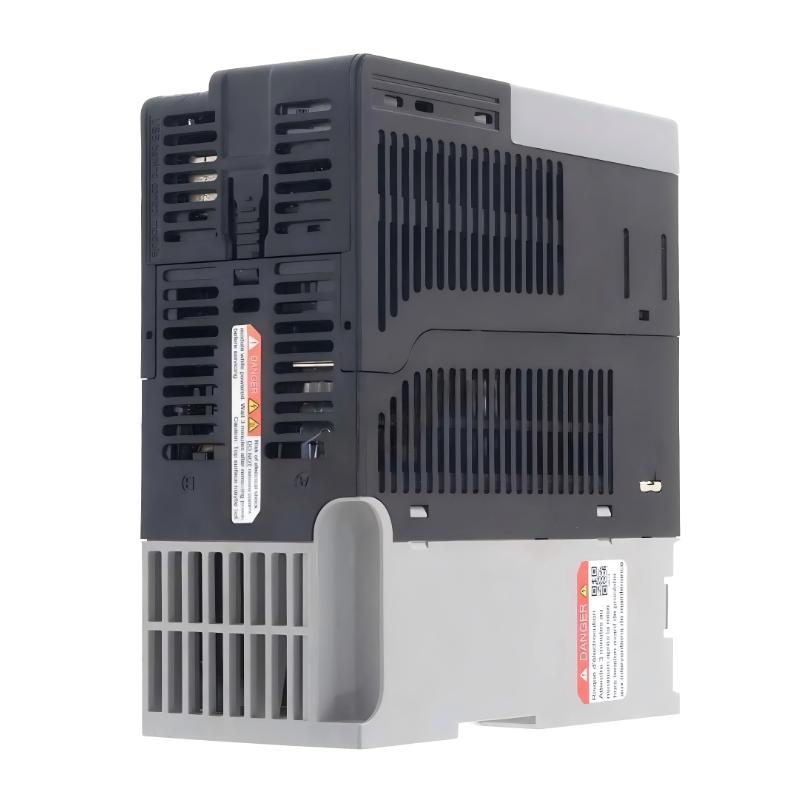

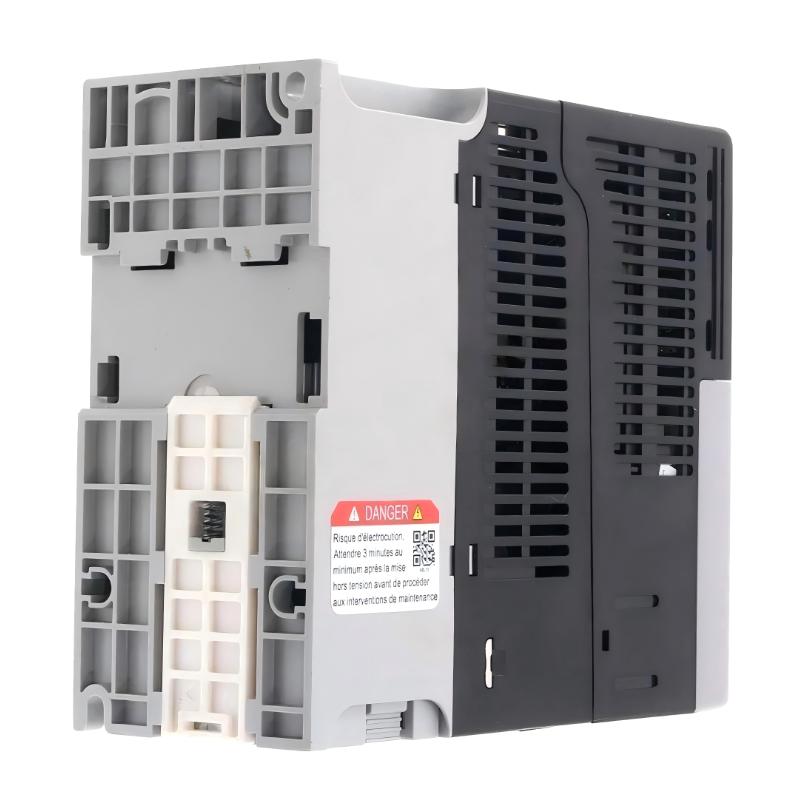

Q1: What is the main function of the Allen Bradley 25B-B8P0N104 PowerFlex 525 AC Drive?

A1: The main function of the PowerFlex 525 AC Drive is to control the speed, torque, and direction of three-phase AC motors by adjusting output frequency and voltage. This allows industrial processes to operate with greater precision and flexibility compared to fixed-speed motor systems. It is widely used in applications where load conditions vary, such as pumps, conveyors, and ventilation systems. By optimizing motor performance, the drive helps improve energy efficiency, reduce mechanical stress, and enhance overall system reliability in long-term industrial operation.

Q2: What types of motors are compatible with this drive?

A2: This drive is primarily designed for three-phase AC induction motors, which are the most common motor type in industrial environments. These motors are used in equipment such as pumps, fans, compressors, conveyors, and mixers. The drive enables these motors to operate at variable speeds, allowing better process control and significant energy savings compared to constant-speed operation.

Q3: What control modes does the PowerFlex 525 support?

A3: The PowerFlex 525 supports both V/Hz control and sensorless vector control. V/Hz control is suitable for basic applications where speed accuracy requirements are moderate. Sensorless vector control provides enhanced performance by estimating motor flux and torque internally, enabling better low-speed torque, smoother acceleration, and improved dynamic response without the need for external feedback devices such as encoders.

Q4: Can this drive be integrated into automation systems?

A4: Yes, the drive is designed for integration into modern industrial automation systems. It supports communication modules such as EtherNet/IP, allowing it to connect with PLCs and DCS systems. This enables centralized monitoring, remote configuration, real-time data acquisition, and coordinated control of multiple drives within a plant environment.

Q5: What protection features are included in the drive?

A5: The drive includes multiple built-in protection functions such as overcurrent protection, overvoltage protection, undervoltage protection, overload protection, and thermal protection. These features safeguard both the drive and the connected motor from electrical faults and abnormal operating conditions, ensuring stable and safe long-term operation.

Q6: Is the drive suitable for continuous industrial operation?

A6: Yes, it is designed for continuous 24/7 industrial operation. The internal thermal management system ensures efficient heat dissipation under varying load conditions, while industrial-grade electronic components provide durability and stability. This makes it suitable for critical applications where downtime must be minimized and reliability is essential.

Q7: Does the drive support safety functions?

A7: Yes, depending on configuration, the drive supports Safe Torque-Off (STO) functionality. STO is a safety mechanism that safely disables motor torque generation without fully removing power from the drive. This is particularly useful during maintenance or emergency situations, allowing the system to reach a safe state quickly while maintaining control system readiness.

Q8: What are the main advantages of using this AC drive in industrial applications?

A8: The main advantages include improved energy efficiency, enhanced process control, and greater system flexibility. By enabling variable speed operation, the drive reduces unnecessary energy consumption and mechanical wear on equipment. It also improves process stability by allowing precise motor control. In addition, its communication and diagnostic capabilities make it easier to integrate into automation systems, helping reduce maintenance time and improve overall operational efficiency.
