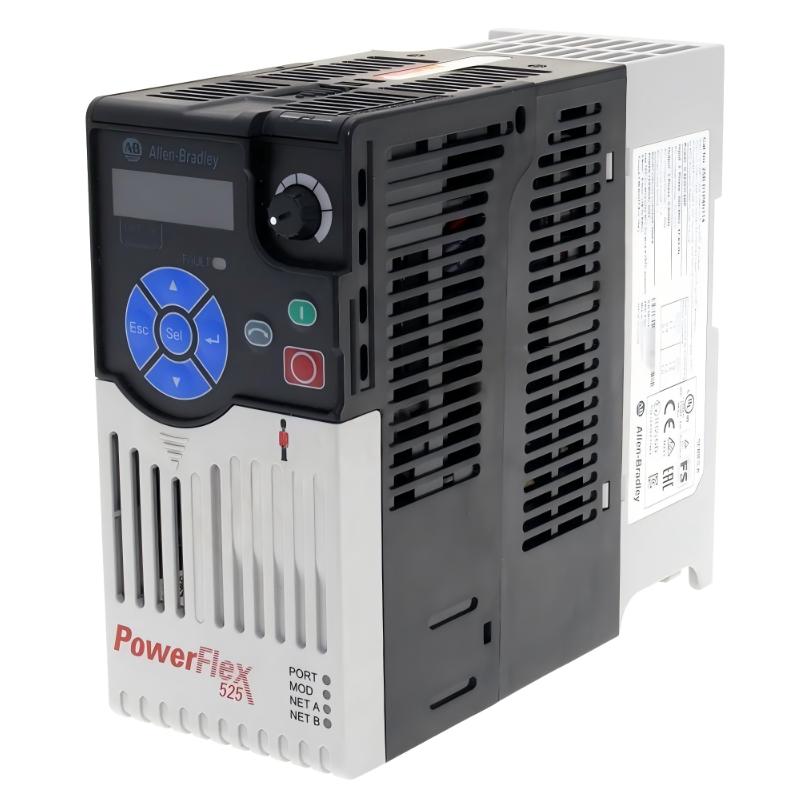

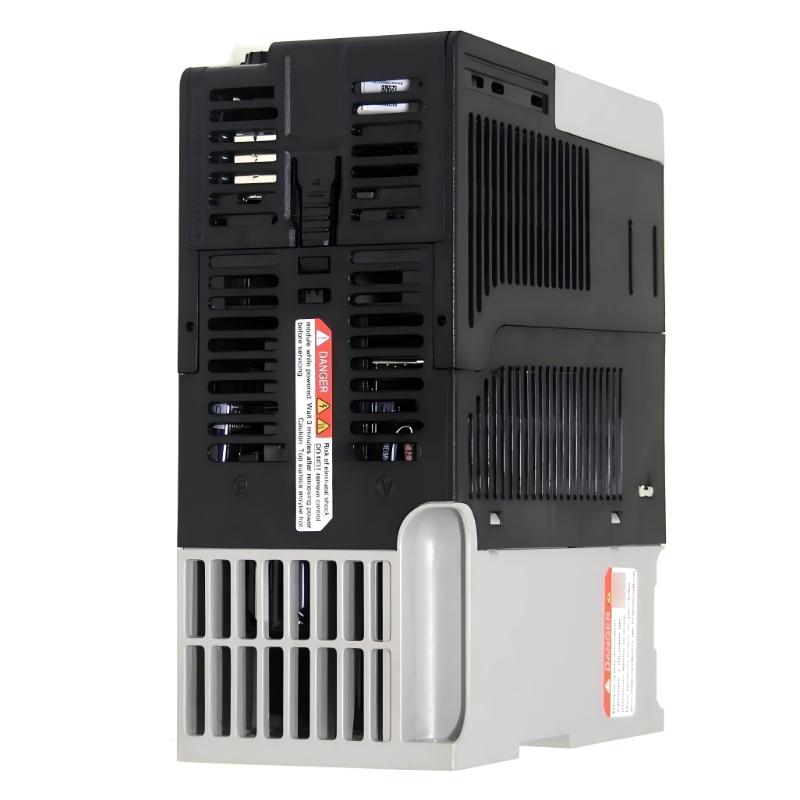

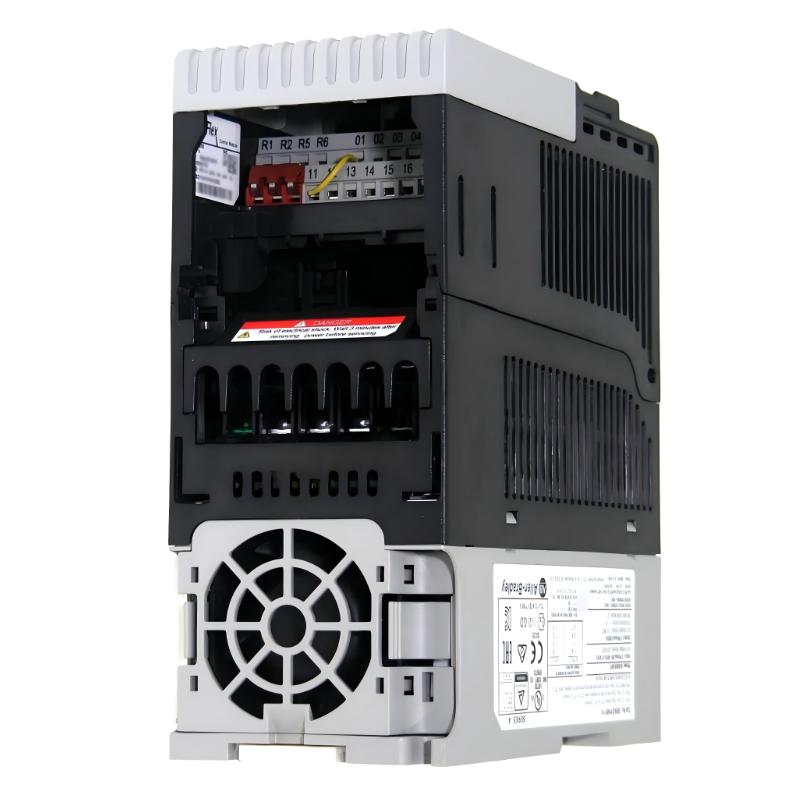

Allen Bradley 25B-D1010N104 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
25B-D1010N104 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 25B-D1010N104 AC Drive |
| Brand | Allen Bradley |
| Product Type | Industrial Equipment |
| Series | PowerFlex 525 |
| Drive Type | Adjustable Frequency AC Drive (VFD) |
| Input Voltage | 380–480V AC, 3-Phase |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0–480V AC |
| Output Current | 101 A |
| Rated Power (Normal Duty) | 55 kW (75 HP) |
| Rated Power (Heavy Duty) | 45 kW (60 HP) |
| Control Method | V/Hz Control, Sensorless Vector Control, Closed-Loop Vector Control |
| Frequency Range | 0–500 Hz |
| Overload Capacity | 110% Normal Duty, 150% Heavy Duty |
| Brake IGBT | Included |
| Embedded Communication | EtherNet/IP, USB |
| Safety Features | Safe Torque Off (STO), SIL 2, Category 3 |
| User Interface | Integral Keypad with LCD Display |
| Enclosure Rating | IP20 / NEMA Type Open |
| Frame Size | Frame E |
| Mounting Type | Panel Mount |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 0–95% Non-Condensing |
| Certifications | UL, CE, CSA, RoHS |
| Lifecycle Status | Active |
| Dimensions (H × W × D) | Approx. 700 × 280 × 280 mm |
| Weight | Approx. 34 kg |
| Typical Applications | Pumps, fans, compressors, conveyors, mixers, packaging equipment, material handling systems, industrial process control |
FAQ
- What is the 25B-D1010N104 used for?
The drive is designed to control the speed, torque, and direction of three-phase AC motors in industrial automation systems, helping improve energy efficiency and process control. - What motor size can this drive support?
It supports motors up to 55 kW (75 HP) in normal-duty applications and up to 45 kW (60 HP) in heavy-duty applications. - Which communication protocols are available?
The drive includes embedded EtherNet/IP communication and USB connectivity for configuration, monitoring, and integration with automation systems. - Does the drive include built-in safety functions?
Yes. It includes Safe Torque Off (STO) functionality designed to meet SIL 2 and Category 3 safety requirements. - What control modes are supported?
The drive supports V/Hz control, Sensorless Vector Control, and Closed-Loop Vector Control for different motor performance requirements. - Can the drive be used for pump and fan applications?
Yes. It is commonly installed in pump, fan, blower, and HVAC systems where variable-speed motor control is required. - What is the environmental operating range?
The drive is designed to operate in ambient temperatures from -20°C to 50°C with up to 95% non-condensing humidity. - Does the drive include dynamic braking capability?
Yes. The model includes an integrated brake IGBT, allowing connection of an external braking resistor for applications requiring rapid deceleration.
Allen Bradley 25B-D1010N104 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
