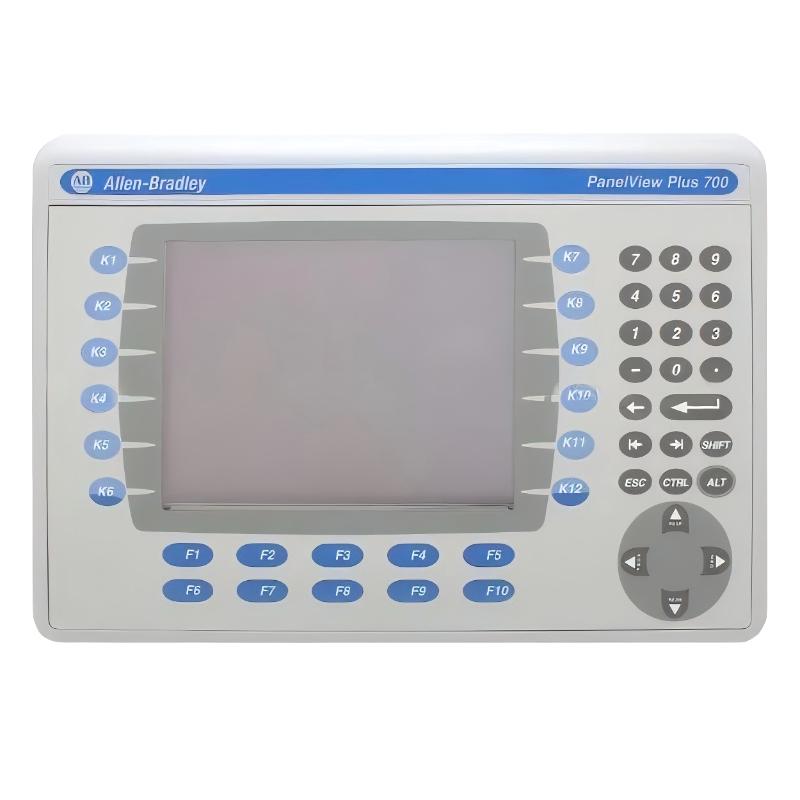

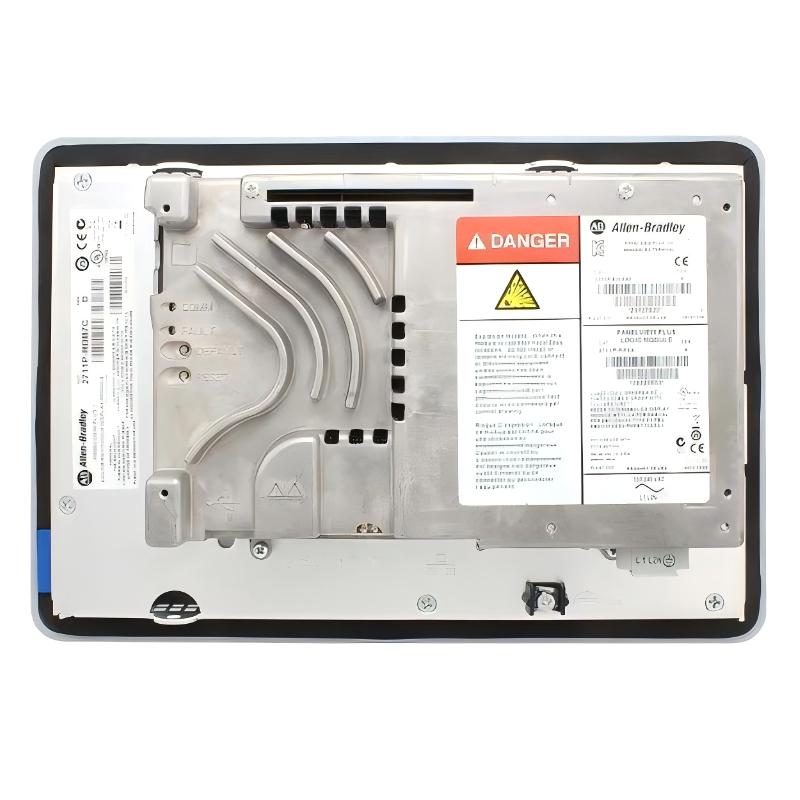

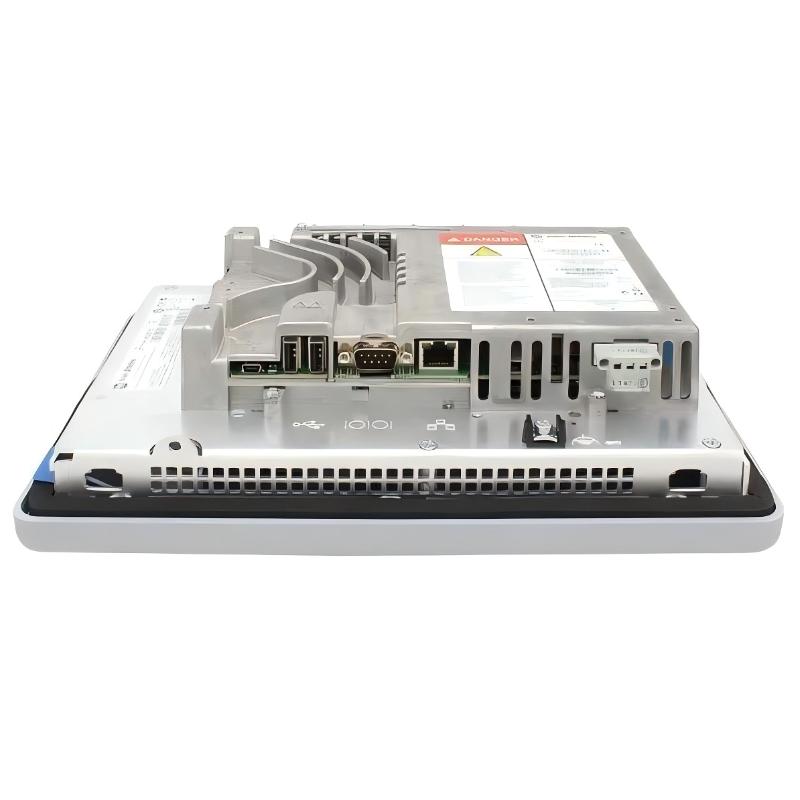

Allen Bradley 2711P-RDK10C PanelView Plus Display Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 2711P-RDK10C |
| Product Type | PanelView Plus Display Module |
| Product Series | Allen-Bradley PanelView Plus Series |
| Main Function | Industrial HMI display module for operator monitoring, machine control, and process visualization applications |
| Display Size | 10.4-inch |
| Display Type | Color Active Matrix TFT LCD |
| Display Resolution | 640 × 480 pixels |
| Display Area | 211 × 158 mm (8.3 × 6.2 in.) |
| Display Colors | 18-bit color graphics |
| Brightness | 300 cd/m² |
| Input Method | Keypad |
| Keypad Type | Function keys, numeric keys, and navigation keys |
| Backlight Type | CCFL backlight |
| Backlight Life | Approximately 50,000 hours at 25°C |
| Input Voltage | 85 to 264 VAC |
| Power Consumption | Maximum 70 W |
| Operating Frequency | 47 to 63 Hz |
| Communication Indicators | COMM LED and Fault LED indicators |
| Touch Function | Not supported |
| Compatible Terminals | PanelView Plus 1000 and PanelView Plus 6 1000 keypad terminals |
| Enclosure Rating | NEMA Type 12, 13, 4X indoor use, IP54/IP65 |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Shock Resistance | 15 G at 11 ms |
| Vibration Resistance | 10 to 500 Hz vibration resistance |
| Cutout Dimensions | 224 × 375 mm |
| Dimensions | Approximately 248 × 399 × 55 mm (H × W × D) |
| Weight | Approximately 2.9 kg (6.4 lb) |
| Application Areas | Industrial HMI panels, machine control systems, production lines, process monitoring equipment, and automation systems |
FAQ
Q1: What is the main function of the 2711P-RDK10C?
A1: The 2711P-RDK10C is a PanelView Plus display module designed for industrial HMI applications, providing operator interaction, process monitoring, and machine control functions.
Q2: What type of display is used in the 2711P-RDK10C?
A2: The module uses a 10.4-inch color TFT LCD display with a resolution of 640 × 480 pixels for clear industrial visualization.
Q3: Does the 2711P-RDK10C support touch operation?
A3: No. This model uses a keypad interface and does not provide touch screen functionality.
Q4: Which terminals are compatible with the 2711P-RDK10C?
A4: The module is designed for use with PanelView Plus 1000 and PanelView Plus 6 1000 keypad terminals.
Q5: What type of input power does the 2711P-RDK10C require?
A5: The display module operates with an 85 to 264 VAC power supply suitable for industrial environments.
Q6: What protection ratings are available for the 2711P-RDK10C?
A6: The module supports NEMA Type 12, 13, and 4X indoor protection ratings when properly installed.
Q7: What applications are suitable for the 2711P-RDK10C?
A7: Typical applications include factory automation systems, machine operation panels, production monitoring equipment, and industrial process control interfaces.
Q8: How can users troubleshoot display problems with the 2711P-RDK10C?
A8: Troubleshooting should include checking power supply, connection cables, terminal compatibility, display configuration, keypad operation, and installation conditions.
