1. What is the main function of the Allen-Bradley 440R-C23017 safety relay?

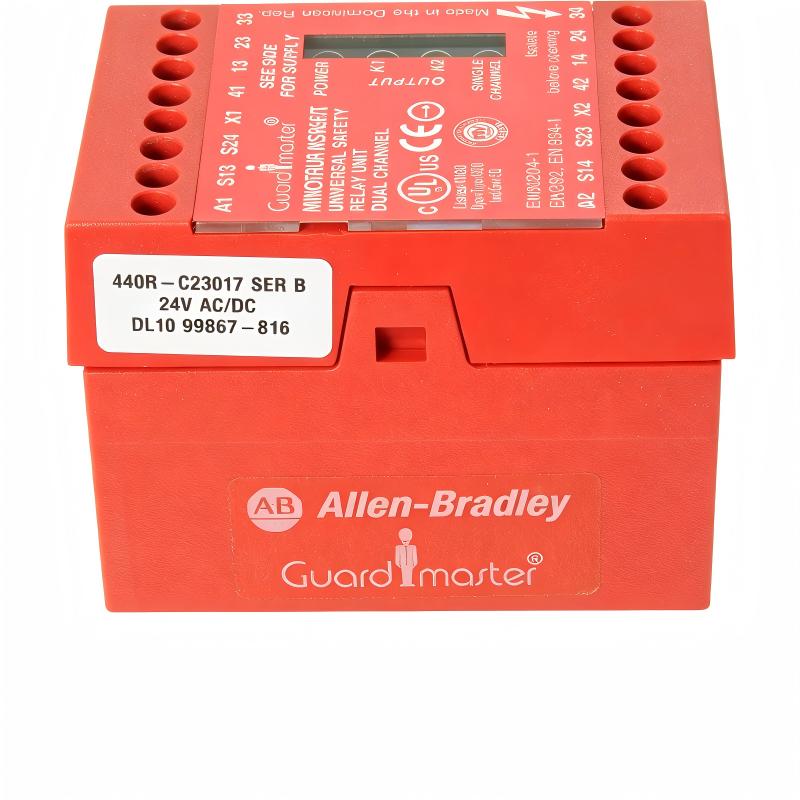

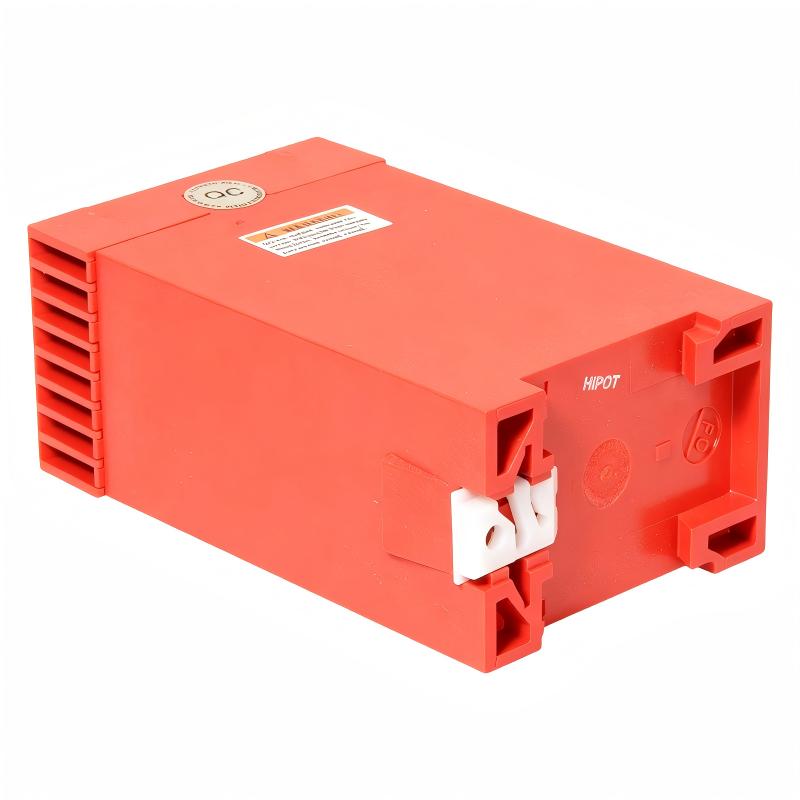

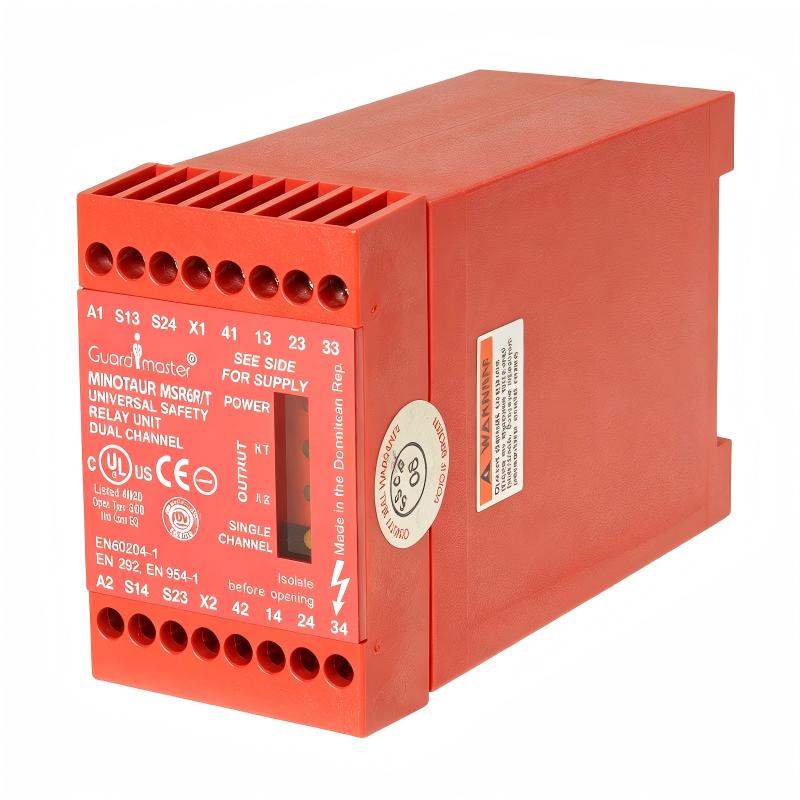

The 440R-C23017 is a Guardmaster MSR6R/T safety relay designed to monitor safety-related input circuits and control safety outputs. It can be used in machine safety applications such as emergency-stop circuits and protective guard monitoring. When a monitored safety device changes to an unsafe state, the relay responds by switching its safety outputs according to the configured circuit. Correct wiring and system-level validation are essential for reliable operation.

2. What supply voltage does the 440R-C23017 require?

This model is designed for a 24 V AC/DC supply. Before energizing the unit, verify the supply voltage, polarity where applicable, and terminal connections against the manufacturer’s wiring diagram. An incorrect supply or loose connection may prevent the relay from starting correctly or cause unexpected diagnostic indications. The power source should also be suitable for the electrical environment and the requirements of the complete safety circuit.

3. How many safety outputs does the 440R-C23017 provide?

The relay provides three normally open (NO) safety outputs and one normally closed (NC) auxiliary relay output. The safety outputs are intended for use in the machine’s safety control circuit, while the auxiliary output can provide status information to a standard control system or indicator circuit, depending on the design. The auxiliary output should not be treated as a substitute for a safety-rated output. Confirm the contact ratings and external circuit requirements before connecting loads.

4. Can the 440R-C23017 monitor a single-channel or dual-channel safety circuit?

Yes. Its input configuration supports one normally closed input channel or two normally closed input channels, depending on the application and wiring arrangement. The choice should be based on the risk assessment, the safety device being monitored, and the required safety performance of the machine. A dual-channel arrangement may provide additional fault detection when correctly designed, but the achieved safety level depends on the complete system rather than the relay alone.

5. Does the 440R-C23017 support automatic and manual reset?

The MSR6R/T relay supports automatic or manual reset arrangements, including monitored manual reset. The correct method depends on the application and the risk assessment. Where manual reset is required, the reset circuit should be designed so that resetting the relay does not itself initiate hazardous machine movement. The machine should require a separate, deliberate start command when necessary. Follow the appropriate wiring diagram and validate the reset behavior during commissioning.

6. What should be checked if the safety relay does not energize?

First, verify that the 24 V AC/DC supply is present and within the specified operating range. Then inspect the input devices, normally closed contact states, terminal connections, reset circuit, and external wiring for open circuits or incorrect connections. Check the relay’s indicators and compare them with the installation documentation. If the relay remains unable to energize after these checks, isolate the equipment safely and have a qualified technician investigate the circuit. Never bypass safety inputs to force operation.

7. What is the difference between the safety outputs and the auxiliary output?

The three normally open safety outputs are intended to perform the safety-related switching function specified by the circuit design. The normally closed auxiliary output is generally used for status signaling, such as reporting relay state to a PLC or indicator. Its function and electrical rating differ from those of the safety outputs, so it must not be used to replace a required safety contact. Keep standard control signals separate from safety functions unless the system design explicitly permits the arrangement.

8. Is the Allen-Bradley 440R-C23017 still available, and what should be considered when replacing it?

Rockwell Automation lists the 440R-C23017 as discontinued and identifies 440R-S13R2 as an engineering replacement. However, a replacement should not be selected by part number alone. Compare the supply requirements, input configuration, safety output arrangement, reset behavior, terminal assignments, mounting requirements, and relevant safety approvals. Before installing a substitute, review the manufacturer’s documentation and validate the complete safety circuit. Any replacement that changes the safety architecture should be assessed by a qualified machine-safety professional.
