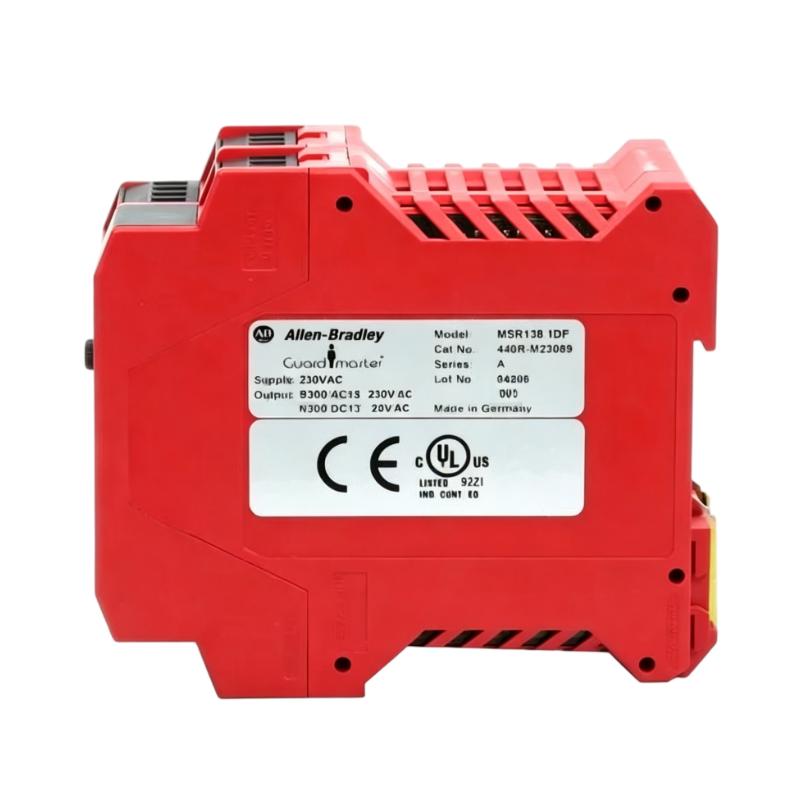

1. What is the main function of the Allen-Bradley 440R-M23089 safety relay?

The 440R-M23089 is a Guardmaster MSR138.1DP safety relay designed to monitor safety devices and control safety-related circuits. Its main feature is the combination of immediate safety outputs and delayed safety outputs. This arrangement allows a machine to stop certain functions immediately while permitting other functions to remain active for a configured period before shutdown. It is suitable for applications where the stopping sequence must be coordinated with the machine’s operating characteristics and risk assessment.

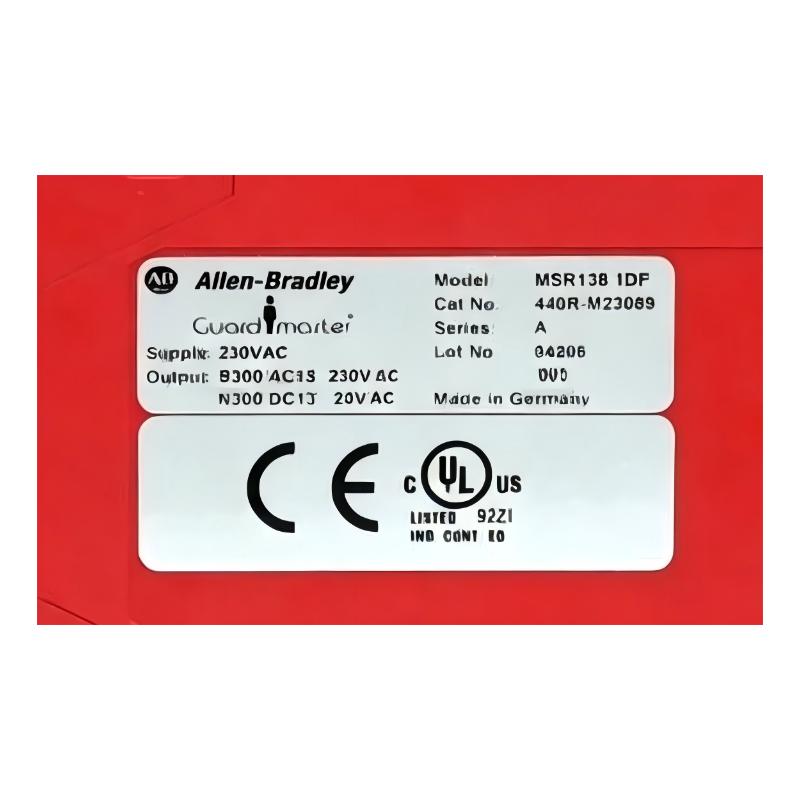

2. What power supply does the 440R-M23089 require?

The 440R-M23089 is designed for a 230 V AC supply. Before installation, verify the voltage and supply connections against the product label and wiring documentation. Do not assume that a 24 V AC/DC version is interchangeable with this model, because the supply requirements differ. Incorrect power connections may prevent normal operation or damage the relay. The electrical installation should be completed by qualified personnel using appropriate isolation and protection procedures.

3. How does the delayed output function work?

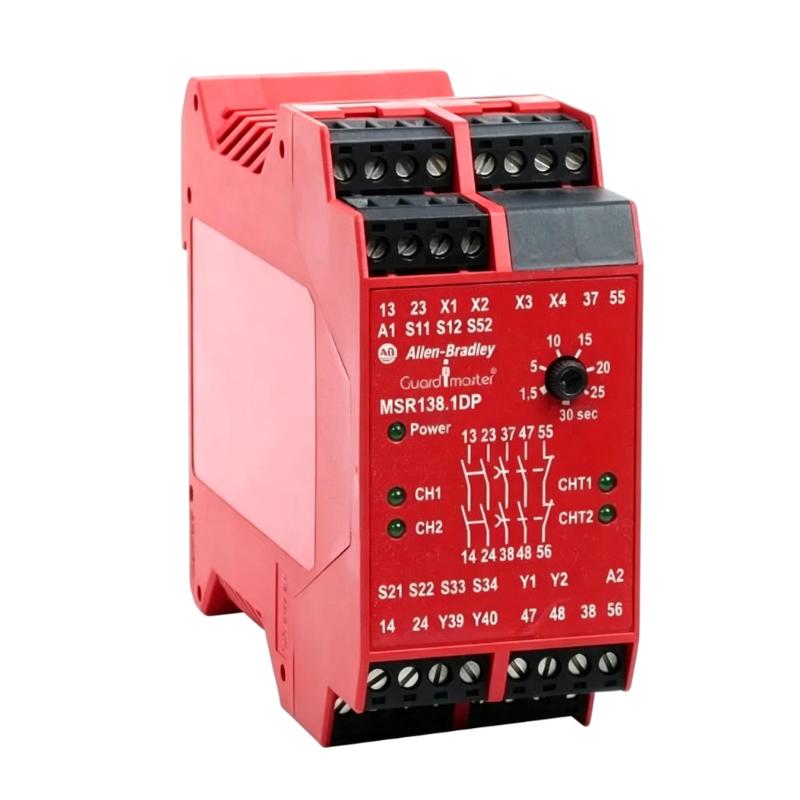

The relay provides delayed safety outputs with an adjustable delay range of 1.5 to 30 seconds. When the monitored safety condition changes, the immediate safety outputs can switch without the configured delay, while the delayed outputs remain active for the selected interval before switching. This can support controlled shutdown sequences where certain machine functions need additional time to stop safely. The delay must be selected according to the machine’s risk assessment and validated under actual operating conditions. It must not be used to compromise the required safety response time.

4. What is the difference between immediate and delayed safety outputs?

Immediate safety outputs change state in response to the relay’s safety logic without the configured off-delay. Delayed safety outputs remain in their active state for the set delay period before switching off. This distinction can be useful in machinery where one part of the system must stop immediately while another part completes a controlled stopping sequence. The outputs must be connected according to the manufacturer’s wiring diagram, and the design must ensure that the delayed shutdown does not expose personnel to unacceptable risk.

5. Does the 440R-M23089 support automatic and manual reset?

Yes. The relay supports automatic or manual reset arrangements, including monitored manual reset. The correct reset mode depends on the application, the monitored safety device and the machine’s risk assessment. In applications requiring manual reset, the reset circuit should be arranged so that pressing the reset button does not itself initiate hazardous machine movement. Where required by the machine design, a separate start command should be necessary after reset. Always test the reset sequence during commissioning.

6. Can the 440R-M23089 be used with light curtains and emergency-stop devices?

The MSR138.1DP is designed for safety monitoring applications that can include emergency-stop devices and light curtains, subject to the correct input configuration and wiring arrangement. Compatibility depends on the safety device’s output type, channel configuration and electrical characteristics. Before connecting a light curtain or emergency-stop circuit, check the relay’s terminal diagram and the device manufacturer’s instructions. The completed circuit must be tested to confirm that interrupting the protective device causes the expected safety outputs to change state.

7. What should be checked if the relay does not operate correctly?

Begin by checking that the 230 V AC supply is present and correctly connected. Next, inspect the safety input devices, input-channel wiring, reset circuit and removable terminal blocks. Verify that the monitored devices are in the required state and that the delay setting matches the application. Check the relay’s status indicators and compare their behavior with the troubleshooting instructions. If the relay still fails to operate, isolate the equipment and have a qualified technician inspect the circuit. Never bypass safety devices to force the relay to energize.

8. What should be considered when replacing or integrating the 440R-M23089?

Before replacing or integrating the 440R-M23089, confirm the supply voltage, immediate and delayed output configuration, timing range, reset method, input compatibility and terminal assignments. A replacement with the same general description may not have the same timing behavior or contact arrangement. Also verify that the delayed outputs are appropriate for the machine’s required stopping sequence. After installation, test both immediate and delayed output behavior, reset functionality and responses to safety-device activation. The complete safety system should be validated before the machine returns to service.
