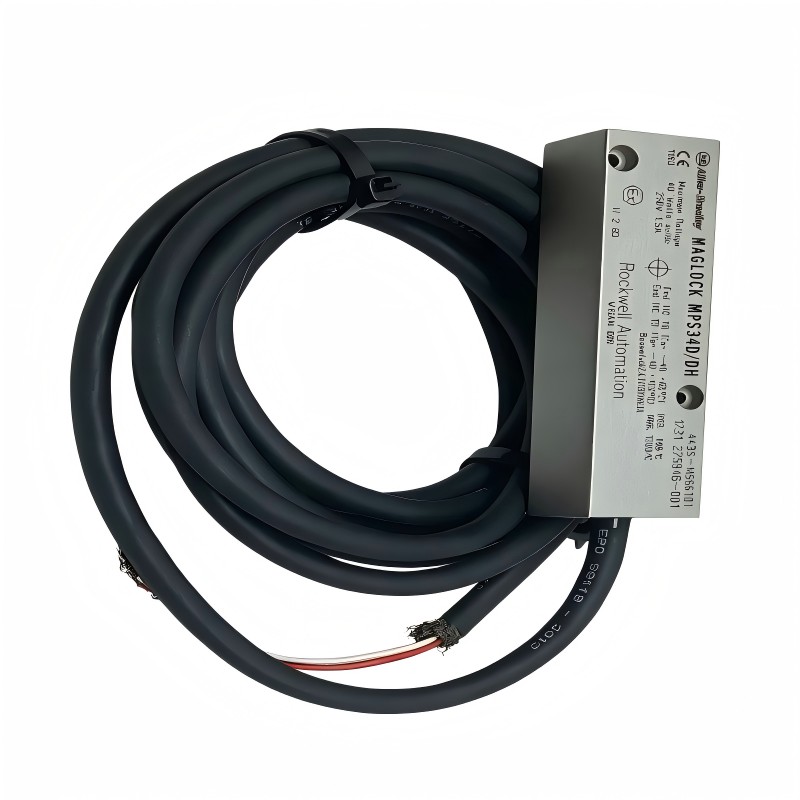

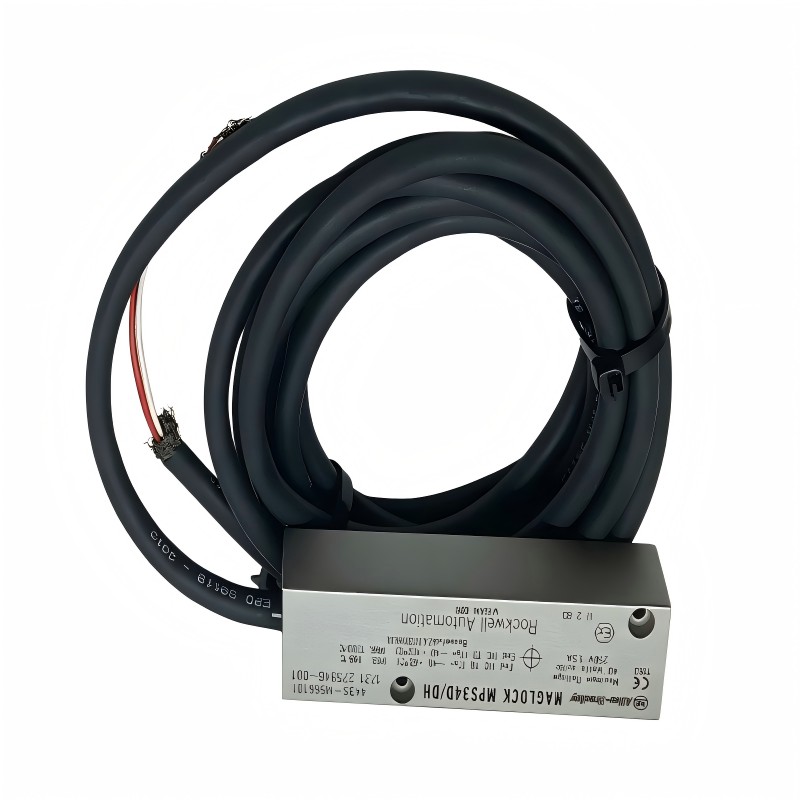

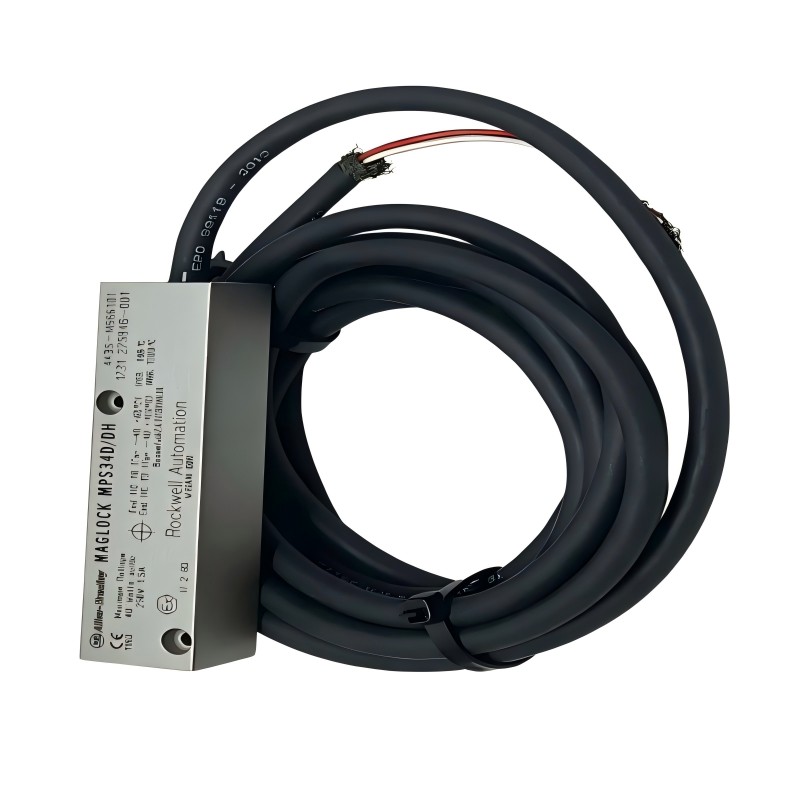

1. What is the main function of the Allen-Bradley 443S-M566101 MPS34D proximity switch?

The 443S-M566101 is a magnetic proximity switch from the Sigma Maglock MPS34D series. It detects the presence or position of a compatible magnetic actuator without requiring direct mechanical contact between the actuator and switch. It can be used in industrial position monitoring and interlocking applications where reliable detection is required. The switch changes its contact state when the magnetic actuator reaches the operating position, allowing the connected control circuit to respond to the detected condition.

2. Does the 443S-M566101 require a separate magnetic actuator?

Yes. The MPS34D operates through magnetic actuation and requires a compatible magnetic actuator to trigger the switch. The actuator must be selected according to the switch’s operating-distance requirements and installed in the correct orientation. Excessive separation, incorrect alignment, or unsuitable mounting materials can prevent reliable switching. During commissioning, verify that the actuator operates the switch consistently throughout the intended movement range.

3. What are the electrical switching limits of the 443S-M566101?

The switch is specified for a maximum switching voltage of 250 V AC/DC, a maximum switching current of 1.5 A AC/DC, and a maximum switching power of 40 W/VA, with a minimum switching load of 3 W/VA. These limits must be considered together when selecting the connected load. Inductive loads, such as contactor coils, may generate voltage transients that affect contact life. Use suitable suppression and protective components where required, and ensure the application remains within the manufacturer’s electrical ratings.

4. What does the IP68 protection rating mean for this switch?

The IP68 rating indicates a high level of protection against dust ingress and water immersion under the conditions specified by the manufacturer. This makes the switch suitable for demanding industrial environments where moisture, dust, or liquid exposure may occur. However, IP68 does not mean the device is suitable for every chemical, pressure, or temperature condition. The cable termination and installation arrangement must also maintain the required environmental protection.

5. How should the 443S-M566101 be installed for reliable detection?

Mount the switch securely and position the compatible magnetic actuator according to the specified operating distance and alignment requirements. Use appropriate mounting hardware and avoid installation arrangements that interfere with the magnetic field. The integral cable should be routed away from sharp edges, excessive mechanical stress, and sources of electrical interference. The cable’s remote end must be terminated in a connection facility suitable for the installation environment. After mounting, test the switch through the full operating movement.

6. What should be checked if the switch does not change state?

First, confirm that the magnetic actuator is present, correctly aligned, and within the switch’s operating range. Next, inspect the cable for damage and check the terminal connections for looseness or incorrect wiring. Use an appropriate meter to verify continuity and confirm that the contact state changes when the actuator approaches and moves away. Also check that the connected circuit meets the switch’s minimum and maximum switching requirements. If the switch remains unresponsive after these checks, isolate the circuit and inspect the device before returning it to service.

7. What maintenance is recommended for the MPS34D proximity switch?

Maintenance should include checking the mounting security, actuator alignment, cable condition, and integrity of the electrical connections. Periodically test the contact state under controlled conditions to confirm consistent switching. Inspect for corrosion, mechanical damage, contamination, or signs of overheating at the terminals. Although the switch has a long typical mechanical life, actual service life depends on installation conditions and the electrical load being switched. Any damaged cable or unreliable switching behavior should be investigated promptly.

8. Is the Allen-Bradley 443S-M566101 still available, and what should be considered when replacing it?

The 443S-M566101 has been discontinued. Before purchasing existing stock or selecting a replacement, verify the exact part number, contact material, switching configuration, voltage and current ratings, cable construction, environmental requirements, and compatibility with the magnetic actuator. A substitute with a similar product description may not provide identical switching characteristics or hazardous-area suitability. If the switch is used in a safety interlocking application or a hazardous location, confirm the replacement’s current approvals and assess the complete installation before commissioning.
