1. What is the main function of the Allen-Bradley 6186M-19PTSS Performance Monitor?

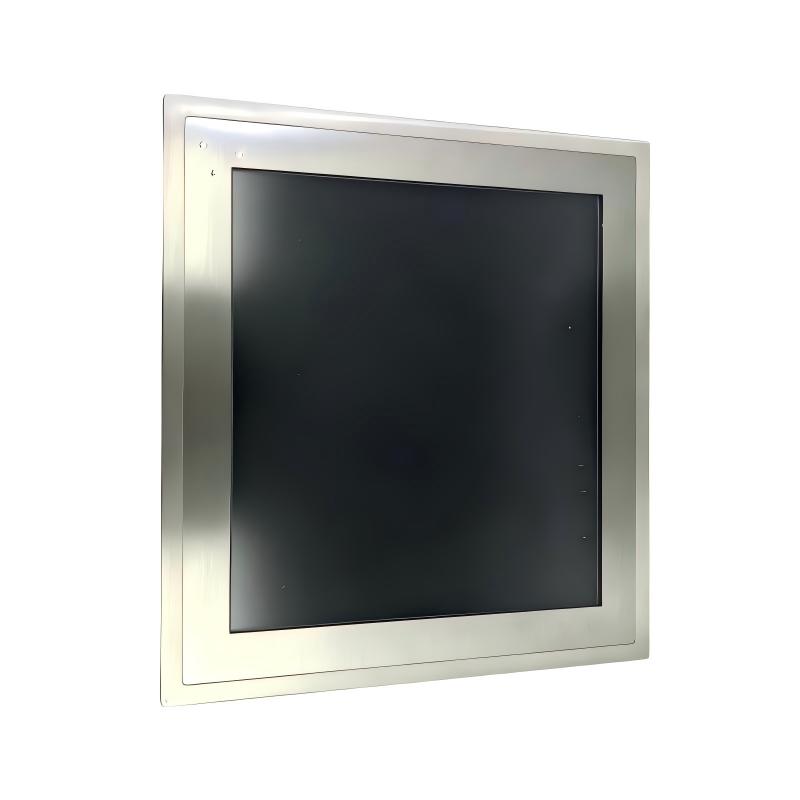

The 6186M-19PTSS is a 19-inch industrial flat-panel monitor designed to display operating information from industrial computers and automation systems. It can be used to view HMI screens, process data, machine status, alarms and other graphical interfaces. Its stainless steel bezel and industrial front protection make it suitable for control panels and demanding production environments. The monitor functions as a display device rather than a standalone PLC or controller, so it requires a compatible computer or video source to generate the displayed content.

2. What video connections does the 6186M-19PTSS support?

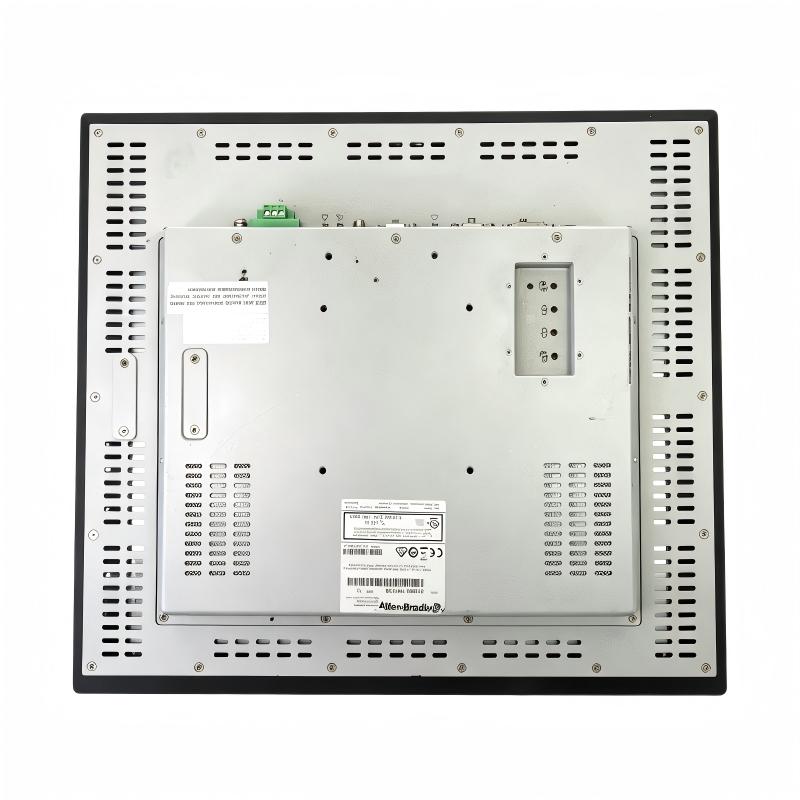

This model supports DVI-I and VGA video inputs. The selected connection must match the output interface of the industrial computer or other display source. Before installation, check the source device’s supported resolution and refresh settings, and use a suitable cable of appropriate length and quality. If the screen remains blank, confirm that the monitor is receiving power, the correct input signal is selected, and the computer is outputting a compatible video signal.

3. Can the touchscreen be used directly with a PLC?

The 6186M-19PTSS uses a resistive touchscreen, but it is primarily a monitor and does not independently execute PLC logic or HMI applications. Touch input generally requires a compatible computer, operating system, touch driver and supported interface connection. A PLC may communicate with the computer running the HMI software, while the monitor displays the interface and receives operator input through the host system. Confirm interface and driver compatibility before integrating the monitor into an existing automation setup.

4. What power supply options are available for this monitor?

The specified power input is 100–240 V AC or 9–36 V DC. The installation must use the correct input terminals and remain within the supported voltage range. Before energizing the monitor, inspect the power wiring, grounding and protective arrangements. Do not connect AC and DC supplies simultaneously unless the manufacturer’s documentation explicitly permits the configuration. If the display fails to start, check the supply voltage and wiring before investigating the video source or monitor itself.

5. Is the 6186M-19PTSS suitable for dusty or wet industrial environments?

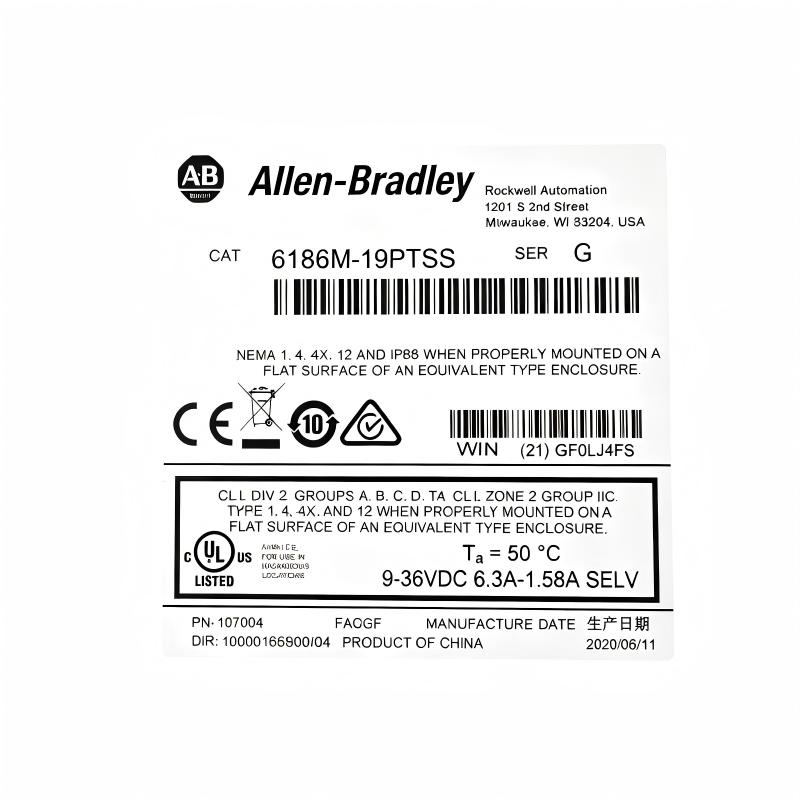

The monitor has an IP66-rated front and listed NEMA enclosure ratings of Type 1, Type 4, Type 4X and Type 12. These ratings support use in appropriately designed industrial panel installations, including environments exposed to dust and water at the front surface. However, the protection level of the complete installation depends on the panel cutout, gasket, mounting hardware and cable entry arrangements. The rear of the monitor should not be assumed to have the same protection as the rated front.

6. What should be checked if the display shows no image?

Start by confirming that the power supply is within specification and that the monitor’s power indicator behaves normally. Next, check the DVI-I or VGA cable, the selected video input and the computer’s display output. Verify that the source is producing a supported resolution and that the cable and connectors are undamaged. If the display works intermittently, inspect the connectors for looseness and check for electrical interference. If these checks do not resolve the issue, test the monitor with a known-compatible video source.

7. How should the resistive touchscreen be maintained and tested?

Clean the screen using a soft, non-abrasive cloth and a cleaning method approved for the display surface. Avoid harsh solvents, sharp tools and excessive pressure, which may damage the touchscreen or its protective surface. Test touch response across the active display area and check for missed touches, inaccurate coordinates or unintended input. If touch operation becomes unreliable, verify the host computer’s touch driver and calibration settings before assuming that the monitor hardware has failed.

8. Is the Allen-Bradley 6186M-19PTSS discontinued, and what should be checked before replacement?

Yes. The 6186M-19PTSS was discontinued effective December 31, 2022. Before selecting a replacement, compare the 19-inch display size, 1280 × 1024 resolution, stainless steel bezel, resistive touchscreen, DVI-I and VGA inputs, power supply range, panel cutout and environmental protection requirements. Also confirm compatibility with the host computer and existing touch drivers. A replacement that fits the panel may still differ in connectors, touch behavior or electrical requirements, so verify these details before installation and commissioning.
