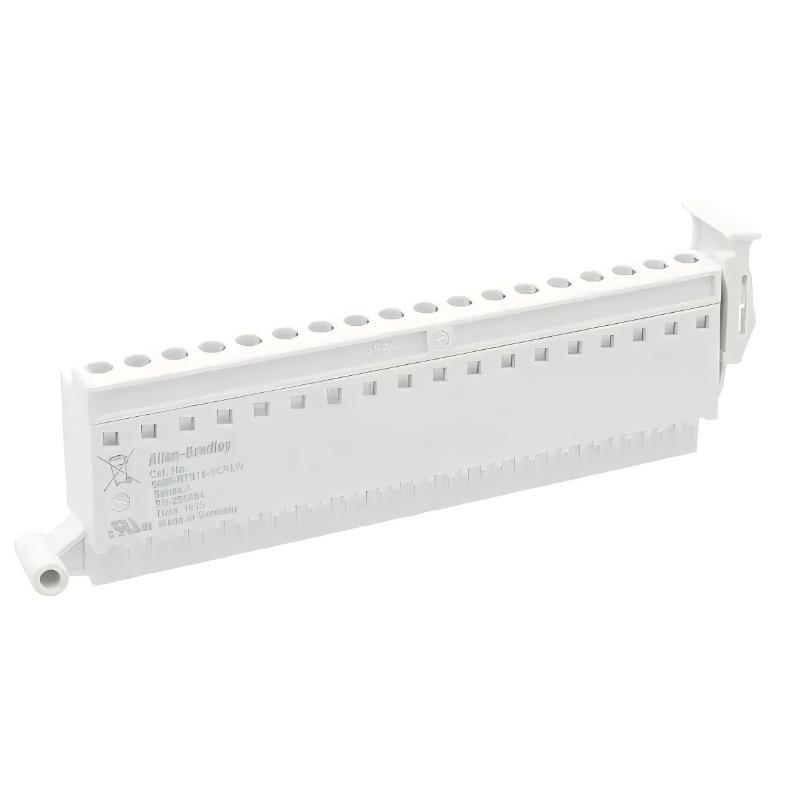

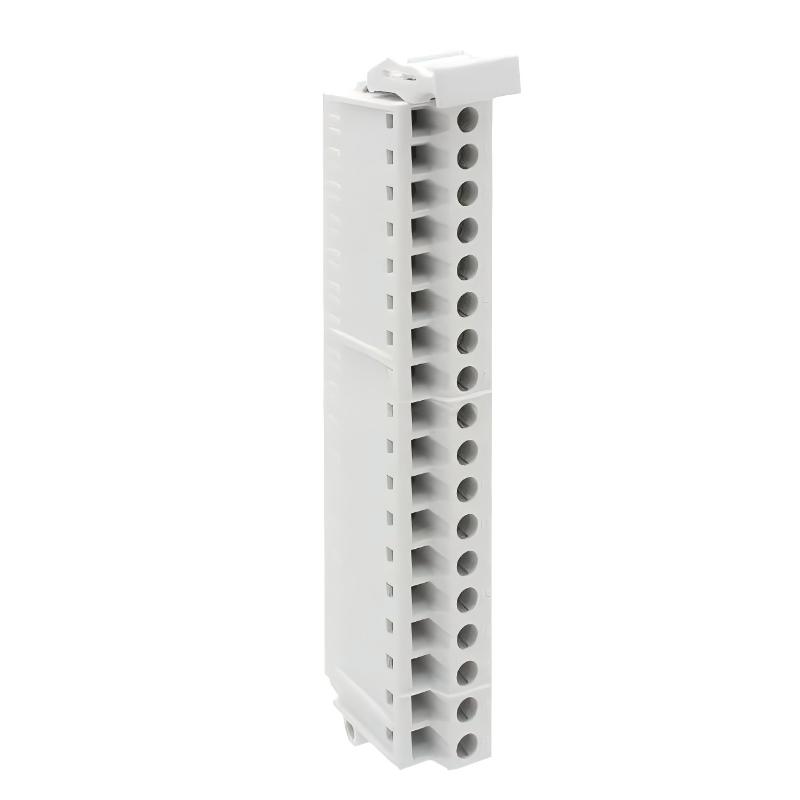

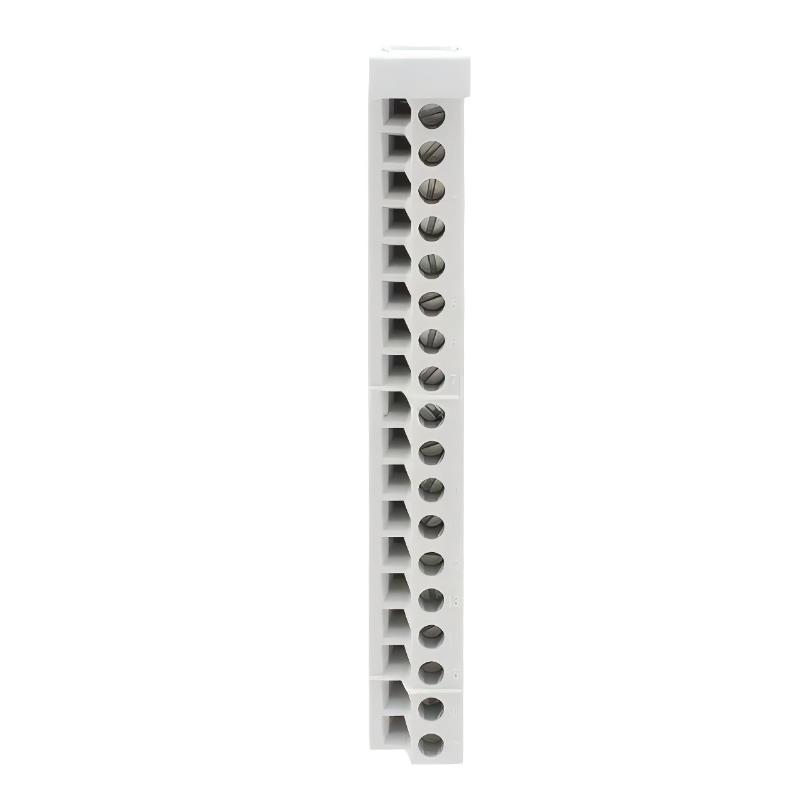

Allen Bradley 5069-RTB18-SCREW Compact 5000 I/O Terminal Blocks
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 5069-RTB18-SCREW |
| Brand | Allen-Bradley |
| Product Type | Compact 5000 I/O Terminal Block |
| Function | Field wiring termination for Compact 5000 I/O modules |
| System Series | Compact 5000 I/O system |
| Pin Configuration | 18-pin |
| Connection Type | Screw-type terminal connection |
| Wiring Method | Direct field wiring termination |
| Mounting Method | Module-mounted removable terminal base |
| Electrical Role | Signal interface between field devices and I/O modules |
| Signal Support | Digital and analog signal termination (module dependent) |
| Contact Material | Industrial-grade conductive alloy |
| Insulation Material | High-strength industrial polymer housing |
| System Compatibility | Allen-Bradley Compact 5000 I/O platform |
| Maintenance Type | Replaceable field wiring terminal assembly |
| EMC Protection | Industrial electromagnetic compatibility design |
| Operating Environment | Industrial automation control systems |
| Installation Type | Plug-in / removable terminal block design |
| Safety Design | Secure wiring retention structure |
| Diagnostics Support | System-level diagnostics via I/O module (architecture dependent) |
| Application Role | Field signal distribution and wiring organization |
| Weight | 0.06 kg |
FAQ
Q1: What is the main function of the Allen-Bradley 5069-RTB18-SCREW Compact 5000 I/O Terminal Block?
A: The 5069-RTB18-SCREW terminal block is used to provide a structured interface between field wiring and Compact 5000 I/O modules. It allows sensors, actuators, and other field devices to be securely connected to the control system.
In industrial automation systems, it simplifies wiring management and ensures reliable signal transmission between field devices and control modules.
Q2: Why is a removable terminal block important in Compact 5000 systems?
A: A removable terminal block allows the I/O module to be replaced without rewiring all field connections. This significantly reduces maintenance time and system downtime.
It also improves serviceability by keeping wiring organized and minimizing the risk of wiring errors during module replacement.
Q3: What type of connections does this terminal block support?
A: This model uses screw-type terminals, which provide secure mechanical and electrical connections for field wiring.
Screw terminals are widely used in industrial environments due to their reliability and resistance to vibration.
Q4: What kinds of signals can be connected through this terminal block?
A: The terminal block supports both digital and analog signals depending on the connected I/O module.
It does not process signals itself but serves as a physical interface for signal routing between field devices and the control system.
Q5: How does this terminal block improve system maintenance?
A: By allowing modules to be removed while keeping field wiring intact, it greatly simplifies troubleshooting and replacement procedures.
This reduces downtime and minimizes the risk of wiring mistakes during maintenance activities.
Q6: Is this terminal block suitable for harsh industrial environments?
A: Yes. It is designed with industrial-grade materials that provide resistance to vibration, electrical noise, and mechanical stress.
This ensures stable performance in demanding automation environments.
Q7: Does this terminal block require any configuration?
A: No configuration is required for the terminal block itself. It functions as a passive wiring interface.
Configuration is handled at the I/O module or controller level, depending on system architecture.
Q8: What role does this terminal block play in the overall control system?
A: It acts as the physical connection layer between field devices and the Compact 5000 I/O modules.
By organizing and securing signal wiring, it ensures reliable data transmission and supports stable operation of the entire automation system.
Allen Bradley 5069-RTB18-SCREW Compact 5000 I/O Terminal Blocks is in stock. Please contact us for a quick quote and competitive pricing.
