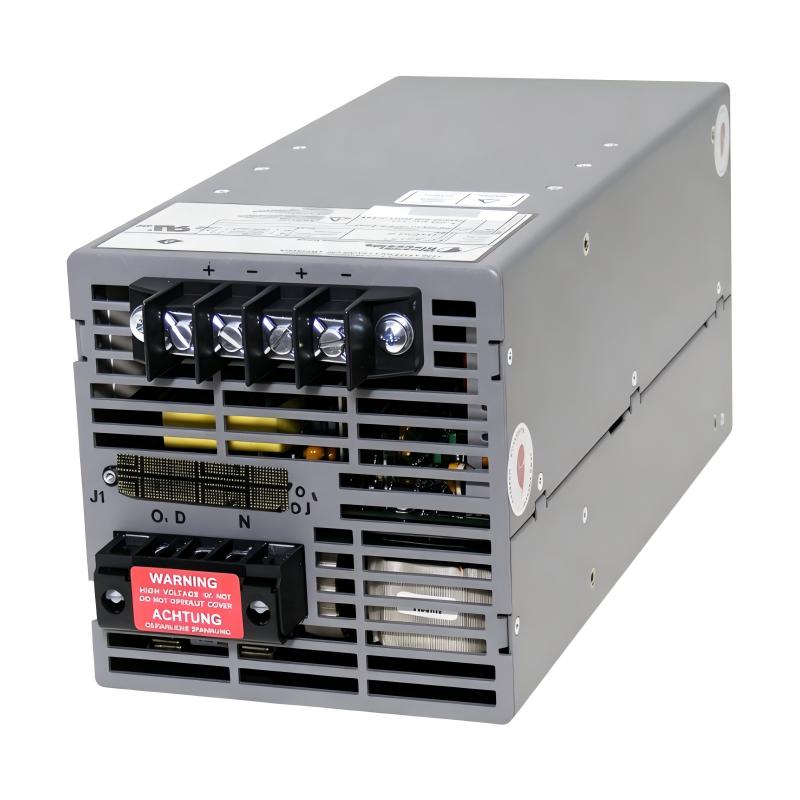

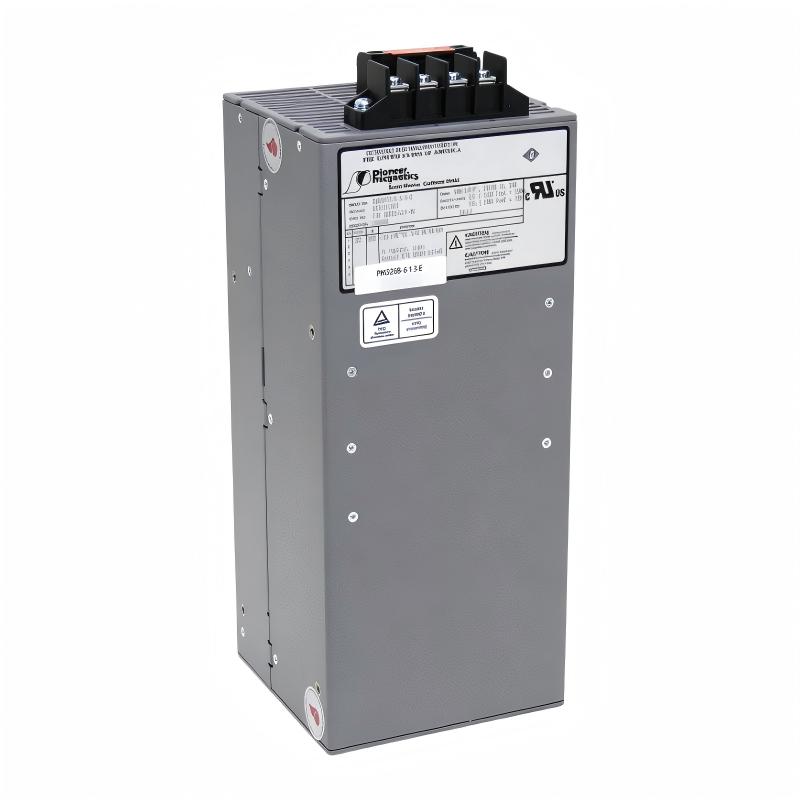

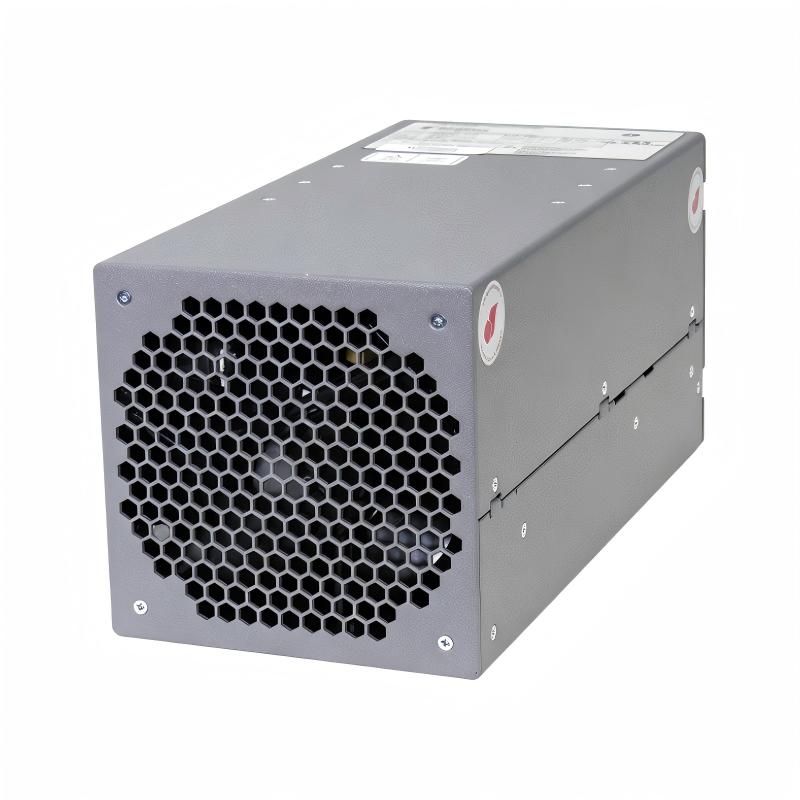

Allen Bradley 80026-524-01 Single-Phase AC Power Supply
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Model | 80026-524-01 |
| Product Type | Single-Phase AC/DC Power Supply |
| Part Number | 80026-524-01 |
| Power Rating | 1500 W |
| Input Voltage | 100–240 V AC |
| Input Phase | Single-phase |
| Input Frequency | 50/60 Hz |
| Input Current | 23 A |
| Output Voltage | 56 V DC |
| Output Current | Approximately 26.8 A, subject to nameplate verification |
| Power Supply Type | AC-to-DC switching power supply |
| Compatible Equipment | PowerFlex 7000 medium-voltage AC drives; verify the specific drive configuration |
| Primary Function | Converts single-phase AC input into regulated DC power for compatible drive equipment |
| Protection | Verify the installed unit’s overcurrent, overvoltage, and thermal protection specifications |
| Alternate Model Reference | PM3328B-6-1-3-E |
| Dimensions | 250 × 150 × 100 mm |
| Weight | 4.54 kg |
| Product Status | Reported as discontinued; confirm availability before ordering |
FAQ
Q1: What is the main function of the Allen-Bradley 80026-524-01 power supply?
The Allen-Bradley 80026-524-01 is a 1500 W single-phase AC/DC power supply intended for industrial power conversion applications. It converts AC input power into DC power for compatible equipment, including certain PowerFlex 7000 medium-voltage drive configurations. Correct operation depends on matching the supply to the drive’s electrical requirements and connection layout.
Q2: What input voltage does the 80026-524-01 require?
The listed input range is 100–240 V AC at 50/60 Hz. Before connecting the unit, verify the input requirements on its nameplate and confirm that the available supply meets the specified voltage, frequency, and current requirements. Incorrect input conditions can cause startup problems, abnormal operation, or damage to the power supply.
Q3: What is the DC output voltage of this power supply?
The 80026-524-01 is commonly specified with a 56 V DC output. This output is intended for the equipment configuration for which the power supply was designed. Before connecting a load, confirm the output voltage, polarity, terminal assignments, and rated current against the product label and the relevant equipment wiring documentation.
Q4: How can output voltage problems be diagnosed?
Start by checking the AC input supply and inspecting the wiring and terminals for loose connections or visible damage. A qualified technician can then measure the DC output using an appropriately rated instrument and compare the result with the specified output voltage. If the input is correct but the output remains abnormal, investigate possible overloads, external circuit faults, or internal power supply failure according to the equipment service procedure.
Q5: What can cause the power supply to overheat or shut down?
Possible causes include excessive load current, inadequate cooling, blocked ventilation, high ambient temperature, poor electrical connections, or internal component deterioration. Check the load demand and cooling arrangements first. If the unit continues to overheat or repeatedly shuts down, remove it from service and arrange a qualified inspection rather than repeatedly restarting it without identifying the cause.
Q6: Can the 80026-524-01 replace another AC/DC power supply?
Replacement should not be based on wattage alone. The alternative must match the required AC input range, DC output voltage, current capacity, protection characteristics, terminal layout, and equipment compatibility. For PowerFlex 7000 applications, verify the exact drive model and hardware configuration before selecting a substitute. An electrically incompatible supply can cause drive faults or damage connected components.
Q7: What safety precautions are necessary when installing or replacing this unit?
Installation and replacement should be performed by qualified electrical personnel following the applicable site safety procedures. Isolate the equipment, apply lockout/tagout, and verify the absence of hazardous voltage before handling electrical connections. Follow the drive manufacturer’s instructions for stored-energy discharge and safe access. Do not assume that switching off the input immediately eliminates all electrical hazards within the drive system.
Q8: What should buyers verify when sourcing the 80026-524-01?
Confirm the complete part number, output rating, input requirements, and compatibility with the intended equipment. This model is reported as discontinued, so available stock may include unused inventory or refurbished units. Ask the supplier to clarify the item’s condition, testing status, warranty, and return terms. Before installation, compare the received unit’s nameplate and terminal arrangement with the original equipment documentation.
