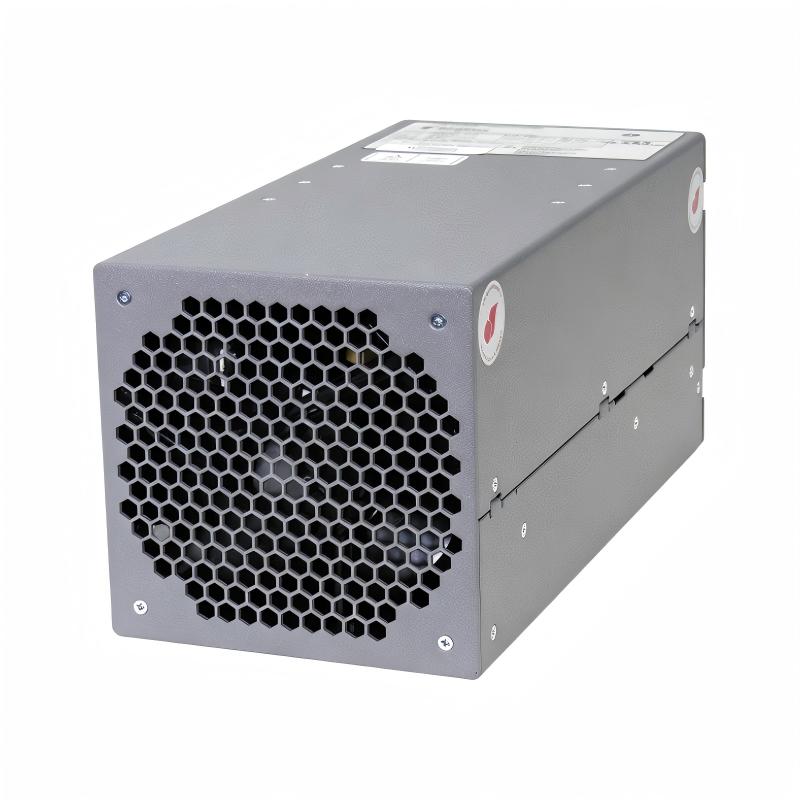

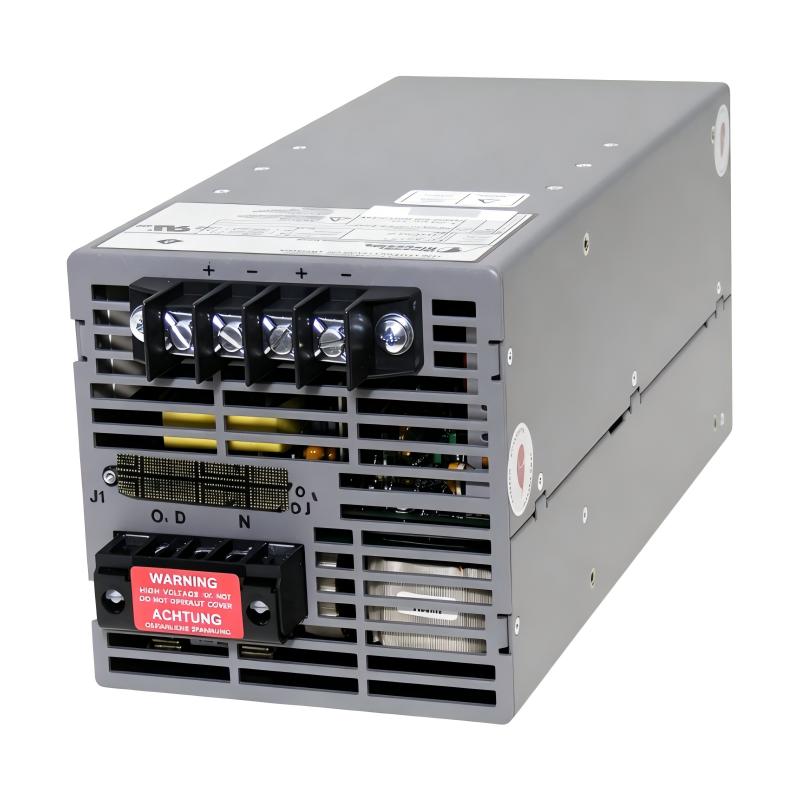

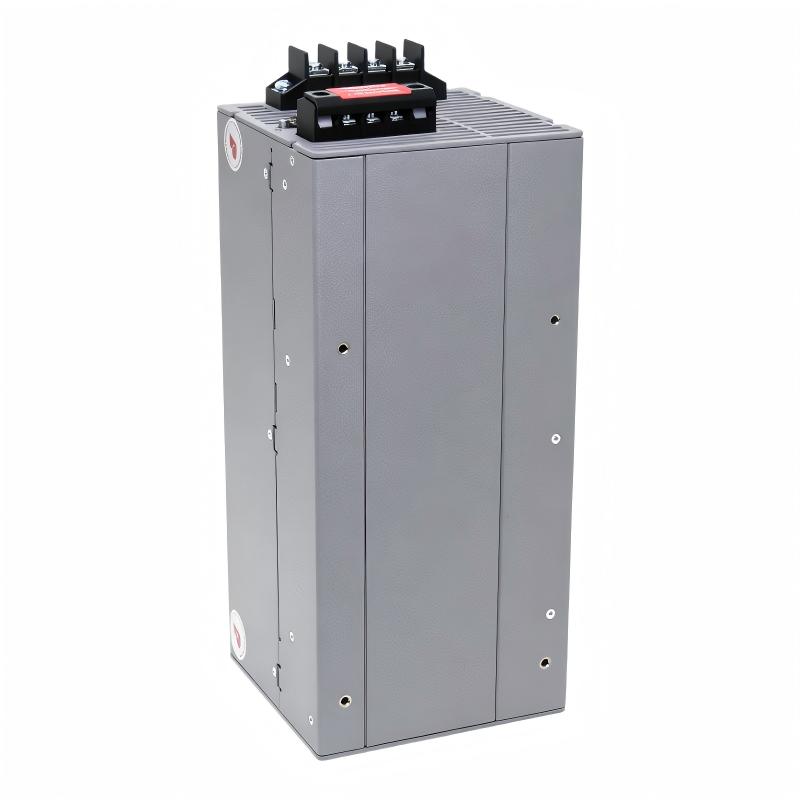

Allen Bradley 80026-524-01-R Single-Phase AC Power Supply
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 80026-524-01-R |
| Product Type | Single-Phase AC/DC Power Supply |
| Part Number | 80026-524-01-R |
| Rated Power | 1500 W |
| Input Voltage | 100–240 VAC |
| Input Frequency | 50/60 Hz |
| Input Phase | Single-phase |
| Input Current | 23 A |
| Output Voltage | 56 VDC |
| Output Current | Approximately 27 A |
| Conversion Type | AC-to-DC switching power supply |
| Compatible Equipment | PowerFlex 7000 medium-voltage AC drives |
| Primary Function | Converts single-phase AC input into regulated 56 VDC output for compatible drive equipment |
| Protection Features | Overload, overvoltage, and undervoltage protection; verify the exact configuration |
| Remote Sense | Supported; confirm terminal configuration before use |
| Alternate Model Reference | PM3328B-6-1-3-E |
| Dimensions | 250 × 150 × 100 mm |
| Weight | 4.54 kg |
FAQ
Q1: What is the primary function of the Allen-Bradley 80026-524-01-R power supply?
The Allen-Bradley 80026-524-01-R is a 1500 W single-phase AC/DC power supply designed for compatible PowerFlex 7000 medium-voltage AC drive systems. It converts AC input power into a regulated 56 VDC output to supply the designated electrical circuits. Its correct operation depends on matching the input requirements, output rating, and connection arrangement to the specific drive configuration.
Q2: What input voltage does the 80026-524-01-R require?
The specified input range is 100–240 VAC at 50/60 Hz. The supply should be connected only to an AC source that meets the manufacturer’s electrical requirements. Before energizing the unit, verify the nameplate, input wiring, protective device ratings, and grounding arrangements. Incorrect input conditions can cause abnormal operation or damage the power supply.
Q3: What are the output voltage and current ratings?
The unit is specified for a 56 VDC output with an output current rating of approximately 27 A. Its rated power is 1500 W. The actual permissible operating current depends on the product specifications and operating conditions. Confirm the output rating and terminal assignments against the equipment documentation before connecting loads.
Q4: What is the purpose of the remote-sense function?
Remote sensing allows a power supply to monitor the voltage at the load rather than only at its own output terminals. This can help compensate for voltage drop across connecting cables and maintain the required voltage at the load. If the function is used, follow the manufacturer’s wiring instructions and verify the correct sense-terminal connections. Incorrect wiring may result in unstable output regulation or equipment malfunction.
Q5: What should be checked if the DC output voltage is unstable?
Begin by checking the AC input voltage and inspecting the input and output connections for loose terminals or damaged wiring. Then measure the DC output using an appropriately rated instrument and compare the result with the specified value. Check for excessive load current, short circuits, and incorrect remote-sense wiring where applicable. If the input and external circuits are normal but the output remains unstable, the power supply may require further testing.
Q6: What protection functions are available on this power supply?
Available product descriptions identify overload, overvoltage, and undervoltage protection. These functions help protect the power supply and connected equipment under abnormal electrical conditions. The exact protection thresholds, response behavior, and recovery method should be confirmed in the applicable technical documentation. Protection functions should not replace correct circuit protection, proper grounding, or compliance with the equipment’s installation requirements.
Q7: Can the 80026-524-01-R replace another 1500 W power supply?
Not necessarily. A suitable replacement must match the required input voltage range, single-phase input configuration, 56 VDC output, current capacity, protection characteristics, and terminal arrangement. Compatibility with the specific PowerFlex 7000 drive hardware must also be verified. A power supply with the same wattage but a different output voltage or connection layout may not be suitable.
Q8: What should be verified when purchasing the 80026-524-01-R?
Confirm the complete part number, 80026-524-01-R, and check that the nameplate matches the requirements of the intended equipment. Ask the supplier to clarify whether the unit is new, unused surplus, or refurbished, and whether functional testing and a warranty are included. Before installation, inspect the housing and terminals, verify the electrical ratings, and compare the connection layout with the original equipment documentation.
Allen Bradley 80026-524-01-R Single-Phase AC Power Supply is in stock. Please contact us for a quick quote and competitive pricing.
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Company Introduction
Xiamen Shengruite Trading Co., Ltd. is a company specializing in the supply of industrial PLC spare parts.
We provide high-quality PLC spare parts to customers in the global manufacturing, energy and power, chemical and other fields.
Since its establishment in 2011, after 13 years of rapid development, the cumulative global shipments have reached 223,650 pieces, with an annual output value of US$50 million.
Successfully served more than 500 customers in more than 100 countries and regions including Saudi Arabia, UAE, the United States, Europe, Africa, and Southeast Asia
Our Mission
Provide customers with the best quality PLC spare parts and the fastest delivery service to ensure that their industrial automation systems are always in the best operating condition.
We provide a 1-year warranty service, and we support returns and exchanges for any issues to ensure your rights and interests are fully protected.
We can provide detailed product images upon request, and our team can arrange warehouse photos for confirmation to ensure you have all the information you need before making a purchase.
Shipping times vary depending on your location. With the support of our 16 global warehouses, we strive to deliver orders as quickly as possible. Contact us to get an estimated delivery time for your specific location.
The minimum order quantity (MOQ) is typically one unit. However, for larger orders, please contact us for potential discounts and pricing details.
Yes, we offer competitive pricing for bulk purchases. Please reach out to our sales team with the specifics of your order to receive a custom quote.
We accept various payment methods for wholesale orders, including bank transfers (T/T), letters of credit, and other options upon agreement. For large transactions, please contact us directly for payment terms.
Yes, we offer flexible ordering options for both small and large quantities. Whether youre looking for a single unit or a large batch, we can accommodate your needs.
We occasionally offer promotional discounts for new wholesale customers. Contact us to learn more about any current offers available for first-time buyers.
If you are unsure of compatibility with your existing setup please provide your system details and our support team can verify compatibility prior to purchase.
Returns are accepted within 30 days if the product is unused, unopened, and in its original packaging. Please note that return shipping and associated costs are the buyer\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\’s responsibility.
Yes, we offer technical support for the installation and integration of our products. Our team can assist with setup, configuration, and troubleshooting to ensure a smooth installation.
Products categories
-

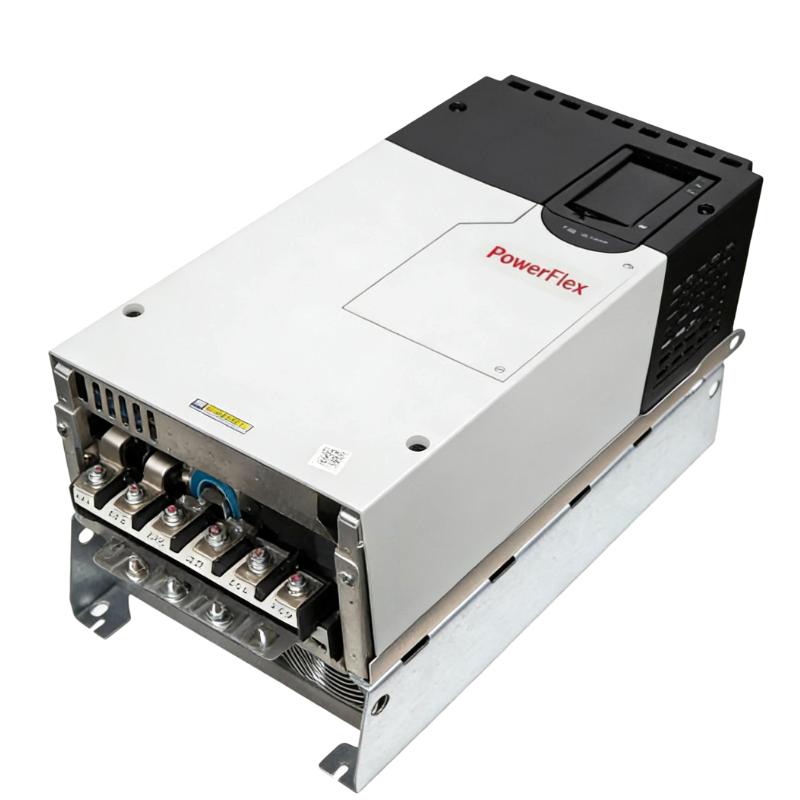

Allen-Bradley 20G1F3C540LNANNNNN PowerFlex 755 AC Drive – Technical Specifications
-
