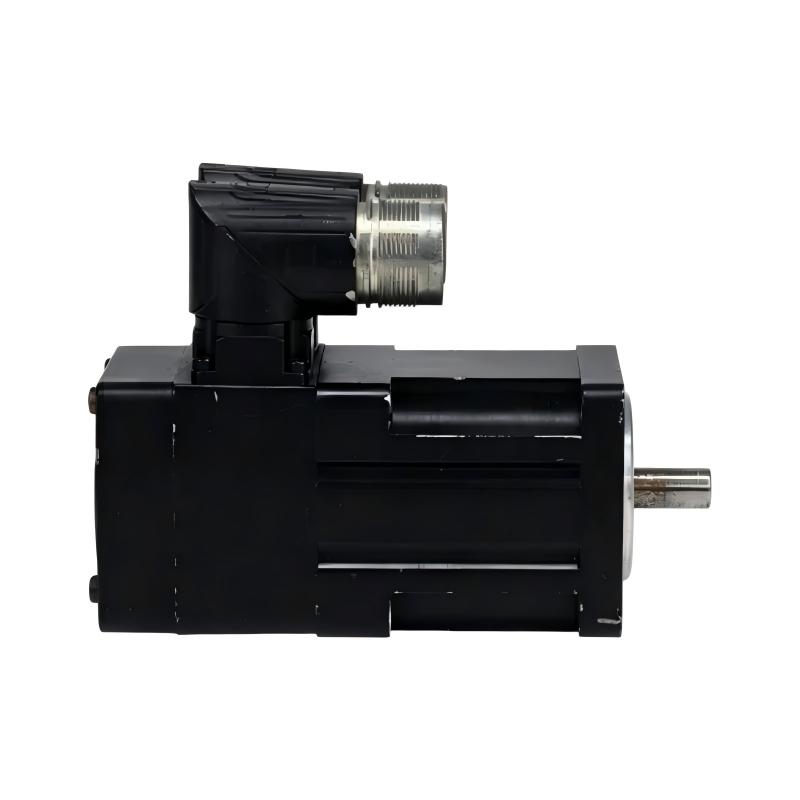

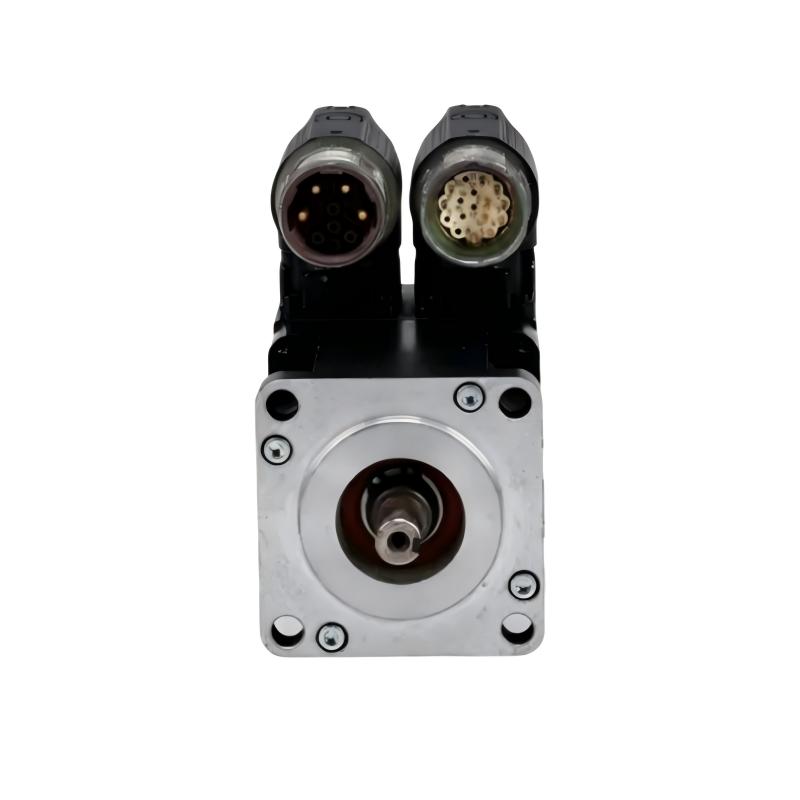

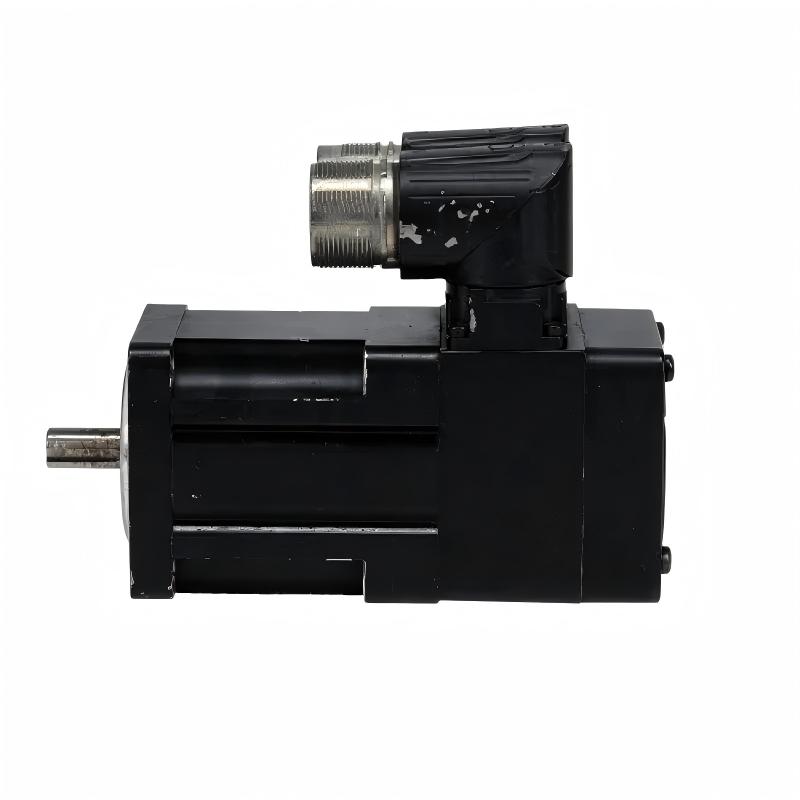

Q1: What is the main function of the Allen-Bradley MPL-A1510V-EJ72AA servo motor?

The MPL-A1510V-EJ72AA is a low-inertia brushless AC servo motor designed for precision motion-control applications. It converts electrical energy into controlled rotary motion and is intended for use with a compatible servo drive. Its low-inertia design supports responsive acceleration and deceleration, making it suitable for machinery that requires accurate positioning and repeatable motion.

Q2: Which servo drive is compatible with the MPL-A1510V-EJ72AA?

The motor should be paired with a compatible Allen-Bradley servo drive that supports its 230 V AC motor class and Hiperface single-turn encoder feedback. Drive selection must account for the motor’s electrical ratings, feedback interface, required speed and torque, and the machine’s supply configuration. Confirm compatibility using the drive selection guide and motor documentation before commissioning.

Q3: What are the rated speed and output power of this servo motor?

The MPL-A1510V-EJ72AA has a rated speed of 8000 rpm and a rated output power of approximately 0.16 kW. The achievable operating speed and torque depend on the selected servo drive, load characteristics, operating cycle, and thermal conditions. Applications requiring continuous high torque should be checked against the motor’s torque-speed curve and duty-cycle requirements.

Q4: What is the purpose of the motor’s Hiperface encoder?

The Hiperface single-turn high-resolution encoder provides feedback about the motor’s shaft position and movement. The servo drive uses this feedback to regulate position, speed, and torque. Correct feedback wiring and parameter configuration are essential for stable closed-loop operation. Incorrect encoder connections or incompatible drive settings can cause feedback alarms, positioning errors, or failure to enable the motor.

Q5: Does the MPL-A1510V-EJ72AA include a holding brake?

No. This model is specified without a brake. If the machine must hold a vertical or gravity-loaded axis when power is removed, an appropriate external holding solution or a motor variant with a brake may be required. Do not assume that the servo motor can safely hold a stationary load without power; evaluate the mechanical load and safety requirements before selecting the motor.

Q6: What should be checked if the motor vibrates or produces abnormal noise?

Check the motor mounting, coupling alignment, mechanical load, and shaft condition first. Then inspect the feedback cable and motor power connections, and review the servo drive’s alarm history and tuning parameters. Incorrect gain settings, mechanical resonance, excessive load inertia, or feedback problems can cause vibration. If the problem persists, follow the drive manufacturer’s diagnostic procedure rather than repeatedly operating the motor under abnormal conditions.

Q7: What maintenance is recommended for this servo motor?

Inspect the motor and connectors periodically for contamination, loose connections, damaged cables, and signs of overheating. Check the mounting bolts and coupling alignment according to the machine maintenance schedule. Because this model has no shaft seal and no holding brake, verify that the installation environment is suitable and that external contaminants cannot damage the shaft or bearings. Follow the manufacturer’s instructions for inspection and replacement intervals.

Q8: Can the MPL-A1510V-EJ72AA be replaced by another MP-Series servo motor?

Replacement is possible only after confirming electrical, mechanical, and feedback compatibility. Compare the rated voltage, speed, output power, torque requirements, frame and mounting arrangement, shaft configuration, encoder type, connector orientation, and brake option. A motor with a similar frame size may still have different performance or feedback characteristics. Verify the complete replacement catalog number against the machine design and servo drive configuration before installation.
