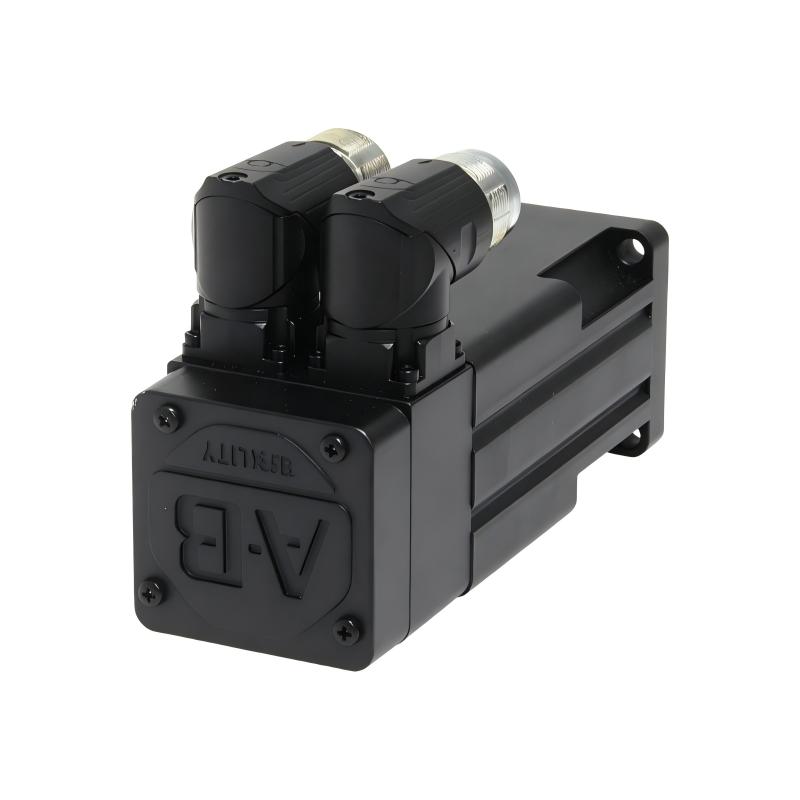

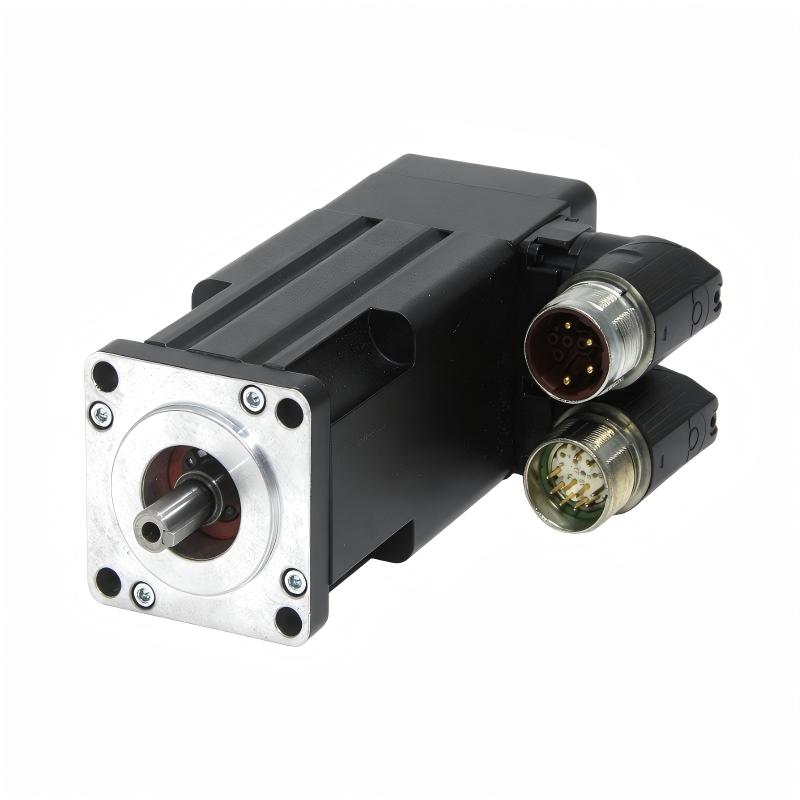

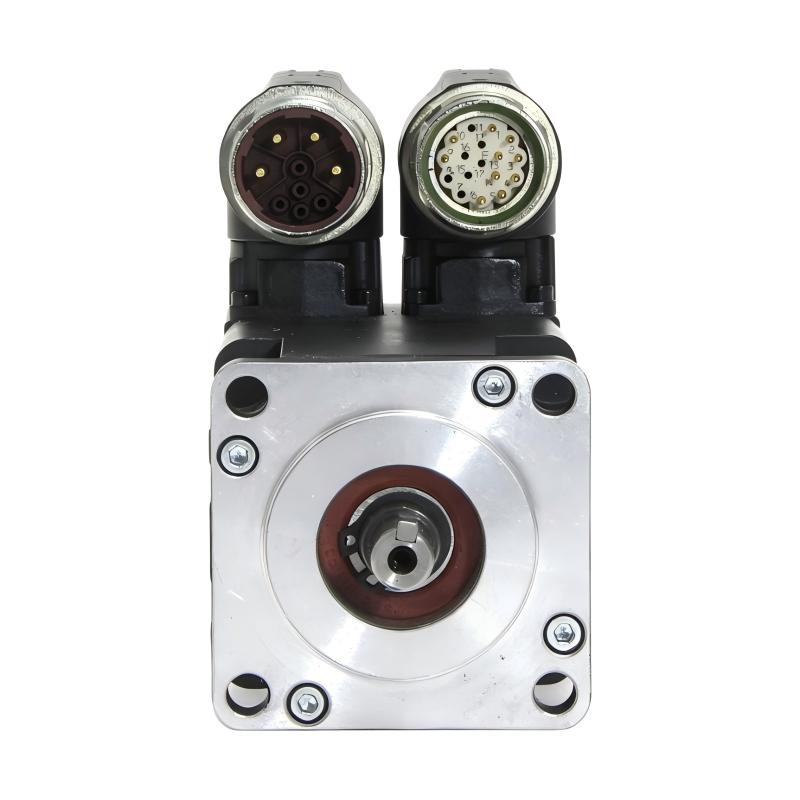

Allen Bradley MPL-A1530U-HJ72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A1530U-HJ72AA |
| Product Type | AC Rotary Servo Motor |
| Series | MP-Series MPL |
| Motor Type | Low-Inertia Brushless Servo Motor |
| Voltage Class | 200 V |
| Rated Voltage | 230 V AC |
| Frame Size | 63 mm |
| Magnet Stack Length | 76.2 mm |
| Rated Speed | 7000 RPM |
| Feedback Type | Incremental Encoder |
| Feedback Resolution | 2000 Lines per Revolution |
| Shaft Type | Keyed Shaft |
| Brake Option | No Brake |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right-Angle, 180° Rotatable |
| Shaft Seal | No Shaft Seal |
| Mounting Type | IEC Metric Flange Mount |
| Weight | 1.6 kg |
FAQ
Q1: What applications is the Allen-Bradley MPL-A1530U-HJ72AA designed for?
This low-inertia servo motor is designed for industrial motion-control systems that require precise speed regulation, repeatable positioning, and rapid acceleration. Typical applications include packaging machinery, automated assembly equipment, and material handling systems.
Q2: Which servo drives can be used with the MPL-A1530U-HJ72AA?
The motor is associated with Allen-Bradley Kinetix motion-control systems. Compatibility depends on the specific drive model, voltage class, feedback interface, and configuration. Confirm support for the exact motor catalog number in the drive documentation before installation.
Q3: What is the function of the 2000-line incremental encoder?
The incremental encoder supplies position and speed feedback to the servo drive. The drive uses these signals for closed-loop control. Unlike an absolute encoder, an incremental encoder generally requires a homing or reference procedure after power-up when the application needs a known machine position.
Q4: Why is a low-inertia servo motor suitable for dynamic motion applications?
Low rotor inertia allows the motor to accelerate and decelerate quickly when paired with an appropriately configured drive. This can improve response in applications with frequent starts, stops, and position changes, provided the mechanical load and control loop are properly matched.
Q5: Does the MPL-A1530U-HJ72AA have a built-in holding brake?
No. This model is specified without a brake. If the application must hold a vertical load or prevent movement while power is off, the machine may require a separate mechanical braking or load-holding solution designed for the application.
Q6: What should be checked if the motor does not rotate?
Check the servo drive’s alarm codes, incoming power, enable signals, emergency-stop circuit, motor power cable, and encoder feedback connection. Also verify that the drive is configured for the correct motor and that no interlock is preventing operation.
Q7: What causes unstable speed or inaccurate positioning?
Possible causes include incorrect servo tuning, encoder wiring faults, electrical interference, mechanical backlash, coupling misalignment, or excessive load inertia. Review drive diagnostics first, then inspect wiring and mechanical components before changing tuning parameters.
Q8: What should be done when replacing this servo motor?
Verify the full catalog number, voltage class, encoder type, shaft configuration, connector arrangement, and mounting compatibility. After installation, check the drive parameters, encoder feedback, motor direction, and homing sequence. Perform initial tests at a controlled speed before returning the machine to normal operation.
Allen Bradley MPL-A1530U-HJ72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
