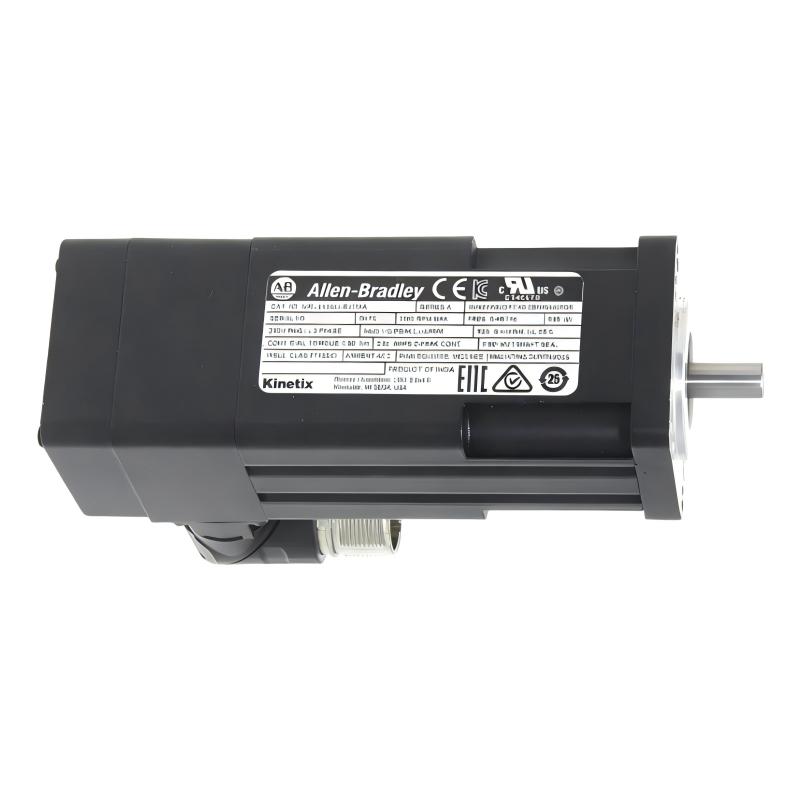

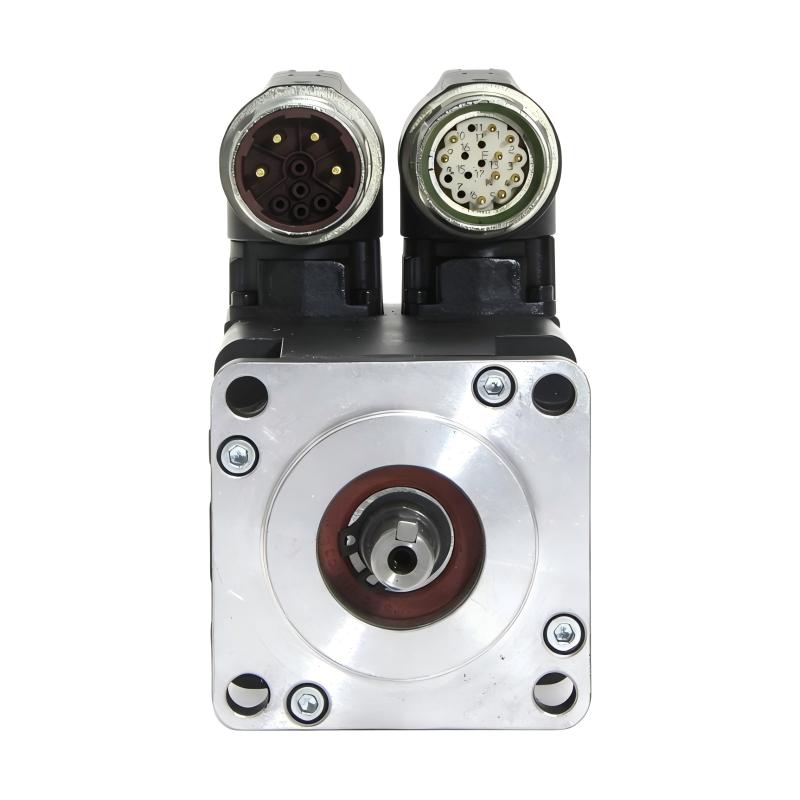

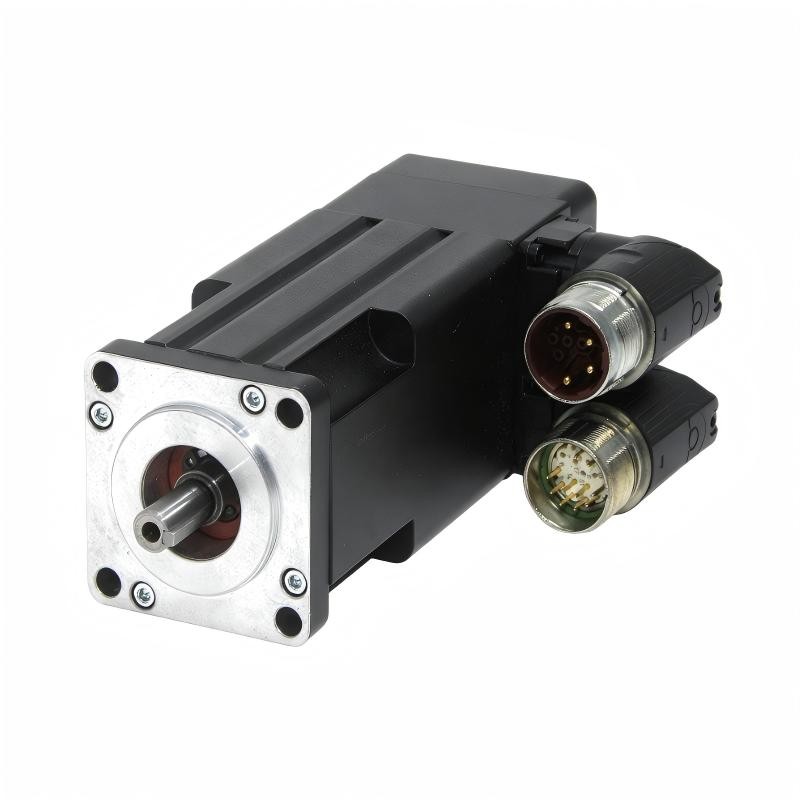

Allen Bradley MPL-A1530U-EJ74AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A1530U-EJ74AA |
| Product Type | AC Servo Motor |
| Series | MP-Series MPL |
| Motor Type | Low-Inertia Brushless Servo Motor |
| Rated Voltage | 230 V AC |
| Frame Size | 63 mm |
| Rated Speed | 7000 RPM |
| Continuous Output Power | Approx. 0.39 kW |
| Feedback Type | Single-Turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyed Shaft |
| Brake | 24 V DC Holding Brake |
| Connector Type | Right-Angle SpeedTEC DIN Connector |
| Connector Orientation | Rotatable up to 180° |
| Mounting Type | IEC Metric Flange Mount |
| Shaft Seal | No Shaft Seal |
| Weight | 1.6 kg |
FAQ
Q1: What is the Allen-Bradley MPL-A1530U-EJ74AA servo motor used for?
The MPL-A1530U-EJ74AA is a low-inertia brushless AC servo motor designed for precision motion control in industrial automation. Typical applications include packaging machinery, automated assembly systems, material handling equipment, and positioning systems.
Q2: Which servo drives are compatible with the MPL-A1530U-EJ74AA?
Compatibility depends on the drive’s voltage rating, feedback interface, and supported motor configurations. Check the drive’s motor selection documentation to confirm compatibility with the exact MPL-A1530U-EJ74AA catalog number before installation.
Q3: What is the maximum operating speed of this servo motor?
The specified speed is 7000 RPM. The permitted operating speed in a particular application depends on the drive settings, load conditions, and mechanical requirements of the equipment.
Q4: What is the function of the motor’s Hiperface encoder?
The Hiperface absolute encoder provides position feedback to the servo drive, supporting accurate positioning and closed-loop motion control. Correct feedback wiring and compatible drive configuration are essential for reliable operation.
Q5: What is the purpose of the built-in holding brake?
The 24 V DC holding brake helps hold the motor shaft when the motor is stopped. It is generally intended for holding rather than routine dynamic braking. Follow the equipment manufacturer’s instructions for brake control and load safety.
Q6: What should I check if the servo motor does not start?
Inspect the drive fault codes, power supply, enable signals, emergency-stop circuit, motor wiring, encoder connections, and brake release circuit. Confirm that the motor parameters are configured correctly in the drive before restarting the system.
Q7: What can cause vibration or inaccurate positioning?
Common causes include incorrect servo tuning, mechanical misalignment, loose couplings, excessive load, feedback signal interference, or damaged cables. Check the mechanical installation and drive diagnostics before changing tuning parameters.
Q8: What should be checked when replacing the MPL-A1530U-EJ74AA?
Verify the complete catalog number, electrical ratings, feedback type, shaft configuration, connector arrangement, and brake specification. After installation, confirm the drive configuration and perform controlled tests of motor direction, feedback, and positioning accuracy.
Allen Bradley MPL-A1530U-EJ74AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
