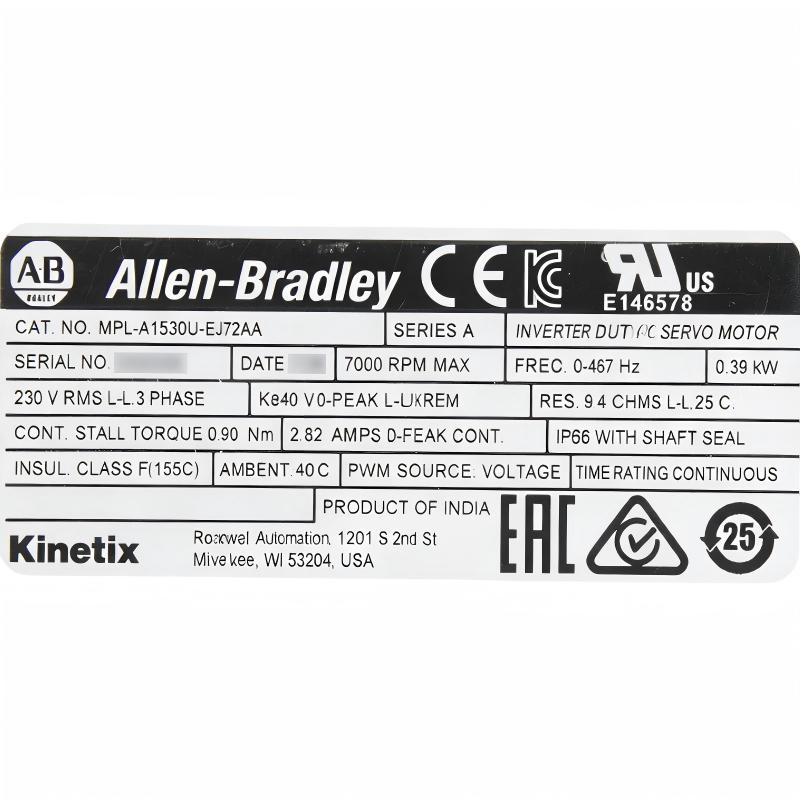

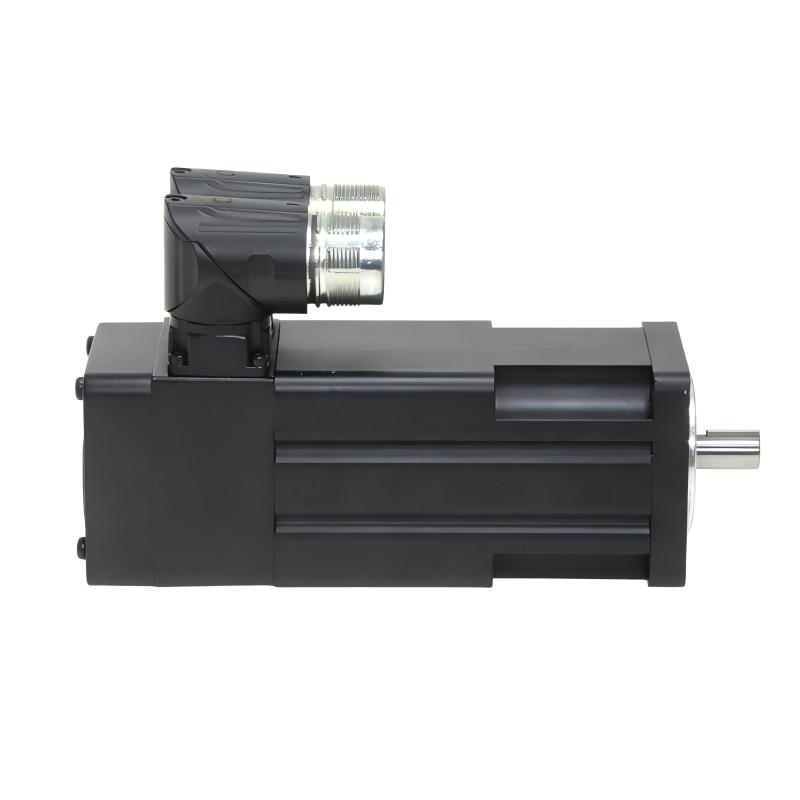

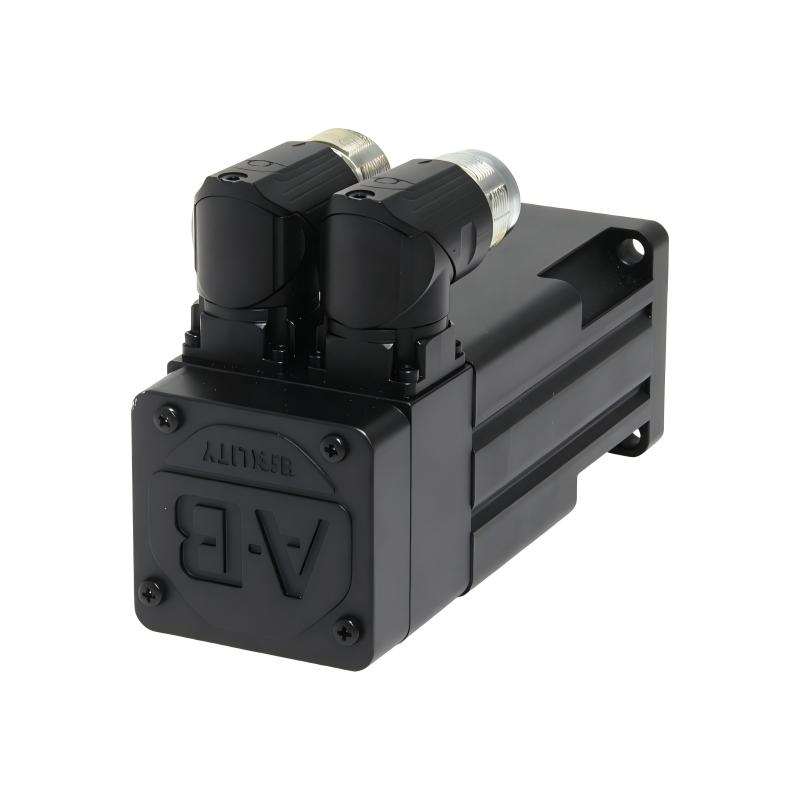

1. What are the main applications of the MPL-A1530U-EJ72AA servo motor?

The MPL-A1530U-EJ72AA is a low-inertia AC servo motor designed for industrial automation systems that require precise positioning, rapid acceleration, and reliable speed control. Typical applications include packaging machinery, electronic assembly equipment, material handling systems, and automated production lines. Its low-inertia design supports responsive motion control, particularly in applications involving frequent starts, stops, and position changes. When selecting this motor, engineers should evaluate the required torque, operating speed, load inertia, and duty cycle to ensure that the motor meets the machine’s performance requirements.

2. Which servo drives are compatible with this motor?

The MPL-A1530U-EJ72AA belongs to the 200 V AC class and uses a single-turn high-resolution absolute encoder with Hiperface feedback. Compatible drive selection depends on the motor’s electrical ratings, feedback interface, and application requirements. Allen-Bradley Kinetix and supported Ultra3000 drive families may be suitable, depending on the specific drive model and configuration. Before installation, verify the complete motor catalog number against the drive’s compatibility documentation and confirm that its continuous and peak current ratings are sufficient for the required motion profile.

3. What is the function of the single-turn absolute encoder?

The single-turn absolute encoder provides precise angular position feedback within one complete revolution of the motor shaft. The servo drive uses this information to regulate position and speed and maintain accurate closed-loop control. Unlike an incremental encoder, an absolute encoder can provide a defined position value without relying solely on counting movement from an initial reference. However, single-turn feedback does not independently identify the number of complete revolutions. The control system must therefore account for the application’s reference position and any multi-turn movement requirements.

4. How does the low-inertia design improve machine performance?

A low-inertia rotor can respond quickly to changes in commanded torque, making the motor suitable for dynamic applications that require frequent acceleration and deceleration. This can improve positioning response and reduce the time required to complete certain motion sequences. Actual performance depends on the relationship between motor inertia and reflected load inertia, as well as the mechanical transmission and servo tuning. If the load inertia is excessive or the control parameters are poorly adjusted, the system may experience overshoot, vibration, or longer settling times despite the motor’s low-inertia characteristics.

5. What should be checked if the motor vibrates or produces inaccurate positioning?

Begin by checking the mechanical installation, coupling alignment, mounting hardware, and transmission components for looseness or excessive backlash. Next, inspect the encoder cable, connectors, grounding, and shielding to rule out feedback interference. Review the servo drive’s alarm history and control-loop parameters, particularly the position and velocity loop settings. If the problem occurs only at certain speeds, mechanical resonance may be involved. Make adjustments systematically and test the motor under controlled conditions. Persistent vibration may require further inspection of the load mechanism, bearings, and drive configuration.

6. What can cause an overcurrent or overload alarm during operation?

An overcurrent or overload alarm may result from excessive mechanical load, a blocked transmission, incorrect acceleration settings, electrical connection problems, or an improperly sized servo drive. Repeated rapid acceleration and deceleration can increase peak current demand, especially when the driven load has substantial inertia. Check the alarm code, mechanical condition, drive parameters, and motor power connections before restarting the equipment. If the fault recurs, compare the application’s continuous and peak torque requirements with the motor and drive ratings. Electrical inspections should be performed by qualified personnel after appropriate power isolation.

7. Does the MPL-A1530U-EJ72AA include a holding brake?

No. The MPL-A1530U-EJ72AA standard configuration does not include a built-in holding brake. If the application requires the motor shaft or load to remain stationary after the servo drive stops supplying torque, an appropriate external holding mechanism may be necessary. This is particularly important for vertical axes and suspended loads, where gravity can cause movement during a power interruption. The holding solution should be selected according to the machine’s mechanical design and safety requirements. The motor should not be assumed to hold a load securely when power is removed.

8. What commissioning checks are required after replacing the motor?

Before installation, confirm that the replacement motor’s complete catalog number, voltage class, feedback type, shaft configuration, and mounting interface match the equipment requirements. Inspect the power cable, encoder connection, protective grounding, and mechanical coupling. Configure the servo drive with the appropriate motor parameters, then verify encoder communication, rotation direction, position response, and travel limits. Initial testing should be conducted at low speed under controlled conditions. Once the system operates correctly, gradually restore the required production settings while monitoring current demand, vibration, positioning accuracy, and drive alarms.
