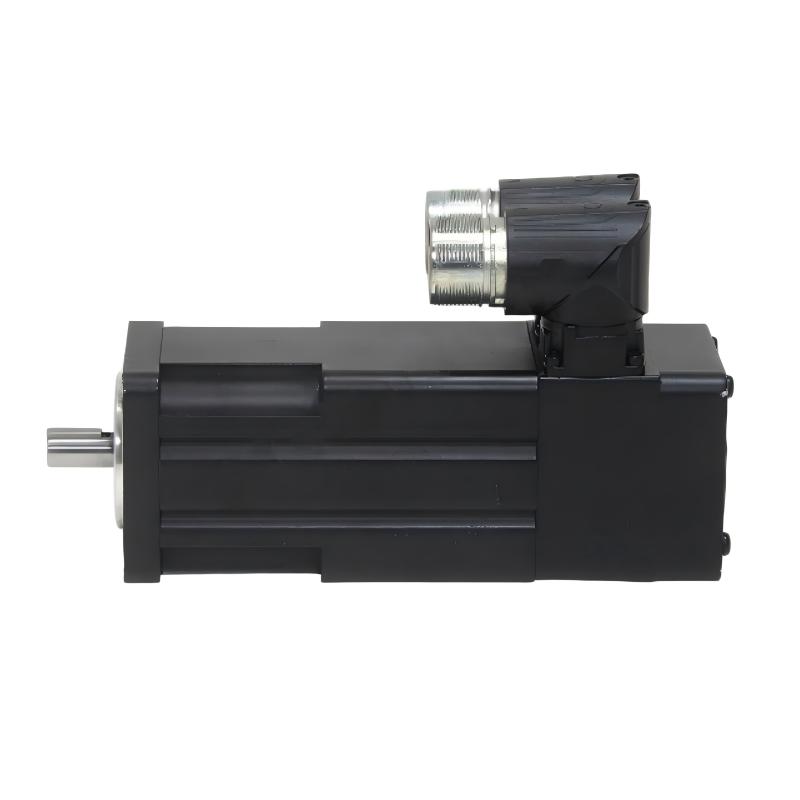

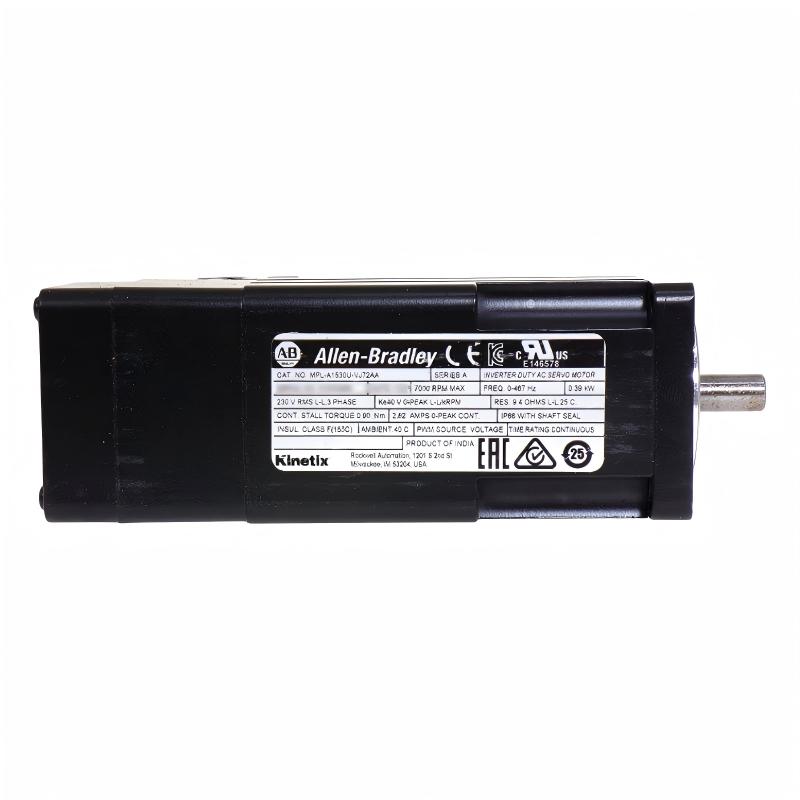

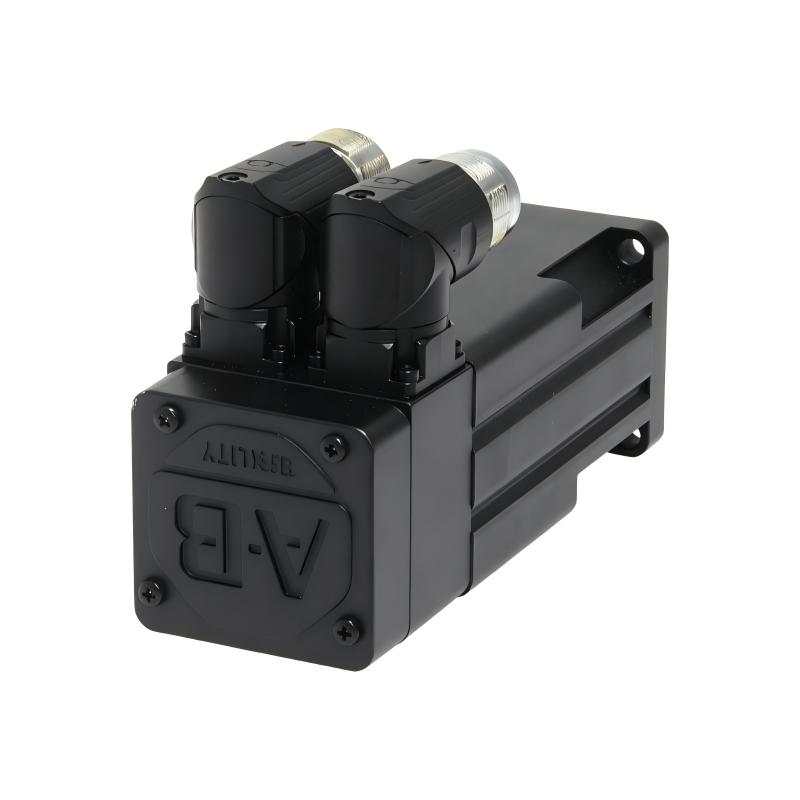

Allen Bradley MPL-A1530U-VJ72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A1530U-VJ72AA |
| Product Type | AC Rotary Servo Motor |
| Series | MP-Series MPL |
| Motor Type | Low-Inertia Brushless Servo Motor |
| Voltage Class | 200 V |
| Rated Voltage | 230 V AC |
| Frame Size | 63 mm |
| Rated Speed | 7000 RPM |
| Rated Output Power | 0.39 kW |
| Rated Torque | 0.39 N·m |
| Peak Torque | 1.62 N·m |
| Feedback Type | Multi-Turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Encoder Resolution | 128 sin/cos |
| Shaft Type | Keyed Shaft |
| Brake | No Brake |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right-Angle, Rotatable 180° |
| Mounting Type | IEC Metric, Free Mounting Holes (Type FF) |
| Shaft Seal | No Shaft Seal |
| Weight | 1.6 kg |
FAQ
Q1: What applications is the Allen-Bradley MPL-A1530U-VJ72AA servo motor designed for?
The MPL-A1530U-VJ72AA is a low-inertia AC servo motor designed for industrial motion-control applications requiring precise positioning and responsive acceleration. Typical uses include packaging machinery, automated assembly equipment, material handling systems, and other machinery that relies on closed-loop servo control.
Q2: Which servo drives are compatible with the MPL-A1530U-VJ72AA?
This motor is designed for compatible Allen-Bradley motion-control systems. Drive selection should be based on voltage class, feedback interface, motor configuration, and supported catalog numbers. Confirm compatibility with the exact model in the drive documentation before installation.
Q3: What is the advantage of the multi-turn absolute encoder?
The multi-turn absolute encoder provides position feedback across multiple shaft revolutions. When supported by the connected drive and configured correctly, it can help the motion system retain or recover position information after a power cycle, reducing the need for homing in suitable applications.
Q4: What is the maximum rated speed of this servo motor?
The rated speed is 7000 RPM. Actual operating speed depends on drive settings, load conditions, machine requirements, and the limits of the connected mechanical system.
Q5: Does the MPL-A1530U-VJ72AA have a built-in brake?
No. This model is specified without a brake. Applications involving vertical axes or loads that must remain stationary when power is removed may require a separate mechanical holding solution designed for the relevant safety requirements.
Q6: What should be checked if the motor does not start?
Check the servo drive’s fault codes, power supply, enable signals, safety interlocks, motor power cable, and encoder feedback connection. Also verify the motor configuration in the drive and check that no active alarm is preventing operation.
Q7: Why might the motor experience vibration or inaccurate positioning?
Possible causes include incorrect servo tuning, mechanical misalignment, loose couplings, encoder signal interference, damaged cables, or an unsuitable load-inertia ratio. Review the drive diagnostics and inspect the mechanical installation before changing control parameters.
Q8: What should be checked when replacing this servo motor?
Verify the full catalog number, voltage class, encoder type, shaft configuration, connector arrangement, and brake option. After installation, check the drive parameters, feedback status, rotation direction, and homing requirements. Conduct a controlled test before returning the equipment to normal operation.
Allen Bradley MPL-A1530U-VJ72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
