Allen Bradley MPL-A1530U-VJ74AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

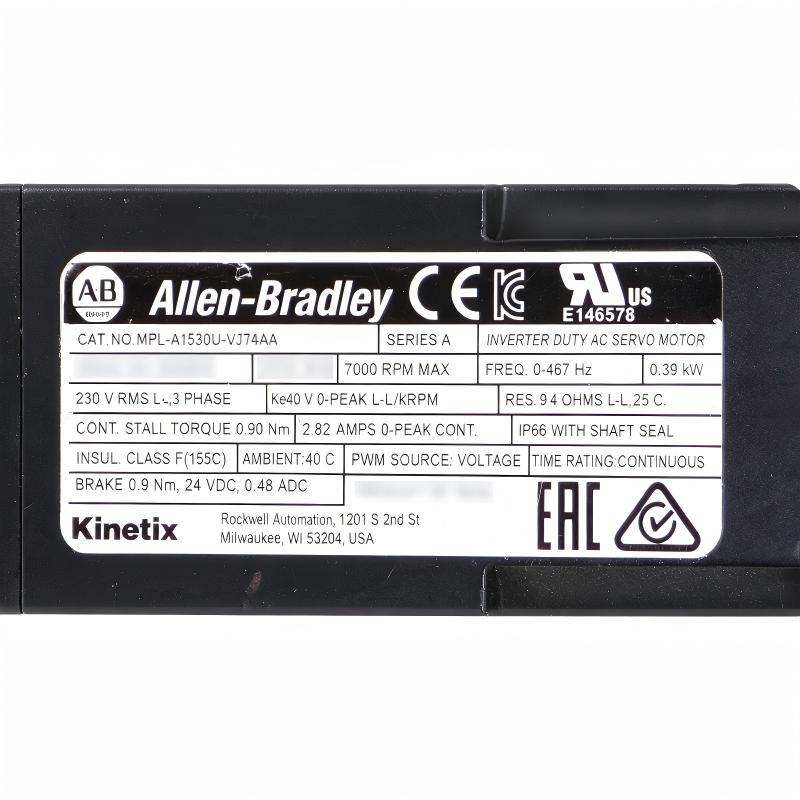

Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A1530U-VJ74AA |
| Product Type | AC Rotary Servo Motor |
| Series | MP-Series MPL |
| Motor Type | Low-Inertia Brushless Servo Motor |
| Voltage Class | 200 V |
| Rated Voltage | 230 V AC |
| Frame Size | 63 mm |
| Rated Speed | 7000 RPM |
| Rated Output Power | Approx. 0.39 kW |
| Feedback Type | Multi-Turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyed Shaft |
| Brake | 24 V DC Holding Brake |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right-Angle, Rotatable |
| Mounting Type | IEC Metric Flange Mount |
| Shaft Seal | No Shaft Seal |
| Weight | 1.6 kg |
FAQ
Q1: What applications is the Allen-Bradley MPL-A1530U-VJ74AA servo motor designed for?
The MPL-A1530U-VJ74AA is a low-inertia AC servo motor intended for industrial motion-control systems that require accurate positioning and responsive speed control. Typical applications include packaging machinery, automated assembly equipment, material handling systems, and precision production equipment.
Q2: Which servo drives are compatible with the MPL-A1530U-VJ74AA?
Compatibility depends on the drive’s voltage class, feedback interface, motor configuration, and supported catalog numbers. Check the relevant Allen-Bradley drive documentation to confirm support for the exact MPL-A1530U-VJ74AA model before installation.
Q3: What is the function of the multi-turn absolute encoder?
The multi-turn absolute encoder provides position feedback across multiple shaft revolutions. When supported by the connected drive and configured correctly, it can help the motion system retain or recover position information after a power cycle, reducing the need for homing in suitable applications.
Q4: What is the purpose of the built-in holding brake?
The 24 V DC holding brake is designed to hold the motor shaft when the motor is stopped. It can help prevent unwanted movement in applications where holding torque is required. Follow the manufacturer’s instructions, and do not use the holding brake for routine dynamic stopping unless the system is designed for that purpose.
Q5: What should be checked if the servo motor fails to start?
Check the drive’s fault codes, incoming power, enable signals, safety interlocks, motor power cable, encoder connection, and brake release circuit. Confirm that the drive is configured for the correct motor model before attempting to restart the system.
Q6: Why might the motor vibrate or produce unstable motion?
Potential causes include incorrect servo tuning, mechanical misalignment, loose couplings, excessive load inertia, encoder signal interference, or damaged cables. Review the drive diagnostics and inspect the mechanical installation before adjusting control parameters.
Q7: What can cause a servo drive to report an encoder or feedback fault?
Common causes include loose feedback connectors, damaged cables, incorrect wiring, electrical interference, or incompatible feedback settings. Check the feedback connections and verify the drive configuration against the motor documentation before returning the system to service.
Q8: What should be checked when replacing the MPL-A1530U-VJ74AA?
Verify the complete catalog number, voltage class, encoder interface, shaft configuration, brake option, connector arrangement, and mounting compatibility. After installation, check the drive parameters, feedback status, brake operation, and motor direction. Perform controlled commissioning tests before resuming normal production.
Allen Bradley MPL-A1530U-VJ74AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
