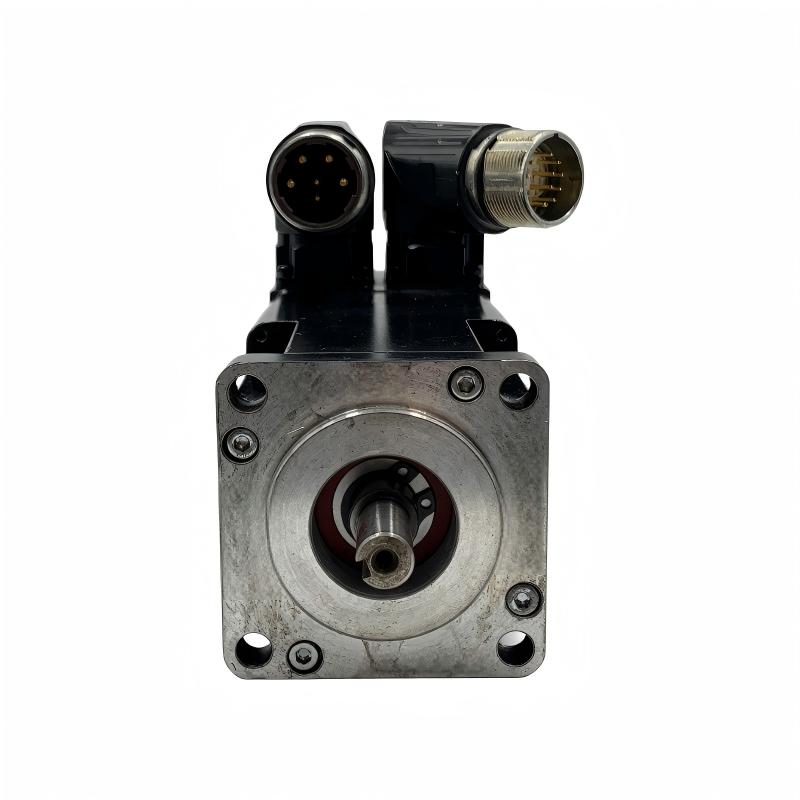

1. What are the main applications of the MPL-A1520U-VJ74AA servo motor?

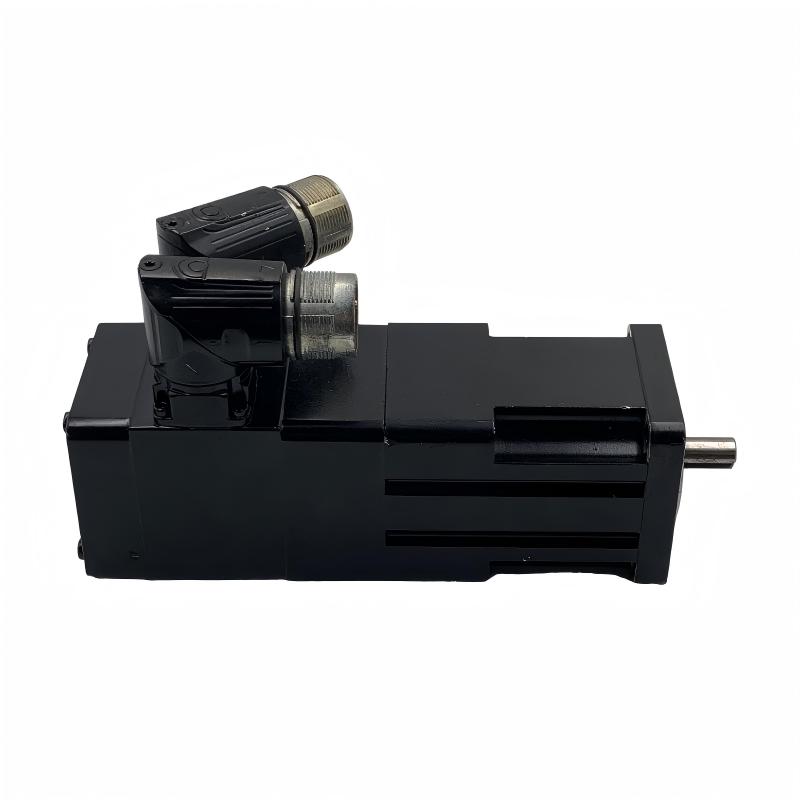

The MPL-A1520U-VJ74AA is a low-inertia AC servo motor designed for industrial motion control applications requiring accurate positioning, rapid acceleration, and responsive speed control. Typical applications include automated assembly equipment, packaging machinery, material handling systems, and precision positioning mechanisms. Its suitability depends on the required torque, operating speed, load inertia, and duty cycle. Engineers should evaluate the complete motion profile and verify that the motor and drive can meet the application’s performance requirements.

2. Which servo drive is compatible with the MPL-A1520U-VJ74AA?

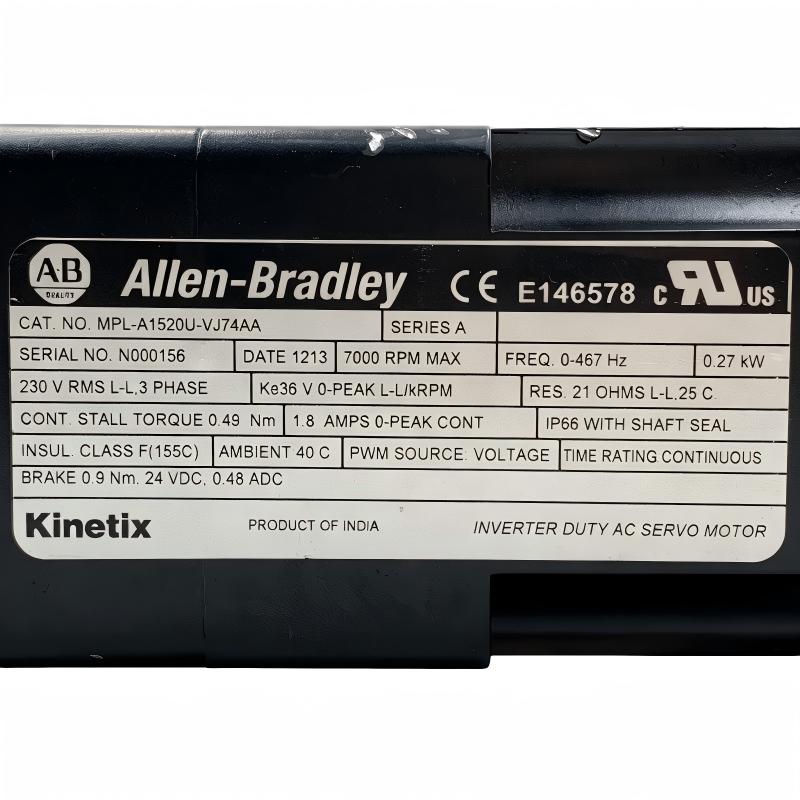

The motor belongs to the 200 V-class MP-Series family and operates at a nominal voltage rating of 230 V AC. The selected servo drive must support the motor’s electrical characteristics, multi-turn absolute encoder, and feedback interface. Drive sizing should also account for continuous current, peak current, acceleration requirements, and the mechanical load. Before installation, verify compatibility using the complete catalog number and the drive manufacturer’s motor selection documentation rather than relying on voltage ratings alone.

3. What is the function of the multi-turn absolute encoder?

The multi-turn absolute encoder provides position feedback to the servo drive, allowing the control system to determine the motor’s position across multiple revolutions. This supports closed-loop positioning, repeatable movement, and coordinated operation with other motion axes. Correct operation depends on compatible feedback electronics, suitable cabling, and proper drive configuration. Following motor replacement or system modification, verify encoder communication, position readings, and reference settings before returning the equipment to production.

4. What is the purpose of the built-in 24 V DC holding brake?

The built-in 24 V DC holding brake helps hold the motor shaft in position when the brake is engaged and is particularly useful in applications where unwanted movement must be prevented during a stop. It is not intended to replace the motor’s normal servo control for routine dynamic braking unless specifically permitted by the manufacturer’s instructions. The brake supply, control sequence, and mechanical load requirements must be correctly configured. For vertical axes, additional risk assessment and appropriate safety measures are necessary to prevent unexpected load movement.

5. How should engineers troubleshoot excessive vibration or positioning errors?

Begin by inspecting the mounting hardware, coupling alignment, transmission components, and mechanical backlash. Then check the encoder cable, connectors, shielding, grounding, and servo drive diagnostic messages. Incorrect position-loop or velocity-loop gains and an unsuitable load-to-motor inertia ratio may also cause oscillation or overshoot. Make adjustments methodically, changing one parameter at a time and checking the response under controlled conditions. If vibration persists, evaluate mechanical resonance and the condition of the driven equipment before assuming that the motor itself is defective.

6. What can cause an overcurrent or overload alarm during operation?

Possible causes include excessive mechanical load, a blocked mechanism, overly aggressive acceleration settings, incorrect drive parameters, or faults in the motor power circuit. Frequent acceleration and deceleration can also increase peak torque demand and cause repeated alarms if the system is not properly sized. Record the exact alarm code and operating conditions, inspect the mechanical load, and verify the motor-drive configuration. Electrical checks should be carried out by qualified personnel after following the appropriate power-isolation procedures.

7. What should be checked if the encoder feedback becomes unstable or disappears?

Inspect the feedback connector for loose contacts, contamination, or physical damage, and examine the cable for breaks or excessive bending. Confirm that the cable routing, shielding, and grounding minimize electromagnetic interference from motor power cables and other high-current equipment. Review the servo drive’s diagnostic information to determine whether the problem is intermittent or persistent. If the fault began after replacing a motor, cable, or drive, confirm that the components and feedback configuration are compatible before proceeding with further diagnosis.

8. What commissioning procedures should be followed after replacing the motor?

Confirm the complete catalog number, voltage class, feedback configuration, brake requirements, and mechanical compatibility before installation. Check the motor power connections, encoder wiring, protective grounding, and coupling alignment. Configure the drive using the applicable motor data, then verify feedback operation, rotation direction, position response, brake control, and relevant safety functions. Begin with low-speed testing under controlled conditions and confirm that the motor stops as expected. Once operation is stable, gradually restore the required production settings while monitoring alarms, vibration, and positioning accuracy.
