Technical Specifications

FAQ

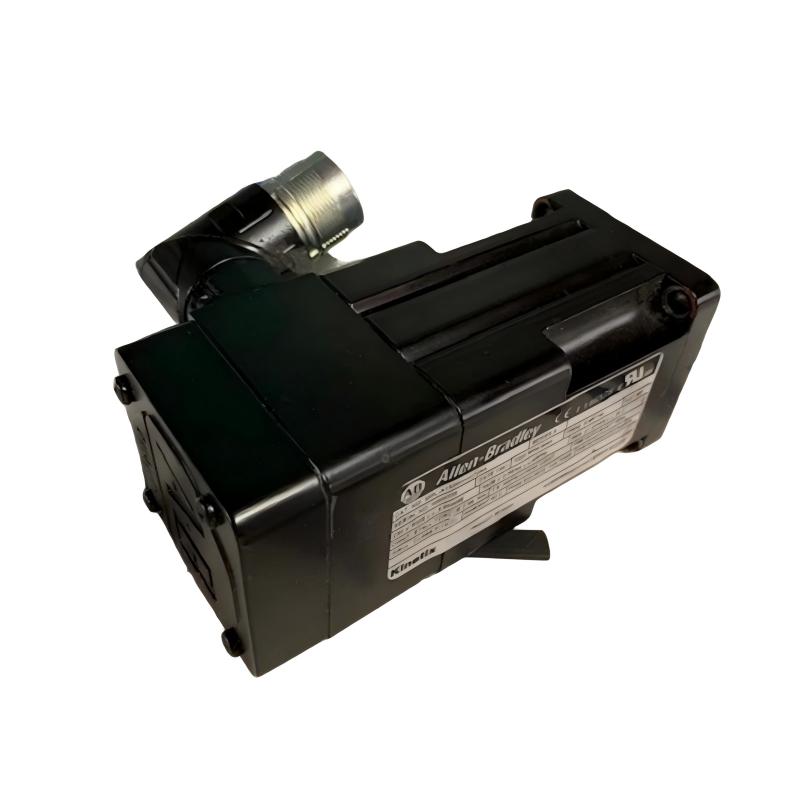

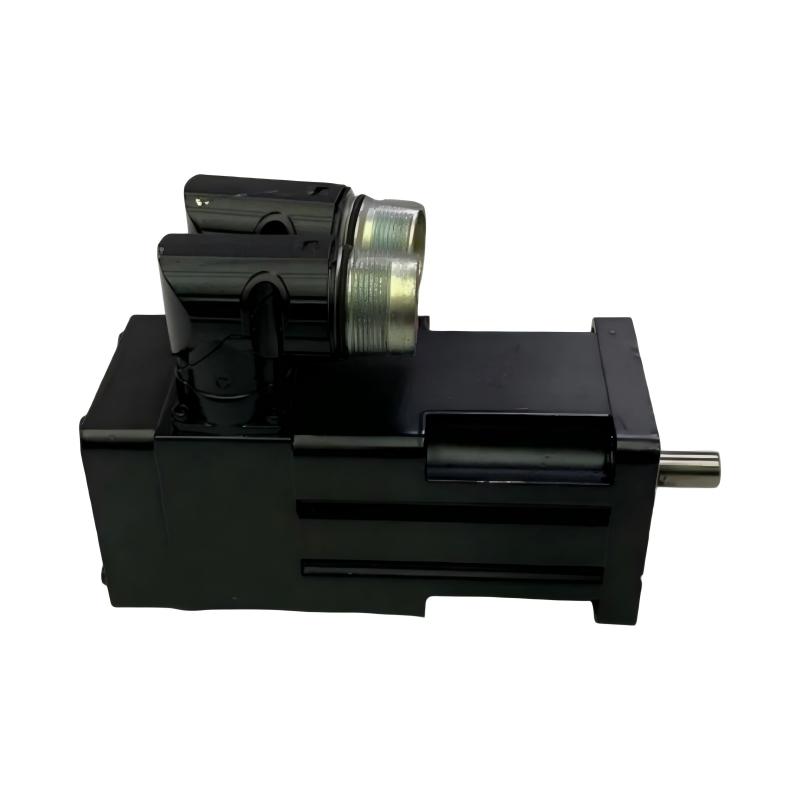

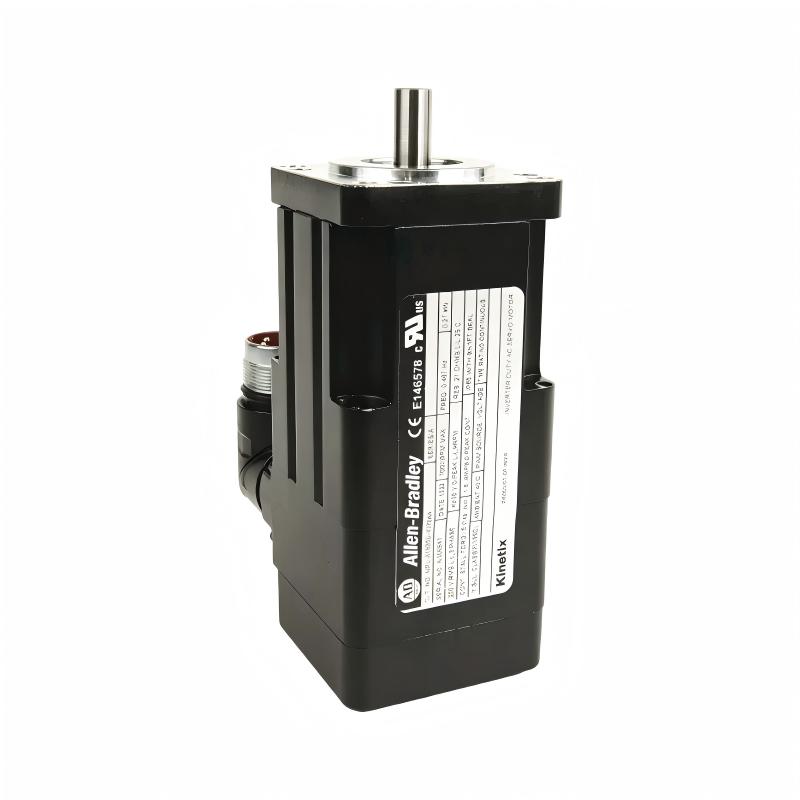

1. What are the main applications of the MPL-A1520U-VJ72AA servo motor?

The MPL-A1520U-VJ72AA is a low-inertia AC servo motor designed for industrial motion control applications requiring responsive acceleration, accurate positioning, and controlled rotational speed. Typical applications include automated assembly equipment, packaging machinery, material handling systems, and precision positioning mechanisms. Its suitability for a specific machine depends on the required torque, operating speed, load inertia, duty cycle, and compatibility with the selected servo drive.

2. Which servo drives are compatible with the MPL-A1520U-VJ72AA?

Drive compatibility depends on the motor’s voltage class, current requirements, feedback interface, and control system configuration. The selected drive must support the motor’s encoder feedback and provide adequate current and torque capacity for the intended application. Before installation, verify the complete catalog number against the manufacturer’s compatibility documentation. Selecting a drive based solely on its voltage rating may result in feedback errors, configuration problems, or unreliable operation.

3. What is the purpose of the multi-turn absolute encoder?

The multi-turn absolute encoder provides position feedback that allows the servo drive to monitor the motor’s rotational position across multiple revolutions. This information supports accurate closed-loop positioning and coordinated motion control. The Hiperface feedback interface must be correctly configured and connected to a compatible drive. After replacing the motor or modifying the control system, engineers should verify encoder communication, position feedback, and reference settings before returning the equipment to normal operation.

4. Why is the low-inertia design important for motion control?

Low rotor inertia allows the motor to accelerate and decelerate more readily when the drive changes its torque output. This characteristic can improve dynamic response in applications involving frequent starts, stops, and position changes. However, overall system performance also depends on reflected load inertia, mechanical coupling, transmission components, and servo tuning. An unsuitable load-to-motor inertia relationship may cause oscillation, overshoot, or extended settling time, even when the motor itself is functioning correctly.

5. What should be checked if the motor experiences excessive vibration or unstable positioning?

Start by examining the mechanical assembly for loose mounting hardware, coupling misalignment, damaged bearings, and excessive backlash. Next, inspect the feedback cable and connectors, check grounding and shielding, and review the servo drive’s diagnostic information. Incorrect position-loop or velocity-loop settings may also contribute to vibration. Engineers should evaluate the actual load inertia and adjust control parameters methodically, verifying the results at each stage rather than making multiple changes simultaneously.

6. What can cause an overcurrent or overload fault during operation?

Overcurrent and overload faults may result from mechanical obstruction, excessive load, aggressive acceleration settings, incorrect motor parameters, or problems with the power cable and electrical connections. Repeated faults during rapid cycling may indicate that the application’s torque demand or duty cycle exceeds the available motor and drive capacity. Record the fault code and operating conditions, inspect the mechanical system, and verify the drive configuration. Disconnect power and follow appropriate safety procedures before carrying out electrical inspections.

7. Does the MPL-A1520U-VJ72AA have a built-in holding brake?

No. The MPL-A1520U-VJ72AA configuration is specified without a brake. Applications that require a load to remain stationary when the motor is stopped or power is removed may therefore need a separate mechanical holding device. This is particularly important for vertical axes and suspended loads, where gravity can cause unexpected movement. The braking arrangement and safety functions should be selected according to the machine design and risk assessment. The motor should not be relied upon to hold a load after power loss.

8. What commissioning checks should be completed after installing a replacement motor?

Before startup, confirm the motor catalog number, electrical ratings, encoder configuration, mounting interface, and connector compatibility. Inspect the power and feedback connections, protective grounding, and mechanical coupling. Configure the drive according to the applicable motor data, then verify encoder communication, rotation direction, position response, travel limits, and relevant safety functions. Initial testing should be performed at conservative speeds and under controlled conditions. Once stable operation is confirmed, gradually restore the required operating parameters while monitoring alarms, vibration, and positioning accuracy.
