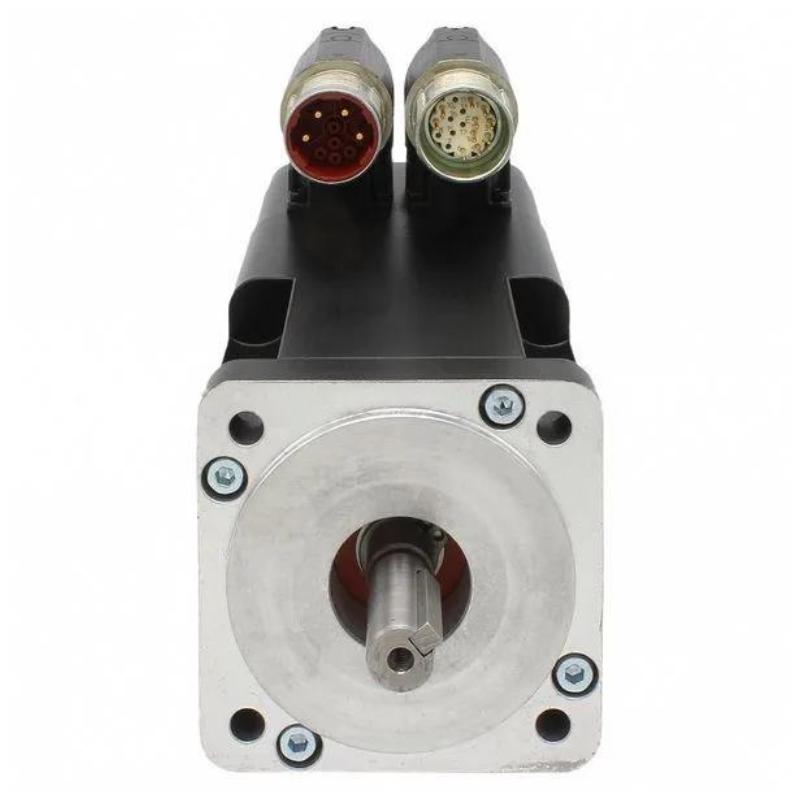

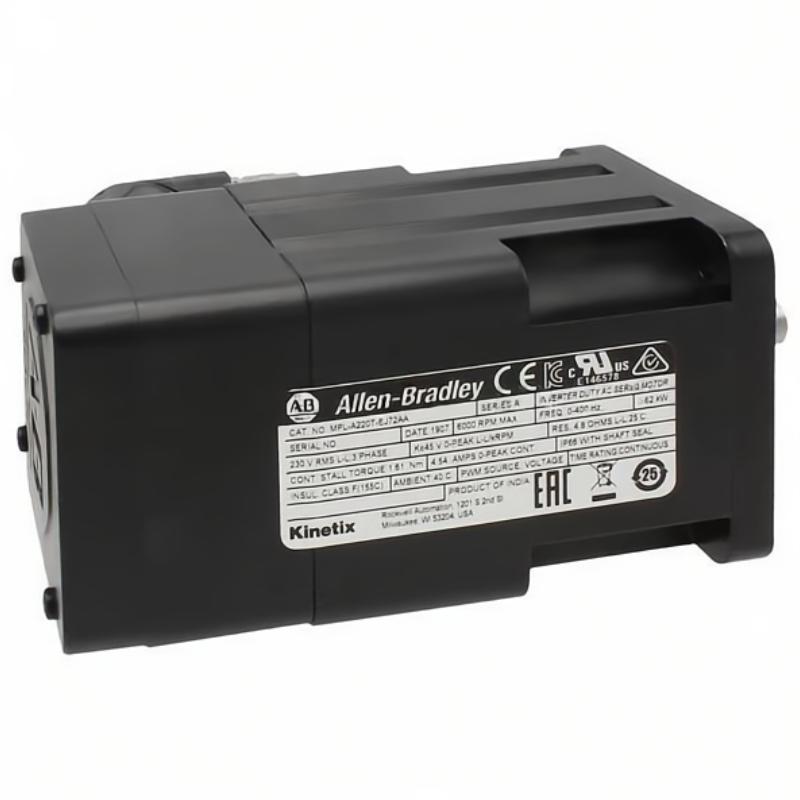

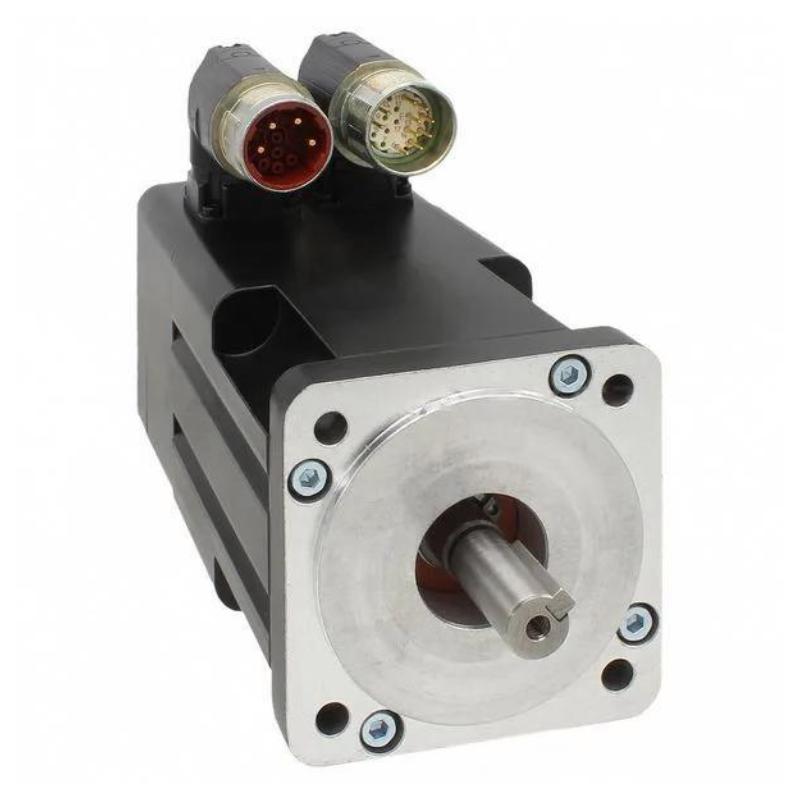

Allen Bradley MPL-A220T-EJ72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | MPL-A220T-EJ72AA |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Product Series | MP-Series MPL |
| Voltage Class | 200 V AC |
| Rated Voltage | 230 V AC |
| Frame Size | 75 mm |
| Magnet Stack Length | 50.8 mm |
| Rated Speed | 6000 rpm |
| Maximum Speed | 6000 rpm |
| Continuous Stall Torque | 0.55 N·m |
| Peak Stall Torque | 1.61 N·m |
| Continuous Rated Output Power | 0.62 kW |
| Feedback Type | Single-Turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Feedback Resolution | 128 Sin/Cos Cycles per Revolution |
| Shaft Type | Keyed Shaft Extension |
| Connector Type | SpeedTEC DIN Right-Angle Connector, 180° Rotatable |
| Brake Configuration | No Brake |
| Mounting Type | IEC Metric Flange, Free Mounting Holes (Type FF) |
| Protection Rating | IP50 standard; IP66 with optional shaft seal |
| Weight | 2 kg |
FAQ
Q1: What applications is the Allen-Bradley MPL-A220T-EJ72AA servo motor suitable for?
The MPL-A220T-EJ72AA is a low-inertia brushless AC servo motor designed for industrial motion-control applications requiring accurate positioning and responsive speed regulation. Typical uses include automated assembly, packaging machinery, material handling, and production equipment. Its suitability depends on the required torque, acceleration, load inertia, and operating cycle.
Q2: Which servo drives are compatible with the MPL-A220T-EJ72AA?
The motor must be paired with a compatible Allen-Bradley servo drive that supports its voltage class, feedback interface, and motor configuration. Compatibility depends on the specific drive model, firmware, and system setup. Before installation, check the complete motor catalog number against the drive’s supported motor list and confirm the required power, current capacity, and feedback settings.
Q3: What is the function of the single-turn absolute encoder?
The single-turn high-resolution absolute encoder provides the motor’s angular position within one revolution. Its Hiperface feedback interface allows the servo drive to monitor position and regulate motion through closed-loop control. If a feedback fault occurs, inspect the encoder cable and connectors, check shielding and grounding, and verify the drive’s feedback parameters before replacing components.
Q4: Does the MPL-A220T-EJ72AA have a built-in holding brake?
No. This configuration is specified without an integrated holding brake. If the application requires a load to remain stationary when the motor is not producing torque, an appropriate external holding mechanism may be necessary. For vertical axes or gravity-loaded equipment, assess the risk of unintended movement and provide suitable mechanical and safety measures.
Q5: What should I check if the servo drive reports an overcurrent or overload alarm?
Record the exact alarm code and identify when the fault occurs, such as during startup, acceleration, or deceleration. Check for excessive load, mechanical binding, coupling misalignment, damaged cables, and incorrect motor or drive parameters. Review acceleration settings and confirm that the drive can handle the application’s current and torque demands. Disconnect power before inspecting electrical connections or mechanical components.
Q6: Why might the motor vibrate or produce inaccurate positioning?
Possible causes include incorrect servo tuning, excessive load inertia, mechanical backlash, loose couplings, or interference affecting the encoder feedback signal. Inspect the mechanical transmission and mounting first, then check feedback cable routing, grounding, and connector condition. If the hardware is sound, review the servo gain and motion profile settings. Make changes gradually and test at a reduced speed before returning to normal operation.
Q7: What maintenance is recommended for this servo motor?
Inspect the motor power cable, feedback cable, SpeedTEC connector, mounting bolts, and shaft coupling regularly. Monitor unusual noise, vibration, temperature changes, and recurring drive alarms. Keep the motor clean and ensure that its operating environment complies with the specified protection rating. Since this configuration has no integrated brake, verify that any external load-holding mechanisms remain functional where required.
Q8: What should be verified when replacing the MPL-A220T-EJ72AA?
Confirm the complete catalog number, voltage rating, rated speed, frame size, encoder type, keyed shaft, connector configuration, and brake arrangement. Check the mounting interface and drive compatibility before installation. After replacement, verify feedback recognition, motor direction, and drive parameters. Perform controlled low-speed tests and confirm that safety interlocks work correctly before resuming production.
Allen Bradley MPL-A220T-EJ72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
