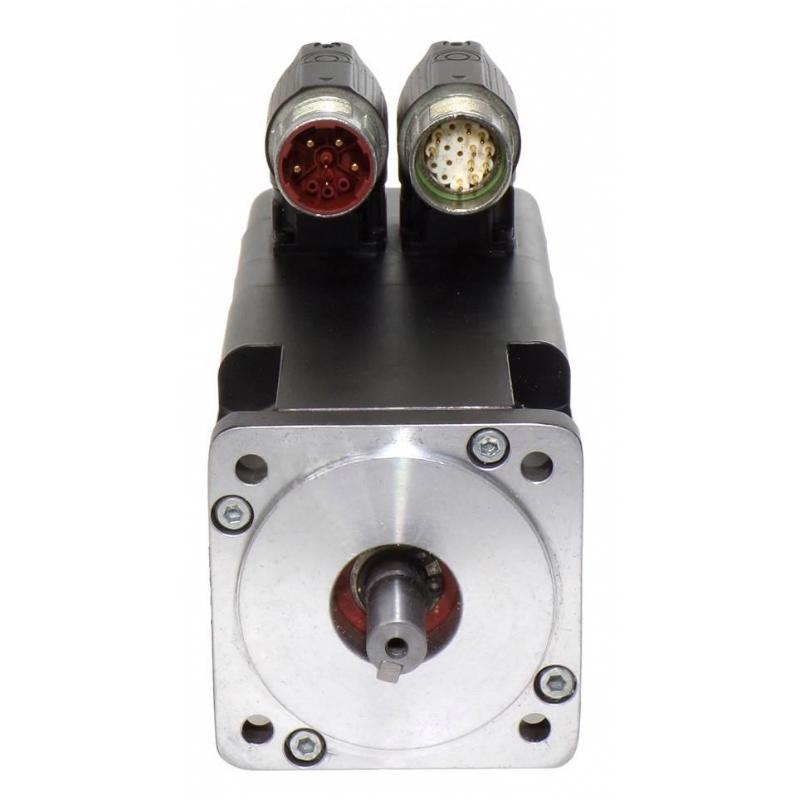

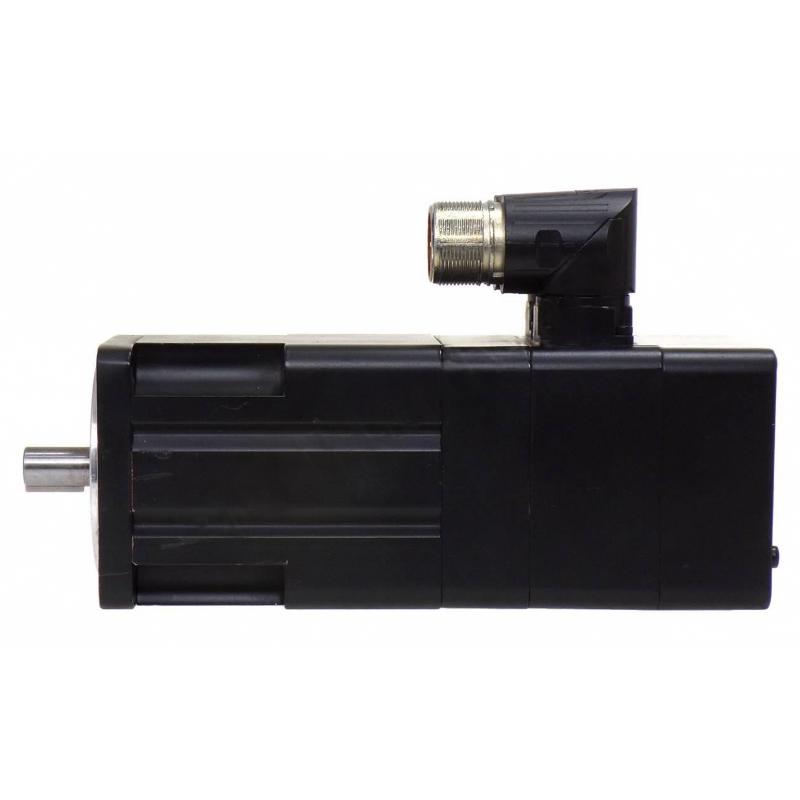

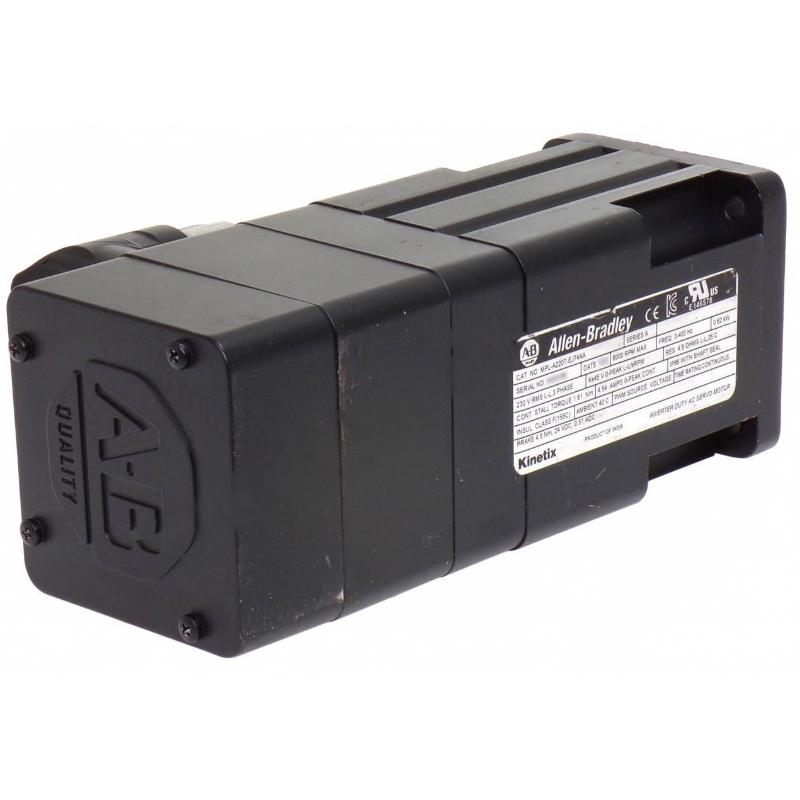

Allen Bradley MPL-A220T-EJ74AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | MPL-A220T-EJ74AA |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Product Series | MP-Series MPL |
| Voltage Rating | 230 V AC |
| Voltage Class | 200 V AC |
| Frame Size | 75 mm |
| Magnet Stack Length | 50.8 mm |
| Rated Speed | 6000 rpm |
| Maximum Speed | 6000 rpm |
| Continuous Stall Torque | 1.61 N·m |
| Peak Torque | 4.74 N·m |
| Continuous Rated Output Power | 0.62 kW |
| Feedback Type | Single-Turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Feedback Resolution | 128 Sin/Cos cycles per revolution |
| Shaft Type | Keyed Shaft Extension |
| Connector Type | SpeedTEC DIN Connector, Right-Angle, 180° Rotatable |
| Holding Brake | 24 V DC Brake |
| Mounting Type | IEC Metric Flange Mount, Free Mounting Holes (Type FF) |
| Shaft Seal | Not included in standard configuration |
| Protection Rating | IP50 |
| Weight | 2 kg |
FAQ
Q1: What applications is the Allen-Bradley MPL-A220T-EJ74AA servo motor suitable for?
A: This low-inertia servo motor is suitable for industrial motion-control applications that require responsive acceleration, controlled positioning, and repeatable movement. Typical uses include automated assembly equipment, packaging machinery, material handling systems, and production equipment. Final selection should account for load inertia, operating cycles, acceleration requirements, and required torque.
Q2: Which servo drives can be used with the MPL-A220T-EJ74AA?
A: The motor must be paired with a compatible Allen-Bradley servo drive that supports its voltage class and Hiperface single-turn encoder feedback. Check the drive’s supported motor list, output-current rating, feedback interface, and motor configuration before commissioning. Do not assume compatibility based on the connector alone.
Q3: What is the function of the motor’s Hiperface encoder?
A: The Hiperface single-turn high-resolution encoder provides rotor-position feedback to the servo drive. The drive uses this information for commutation, speed regulation, and position control. Correct feedback-cable connection, shielding, grounding, and drive configuration are important for stable operation.
Q4: How should the 24 V DC holding brake be controlled?
A: The integrated brake is intended to hold the motor shaft when the motor is stopped, rather than to provide routine dynamic braking. Use the drive or an approved control circuit according to the manufacturer’s instructions. For vertical or gravity-loaded axes, assess the need for an independent mechanical safety measure and verify brake operation before releasing the load.
Q5: What should be checked if the motor does not rotate?
A: Check the drive fault code, main power supply, enable signal, emergency-stop circuit, brake-release circuit, motor power cable, and encoder feedback connection. Confirm that the drive parameters match the motor’s complete catalog number. Isolate power before inspecting wiring or connectors.
Q6: Why might the motor vibrate or produce unstable positioning?
A: Common causes include incorrect servo tuning, excessive load inertia, mechanical backlash, loose couplings, poor mounting rigidity, or electrical interference affecting feedback signals. Review the drive’s following-error and feedback diagnostics, inspect the mechanical transmission, and adjust tuning only after confirming the mechanical system is sound.
Q7: What routine maintenance does this servo motor require?
A: Inspect the power and feedback cables, SpeedTEC connectors, mounting bolts, shaft coupling, and surrounding equipment for looseness, damage, contamination, or unusual noise. Monitor temperature and drive alarms during operation. Follow the manufacturer’s maintenance instructions and verify the holding brake periodically where the application depends on it.
Q8: What should be verified when replacing an MPL-A220T-EJ74AA with another motor?
A: Compare the complete catalog number and confirm voltage class, frame size, magnet stack length, rated speed, torque, encoder type, shaft configuration, connector orientation, brake voltage, and mounting arrangement. Also verify drive compatibility and cable requirements. Before returning the machine to production, test motor direction, feedback operation, brake release, travel limits, and positioning at low speed.
Allen Bradley MPL-A220T-EJ74AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
