1. What applications is the MPL-A220T-VJ72AA servo motor suitable for?

The MPL-A220T-VJ72AA is a low-inertia brushless AC servo motor designed for industrial motion control systems that require accurate positioning, rapid acceleration, and reliable speed regulation. Typical applications include automated assembly equipment, packaging machinery, material handling systems, and precision manufacturing machines. Its rated speed of 6000 rpm supports applications involving frequent speed changes and controlled positioning. When selecting this motor, engineers should evaluate the required torque, load inertia, acceleration profile, and operating cycle to ensure that the motor meets the machine’s performance requirements.

2. Which servo drives can be used with the MPL-A220T-VJ72AA?

The MPL-A220T-VJ72AA operates in the 230 V AC class and uses a multi-turn absolute encoder with Hiperface feedback. Compatible drive options depend on the exact drive model and configuration. Before installation, verify that the drive supports the motor’s feedback protocol, electrical ratings, and required feedback cable. The drive must also support the application’s continuous and peak current requirements. Do not assume that every drive in a compatible product family will work with this motor; confirm the complete motor-drive combination against the manufacturer’s compatibility documentation.

3. What advantages does the multi-turn absolute encoder provide?

The multi-turn absolute encoder provides position feedback that includes both the angular position within one revolution and the accumulated position across multiple revolutions. This can reduce the need for a conventional homing routine after a power interruption, provided that the encoder, drive, and machine control system are configured to retain and interpret the absolute position correctly. The Hiperface feedback interface supports the communication needed for motor feedback and position monitoring. During commissioning, verify the encoder connection, feedback configuration, and position reference behavior. If position data is invalid or inconsistent, inspect the feedback wiring and drive diagnostics before resuming automatic operation.

4. Does the MPL-A220T-VJ72AA include a holding brake?

No. The MPL-A220T-VJ72AA is configured without a built-in brake. When the drive removes motor torque, the shaft may move if an external force or load acts on the mechanism. For vertical axes, gravity-loaded mechanisms, or applications requiring the load to remain stationary, an appropriately engineered external braking or load-holding solution may be necessary. The control system should also account for stopping behavior and possible movement during power loss. A servo drive’s electrical stopping function should not be treated as a replacement for a mechanical safety device. Before commissioning, assess the machine’s load conditions and implement suitable safeguards.

5. What installation precautions are important for this servo motor?

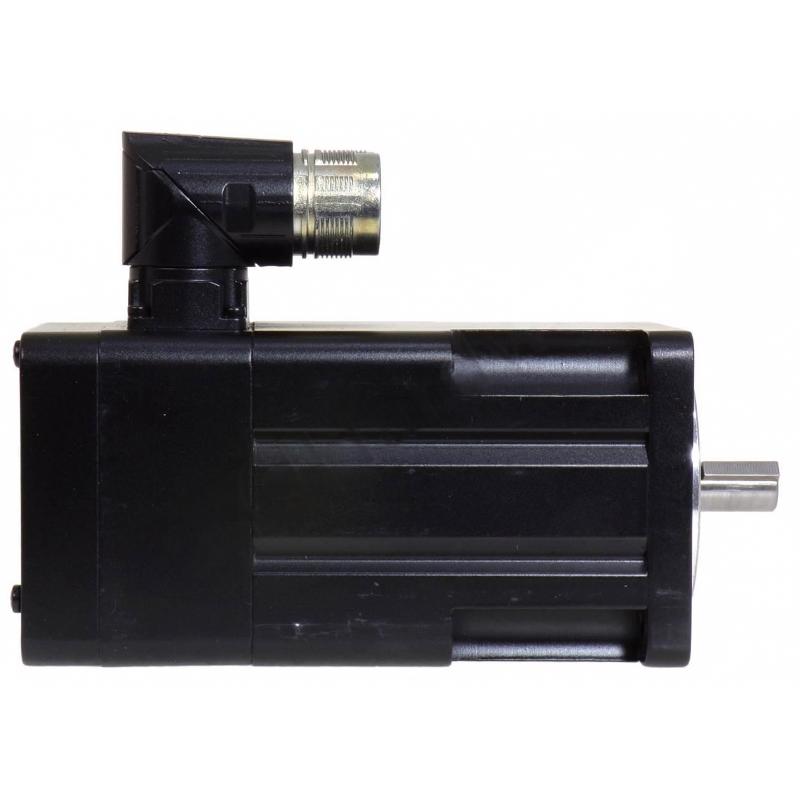

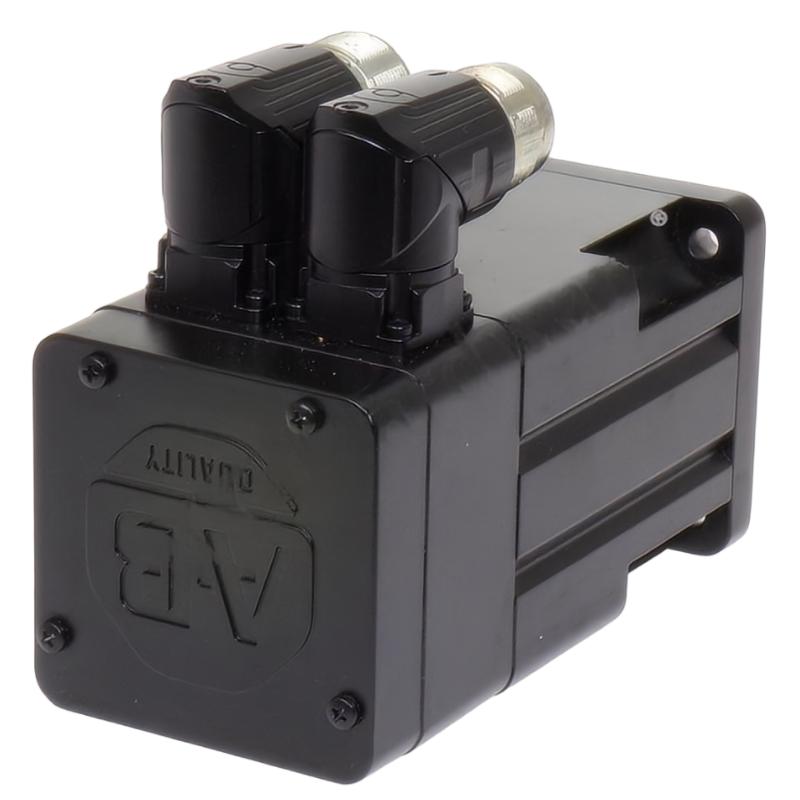

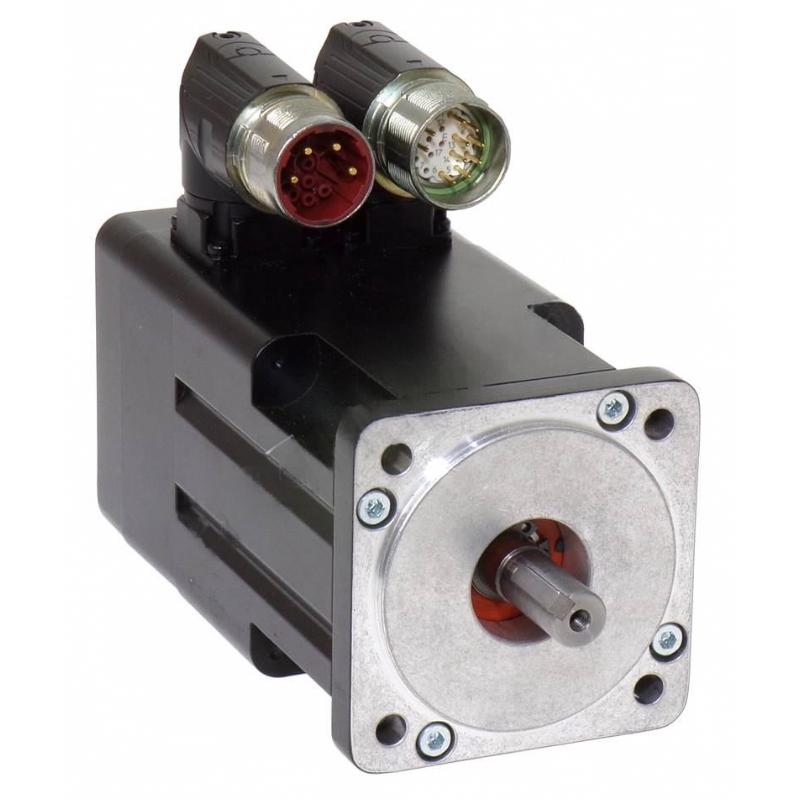

Before mounting the motor, inspect the housing, shaft, flange, and connector for damage. Ensure that the mounting surface is rigid and aligned with the driven mechanism. The keyed shaft must be used with a compatible coupling, and the mechanical assembly should avoid excessive radial or axial loading. Connect the motor power and feedback cables according to the applicable wiring documentation. The right-angle SpeedTEC DIN connector can be rotated to accommodate the installation layout, but cable routing must still prevent excessive bending and mechanical strain. Before enabling the drive, verify grounding, cable connections, mechanical clearance, and load movement. Initial tests should be performed at low speed under controlled conditions.

6. What can cause overheating or excessive current during operation?

Overheating or excessive current may result from a load that exceeds the motor’s capability, frequent acceleration and deceleration, mechanical binding, incorrect drive tuning, or an unsuitable duty cycle. The motor’s continuous output torque is specified as 1.61 Nm, while peak torque supports short-duration dynamic demands within the manufacturer’s limits. Troubleshooting should begin with an inspection of the driven mechanism for resistance, binding, or misalignment. Next, check the drive’s current and torque monitoring values, acceleration settings, and load-inertia configuration. Confirm that the motor operates within its specified environmental limits. If the problem persists, stop the equipment and investigate the motor, drive, and mechanical system before returning it to service.

7. How should positioning errors or unstable operation be diagnosed?

Positioning errors may be caused by incorrect feedback configuration, encoder cable faults, electrical interference, mechanical backlash, coupling misalignment, or inappropriate servo tuning. Start by reviewing the drive’s alarm history and feedback status. Check that the Hiperface feedback cable is securely connected and routed away from high-power wiring where practical. Inspect the coupling and transmission system for looseness or mechanical play. If the feedback and mechanical components appear normal, review the position-loop and velocity-loop settings using the drive manufacturer’s commissioning procedures. Make controlled adjustments and record the original values. Verify the results with low-speed movement and repeatable positioning tests before restoring normal production operation.

8. What should be checked when replacing an MPL-A220T-VJ72AA?

When replacing this motor, confirm that the replacement matches the application’s electrical, mechanical, and feedback requirements. Important factors include the 230 V AC voltage class, rated speed, torque requirements, multi-turn absolute feedback, keyed shaft, connector arrangement, and absence of an integrated brake. Also verify that the existing servo drive supports the replacement motor and its encoder interface. A motor with a similar frame size or power rating is not necessarily a direct substitute. After installation, check the drive configuration, feedback status, rotation direction, external load-holding arrangements, and positioning accuracy. Complete controlled commissioning tests before returning the machine to normal operation.
