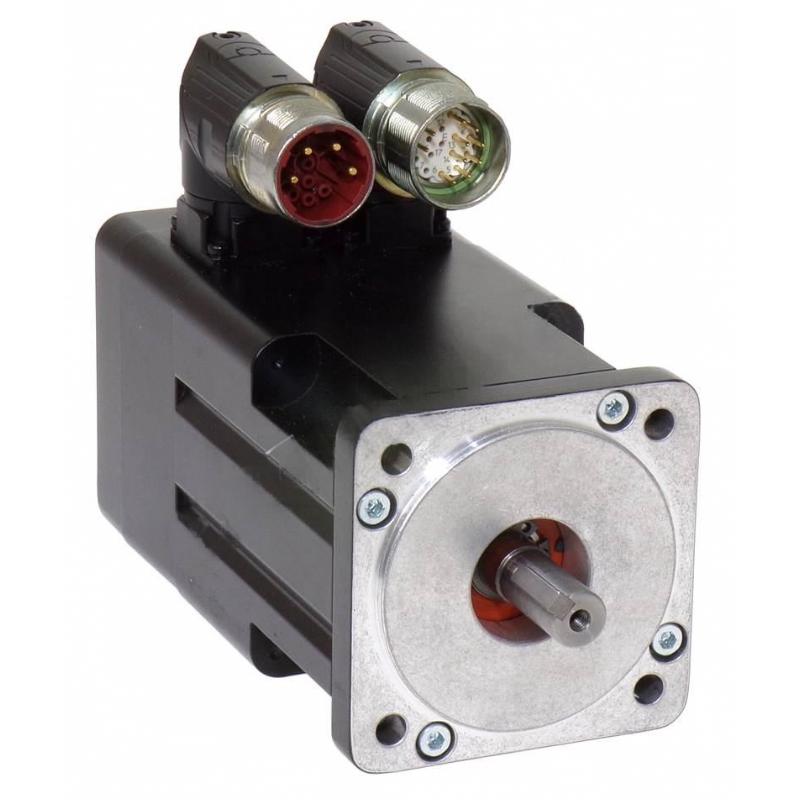

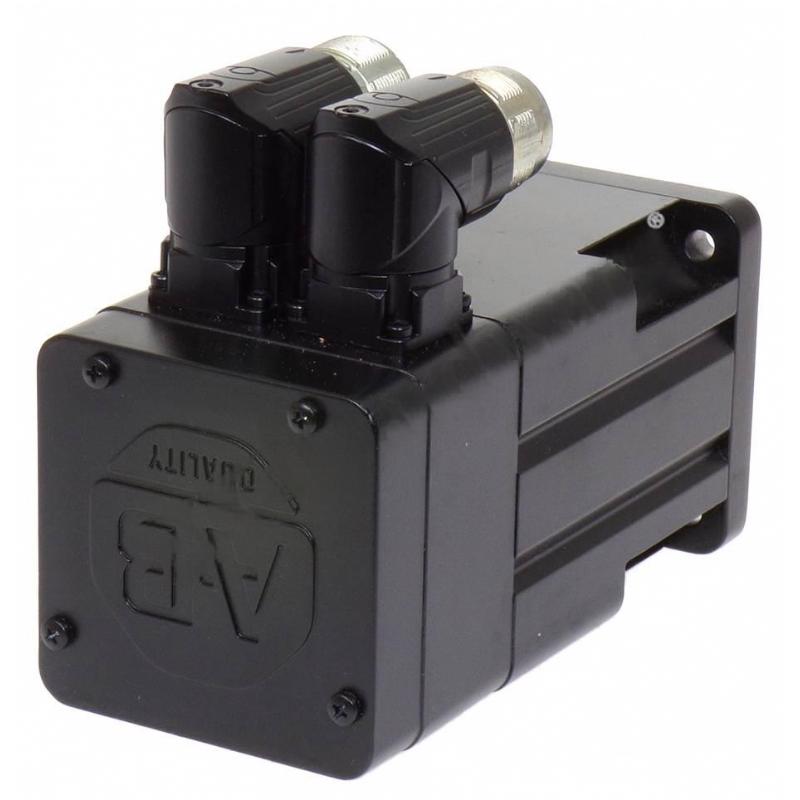

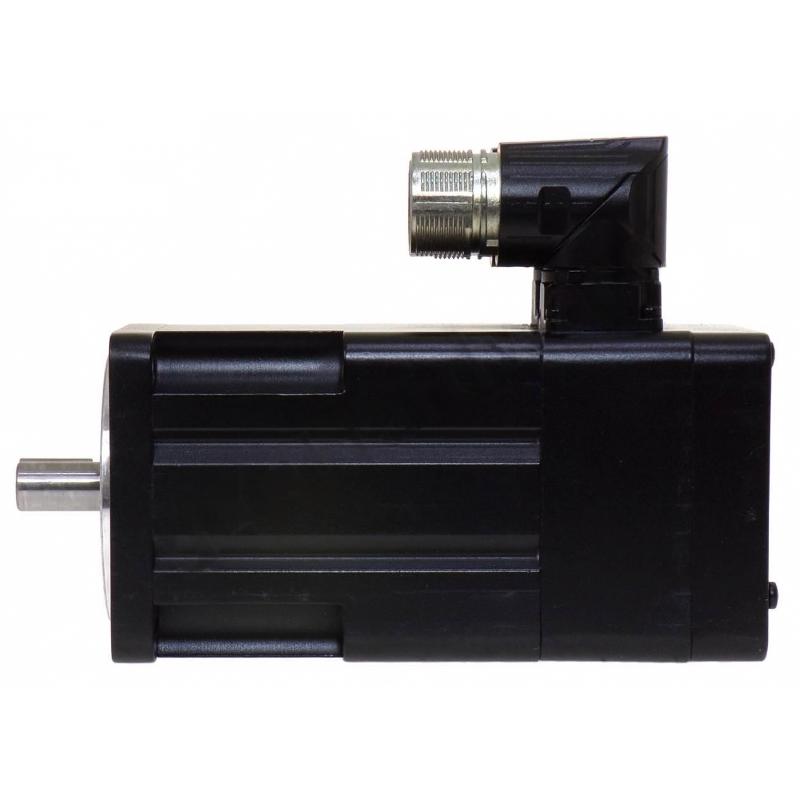

1. What applications is the MPL-A220T-HJ74AA servo motor designed for?

The MPL-A220T-HJ74AA is a low-inertia AC servo motor designed for industrial motion control applications that require accurate positioning, fast acceleration, and reliable speed regulation. It can be used in automated assembly systems, packaging machinery, material handling equipment, and precision manufacturing processes. Its 6000 rpm rated speed and 0.62 kW continuous rated power make it suitable for applications requiring responsive motion control. Before installation, engineers should evaluate the load inertia, operating cycle, required torque, and acceleration profile to ensure that the motor meets the machine’s performance requirements.

2. Which servo drive is compatible with the MPL-A220T-HJ74AA?

This motor belongs to the Allen-Bradley MP-Series MPL family and operates in the 230 V AC class. Compatible drive selection depends on the drive model, feedback interface, current requirements, and control system configuration. Potential drive families include Kinetix 5500, Kinetix 6000, and Kinetix 6200/6500, subject to the specific configuration and compatibility documentation. Before commissioning, verify the motor’s supported drive combinations, feedback wiring, current ratings, and required cable assemblies. A compatible electrical rating alone does not guarantee correct operation, so the complete motor and drive combination should be validated before connecting the equipment to a production machine.

3. What is the function of the incremental encoder?

The incremental encoder supplies position and speed feedback to the servo drive, allowing the controller to regulate motor movement according to the commanded motion profile. This feedback is essential for maintaining positioning accuracy, controlling rotational speed, and achieving stable acceleration and deceleration. Because incremental feedback does not inherently preserve absolute position after a power interruption, the machine may need to perform a homing sequence before resuming position-dependent operations. If feedback errors occur, inspect the encoder cable, connector contacts, shielding, and grounding. Electrical noise from nearby power cables or switching equipment can interfere with feedback signals and lead to unstable motion or drive faults.

4. What is the purpose of the 24 V DC holding brake?

The MPL-A220T-HJ74AA includes a 24 V DC holding brake designed to help hold the motor shaft when the motor is stopped and the brake is properly engaged. It is particularly useful in applications where unwanted shaft movement must be limited during stationary periods. The holding brake should not be treated as a substitute for a properly engineered safety braking system, nor should it be used to stop a rotating load routinely unless the manufacturer’s specifications explicitly permit that operation. During installation, verify the brake supply voltage, wiring, and control sequence. For vertical axes or gravity-loaded machinery, assess the required holding torque and implement appropriate safety measures to prevent uncontrolled movement.

5. What should be checked before commissioning this servo motor?

Before commissioning, confirm that the motor model matches the drive configuration and that the power, feedback, and brake connections are correctly installed. Inspect the mounting flange, keyed shaft, coupling, and driven mechanism for mechanical misalignment or excessive loading. Check protective grounding and ensure that power cables and feedback cables are routed appropriately to minimize electrical interference. Configure the drive according to the motor’s supported parameters, including feedback type, rated speed, and brake operation. Initial testing should be carried out at a controlled speed with the machine in a safe condition. Verify rotation direction, feedback stability, brake release, and stopping behavior before increasing the operating speed or applying the full production load.

6. Why might the MPL-A220T-HJ74AA generate excessive heat?

Excessive temperature can result from sustained high torque demand, frequent acceleration and deceleration, mechanical binding, incorrect drive tuning, or insufficient heat dissipation. The motor’s continuous output torque rating is 1.61 Nm, but the actual thermal load also depends on operating speed, duty cycle, load inertia, and environmental conditions. Troubleshooting should begin with an inspection of the mechanical transmission and driven load. Next, review drive current, torque demand, acceleration settings, and operating frequency. Confirm that the motor operates within its specified temperature range and that the installation allows appropriate heat dissipation. If the motor continues to overheat under normal operating conditions, investigate the cause before returning it to continuous service.

7. How can positioning errors, vibration, or unstable motion be resolved?

These symptoms may be caused by feedback signal interference, loose mechanical connections, coupling misalignment, excessive backlash, load-inertia mismatch, or inappropriate servo tuning. Begin by reviewing the drive’s alarm history and monitoring feedback status during operation. Inspect the encoder cable and connector for damage, loose contacts, and poor shielding. Then examine the coupling, mounting structure, and transmission components for mechanical looseness or resonance. If no physical or electrical fault is found, review the position-loop and velocity-loop settings using the drive manufacturer’s recommended procedures. Adjust one parameter at a time, document the changes, and test the system at low speed before restoring normal production operation.

8. What should be considered when replacing an MPL-A220T-HJ74AA servo motor?

The MPL-A220T-HJ74AA has been discontinued by the manufacturer, so replacement planning should include compatibility verification and spare-parts management. Before selecting a replacement, record the existing motor model, servo drive model, cable configuration, feedback settings, and machine operating requirements. Compare the candidate motor’s voltage class, continuous and peak torque, rated speed, encoder type, holding brake, shaft configuration, connector orientation, and mounting interface. A motor with a similar frame size may still require different drive parameters or cabling. After replacement, verify motor identification, brake operation, feedback signals, rotation direction, and positioning accuracy. Conduct controlled commissioning tests and retain the validated configuration for future maintenance.
