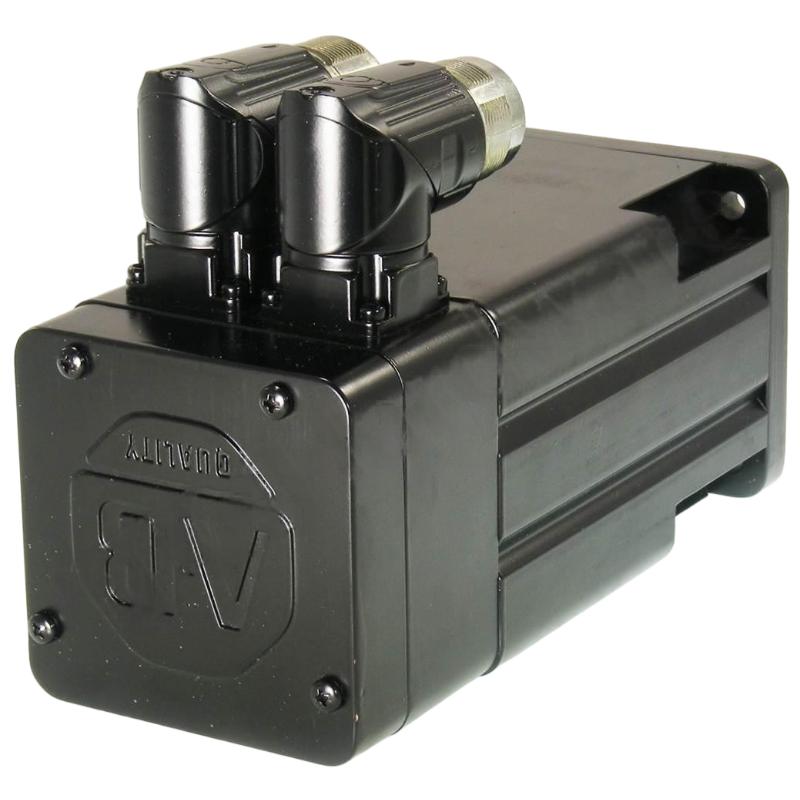

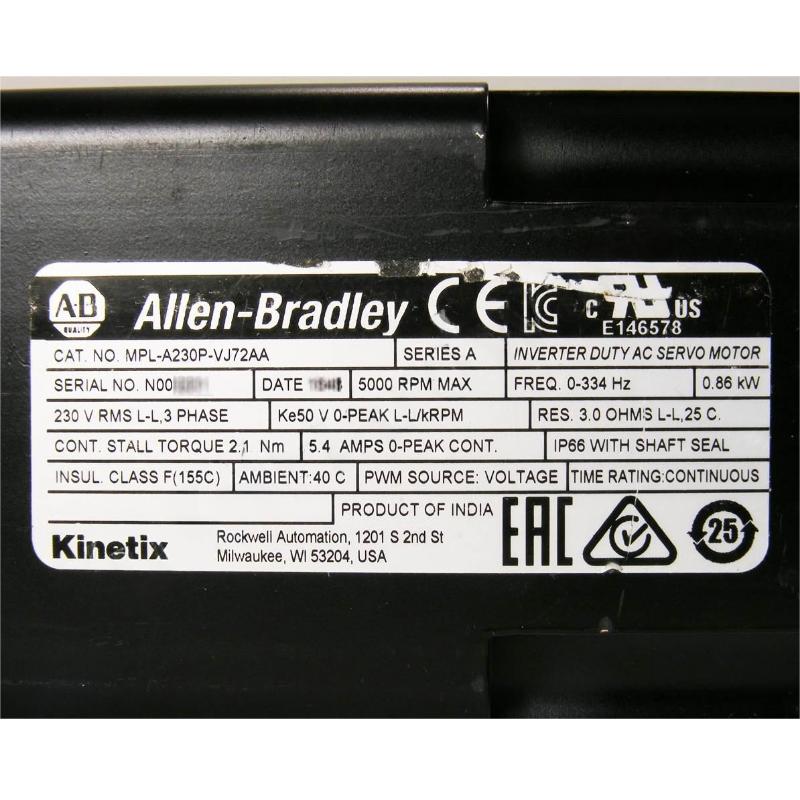

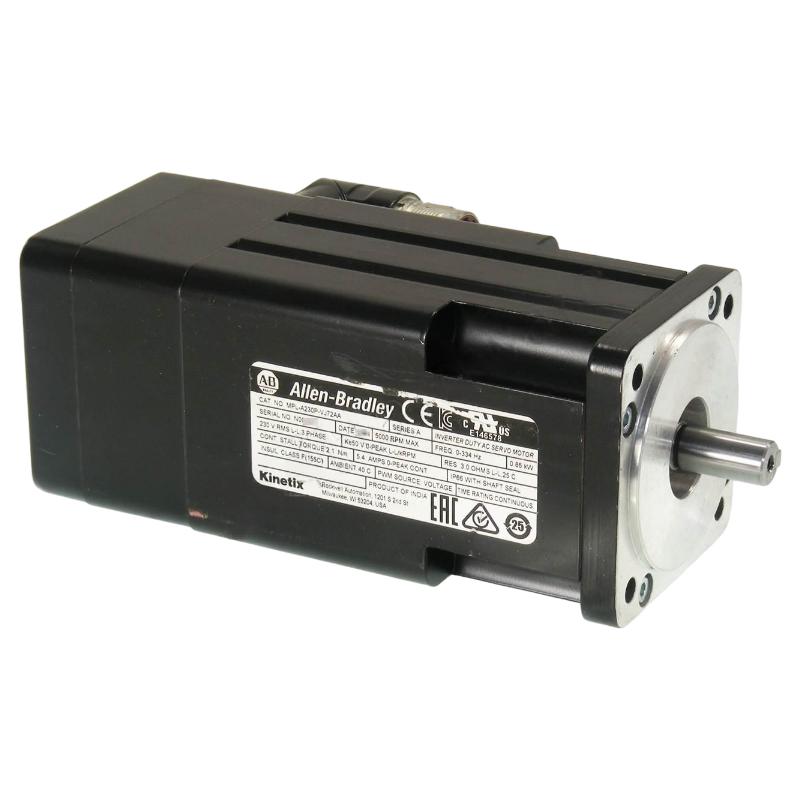

Allen Bradley MPL-A230P-VJ72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Model | MPL-A230P-VJ72AA |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Product Series | MP-Series MPL |
| Voltage Rating | 230 V AC |
| Voltage Class | 200 V AC |
| Frame Size | 75 mm |
| Magnet Stack Length | 76.2 mm |
| Rated Speed | 5000 rpm |
| Maximum Speed | 5000 rpm |
| Continuous Rated Power | 0.86 kW |
| Continuous Stall Torque | 2.1 Nm |
| Peak Torque | 8.2 Nm |
| Feedback Type | Absolute Multi-Turn High-Resolution Encoder |
| Feedback Protocol | Hiperface |
| Feedback Resolution | Sin/Cos, 128 cycles/revolution |
| Shaft Type | Keyed Shaft Extension |
| Holding Brake | No Brake |
| Connector Type | SpeedTec DIN Connector |
| Connector Orientation | Right-Angle, Rotatable 180° |
| Mounting Type | IEC Metric Flange Mount |
| Mounting Holes | Free Mounting Holes, Type FF |
| Shaft Seal | No |
| Protection Rating | IP50 |
| Operating Temperature | 0–40°C |
| Weight | 2.6 kg |
FAQ
1. What applications is the Allen-Bradley MPL-A230P-VJ72AA servo motor suitable for?
The MPL-A230P-VJ72AA is designed for industrial motion-control applications requiring accurate positioning, controlled acceleration, and reliable speed regulation. Typical uses include packaging machinery, automated assembly systems, material handling equipment, and production lines. Its low-inertia design supports responsive motion, while the servo drive provides closed-loop control based on the machine’s operating requirements.
2. What type of feedback does the MPL-A230P-VJ72AA use?
This motor uses an absolute multi-turn high-resolution encoder with a Hiperface interface and Sin/Cos signals at 128 cycles per revolution. The encoder supplies position feedback to the servo drive, supporting accurate motion control and multi-turn position tracking. The drive must support the motor’s feedback interface, and the feedback wiring and configuration must be correct for reliable operation.
3. Which servo drives are compatible with the MPL-A230P-VJ72AA?
Compatibility depends on the exact servo drive catalog number, voltage class, feedback interface, and system configuration. Before installation, verify that the selected Allen-Bradley Kinetix or Ultra servo drive explicitly supports this motor model. Checking the manufacturer’s compatibility documentation helps prevent feedback mismatches and commissioning problems.
4. Does the MPL-A230P-VJ72AA have an integrated holding brake?
No. The MPL-A230P-VJ72AA is configured without a brake. If an application requires an axis to remain stationary when the motor is stopped, an external holding or braking solution may be necessary. This is particularly important for vertical axes and gravity-loaded mechanisms. The selected solution should meet the machine’s safety requirements and should not rely solely on motor torque to hold a load.
5. What should be checked before commissioning this servo motor?
Confirm the motor catalog number, drive compatibility, supply requirements, encoder connections, and grounding. Inspect the power cable, connectors, shaft coupling, and mechanical alignment. Configure the drive with the correct motor parameters and follow the manufacturer’s startup procedure. Initial motion tests should be performed at a controlled speed, with suitable safeguards in place before the equipment enters normal operation.
6. What can cause a servo drive fault when using this motor?
Potential causes include encoder communication problems, loose connectors, unstable power, excessive mechanical load, incorrect motor parameters, or grounding issues. Begin by recording the drive alarm code and reviewing its diagnostic information. Check the electrical connections and mechanical load before replacing components, since a fault may originate in the drive, wiring, or connected machinery rather than the motor itself.
7. How can positioning errors or unstable motion be diagnosed?
Check encoder feedback, cable integrity, coupling alignment, mechanical backlash, vibration, and servo tuning. Incorrect feedback configuration or sudden load changes can also affect positioning accuracy. Review the drive’s alarm history and verify that the configured motor data matches the actual motor. Make controlled adjustments according to the drive manufacturer’s tuning procedure and test the system under consistent operating conditions.
8. What should be considered when replacing the MPL-A230P-VJ72AA?
Confirm that the replacement matches the required voltage class, torque and speed ratings, encoder interface, keyed shaft, connector configuration, and brake requirements. Compatibility with the existing servo drive and motion controller must also be verified. Motors with similar catalog numbers can differ in feedback or braking options, so check the complete part number before purchasing or installing a substitute.
Allen Bradley MPL-A230P-VJ72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
