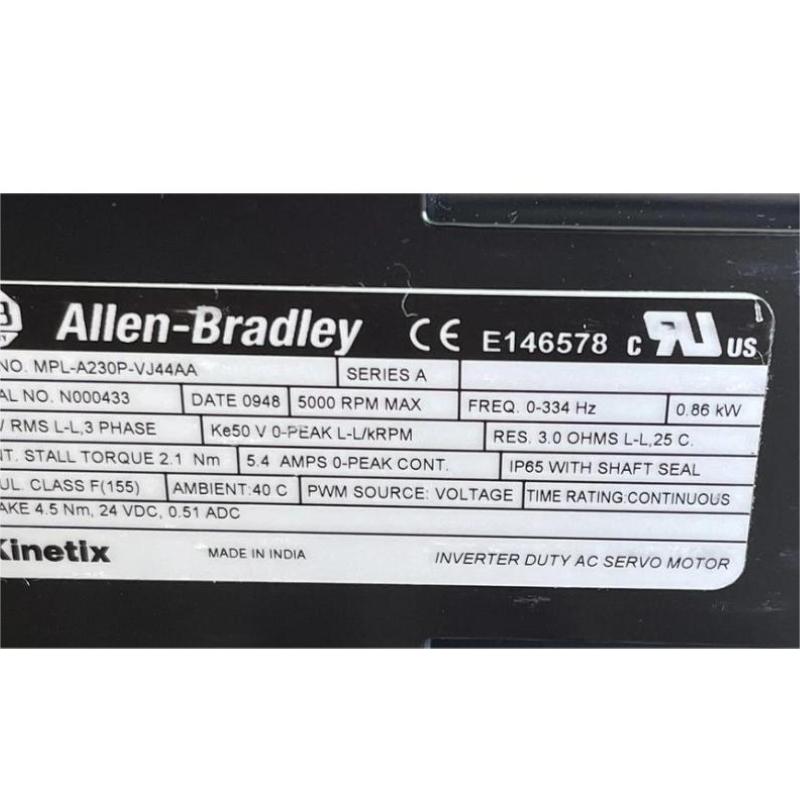

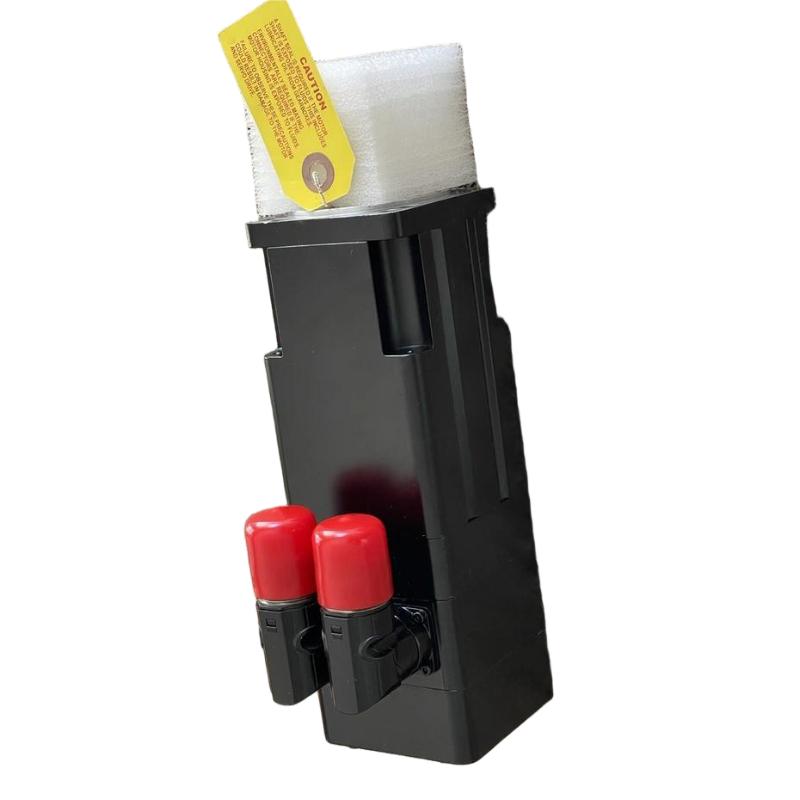

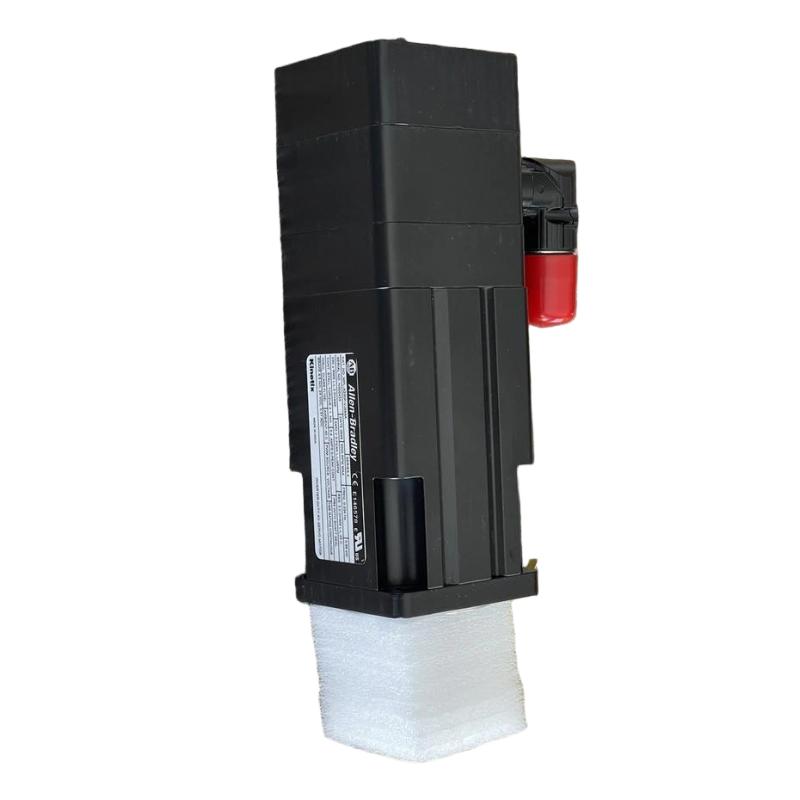

Allen Bradley MPL-A230P-VJ44AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Model | MPL-A230P-VJ44AA |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Product Series | MP-Series MPL |
| Voltage Rating | 230 V AC |
| Voltage Class | 200 V AC |
| Frame Size | 75 mm |
| Magnet Stack Length | 76.2 mm |
| Rated Speed | 5000 rpm |
| Maximum Speed | 5000 rpm |
| Continuous Rated Power | 0.86 kW |
| Continuous Stall Torque | 2.1 Nm |
| Peak Torque | 8.2 Nm |
| Feedback Type | Absolute Multi-Turn High-Resolution Encoder |
| Feedback Protocol | Hiperface |
| Feedback Resolution | Sin/Cos, 128 cycles/revolution |
| Shaft Type | Keyed Shaft Extension |
| Holding Brake | 24 V DC Brake |
| Connector Type | SpeedTec DIN Connector |
| Connector Orientation | Right-Angle, Rotatable 180° |
| Mounting Type | IEC Metric Flange Mount |
| Mounting Holes | Free Mounting Holes, Type FF |
| Shaft Seal | No |
| Protection Rating | IP50 |
| Operating Temperature | 0–40°C |
| Weight | 3.18 kg |
FAQ
1. What applications is the Allen-Bradley MPL-A230P-VJ44AA servo motor designed for?
The MPL-A230P-VJ44AA is a low-inertia servo motor designed for industrial motion-control systems that require accurate positioning, controlled acceleration, and repeatable speed regulation. Typical applications include packaging machinery, automated assembly systems, material handling equipment, and production lines. Selection should be based on the required torque, acceleration profile, operating cycle, and compatibility with the servo drive.
2. What type of feedback does the MPL-A230P-VJ44AA use?
This motor is specified with an absolute multi-turn high-resolution encoder using a Hiperface interface and Sin/Cos feedback signals. The encoder supplies position information to the servo drive, supporting accurate motion control. The drive must support the motor’s feedback interface, and the feedback cables and configuration must be correct for reliable operation.
3. Which servo drives are compatible with the MPL-A230P-VJ44AA?
Compatibility depends on the exact servo drive model, voltage class, feedback interface, and system configuration. Before installation, check the motor against the manufacturer’s compatibility documentation to avoid encoder mismatches or commissioning faults. Do not assume that every Kinetix or Ultra drive supports this motor.
4. What is the function of the integrated 24 V DC holding brake?
The integrated brake helps hold the motor shaft when the motor is stopped and the brake is engaged. It is useful in applications where an axis must resist movement during a stop. The brake should be controlled according to the manufacturer’s wiring and operating instructions and should not be used for repeated dynamic stopping unless specifically approved for that duty.
5. What should be checked before commissioning this servo motor?
Confirm the motor catalog number, drive compatibility, supply requirements, encoder connections, and brake-control wiring. Inspect the power cable, connectors, grounding, mechanical coupling, and mounting alignment. Configure the drive with the correct motor parameters and follow the recommended startup procedure. Perform initial motion tests under controlled conditions before placing the machine into normal operation.
6. What can cause a servo drive fault when using this motor?
Potential causes include encoder communication problems, loose connectors, power supply abnormalities, excessive load, incorrect motor parameters, or a brake that does not release properly. Check the drive alarm code and diagnostic status first. Inspect the electrical connections and mechanical load before replacing components, as the fault may originate in the drive, wiring, or connected machinery.
7. How can positioning errors or unstable motion be diagnosed?
Start by checking encoder feedback, cable integrity, coupling alignment, mechanical backlash, and servo tuning. Excessive vibration, abrupt load changes, or incorrect feedback configuration can affect positioning accuracy. Review the drive’s alarm history and verify the configured motor data. Make controlled adjustments according to the drive manufacturer’s tuning procedure.
8. What should be considered when replacing the MPL-A230P-VJ44AA?
Verify that the replacement matches the voltage class, torque and speed ratings, encoder interface, keyed shaft, connector configuration, and 24 V DC brake. Confirm compatibility with the existing servo drive and motion controller. Motors with similar model numbers can differ in feedback or braking options, so check the complete catalog number before purchasing or commissioning a replacement.
Allen Bradley MPL-A230P-VJ44AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
