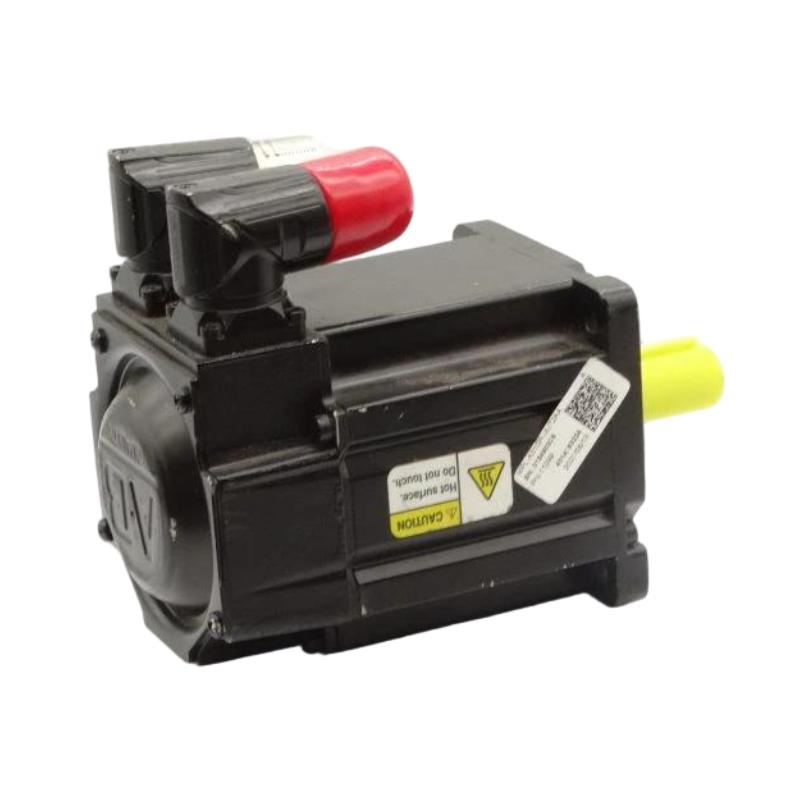

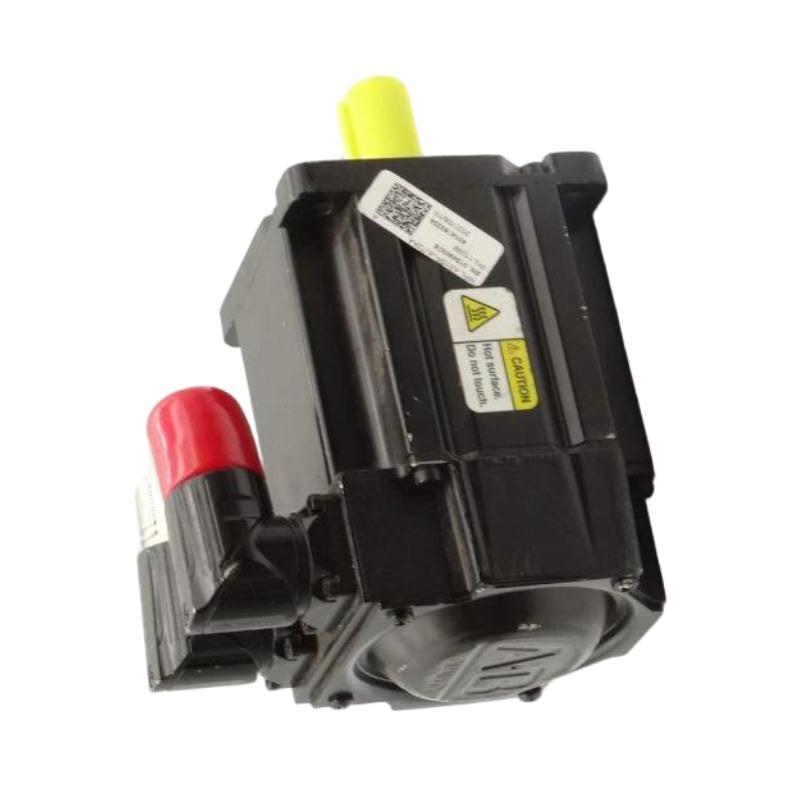

Allen Bradley MPL-A310P-MJ72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

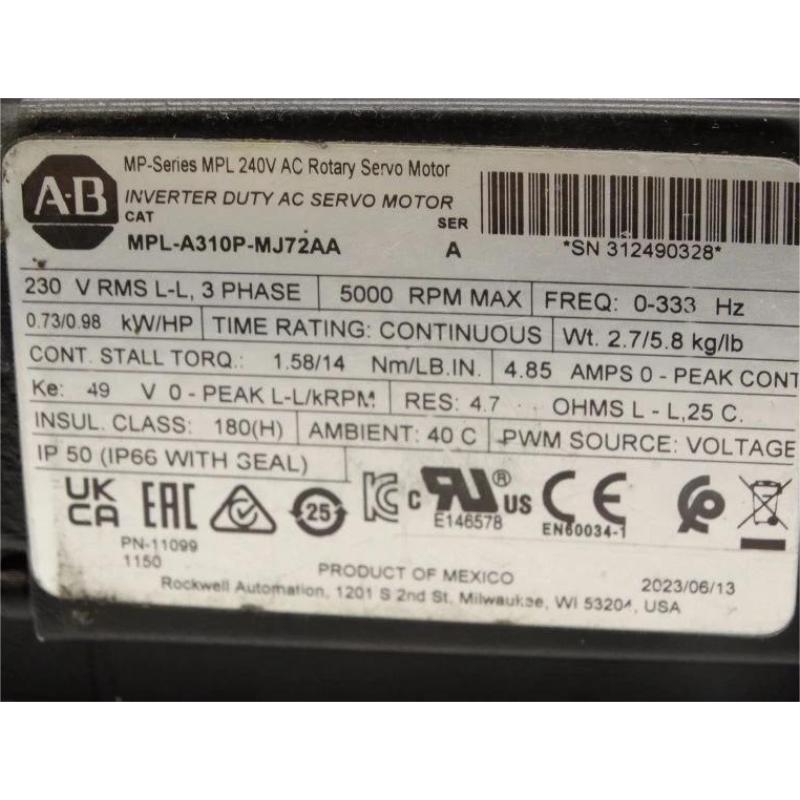

Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A310P-MJ72AA |
| Product Series | MP-Series MPL |
| Product Type | AC Rotary Servo Motor |
| Motor Type | Low-Inertia Brushless Servo Motor |
| Rated Voltage | 230 V AC |
| Voltage Class | 200 V |
| Rated Speed | 5000 RPM |
| Rated Output Power | 0.73 kW |
| Continuous Stall Torque | 1.58 Nm |
| Peak Stall Torque | 3.61 Nm |
| Frame Size | 100 mm |
| Magnet Stack Length | 25.4 mm |
| Feedback Type | Multi-turn High-Resolution Absolute Encoder |
| Encoder Type | Hiperface Absolute Encoder |
| Shaft Type | Keyed Shaft Extension |
| Brake Option | No Brake |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right-Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange, Type FF |
| Shaft Seal | No Shaft Seal |
| Weight | 2.7 kg |
FAQ
Q1: What type of motor is the Allen-Bradley MPL-A310P-MJ72AA?
The MPL-A310P-MJ72AA is a low-inertia, brushless AC servo motor in the Allen-Bradley MP-Series MPL family. It is designed for industrial motion-control applications that require accurate positioning, rapid acceleration, and reliable speed regulation.
Q2: What is the rated speed of this servo motor?
The rated speed is 5000 RPM. Actual operating speed depends on the servo drive configuration, mechanical load, and application requirements.
Q3: What feedback system does the MPL-A310P-MJ72AA use?
This model uses a multi-turn, high-resolution absolute encoder. It provides position feedback to the servo drive and supports precise motion control. The drive must be compatible with the motor’s feedback interface.
Q4: Does this servo motor include a holding brake?
No. The MPL-A310P-MJ72AA is specified without an integrated holding brake. Applications involving vertical loads or other loads that must remain stationary may require a separate mechanical holding solution.
Q5: Which servo drives are compatible with this motor?
The motor should be paired with an Allen-Bradley servo drive that supports its 230 V AC motor rating and absolute encoder feedback system. Confirm the exact drive catalog number and feedback compatibility before installation.
Q6: What are the continuous and peak stall torque ratings?
The continuous stall torque is 1.58 Nm, and the peak stall torque is 3.61 Nm. Peak torque is intended for short-duration operating demands within the manufacturer’s specified limits.
Q7: What is the purpose of the keyed shaft extension?
The keyed shaft extension provides a mechanical interface for compatible couplings, pulleys, and other transmission components. Correct key dimensions, coupling alignment, and allowable shaft loads are important for reliable operation.
Q8: What should be checked before replacing this servo motor?
Verify the complete catalog number, voltage rating, encoder compatibility, shaft configuration, connector orientation, mounting arrangement, torque requirements, and drive compatibility. A replacement should be evaluated against the original machine’s control and mechanical requirements before installation.
Allen Bradley MPL-A310P-MJ72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
