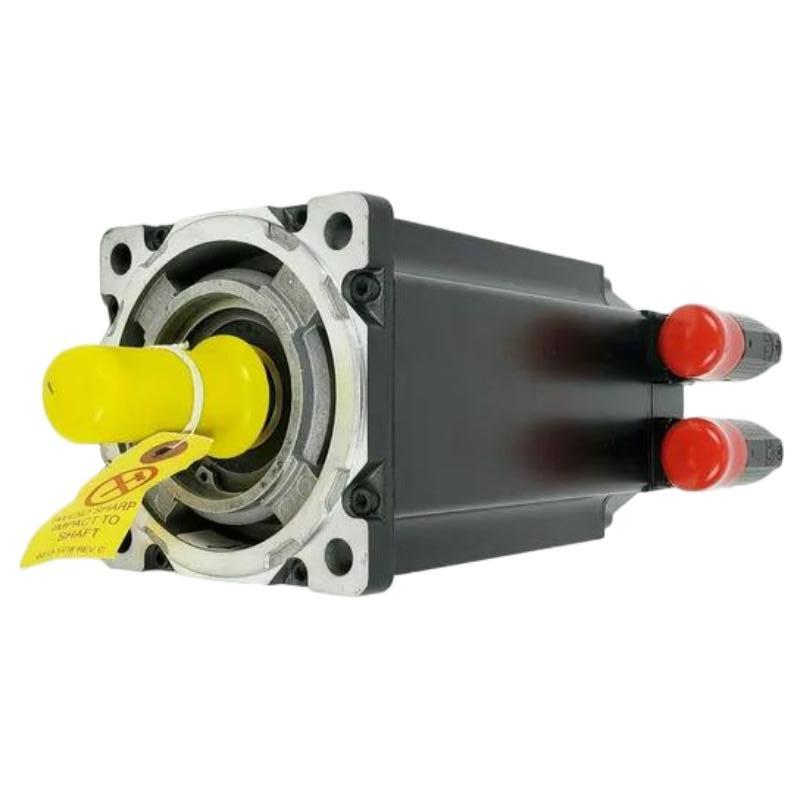

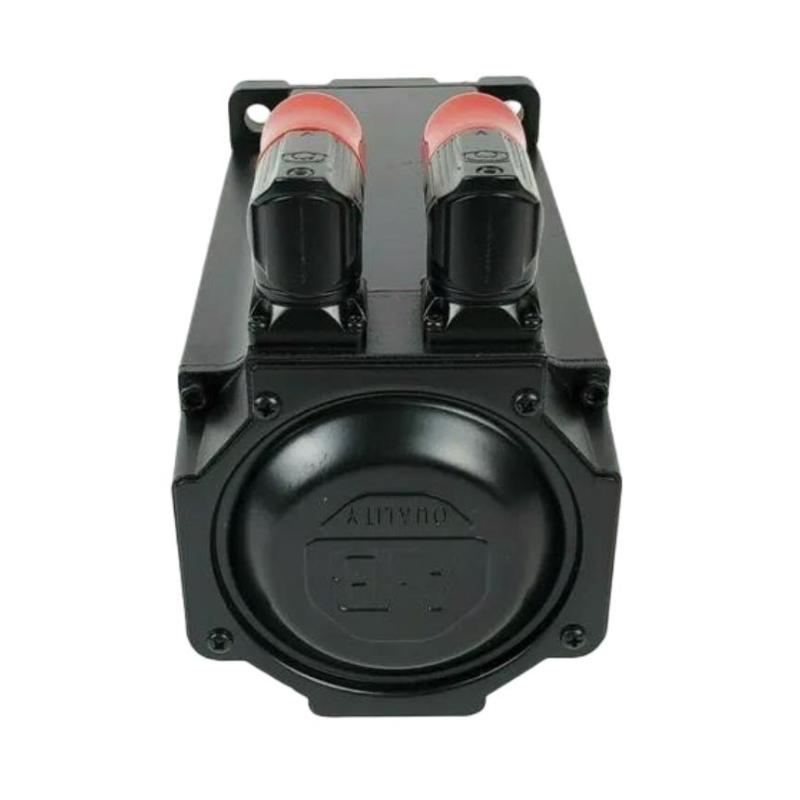

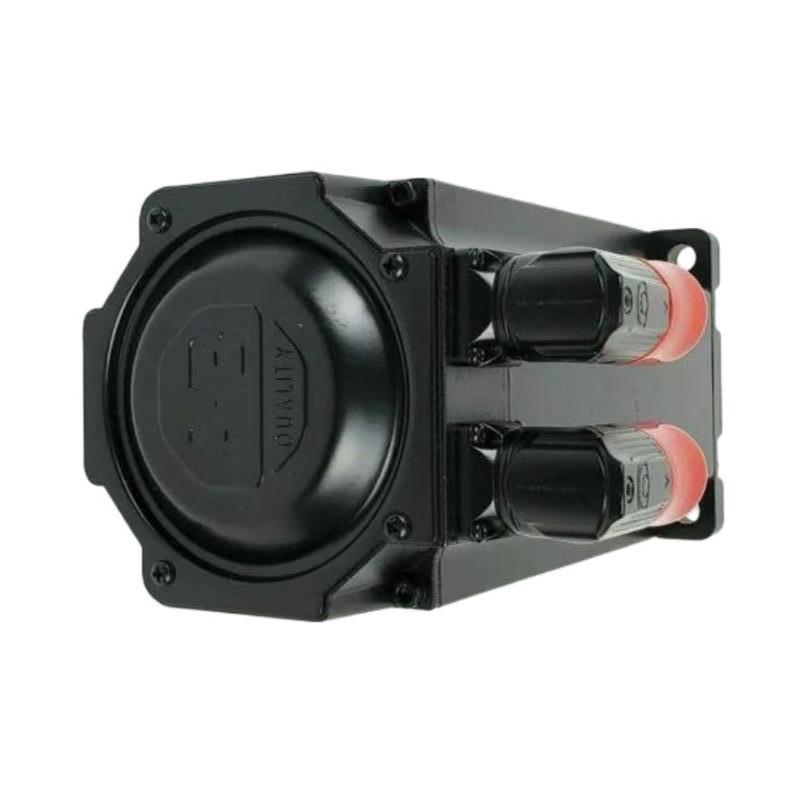

Allen Bradley MPL-A310P-HK74AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A310P-HK74AA |
| Product Type | AC Rotary Servo Motor |
| Product Series | MP-Series MPL |
| Motor Type | Low-Inertia Brushless Servo Motor |
| Rated Voltage | 230 V AC |
| Voltage Class | 200 V AC |
| Rated Speed | 5000 RPM |
| Maximum Speed | 5000 RPM |
| Rated Output Power | 0.73 kW |
| Continuous Stall Torque | 1.58 Nm |
| Peak Stall Torque | 3.61 Nm |
| Frame Size | 100 mm |
| Magnet Stack Length | 25.4 mm |
| Feedback Type | Incremental Encoder |
| Feedback Resolution | 2000 Lines per Revolution |
| Brake | 24 V DC Holding Brake |
| Shaft Type | Keyless Shaft |
| Shaft Seal | No Shaft Seal |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right-Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange Mount, Type FF |
| Enclosure Protection | IP66 |
| Operating Temperature | 0–40°C |
| Weight | 2.7 kg |
| Compatible Drive Systems | Compatible Allen-Bradley servo drives, subject to feedback and electrical compatibility |
| Product Status | Discontinued |
FAQ
Q1: What type of servo motor is the Allen-Bradley MPL-A310P-HK74AA?
The MPL-A310P-HK74AA is a low-inertia, brushless AC rotary servo motor from the MP-Series MPL family. It is designed for industrial motion-control applications that require precise positioning, fast acceleration, and consistent speed control.
Q2: What is the rated speed of this servo motor?
The motor has a rated speed of 5000 RPM. Actual operating speed depends on the servo drive configuration, mechanical load, and application requirements.
Q3: What feedback system does the MPL-A310P-HK74AA use?
This model uses a 2000-line incremental encoder. The feedback signal enables the servo drive to monitor motor position and speed and adjust motor operation accordingly.
Q4: Does this model include a holding brake?
Yes. The MPL-A310P-HK74AA includes a 24 V DC holding brake. The brake is intended to hold the motor shaft when stationary and should not be used as a dynamic stopping brake unless specifically permitted by the manufacturer’s instructions.
Q5: Which servo drives are compatible with this motor?
It can be used with supported Allen-Bradley servo drives that match its electrical ratings and incremental encoder feedback requirements. Confirm the exact drive and firmware compatibility before installation.
Q6: What are the continuous and peak torque ratings?
The continuous stall torque is 1.58 Nm, and the peak stall torque is 3.61 Nm. Peak torque is intended for short-duration demands within the motor’s specified operating limits.
Q7: What does the IP66 protection rating mean?
IP66 indicates protection against dust ingress and powerful water jets under specified test conditions. Proper cable connections, connector sealing, and installation practices are still necessary to maintain the intended protection level.
Q8: What should be checked before replacing this motor?
Verify the complete model number, supply voltage, encoder type, brake voltage, shaft configuration, connector orientation, mounting arrangement, and drive compatibility. This model is discontinued, so any proposed replacement should be checked against the original machine’s motion-control requirements before installation.
Allen Bradley MPL-A310P-HK74AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
