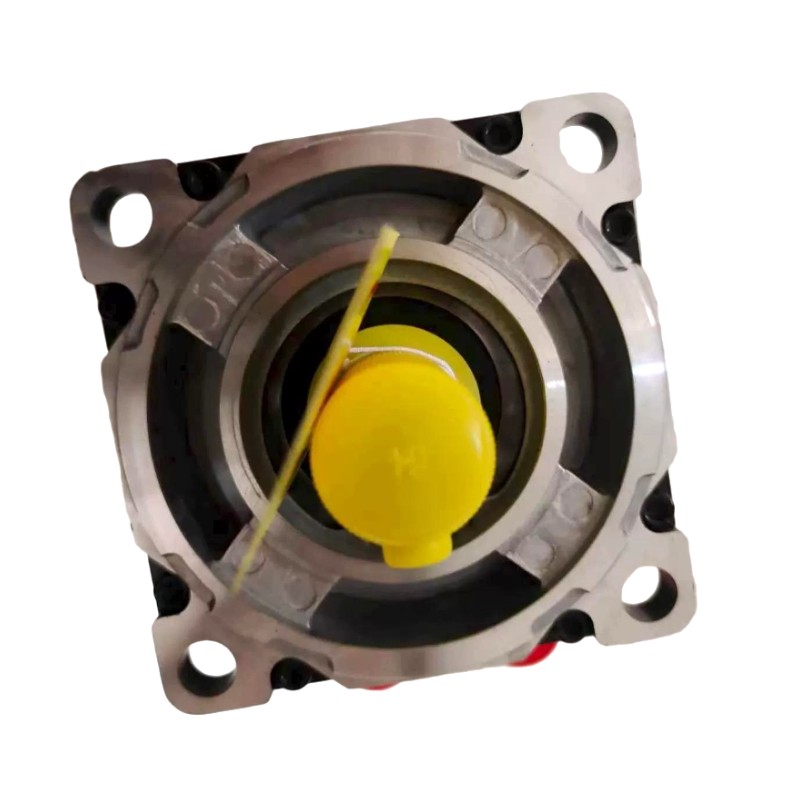

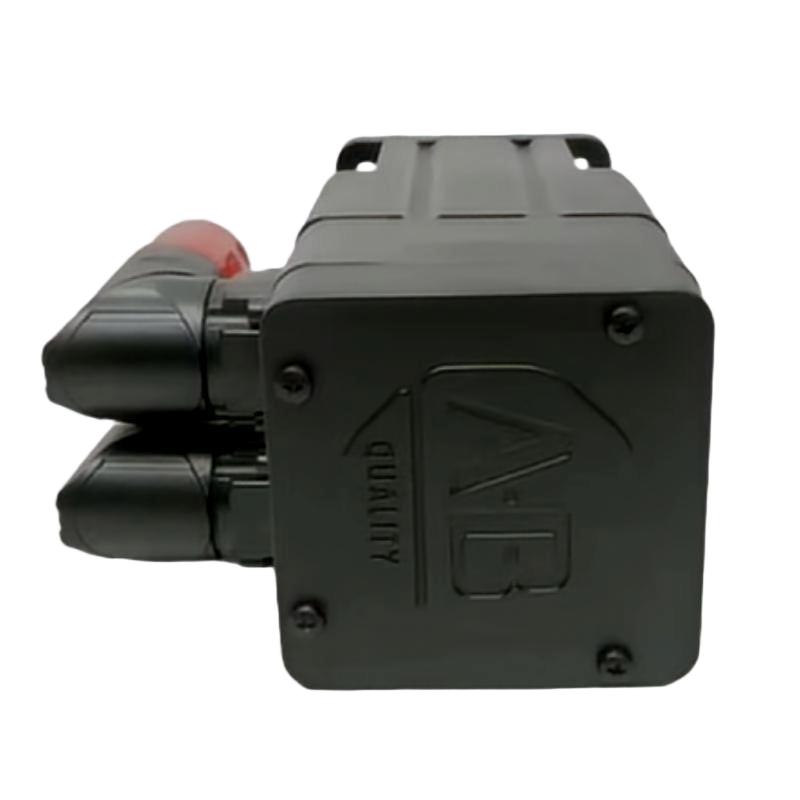

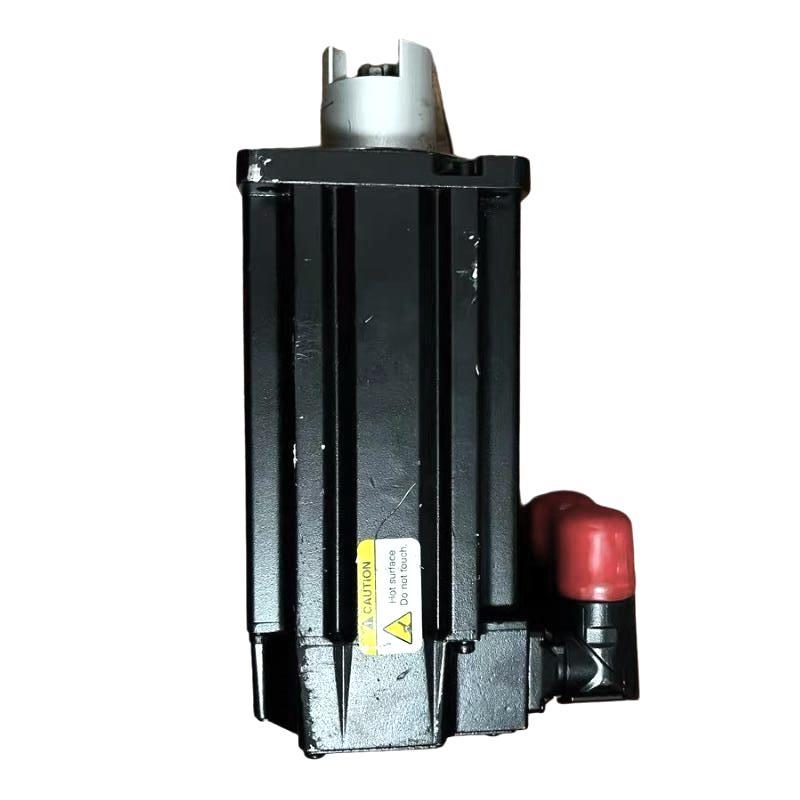

Allen Bradley MPL-A310P-HK72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A310P-HK72AA |
| Product Type | AC Rotary Servo Motor |
| Product Series | MP-Series MPL |
| Motor Type | Low-Inertia Brushless Servo Motor |
| Voltage Class | 200 V AC |
| Rated Voltage | 230 V AC |
| Rated Speed | 5000 RPM |
| Rated Output Power | 0.46 kW |
| Continuous Stall Torque | 1.58 Nm |
| Peak Stall Torque | 3.61 Nm |
| Frame Size | 100 mm |
| Magnet Stack Length | 25.4 mm |
| Feedback Type | Incremental Encoder |
| Feedback Resolution | 2000 Lines per Revolution |
| Brake Option | No Brake |
| Shaft Type | Keyless Shaft |
| Shaft Seal | No Shaft Seal |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right-Angle, 180° Rotatable |
| Enclosure Protection | IP50 standard; IP66 with optional shaft seal |
| Mounting Type | IEC Metric Flange Mount |
| Operating Temperature | 0–40°C |
| Weight | 2.7 kg |
| Compatible Drive Systems | Compatible Kinetix and other supported Allen-Bradley servo drives, subject to drive specifications |
| Product Status | Discontinued; verify availability and replacement compatibility |
FAQ
Q1: What type of motor is the Allen-Bradley MPL-A310P-HK72AA?
It is a low-inertia, brushless AC rotary servo motor from the MP-Series MPL family. It is designed for applications requiring accurate positioning, controlled acceleration, and repeatable motion.
Q2: What is the maximum rated speed of this servo motor?
The rated speed is 5000 RPM. The actual operating speed depends on the selected servo drive, load conditions, and application settings.
Q3: What feedback system does the MPL-A310P-HK72AA use?
It uses a 2000-line incremental encoder to provide position and speed feedback to the servo drive. The drive must support the motor’s feedback configuration.
Q4: Does this motor have an integrated holding brake?
No. This model does not include an integrated brake. If the application requires holding a vertical or suspended load, an appropriate external mechanical holding solution may be necessary.
Q5: Which servo drive can be used with this motor?
The motor should be paired with a compatible Allen-Bradley servo drive that supports its voltage class, incremental encoder feedback, and electrical characteristics. Confirm compatibility using the drive and motor documentation before installation.
Q6: What are the continuous and peak stall torque ratings?
The continuous stall torque is 1.58 Nm, while the peak stall torque is 3.61 Nm. Peak torque is intended for short-duration operating demands within the manufacturer’s limits, not continuous operation.
Q7: Can the motor operate in environments with moisture or dust?
The standard enclosure rating is IP50 without a shaft seal. An optional shaft seal can provide an IP66 configuration when correctly installed. Verify the exact motor configuration before using it in a demanding environment.
Q8: What should be checked when replacing an existing servo motor with this model?
Check the complete catalog number, voltage class, encoder compatibility, shaft configuration, connector orientation, mounting pattern, torque requirements, and drive compatibility. Since this model has been discontinued, verify the proposed replacement against the original system requirements before purchasing or commissioning it.
Allen Bradley MPL-A310P-HK72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
