Q1: What type of servo motor is the MPL-A310P-HJ72AA?

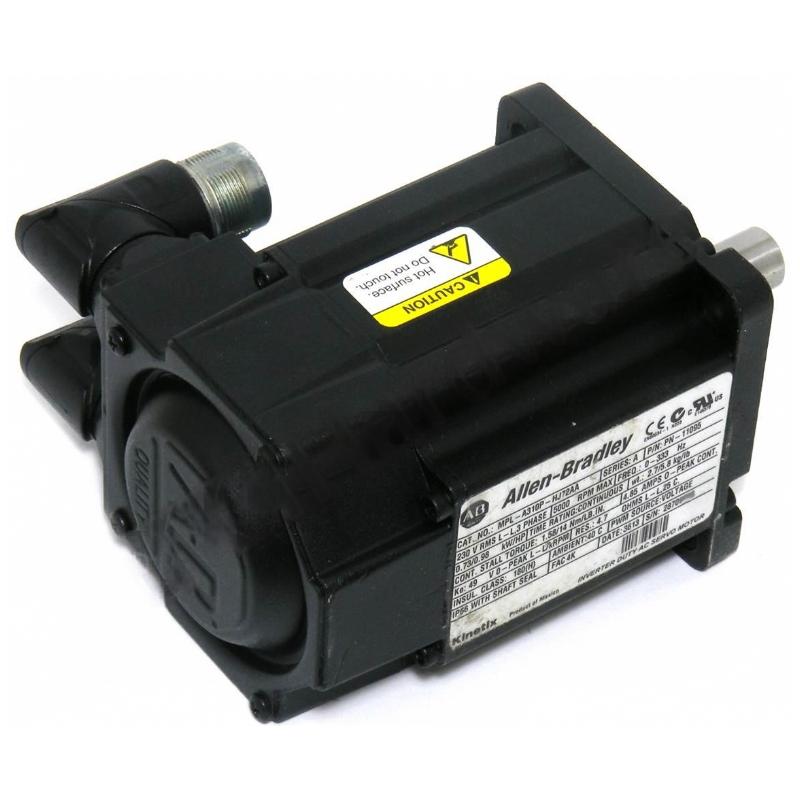

A: The MPL-A310P-HJ72AA is a low-inertia, brushless AC rotary servo motor from the Allen-Bradley MP-Series MPL family. It is designed for industrial motion control applications requiring precise positioning, rapid acceleration, and responsive speed regulation. Its low-inertia rotor design helps the motor respond quickly to changes in commanded motion. The motor is suitable for integration into compatible servo systems used in automated machinery, material handling equipment, and positioning applications.

Q2: Which servo drives are compatible with this motor?

A: This motor can be used with compatible Allen-Bradley servo drive families, including Kinetix 5500, Kinetix 6200, Kinetix 6500, Kinetix 6000, Kinetix 300, Kinetix 350, Kinetix 2000, Kinetix 7000, and Ultra 3000, subject to the specific drive configuration and feedback compatibility. Before installation, verify the drive’s supported motor catalog numbers, voltage rating, current capacity, and feedback interface. Correct drive selection and parameter configuration are essential for reliable operation and accurate motion control.

Q3: What are the rated speed and torque specifications?

A: The MPL-A310P-HJ72AA has a rated speed of 5000 rpm, a continuous stall torque of 1.58 N·m, and a peak torque of 3.61 N·m. Its continuous rated power is 0.73 kW. These specifications help determine whether the motor can meet an application’s speed and torque requirements. When selecting a motor, engineers should consider the actual load torque, acceleration and deceleration profile, reflected inertia, and operating duty cycle. Peak torque is intended for applicable short-duration operating conditions and should not be treated as a continuous rating.

Q4: What type of encoder does this motor use?

A: This model uses an incremental encoder with a feedback resolution of 2000 pulses per revolution. The encoder provides rotational feedback to the servo drive, enabling closed-loop speed and position control. During installation, confirm that the selected drive supports the encoder configuration and that the feedback cable is correctly connected. Incorrect wiring, electrical interference, or incompatible feedback settings can cause positioning errors, feedback alarms, or failure to establish normal servo operation.

Q5: Does the MPL-A310P-HJ72AA include a holding brake?

A: No. This model is configured without an integrated holding brake. If the application requires a shaft to remain stationary when the motor is disabled, an appropriate external holding mechanism or load-retention arrangement may be necessary. This consideration is particularly important for vertical axes and gravity-loaded machinery. Before replacing an existing servo motor, check whether the original system depends on a motor-mounted brake and evaluate the safety requirements for power loss and emergency stopping.

Q6: What should be considered when installing and wiring this servo motor?

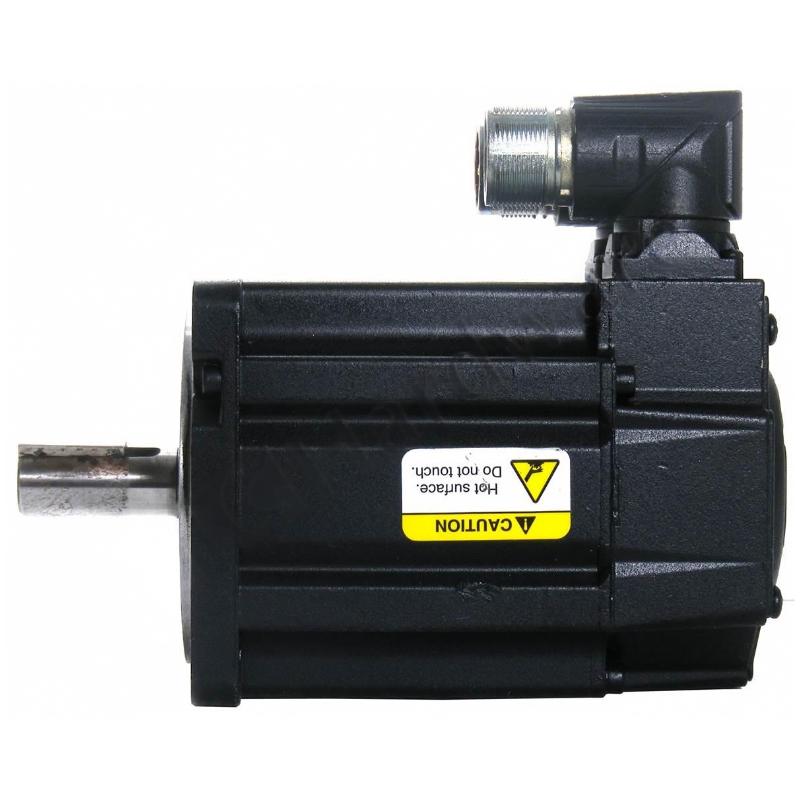

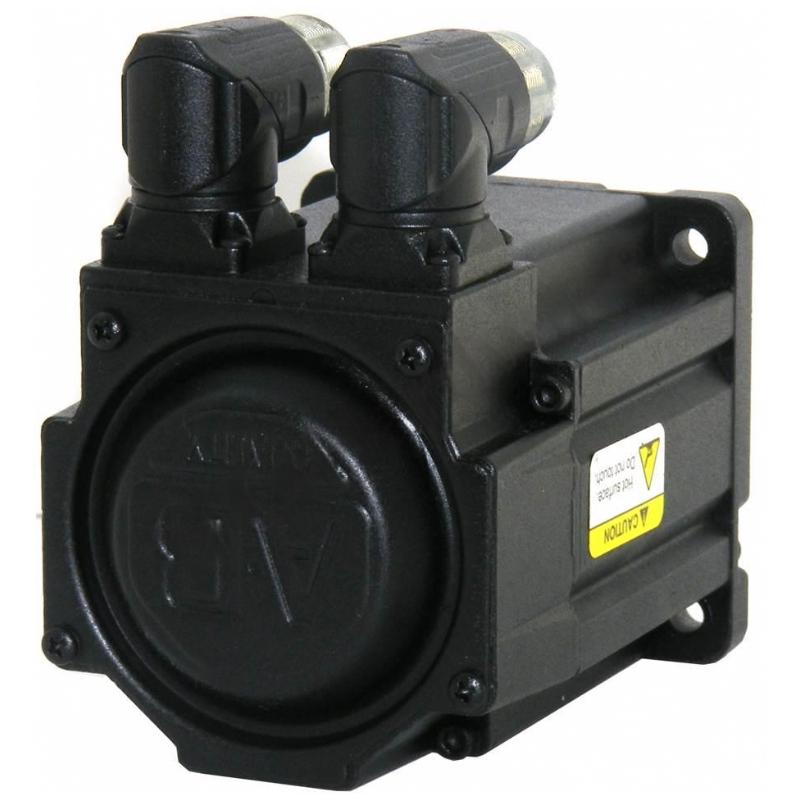

A: The motor features a keyed shaft extension, an IEC metric mounting flange, and a SpeedTEC DIN right-angle connector that can be rotated through 180 degrees. During installation, verify shaft and coupling compatibility, flange alignment, mounting rigidity, and cable routing. The motor’s standard configuration does not include a shaft seal, so its suitability for environments exposed to moisture, oil, or contaminants must be assessed carefully. Follow the applicable electrical isolation procedures before connecting or disconnecting power and feedback cables.

Q7: What applications are suitable for this low-inertia servo motor?

A: The MPL-A310P-HJ72AA can be considered for packaging machinery, automated assembly equipment, indexing systems, and other industrial applications requiring rapid motion response and repeatable positioning. Its 5000 rpm rated speed and low-inertia design can support applications involving frequent acceleration and deceleration. However, the final selection should be based on the actual mechanical load, required torque, operating speed, motion profile, and duty cycle. Proper motor sizing helps prevent excessive heating, overload faults, and reduced positioning performance.

Q8: How should common faults such as vibration, overheating, or positioning errors be diagnosed?

A: Begin by checking the servo drive’s alarm history and diagnostic information. For positioning errors, inspect the incremental encoder feedback cable, electrical connections, mechanical coupling, and drive configuration. For vibration, examine mounting rigidity, shaft alignment, load inertia, and servo tuning parameters. If the motor overheats or an overload alarm occurs, review the load torque, acceleration settings, operating cycle, and drive current limits. Also check whether the mechanical system moves freely without excessive friction. After correcting the identified issue, perform a controlled test according to the equipment maintenance procedures before returning the system to normal operation.
