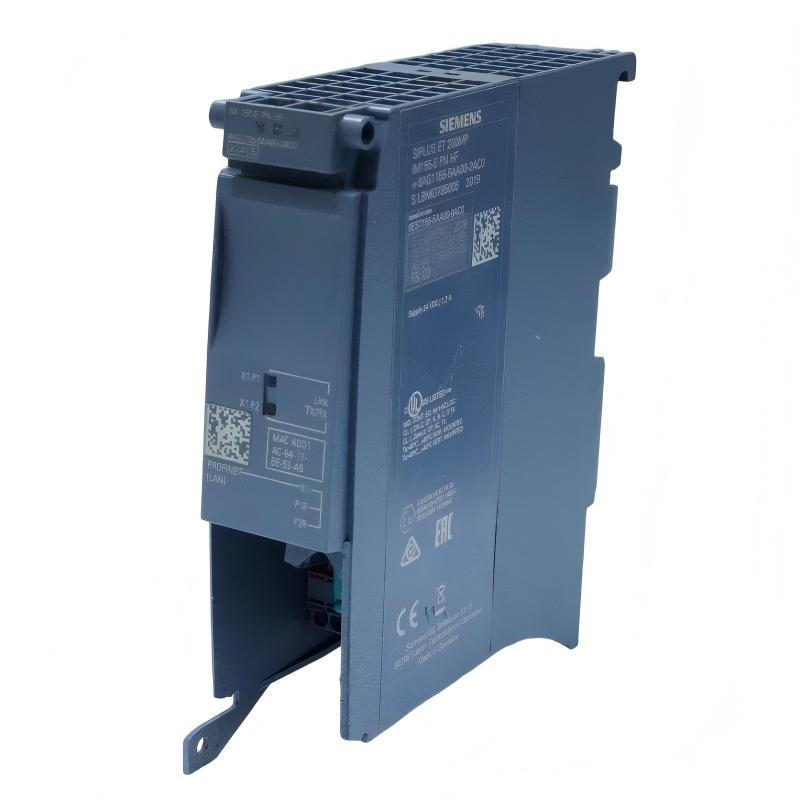

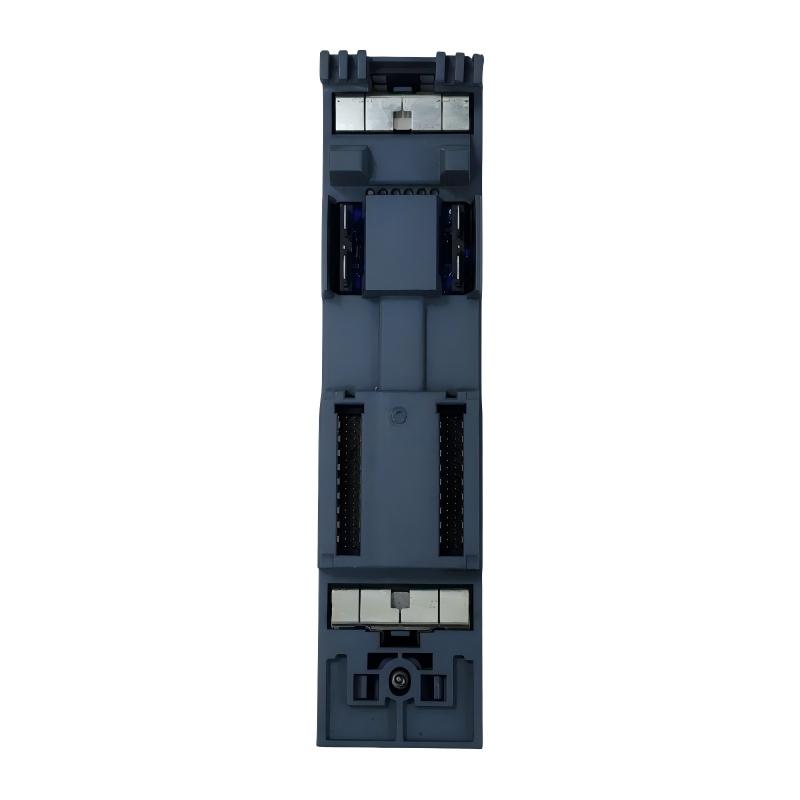

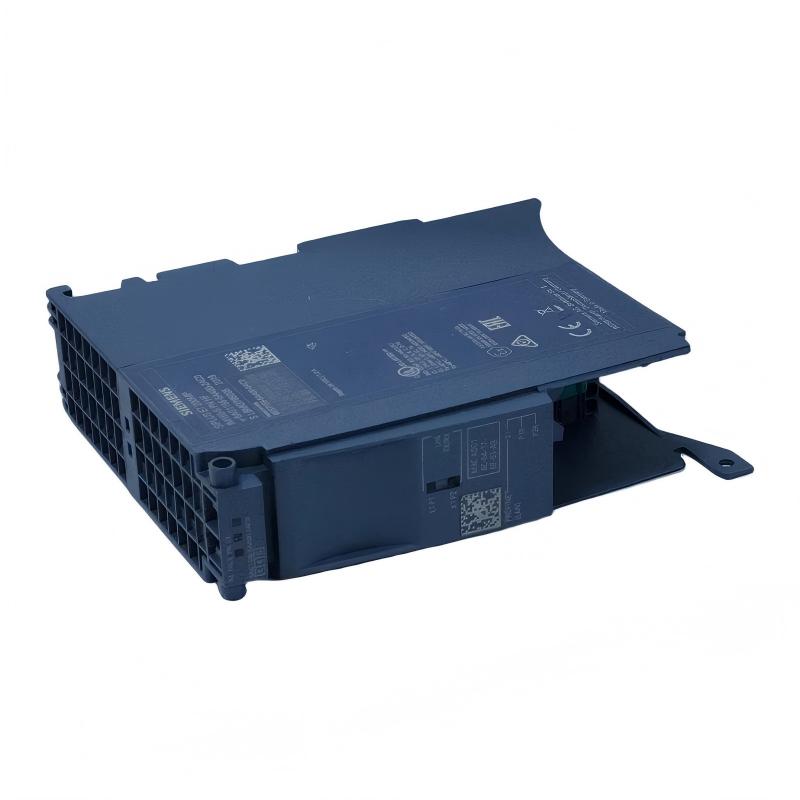

Siemens 6AG1155-5AA00-2AC0 Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Name | SIPLUS ET 200MP IM 155-5 PN HF Interface Module |
| Model Number | 6AG1155-5AA00-2AC0 |
| Base Model | 6ES7155-5AA00-0AC0 |
| Product Series | SIPLUS ET 200MP |
| Product Type | PROFINET IO Interface Module, High Feature |
| Interface Designation | IM 155-5 PN HF |
| Main Function | Connects ET 200MP distributed I/O stations to a PROFINET IO controller |
| Communication Protocol | PROFINET IO |
| Integrated Network Switch | 2-port switch |
| Network Connection | RJ45 Ethernet |
| Maximum I/O Modules | Up to 12 without an additional power supply module; up to 30 with an additional power supply module |
| Shared Device | Supported; supports access by multiple IO Controllers in compatible configurations |
| Maximum Shared Device Controllers | Up to 4, depending on configuration and supported functions |
| Media Redundancy | Supports Media Redundancy Protocol (MRP) |
| System Redundancy | S2 redundancy supported |
| Isochronous Real-Time Communication | Supports IRT with a minimum bus cycle of 0.25 ms |
| Fast Startup | Prioritized startup supported |
| Identification and Maintenance Data | I&M0 to I&M3 |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2–28.8 V DC |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Protective Coating | Conformal coating |
| Operating Temperature | -40°C to +60°C |
| Protection Rating | IP20 |
| Mounting System | SIMATIC ET 200MP / S7-1500 mounting rail |
| Engineering Software | STEP 7 / TIA Portal; verify compatibility with the installed version |
| Product Status | SIPLUS product; check current ordering and lifecycle status before procurement |
| Dimensions | 35 × 155 × 120 mm |
| Weight | 0.35 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1155-5AA00-2AC0 interface module?
The 6AG1155-5AA00-2AC0 is a SIPLUS ET 200MP IM 155-5 PN HF interface module. It connects an ET 200MP distributed I/O station to a PROFINET IO controller and manages communication between the controller and the installed I/O modules. It is designed for industrial automation applications that require high-performance communication and extended environmental protection.
Q2: How many I/O modules can the 6AG1155-5AA00-2AC0 support?
The module supports up to 12 I/O modules without an additional system power supply module. With an additional power supply module, the station can support up to 30 I/O modules. The actual configuration must comply with the power budget, module compatibility requirements, and ET 200MP system configuration rules.
Q3: What is the difference between the 6AG1155-5AA00-2AC0 and the standard 6ES7155-5AA00-0AC0?
The 6AG1155-5AA00-2AC0 is the SIPLUS version based on the standard 6ES7155-5AA00-0AC0. It includes a conformal protective coating and is designed for an extended operating temperature range of -40°C to +60°C, with startup permitted from -25°C. These features make it suitable for demanding industrial environments when used within the specified operating conditions.
Q4: What power supply does the interface module require?
The module requires a nominal 24 V DC supply, with a permissible range of 19.2–28.8 V DC. Its rated current consumption is approximately 0.2 A, and typical power dissipation is 4.5 W. The module provides up to 2.3 W of power from the backplane bus. The complete station’s power requirements should be calculated before installation.
Q5: Does the 6AG1155-5AA00-2AC0 support PROFINET redundancy?
Yes. The module supports Media Redundancy Protocol (MRP) and PROFINET system redundancy S2. These functions can help maintain network communication when used with compatible controllers and network equipment. Redundancy must be configured correctly in the engineering project, and the complete network architecture must support the selected redundancy mode.
Q6: Can multiple PLC controllers access the same ET 200MP station?
The module supports the PROFINET Shared Device function, allowing up to four IO Controllers in supported configurations. This can be useful when different controllers need access to designated I/O resources within the same station. The controllers, engineering software, and module configuration must support the intended arrangement.
Q7: What should I check if the module cannot communicate with the PROFINET IO controller?
Check the 24 V DC supply, Ethernet cabling, network connections, PROFINET device name, and IP configuration. Confirm that the hardware configuration in the engineering software matches the installed ET 200MP modules. Inspect the RUN, ERROR, MAINT, and LINK/TX/RX indicators for diagnostic information. If the fault persists, review the controller diagnostics and verify that the selected PROFINET configuration is compatible with the module firmware.
Q8: What should I consider when replacing a faulty 6AG1155-5AA00-2AC0?
Verify the complete part number and confirm compatibility with the existing ET 200MP system. Back up the PLC project and hardware configuration before replacement, then isolate the equipment according to site safety procedures. Check the power supply, PROFINET connections, mounting rail, and backplane connections during installation. After replacement, verify the device configuration, diagnostic indicators, communication status, and I/O data exchange before returning the system to normal operation.
