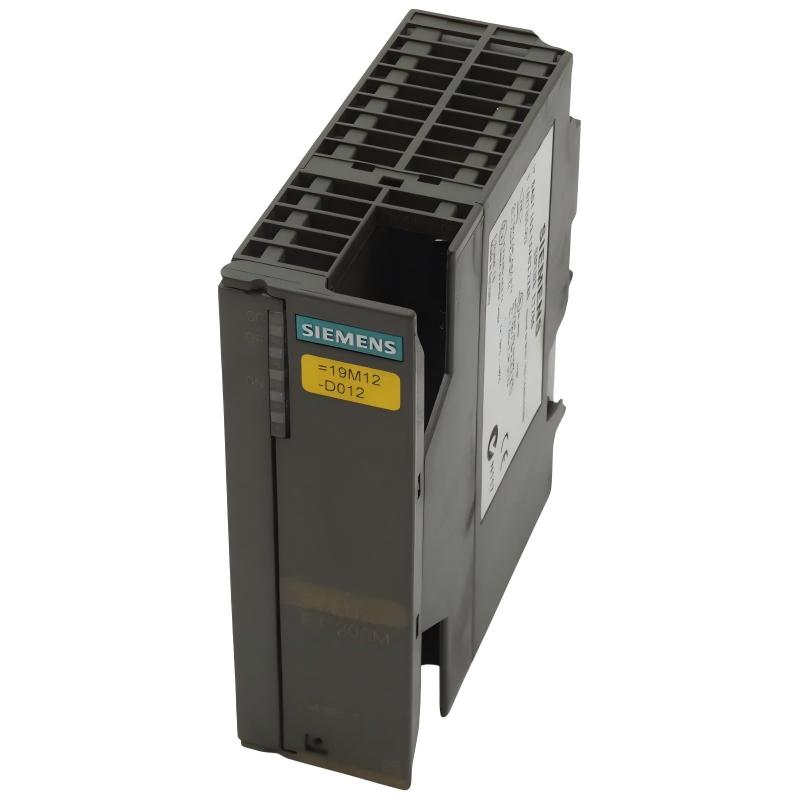

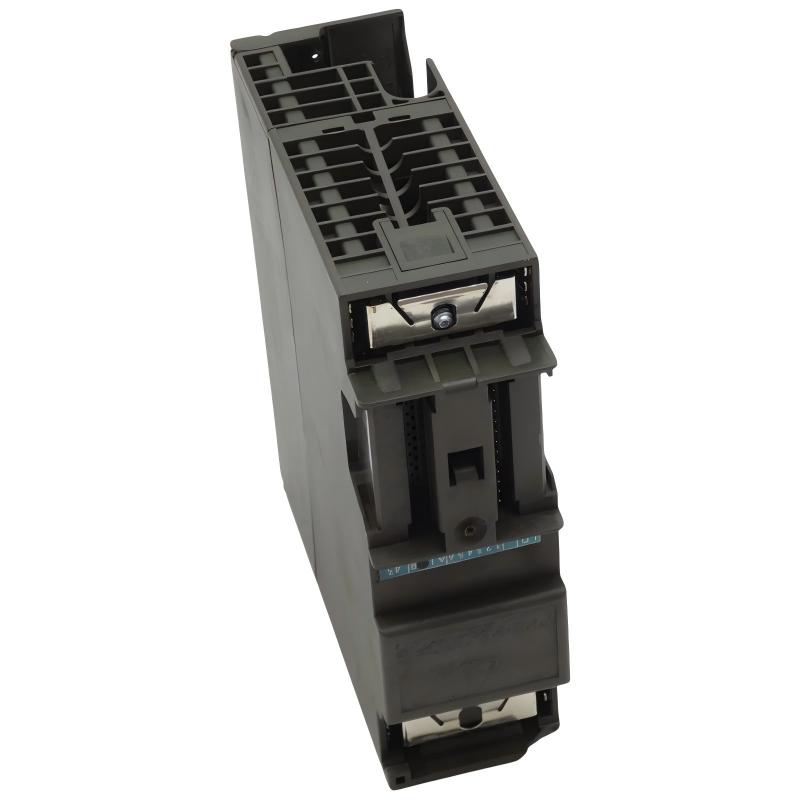

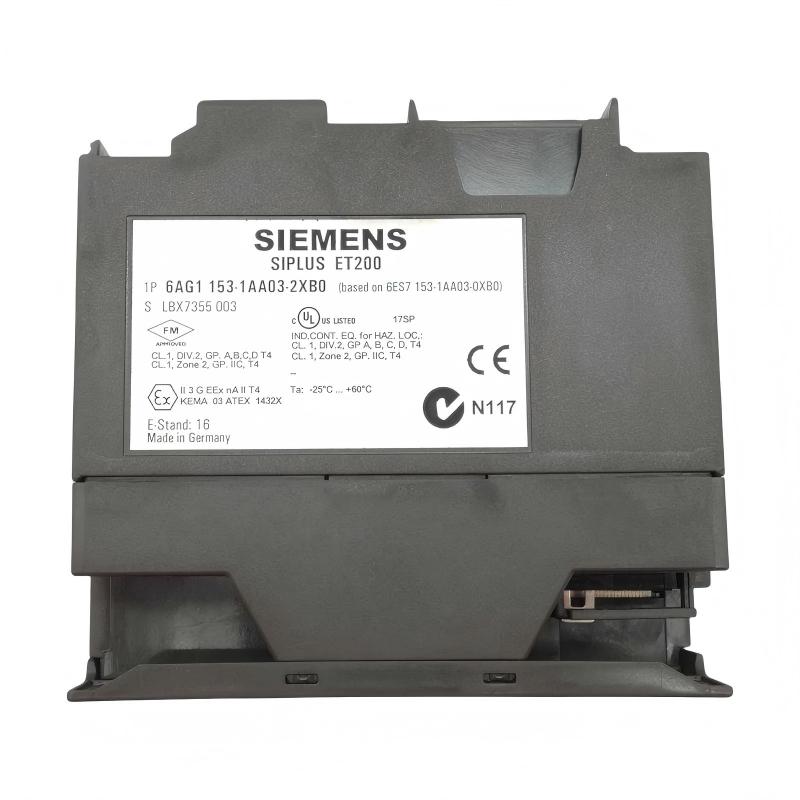

Siemens 6AG1153-1AA03-2XB0 Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Name | SIPLUS ET 200M IM 153-1 Interface Module |
| Model Number | 6AG1153-1AA03-2XB0 |
| Base Model | 6ES7153-1AA03-0XB0 |
| Product Series | SIPLUS ET 200M |
| Product Type | PROFIBUS DP Interface Module |
| Interface Designation | IM 153-1 DP ST |
| Main Function | Connects distributed I/O modules to a PROFIBUS DP network |
| Compatible I/O System | SIMATIC ET 200M |
| Maximum Supported I/O Modules | 8 S7-300 modules |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 20.4–28.8 V DC |
| Maximum Current Consumption | 350 mA at 24 V DC |
| Typical Inrush Current | 2.5 A |
| Backplane Bus Output Voltage | 5 V DC |
| Maximum Backplane Bus Output Current | 1 A |
| Typical Power Dissipation | 3 W |
| Communication Interface | PROFIBUS DP, RS-485 |
| Maximum Transmission Rate | 12 Mbit/s |
| Connector Type | 9-pin Sub-D female connector |
| Automatic Baud Rate Detection | Yes |
| Maximum Input Address Area | 128 bytes |
| Maximum Output Address Area | 128 bytes |
| Configuration Software | STEP 7, COM PROFIBUS, or compatible third-party software using a GSD file |
| Environmental Protection | Conformal coating |
| Operating Temperature | -40°C to +70°C; up to +60°C for certain UL/cUL, ATEX, and FM applications |
| Minimum Cold-Start Temperature | -25°C |
| Protection Rating | IP20 |
| Maximum Installation Altitude | 5000 m, subject to applicable temperature and atmospheric-pressure derating |
| Dimensions | 40 × 125 × 117 mm |
| Weight | 0.36 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1153-1AA03-2XB0 interface module?
The 6AG1153-1AA03-2XB0 is a SIPLUS ET 200M IM 153-1 interface module that connects an ET 200M distributed I/O station to a PROFIBUS DP network. It enables the connected S7-300 I/O modules to exchange process data with a compatible PLC or DP master.
Q2: How many I/O modules can the 6AG1153-1AA03-2XB0 support?
The module supports up to eight compatible S7-300 modules on the ET 200M station. When planning the configuration, check the module combination, address allocation, power requirements, and hardware configuration in the engineering software.
Q3: Which communication protocol does this interface module use?
The module communicates through PROFIBUS DP using an RS-485 physical interface, with transmission rates up to 12 Mbit/s. The actual operating rate depends on the network configuration and the capabilities of the connected devices.
Q4: What power supply does the 6AG1153-1AA03-2XB0 require?
It uses a nominal 24 V DC supply, with a permitted range of 20.4–28.8 V DC. Maximum current consumption is 350 mA at 24 V DC, and the module provides a 5 V DC backplane bus supply with a maximum output current of 1 A. Confirm that the complete station’s power budget is adequate before commissioning.
Q5: How is the module configured in a Siemens PLC system?
Configuration can be performed using STEP 7 or COM PROFIBUS. Compatible third-party engineering tools may also be used through the appropriate GSD file. The PROFIBUS address, transmission rate, connected I/O modules, and assigned input/output addresses must match the actual hardware arrangement.
Q6: What should I check if the ET 200M station cannot communicate with the DP master?
Check the 24 V DC supply, PROFIBUS cable connections, bus connector, station address, and network termination. Verify that the transmission rate is supported and that the correct GSD and hardware configuration are being used. The diagnostic indicators on the interface module can help distinguish communication faults from power or configuration problems.
Q7: Can the SIPLUS 6AG1153-1AA03-2XB0 operate in harsh industrial environments?
Yes. This SIPLUS model has a conformal protective coating and a specified operating temperature range of -40°C to +70°C. The minimum cold-start temperature is -25°C. Certain approvals limit the permitted maximum operating temperature to +60°C, so check the applicable installation and certification requirements before use.
Q8: What should be checked before replacing a faulty 6AG1153-1AA03-2XB0?
Confirm that the replacement has the correct part number and is compatible with the existing ET 200M station. Back up the hardware configuration and relevant PLC project data, then isolate the equipment according to site safety procedures. Inspect the PROFIBUS connector, power wiring, and connected I/O modules. After replacement, restore the required configuration and verify network communication, module diagnostics, and process data exchange before returning the station to operation.
Siemens 6AG1153-1AA03-2XB0 Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
