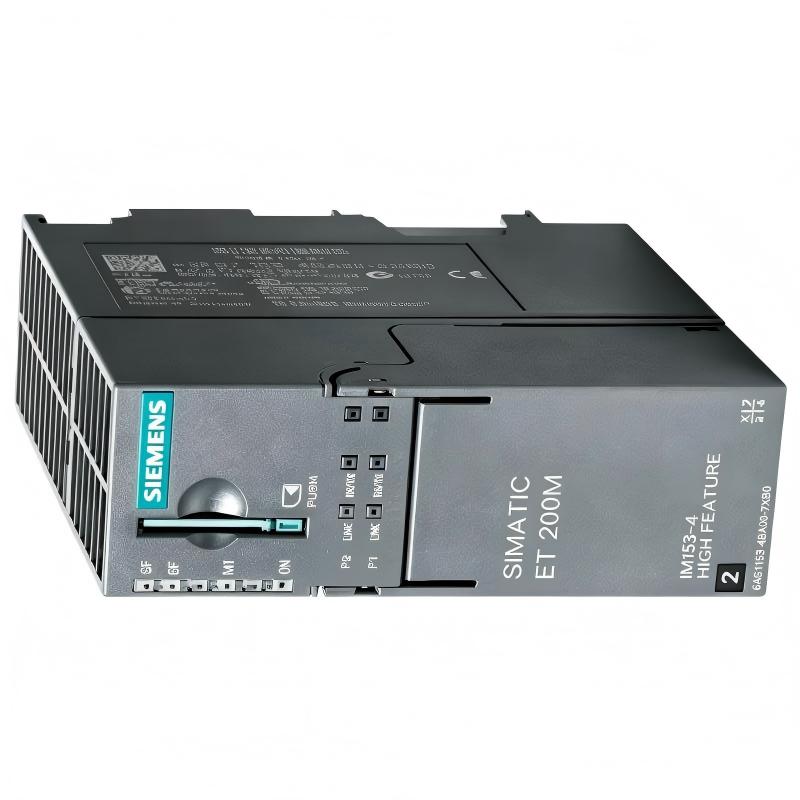

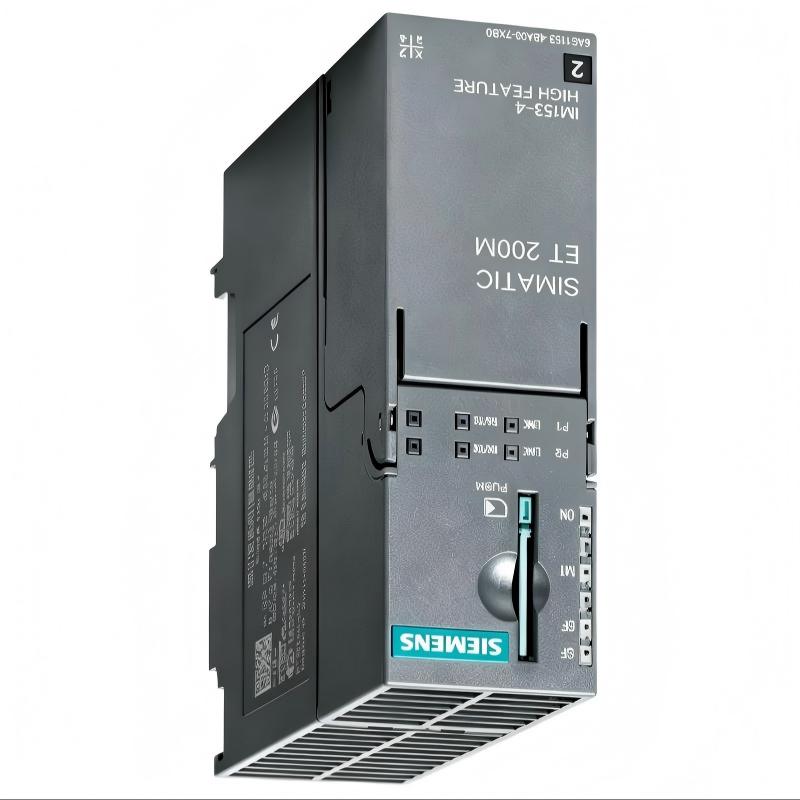

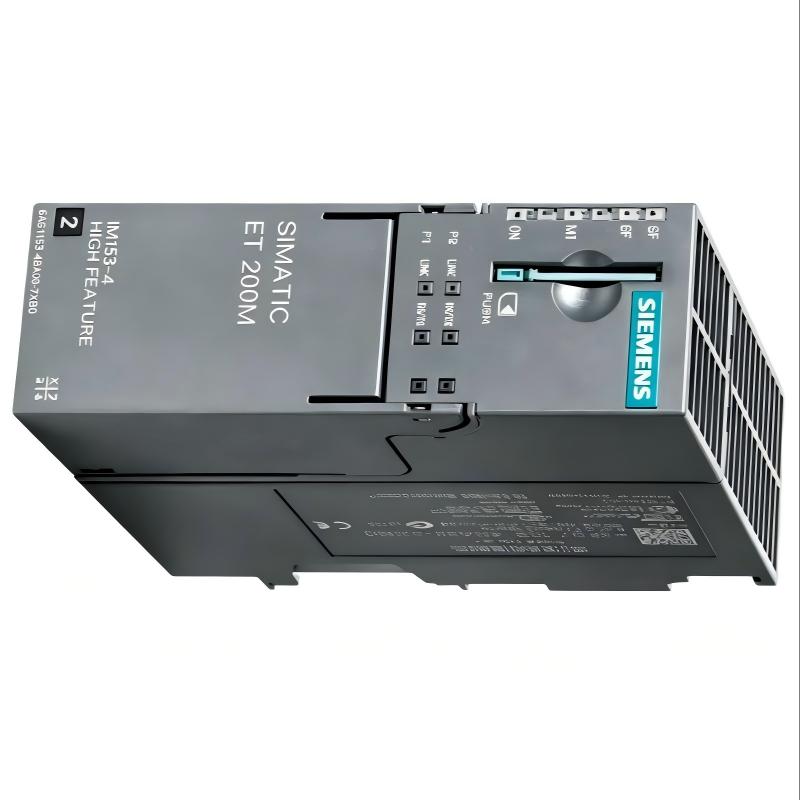

Siemens 6AG1153-4BA00-7XB0 Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Name | SIPLUS ET 200M IM 153-4 PN IO HF Interface Module |
| Model Number | 6AG1153-4BA00-7XB0 |
| Base Model | 6ES7153-4BA00-0XB0 |
| Product Series | SIPLUS ET 200M |
| Product Type | PROFINET IO High-Feature Interface Module |
| Interface Designation | IM 153-4 PN HF |
| Main Function | Connects an ET 200M distributed I/O station to a PROFINET network |
| Communication Protocol | PROFINET IO |
| Ethernet Protocols | TCP/IP, SNMP, LLDP, ARP, Ping |
| PROFINET Vendor ID | 002AH |
| PROFINET Device ID | 0302H |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 20.4–28.8 V DC |
| Maximum Current Consumption | 600 mA |
| Typical Inrush Current | 4 A |
| Typical Power Dissipation | 6 W |
| Power Failure Buffering | 5 ms |
| Backplane Bus Output Voltage | 5 V DC |
| Maximum Backplane Bus Output Current | 1.5 A under specified operating conditions |
| Maximum Supported I/O Modules | 12 S7-300 modules |
| Maximum Input Address Area | 672 bytes, including extended HART user data |
| Maximum Output Address Area | 192 bytes |
| Fail-Safe Module Support | Yes, with compatible modules and configuration |
| HART Module Support | Yes |
| Shared Device Function | Supported; up to 2 IO Controllers |
| Media Redundancy | Supports Media Redundancy Protocol (MRP) |
| PROFINET System Redundancy | S2 supported |
| Real-Time Communication | Supports PROFINET real-time communication, including IRT |
| Diagnostic Indicators | Green LINK LED, yellow RX/TX LED, module diagnostics |
| Protective Coating | Conformal coating |
| Operating Temperature | -40°C to +70°C |
| Startup Temperature | -25°C minimum |
| Protection Rating | IP20 |
| Mounting System | SIMATIC ET 200M, S7-300 DIN rail |
| Product Lifecycle Status | Discontinued; listed by Siemens as a spare part |
| Dimensions | 40 × 125 × 118 mm |
| Weight | 0.215 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1153-4BA00-7XB0 interface module?
The 6AG1153-4BA00-7XB0 is a SIPLUS ET 200M IM 153-4 PN HF interface module. It connects an ET 200M distributed I/O station to a PROFINET IO network and manages communication between the installed S7-300 I/O modules and the higher-level controller. It is designed for industrial automation systems that require reliable distributed I/O communication.
Q2: How many I/O modules can the 6AG1153-4BA00-7XB0 support?
The interface module supports up to 12 compatible S7-300 I/O modules in one ET 200M station. Before commissioning, verify module compatibility, hardware configuration, address allocation, and backplane bus power requirements to ensure the station operates correctly.
Q3: What is the difference between the 6AG1153-4BA00-7XB0 and the standard 6ES7153-4BA00-0XB0?
The 6AG1153-4BA00-7XB0 is the SIPLUS version based on the standard 6ES7153-4BA00-0XB0. It features a conformal protective coating and an extended operating temperature range of -40°C to +70°C, with a minimum startup temperature of -25°C. It also supports compatible fail-safe modules, HART modules, Shared Device functionality, and media redundancy.
Q4: What power supply does the interface module require?
The module operates on a nominal 24 V DC supply, with a permitted range of 20.4–28.8 V DC. Maximum current consumption is 600 mA, and typical inrush current is 4 A. Its backplane bus output is 5 V DC, with a maximum output current of 1.5 A under specified conditions. The power supply must be sized for the complete I/O station, including the connected modules.
Q5: Can the 6AG1153-4BA00-7XB0 work with HART and fail-safe I/O modules?
Yes. The module supports compatible HART and fail-safe modules. This allows it to be used in automation systems that combine standard process signals, intelligent field instruments, and safety-related I/O. The connected modules must be supported by the selected hardware configuration and engineering software, and any safety-related application must follow the relevant system requirements.
Q6: Does the 6AG1153-4BA00-7XB0 support redundant PROFINET communication?
The module supports Media Redundancy Protocol (MRP) and PROFINET system redundancy S2. It also supports Shared Device functionality, allowing up to two IO Controllers to access the configured I/O resources where supported. Actual redundancy behavior depends on the network topology, controller capabilities, configuration, and compatible devices.
Q7: What should I check if the module cannot communicate with the PROFINET controller?
First, confirm that the 24 V DC supply is within the specified range. Then inspect the Ethernet cable, network switches, PROFINET device name, IP configuration, and controller hardware configuration. Check the green LINK LED, yellow RX/TX LED, and module diagnostic information. Also verify that the configured I/O modules match the installed hardware and that the controller project supports the required module functions.
Q8: What should I consider when replacing a faulty 6AG1153-4BA00-7XB0?
Confirm the full part number and compatibility with the existing ET 200M station before ordering a replacement. Back up the PLC project and hardware configuration, then isolate the equipment according to site safety procedures. Inspect the power wiring, Ethernet connection, backplane bus connectors, and installed I/O modules. After replacement, verify the PROFINET device configuration, diagnostic status, I/O data exchange, and any configured redundancy functions before returning the system to service.
Siemens 6AG1153-4BA00-7XB0 Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
