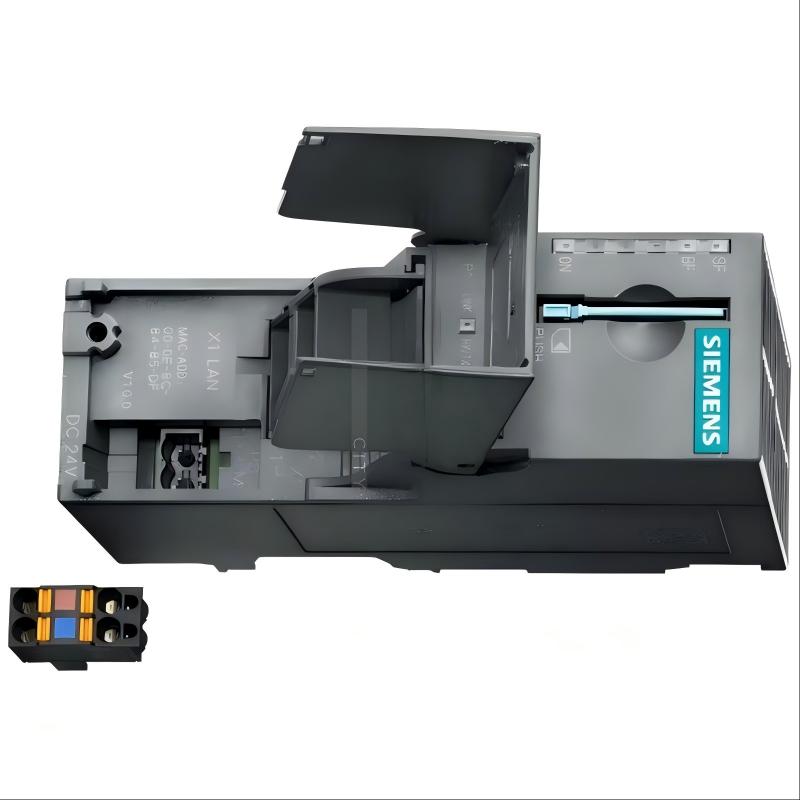

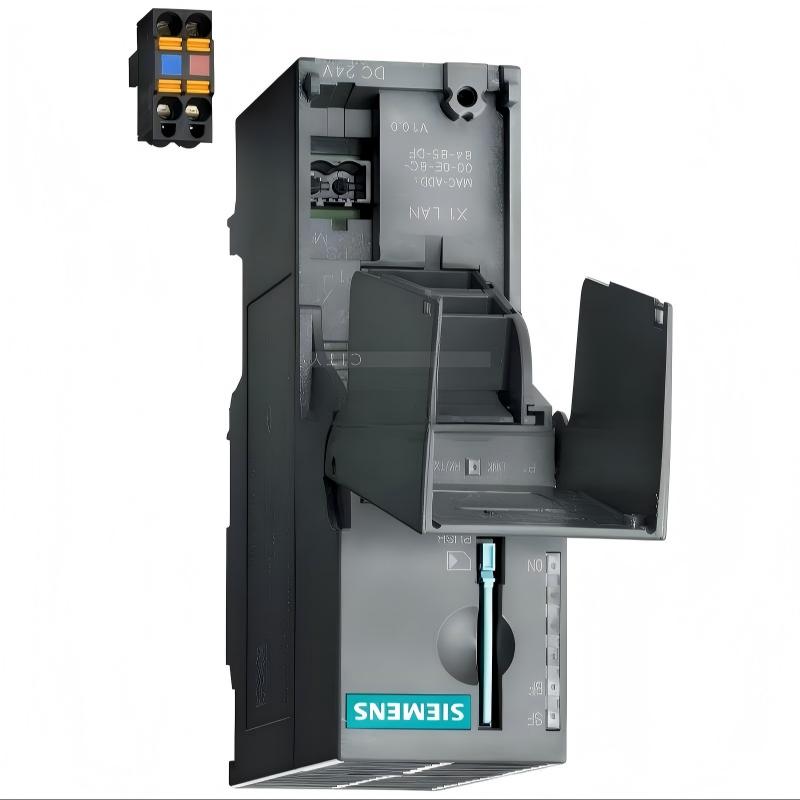

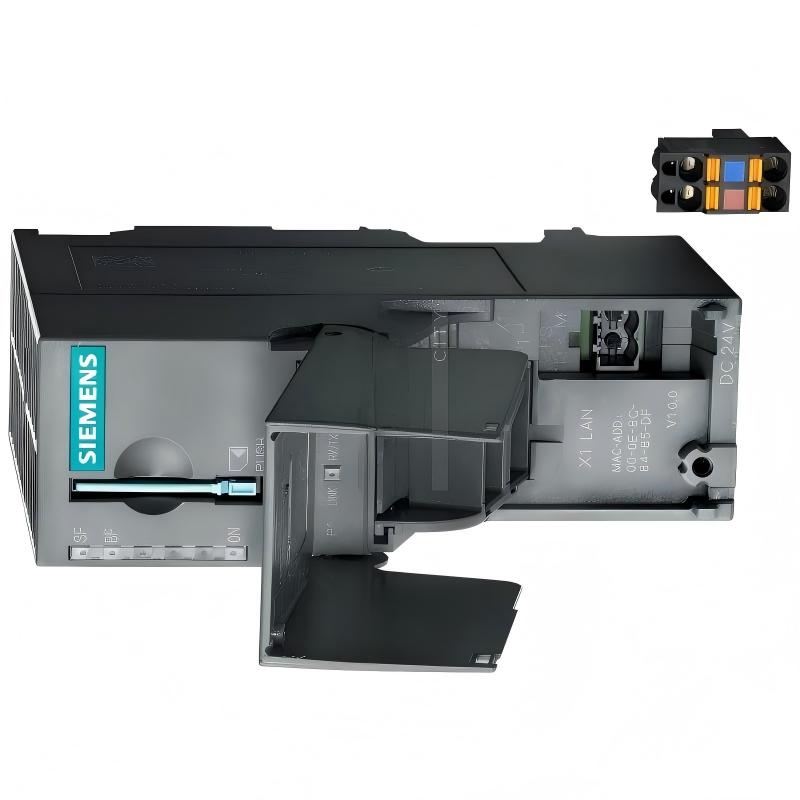

Siemens 6AG1153-4AA01-7XB0 Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Name | SIPLUS ET 200M IM 153-4 PN IO Interface Module |
| Model Number | 6AG1153-4AA01-7XB0 |
| Base Model | 6ES7153-4AA01-0XB0 |
| Product Series | SIPLUS ET 200M |
| Product Type | PROFINET IO Interface Module |
| Interface Designation | IM 153-4 PN |
| Main Function | Connects an ET 200M distributed I/O station to a PROFINET network |
| Maximum Supported I/O Modules | 12 S7-300 modules |
| Communication Protocol | PROFINET IO |
| Ethernet Protocol | TCP/IP |
| PROFINET Device ID | 0302H |
| PROFINET Vendor ID | 002AH |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 20.4–28.8 V DC |
| Maximum Current Consumption | 600 mA |
| Typical Inrush Current | 4 A |
| Typical Power Dissipation | 6 W |
| Power Failure Buffering | 5 ms |
| Backplane Bus Output Voltage | 5 V DC |
| Maximum Backplane Bus Output Current | 1.5 A |
| Maximum Input Address Area | 192 bytes |
| Maximum Output Address Area | 192 bytes |
| Extended Functions | Isochronous real-time communication classes 1 and 2; module replacement without a programming device; operation without an MMC; support for maintenance of new I/O modules |
| Network Connection | Industrial Ethernet interface |
| Diagnostic Indicators | LINK LED (green), RX/TX LED (yellow) |
| Protective Coating | Conformal coating |
| Operating Temperature | -25°C to +70°C |
| Maximum Temperature for Certain Certifications | +60°C for UL/cUL, ATEX, and FM applications |
| Storage and Transport Temperature | -40°C to +70°C |
| Protection Rating | IP20 |
| Mounting System | SIMATIC ET 200M, S7-300 DIN rail |
| Product Status | Discontinued; listed as a spare part by Siemens |
| Dimensions | 40 × 125 × 118 mm |
| Weight | 0.215 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1153-4AA01-7XB0 interface module?
The 6AG1153-4AA01-7XB0 is a SIPLUS ET 200M IM 153-4 PN interface module designed to connect an ET 200M distributed I/O station to a PROFINET IO network. It manages communication between the connected S7-300 I/O modules and a higher-level PROFINET IO Controller, enabling reliable process data exchange in industrial automation systems.
Q2: How many I/O modules can the 6AG1153-4AA01-7XB0 support?
The module supports up to 12 compatible S7-300 I/O modules in an ET 200M station. When planning an installation, check the module combination, backplane bus requirements, address allocation, and power budget to ensure the complete station operates within its specified limits.
Q3: What is the difference between the SIPLUS 6AG1153-4AA01-7XB0 and the standard 6ES7153-4AA01-0XB0?
The 6AG1153-4AA01-7XB0 is the SIPLUS version based on the standard 6ES7153-4AA01-0XB0. It features a conformal protective coating and an extended operating temperature range of -25°C to +70°C. These features make it suitable for industrial environments with more demanding temperature and environmental conditions, subject to applicable certification limits.
Q4: What power supply does the interface module require?
The module operates on a nominal 24 V DC supply, with a permissible range of 20.4–28.8 V DC. Its maximum current consumption is 600 mA, with a typical inrush current of 4 A. The backplane bus provides 5 V DC with a maximum output current of 1.5 A. Ensure the power supply and protective devices are correctly sized for the complete I/O station.
Q5: Can the 6AG1153-4AA01-7XB0 operate without a Micro Memory Card?
Yes. One of the extended functions listed for this interface module is operation without a Micro Memory Card (MMC). This differs from certain other ET 200M interface and CPU modules that require a memory card. Check the relevant configuration requirements before commissioning or replacing the module.
Q6: What should I check if the module cannot communicate with the PROFINET IO Controller?
First, verify the 24 V DC supply and inspect the Ethernet cable and network connections. Check the PROFINET device name, IP address assignment, controller configuration, and configured I/O module arrangement. The green LINK LED and yellow RX/TX LED can help identify network connection and data transmission activity. If communication remains unavailable, review the controller diagnostics and confirm that the hardware configuration matches the installed station.
Q7: How does the module support maintenance and replacement of I/O modules?
The module includes support for maintenance of new I/O modules and module replacement without a programming device. These functions can simplify servicing in compatible configurations, but the permitted replacement procedure depends on the system design and operating conditions. Follow the applicable Siemens instructions and site safety procedures before removing or inserting modules.
Q8: What should I consider when replacing a faulty 6AG1153-4AA01-7XB0?
Confirm the complete part number and compatibility with the existing ET 200M installation. Back up the hardware configuration and relevant PLC project data, then follow the required electrical isolation procedure. Inspect the DIN rail, backplane bus connections, power wiring, and Ethernet connection before installing the replacement. After installation, verify the PROFINET device configuration, diagnostic indicators, and I/O data exchange before returning the station to normal operation.
Siemens 6AG1153-4AA01-7XB0 Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
