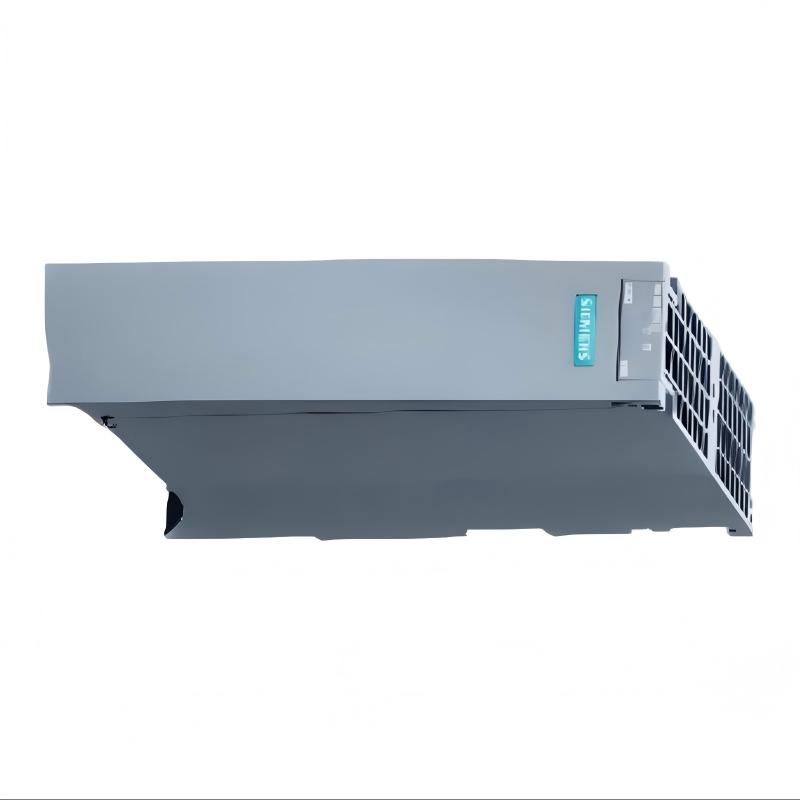

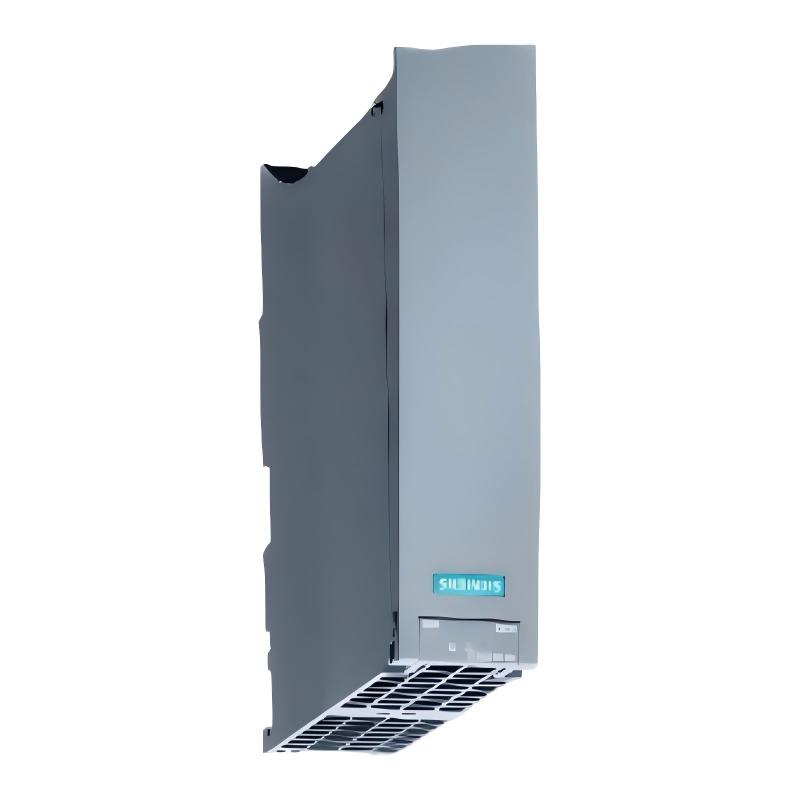

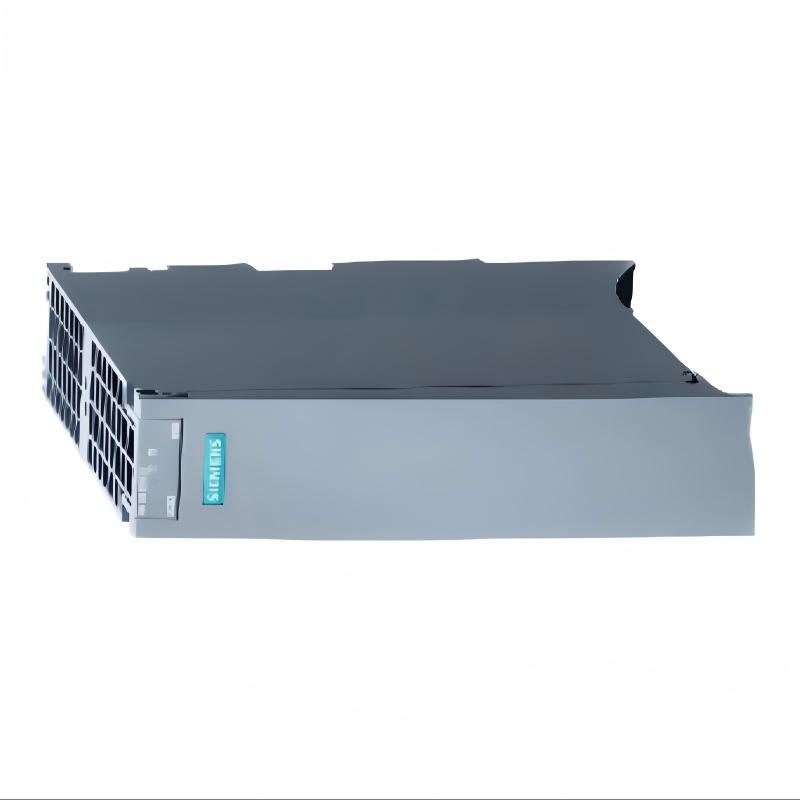

Siemens 6AG1155-5AA01-7AB0 Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Name | SIPLUS ET 200MP IM 155-5 PN ST Interface Module |
| Model Number | 6AG1155-5AA01-7AB0 |
| Base Model | 6ES7155-5AA01-0AB0 |
| Product Series | SIPLUS ET 200MP |
| Product Type | PROFINET IO Interface Module |
| Interface Designation | IM 155-5 PN ST |
| Main Function | Connects ET 200MP distributed I/O modules to a PROFINET IO network |
| Communication Protocol | PROFINET IO |
| Ethernet Interface | 2 × RJ45 ports |
| Integrated Switch | Yes, 2-port switch |
| Ethernet Data Rate | 100 Mbps, full duplex |
| Maximum I/O Modules | Up to 12 without an additional power supply module; up to 30 with an additional power supply module |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2–28.8 V DC |
| Rated Current Consumption | 0.2 A |
| Maximum Current Consumption | 1.2 A |
| Maximum Inrush Current | 9 A |
| Typical Power Dissipation | 4.5 W |
| Power Available from Backplane Bus | 2.3 W |
| Maximum Input Address Area | 512 bytes per station |
| Maximum Output Address Area | 512 bytes per station |
| PROFINET Functions | IRT, prioritized startup, Shared Device |
| Maximum Shared Device Controllers | 2 |
| Media Redundancy | Supports PROFINET MRP |
| Open IE Communication | TCP/IP, SNMP, LLDP |
| Isochronous Real-Time Communication | Supported; minimum clock cycle 250 µs |
| Diagnostic Indicators | RUN, ERROR, MAINT, LINK/TX/RX LEDs |
| Firmware Update | Supported |
| Identification and Maintenance Data | I&M0 to I&M3 |
| Protective Coating | Conformal coating |
| Operating Temperature | -40°C to +70°C |
| Protection Rating | IP20 |
| Mounting System | SIMATIC ET 200MP mounting rail |
| Dimensions | 35 × 147 × 129 mm |
| Weight | 0.25 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1155-5AA01-7AB0 interface module?
The 6AG1155-5AA01-7AB0 is a SIPLUS ET 200MP IM 155-5 PN ST interface module designed to connect ET 200MP I/O modules to a PROFINET IO network. It enables communication between a PLC or other compatible IO Controller and the distributed I/O station, making it suitable for industrial control and process automation applications.
Q2: How many I/O modules can the 6AG1155-5AA01-7AB0 support?
The module supports up to 12 I/O modules without an additional power supply module and up to 30 I/O modules when an additional power supply module is installed. The final configuration must comply with Siemens’ system configuration rules and the power requirements of the connected modules.
Q3: What is the difference between the 6AG1155-5AA01-7AB0 and the standard 6ES7155-5AA01-0AB0?
The 6AG1155-5AA01-7AB0 is the SIPLUS version based on the standard 6ES7155-5AA01-0AB0. It features a conformal protective coating and an extended operating temperature range of -40°C to +70°C. These features make it suitable for more demanding industrial environments when operated within the specified conditions.
Q4: What power supply does the module require?
The module operates on a nominal 24 V DC supply, with a permissible range of 19.2–28.8 V DC. Its rated current consumption is 0.2 A, while the maximum current consumption is 1.2 A. The maximum inrush current is 9 A, so the power supply and protective devices should be selected with startup conditions and the complete station load in mind.
Q5: Does the 6AG1155-5AA01-7AB0 support PROFINET real-time communication?
Yes. The module supports PROFINET IO and isochronous real-time communication (IRT), with a minimum clock cycle of 250 µs. It also supports prioritized startup and Shared Device functionality. Actual performance depends on the controller, connected devices, network configuration, and selected communication settings.
Q6: Can the module be used in a redundant PROFINET network?
The module supports PROFINET Media Redundancy Protocol (MRP), which can help maintain network communication when a connection in a supported ring topology fails. However, MRP is media redundancy rather than full controller system redundancy. Confirm that the PLC, switches, network topology, and engineering configuration support the intended redundancy arrangement.
Q7: What should I check if the module cannot communicate with the PLC?
First, verify the 24 V DC supply and inspect the Ethernet cables and network connections. Check the PROFINET device name, IP settings, controller hardware configuration, and installed I/O modules. Review the RUN, ERROR, MAINT, and LINK/TX/RX LEDs for diagnostic information. If communication does not recover, inspect the PLC diagnostic buffer and confirm that the configured hardware matches the installed module.
Q8: What should I consider when replacing a faulty 6AG1155-5AA01-7AB0?
Verify the complete part number and compatibility with the existing ET 200MP station. Back up the PLC project and hardware configuration before replacement, and isolate the equipment according to site safety procedures. After installation, check the power supply, PROFINET connections, module configuration, and diagnostic indicators. Confirm that the PLC can exchange data with all connected I/O modules before returning the system to normal operation.
Siemens 6AG1155-5AA01-7AB0 Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
