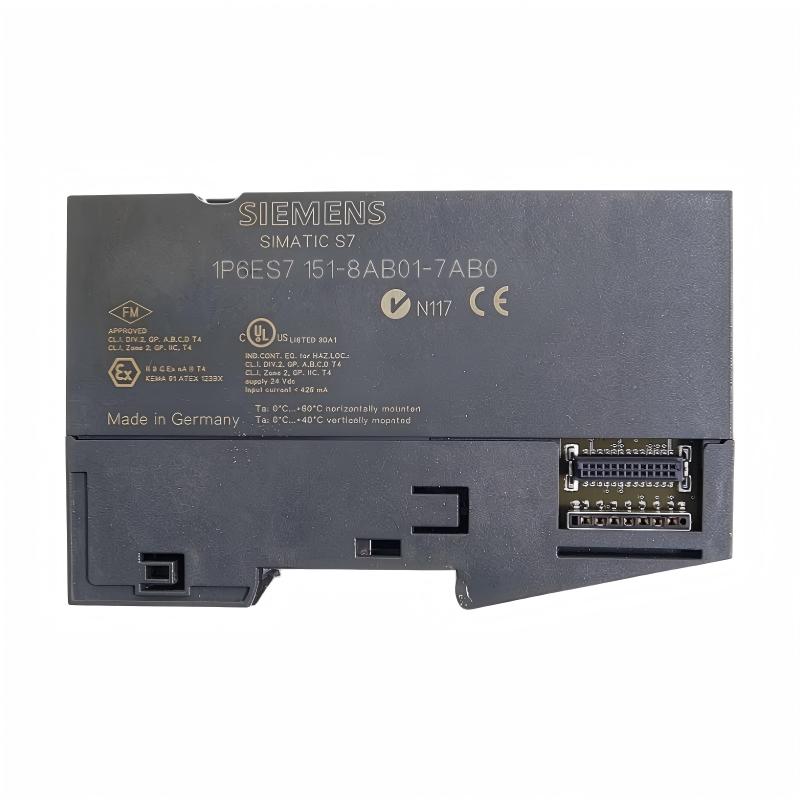

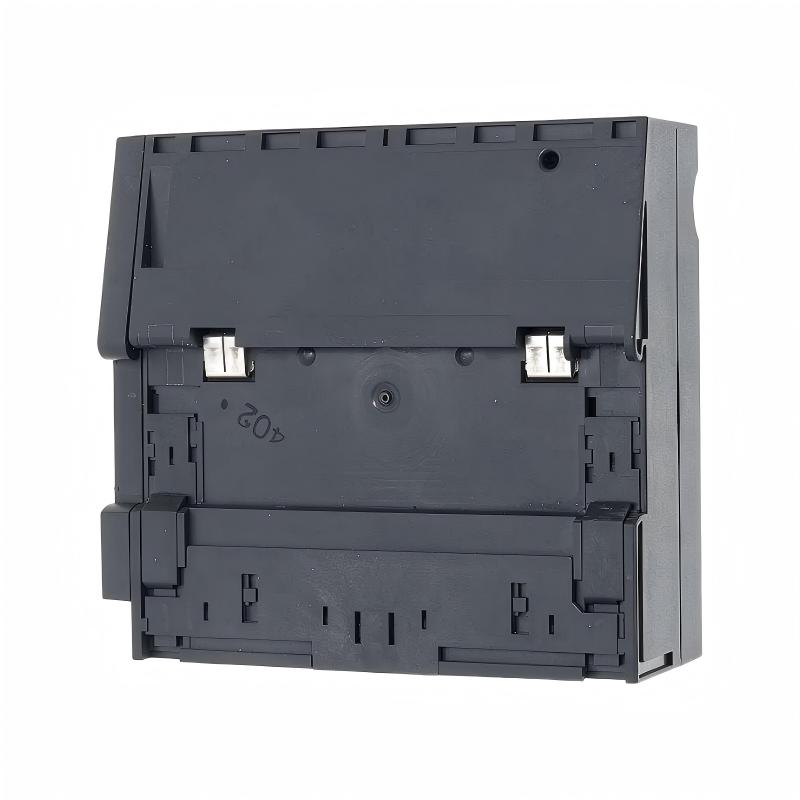

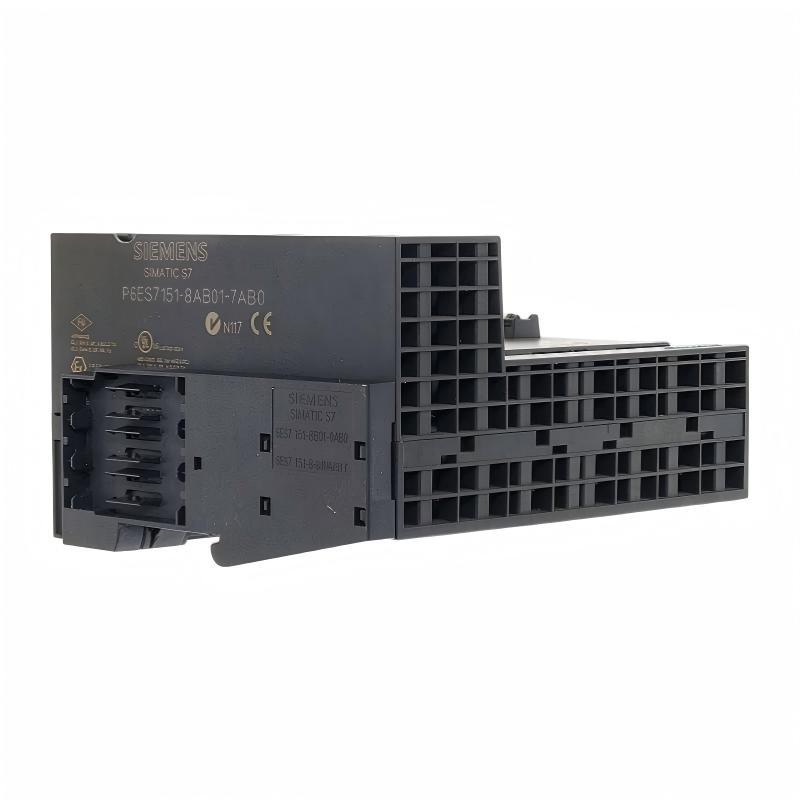

Siemens 6AG1151-8AB01-7AB0 Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Name | SIPLUS ET 200S IM 151-8 PN/DP CPU Interface Module |
| Model Number | 6AG1151-8AB01-7AB0 |
| Product Series | SIPLUS ET 200S |
| Base Model | 6ES7151-8AB01-0AB0 |
| Product Type | Interface Module with Integrated CPU |
| Main Function | Distributed I/O control and industrial network communication |
| Processor Type | IM 151-8 PN/DP CPU |
| Work Memory | 192 KB |
| Supply Voltage | 24 V DC |
| Permissible Supply Voltage | 20.4–28.8 V DC |
| Operating Temperature | -40°C to +70°C |
| Minimum Startup Temperature | -25°C |
| Protective Coating | Conformal coating for enhanced environmental protection |
| PROFINET Interface | 1 integrated PROFINET interface with 3 RJ45 ports |
| Integrated Switch | 3-port Ethernet switch |
| Maximum Transmission Rate | 100 Mbps, full duplex |
| PROFINET Functions | Supports PROFINET IO Controller and IO Device functionality |
| Supported Communication | PROFINET, TCP/IP, ISO-on-TCP, UDP |
| PROFIBUS DP Support | Available through compatible DP master module |
| Maximum PROFINET IO Devices | Up to 128, depending on configuration |
| Maximum Input Address Area | 2 KB |
| Maximum Output Address Area | 2 KB |
| Programming Software | STEP 7 V5.5 or later |
| Memory Card Requirement | Micro Memory Card required for CPU operation |
| Battery Requirement | No battery required |
| Mounting System | SIMATIC ET 200S distributed I/O system |
| Dimensions | 60 × 119.5 × 75 mm |
| Weight | 0.419 kg |
FAQ
Q1: What is the primary function of the Siemens 6AG1151-8AB01-7AB0 interface module?
The 6AG1151-8AB01-7AB0 is a SIPLUS ET 200S IM 151-8 PN/DP CPU module that combines distributed I/O communication with CPU functionality. It manages automation tasks and exchanges process data between connected I/O modules and higher-level control systems through supported industrial communication networks.
Q2: What is the difference between the 6AG1151-8AB01-7AB0 and the standard 6ES7151-8AB01-0AB0?
The 6AG1151-8AB01-7AB0 is the SIPLUS version based on the standard 6ES7151-8AB01-0AB0. It features a conformal protective coating and an extended operating temperature range of -40°C to +70°C, with startup possible at -25°C. These characteristics make it suitable for applications with more demanding environmental conditions.
Q3: How many Ethernet ports are available on this module?
The module provides three RJ45 ports through its integrated PROFINET interface and three-port switch. These ports support network connections within compatible automation architectures. Correct network topology, IP addressing, and PROFINET device configuration are essential for reliable communication.
Q4: Does the 6AG1151-8AB01-7AB0 support both PROFINET IO Controller and IO Device modes?
Yes. The module supports both PROFINET IO Controller and IO Device functionality. Depending on the configured application, it can control distributed I/O devices or exchange data with another PROFINET IO Controller. The required configuration must be defined in the engineering software before commissioning.
Q5: Why is a Micro Memory Card required for this module?
A compatible Micro Memory Card is required for CPU operation and is used to store the relevant program and configuration data. If the CPU fails to start, verify that the correct memory card is installed and that its condition and contents are compatible with the application.
Q6: What should I check if the module cannot communicate with PROFINET devices?
Check the 24 V DC supply, Ethernet cabling, RJ45 connections, IP addresses, device names, and configured network topology. Confirm that the connected devices are supported and that the hardware configuration matches the physical installation. Diagnostic information in STEP 7 can help identify communication and configuration errors.
Q7: Can this module operate in environments with low temperatures?
The SIPLUS version is specified for operation from -40°C to +70°C, with startup possible at -25°C. Before deployment, confirm the actual ambient temperature, cabinet conditions, condensation risk, and other environmental factors. The extended temperature rating does not eliminate the need for appropriate enclosure and installation practices.
Q8: What should be checked before replacing a faulty 6AG1151-8AB01-7AB0?
Confirm the complete part number and compatibility with the existing ET 200S configuration. Back up the application program and configuration where possible, then isolate the power supply according to site safety procedures. Check the Micro Memory Card, wiring, network settings, and connected modules before installing the replacement. After installation, restore the configuration as required and verify CPU startup, PROFINET communication, and I/O operation before returning the system to service.
Siemens 6AG1151-8AB01-7AB0 Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
