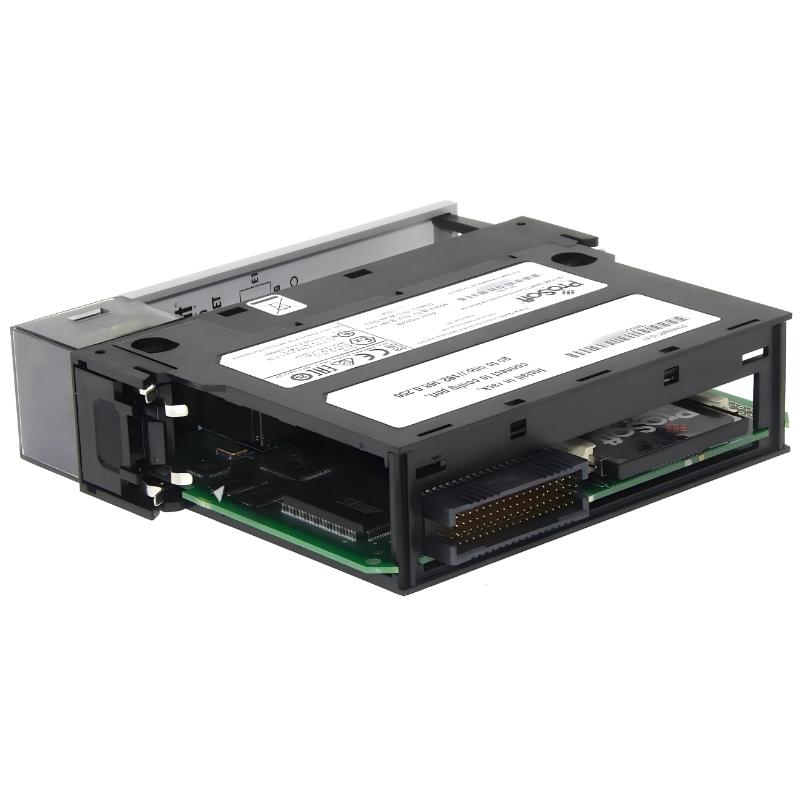

Allen Bradley MVI56E-MNET Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

MVI56E-MNET Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | MVI56E-MNET Modbus Ethernet Communication Module |
| Product Type | Communication Interface Module |
| Manufacturer | ProSoft Technology |
| Compatible Platform | Allen-Bradley ControlLogix |
| Primary Function | Provides Modbus TCP/IP Master and Slave communication for ControlLogix PLCs over Ethernet |
| Communication Protocols | Modbus TCP/IP, Modbus RTU over TCP |
| Module Type | Single-slot in-chassis communication module |
| Ethernet Ports | 1 × 10/100 Base-T RJ45 port for network communication |
| Network Speed | 10/100 Mbps auto-sensing |
| Modbus Modes | Master or Slave |
| Data Mapping | Up to 10,000 user-definable 16-bit registers |
| Supported Function Codes | 1, 2, 3, 4, 5, 6, 15, 16, 17, 22, 23 |
| Backplane Compatibility | 1756 ControlLogix chassis |
| Backplane Current Load | 800 mA @ 5V DC, 3 mA @ 24V DC |
| LED Indicators | ERR, APP, OK, RX/TX network activity LEDs |
| Display Type | 4-character alphanumeric diagnostic display |
| Configuration Method | ProSoft Configuration Builder / RSLogix integration |
| Isolation | 500V optical isolation from backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Shock Resistance | 30 g operational |
| Vibration Resistance | 5 g from 10–150 Hz |
| Mounting Type | ControlLogix chassis slot |
| Dimensions (L × W × H) | Approx. 145.2 × 34.6 × 139.6 mm |
| Weight | Approx. 0.26 kg |
| Typical Applications | PLC-to-Modbus TCP/IP integration, SCADA communication, industrial Ethernet networking, remote I/O |
FAQ
What is the MVI56E-MNET used for?
It allows Allen-Bradley ControlLogix PLCs to communicate over Ethernet using Modbus TCP/IP, either as a Master or Slave.
How many Ethernet ports does it have?
It has a single 10/100 Mbps RJ45 Ethernet port.
Does it support both Master and Slave modes?
Yes, it can operate as a Modbus Master or Slave.
Which PLC platform is it compatible with?
Allen-Bradley 1756 ControlLogix chassis.
What environments is it suitable for?
Indoor industrial automation systems with standard temperature and humidity ranges.
Where is it commonly used?
In PLC-to-Modbus TCP/IP communication, SCADA integration, and industrial Ethernet networking applications.
Allen Bradley MVI56E-MNET Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
