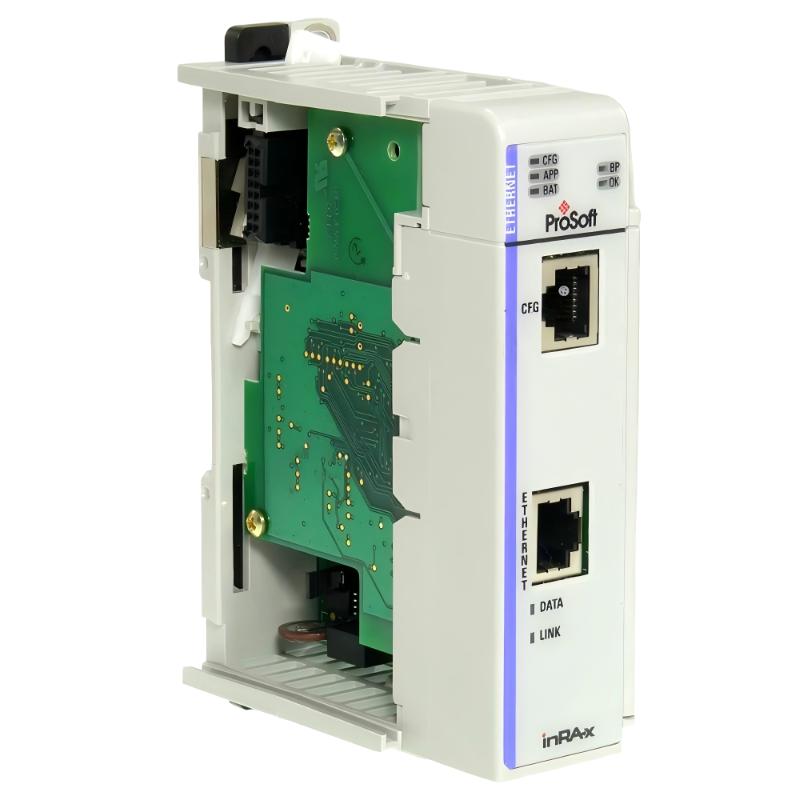

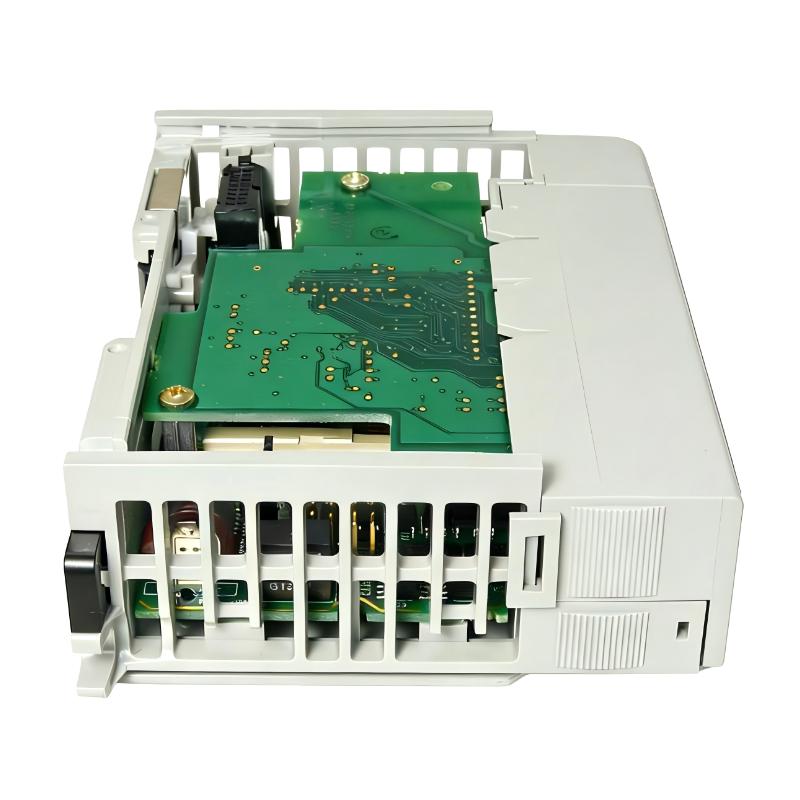

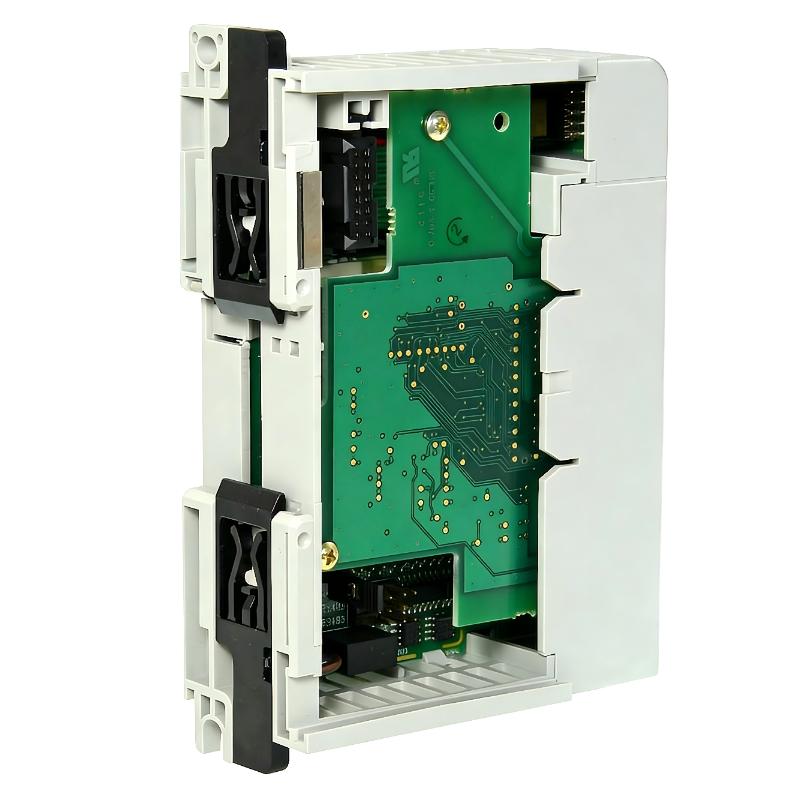

Allen Bradley MVI69-DFNT Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

MVI69-DFNT Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | MVI69-DFNT DF1 to Ethernet Communication Module |
| Product Type | Communication Interface Module |
| Manufacturer | ProSoft Technology |
| Compatible Platform | Allen-Bradley CompactLogix / MicroLogix |
| Primary Function | Provides DF1 serial protocol to Ethernet communication conversion |
| Communication Protocols | DF1 Full Duplex, DF1 Half Duplex, EtherNet/IP |
| Module Type | Single-slot communication module |
| Serial Ports | 1 configurable DF1 serial port |
| Serial Interface | RS-232 / RS-485 |
| Ethernet Ports | 1 × 10/100 Base-T RJ45 Ethernet port |
| Network Speed | 10/100 Mbps auto-sensing |
| Supported Baud Rate | 110 baud to 115.2 kbps |
| Data Transfer | Serial-to-Ethernet protocol conversion |
| Backplane Compatibility | CompactLogix local chassis |
| LED Indicators | Module status, serial activity, Ethernet activity LEDs |
| Configuration Method | ProSoft Configuration Builder |
| Isolation | Optical isolation between communication ports and backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Shock Resistance | 30 g operational |
| Vibration Resistance | 5 g from 10–150 Hz |
| Mounting Type | CompactLogix chassis slot |
| Protection Rating | Industrial enclosure environment |
| Dimensions (L × W × H) | Approx. 118 × 35 × 87 mm |
| Weight | Approx. 0.45 kg |
| Typical Applications | Serial device integration, PLC communication conversion, SCADA systems, industrial Ethernet networking |
FAQ
What is the MVI69-DFNT used for?
It converts DF1 serial communication to Ethernet communication for Allen-Bradley CompactLogix and MicroLogix systems.
Which communication protocols are supported?
It supports DF1 Full Duplex, DF1 Half Duplex, and EtherNet/IP.
What serial interfaces are available?
It supports RS-232 and RS-485 serial communication.
Does it include Ethernet connectivity?
Yes, it includes one 10/100 Mbps RJ45 Ethernet port.
Which PLC platforms are compatible?
It is compatible with Allen-Bradley CompactLogix and selected MicroLogix systems.
Where is it commonly used?
It is commonly used for integrating serial devices into Ethernet-based industrial automation networks.
Allen Bradley MVI69-DFNT Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
