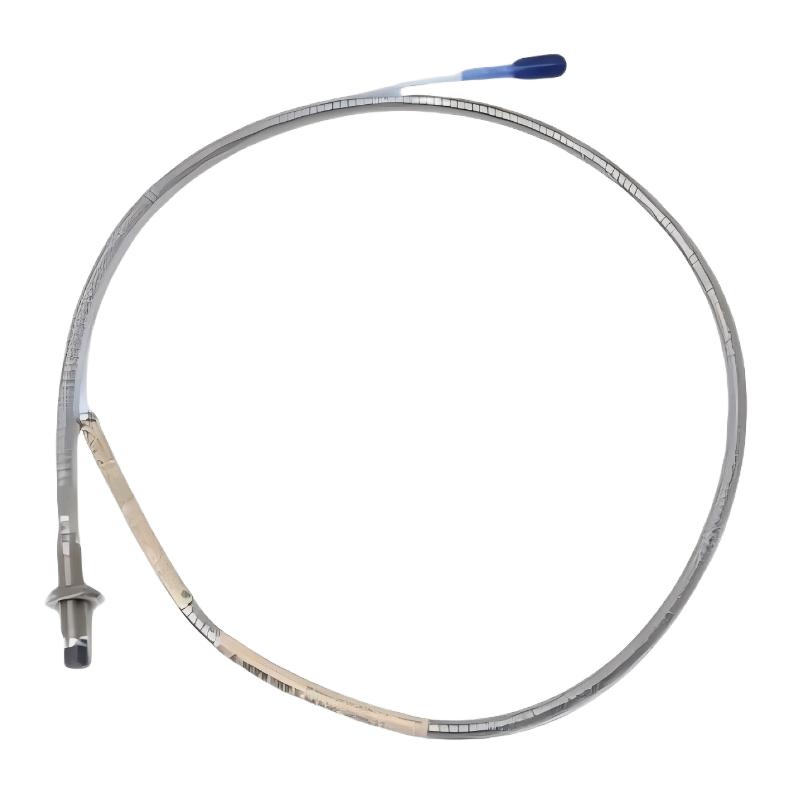

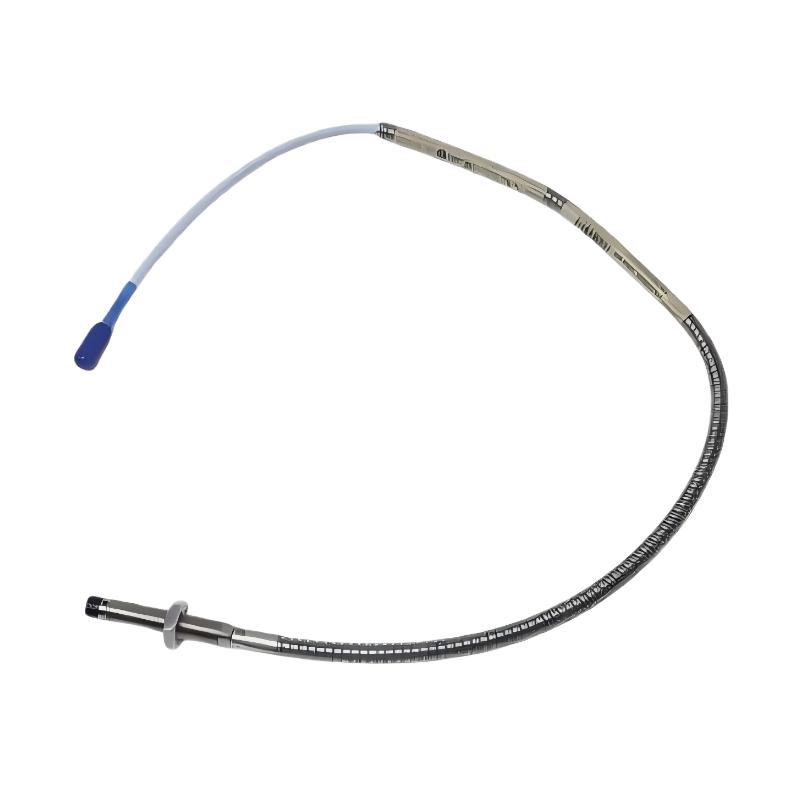

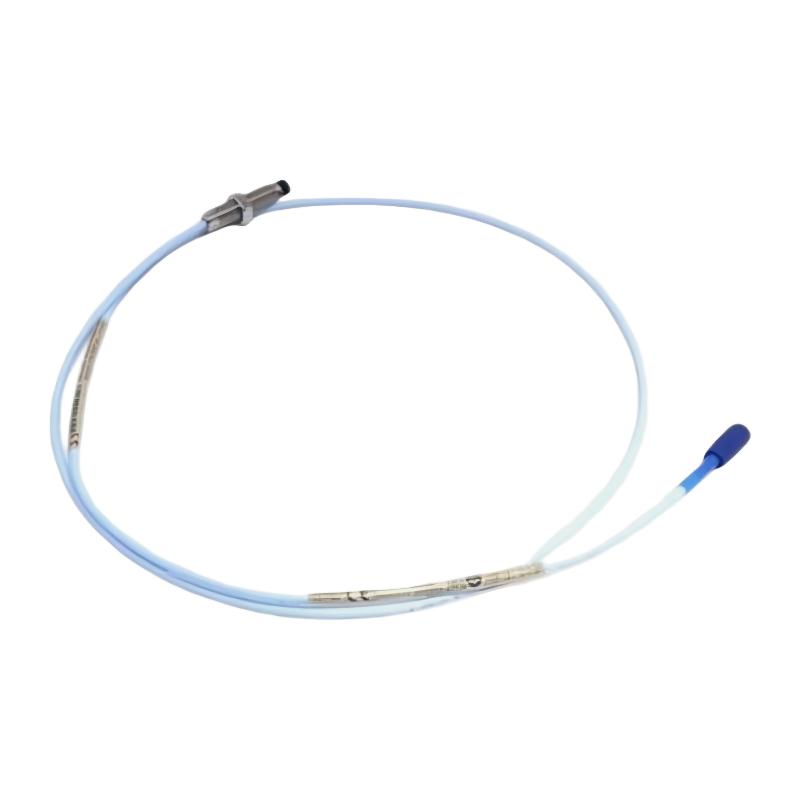

1. What is the main function of the 3300 Ceramic Cap Near Field Probe?

The 3300 Ceramic Cap Near Field Probe is designed for high-precision, non-contact measurement of shaft vibration and displacement in rotating machinery. It uses eddy current proximity sensing technology to continuously monitor the distance between the probe tip and the target shaft surface. This allows it to capture extremely small changes in shaft position, vibration amplitude, and dynamic movement in real time. The data it generates is essential for machinery protection systems and condition monitoring platforms, especially in high-speed industrial equipment where mechanical stability is critical.

2. What types of equipment is this probe typically used on?

This probe is commonly used on critical rotating machinery such as steam turbines, gas turbines, compressors, large electric motors, generators, and pump systems. These machines operate under high load and high speed conditions, where even minor vibration changes can indicate early-stage mechanical issues. The probe plays a key role in detecting shaft behavior, helping operators ensure stable operation and prevent unplanned shutdowns.

3. Why is eddy current technology used in this probe?

Eddy current technology is widely used because it enables precise, non-contact measurement of conductive materials such as metal shafts. It provides excellent linearity, fast response, and strong resistance to harsh industrial environments such as oil contamination, dust, vibration, and high temperature conditions. Since there is no physical contact between the probe and the rotating shaft, wear is eliminated and long-term measurement stability is significantly improved, making it ideal for continuous monitoring applications.

4. How does this probe contribute to machinery protection systems?

In machinery protection systems, the probe acts as a primary sensing element that continuously feeds real-time vibration and displacement data into monitoring modules. If abnormal vibration patterns, shaft movement, or mechanical instability are detected, the system can trigger alarms or even automatic shutdowns to prevent equipment damage. This early-warning capability is critical in preventing catastrophic failures, reducing downtime, and protecting expensive industrial assets.

5. What installation considerations are important for this probe?

Proper installation is essential for accurate measurements. The probe must be positioned at a calibrated distance from the target shaft surface to ensure correct linear output. It should be securely mounted to avoid mechanical drift caused by vibration or thermal expansion. Cable routing must also follow proper shielding practices to minimize electromagnetic interference from nearby power equipment. Incorrect installation can lead to inaccurate readings or unstable signals, so alignment and calibration are key steps during commissioning.

6. What can cause unstable or incorrect measurement signals?

Unstable signals can be caused by several factors, including improper probe gap setting, loose mounting hardware, damaged or poorly connected cables, or strong electromagnetic interference from nearby electrical equipment. In some cases, surface condition changes on the shaft, such as contamination or coating variations, may also affect signal consistency. A systematic check of mechanical installation, grounding quality, and signal conditioning modules is usually required to identify the root cause.

7. Can the probe operate in harsh industrial environments for long periods?

Yes, this probe is specifically designed for continuous operation in demanding industrial environments. It can withstand conditions such as high vibration levels, elevated temperatures, and electrical noise commonly found in power generation and heavy industry applications. Its robust ceramic cap design enhances durability and ensures stable performance over long periods of operation, making it suitable for 24/7 monitoring systems without frequent maintenance requirements.

8. What role does this probe play in predictive maintenance strategies?

The probe is a core component of predictive maintenance systems because it provides continuous, high-resolution data on machine shaft behavior. By analyzing vibration trends, displacement patterns, and dynamic changes over time, maintenance teams can identify early signs of imbalance, misalignment, bearing wear, or rotor instability. This allows maintenance actions to be planned before failure occurs, reducing unplanned downtime, extending equipment lifespan, and optimizing maintenance costs across industrial operations.
