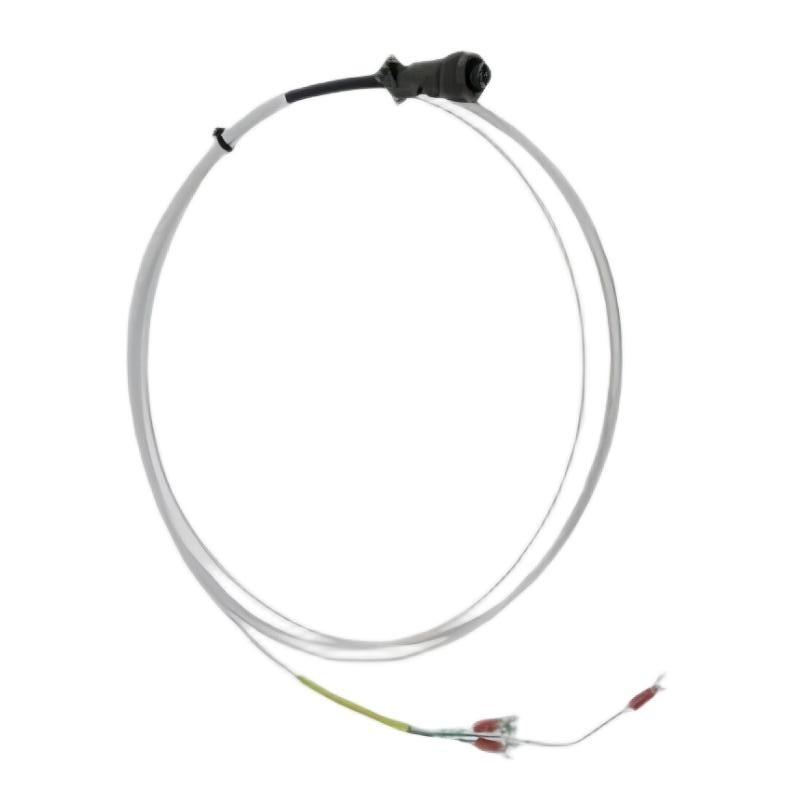

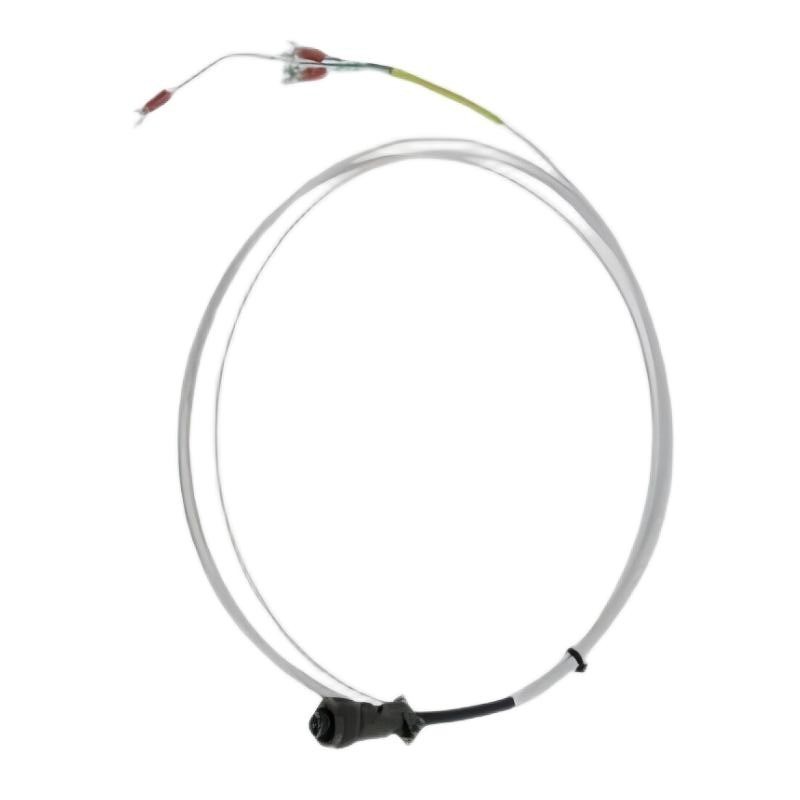

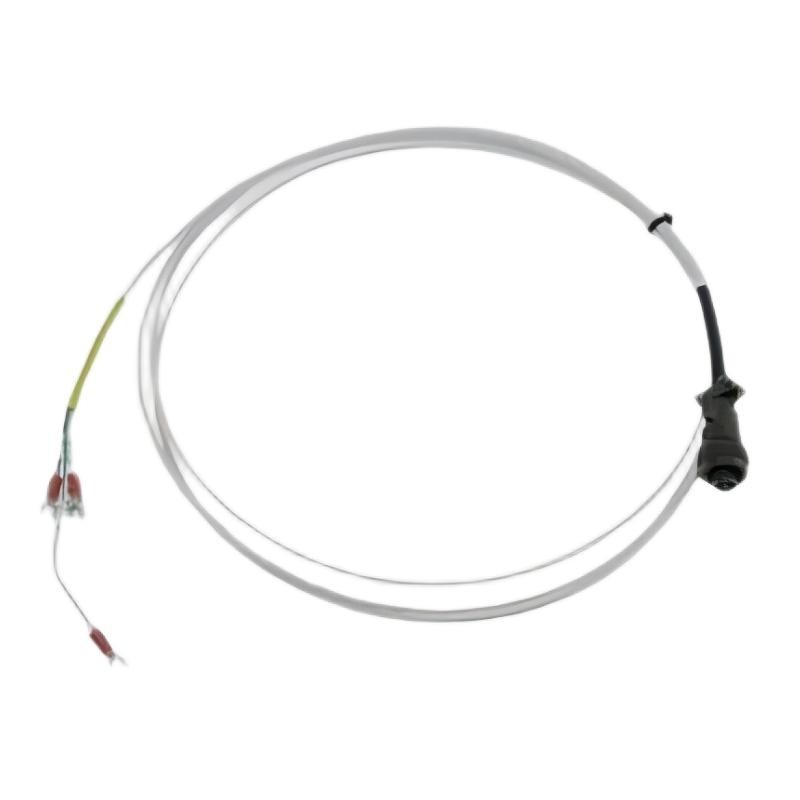

1. What is the main function of the 16710 Interconnecting Cable?

The 16710 Interconnecting Cable is designed to transmit low-noise measurement signals between vibration probes, monitoring modules, and control systems. Its primary role is to ensure that high-precision vibration and displacement signals collected from machinery are transferred without distortion or loss. In condition monitoring systems, signal integrity is critical, and this cable ensures that the data remains stable and accurate from the sensor to the monitoring equipment.

2. What systems is this cable typically used with?

This cable is commonly used with Bently Nevada 3300 and related machinery protection and condition monitoring systems. It is specifically designed to connect proximity probes, extension cables, and monitoring modules within rotating machinery protection architectures such as turbines, compressors, and generators.

3. Why is shielding important in this type of cable?

Shielding is essential because industrial environments contain strong electromagnetic interference generated by motors, VFDs, and high-voltage equipment. Without proper shielding, signal noise can distort vibration data, leading to inaccurate diagnostics. The 16710 cable uses high-grade shielding to minimize EMI and RFI interference, ensuring clean signal transmission even in electrically noisy environments.

4. Can this cable affect measurement accuracy?

Yes, but in a positive way when used correctly. A properly designed and installed interconnecting cable like the 16710 ensures that sensor signals are transmitted without degradation. However, improper routing, damaged shielding, or poor grounding can introduce noise or signal loss, which may indirectly affect measurement accuracy in the monitoring system.

5. What should be considered during installation?

During installation, the cable should be routed away from high-power electrical lines such as motor power cables or frequency converters. Proper grounding of the shielding is essential to reduce interference. The cable should also be secured to prevent mechanical stress, bending beyond recommended limits, or vibration-induced wear over time.

6. What can cause signal degradation in this cable?

Signal degradation can occur due to physical damage, improper grounding, loose connectors, or exposure to strong electromagnetic fields. Over time, environmental factors such as heat, vibration, and oil contamination can also affect cable integrity. Regular inspection of connectors and shielding continuity helps maintain optimal performance.

7. Is this cable suitable for continuous industrial operation?

Yes, the 16710 Interconnecting Cable is designed for continuous use in industrial environments. It is built to withstand long-term exposure to vibration, temperature fluctuations, and electrical noise, making it suitable for 24/7 machinery monitoring applications without frequent replacement.

8. What role does this cable play in predictive maintenance systems?

In predictive maintenance systems, this cable acts as the critical signal pathway between sensors and monitoring hardware. It ensures that real-time vibration and displacement data are accurately transmitted for analysis. Reliable data transmission enables early detection of mechanical issues such as imbalance, misalignment, or bearing wear, supporting proactive maintenance strategies and reducing unplanned downtime.
